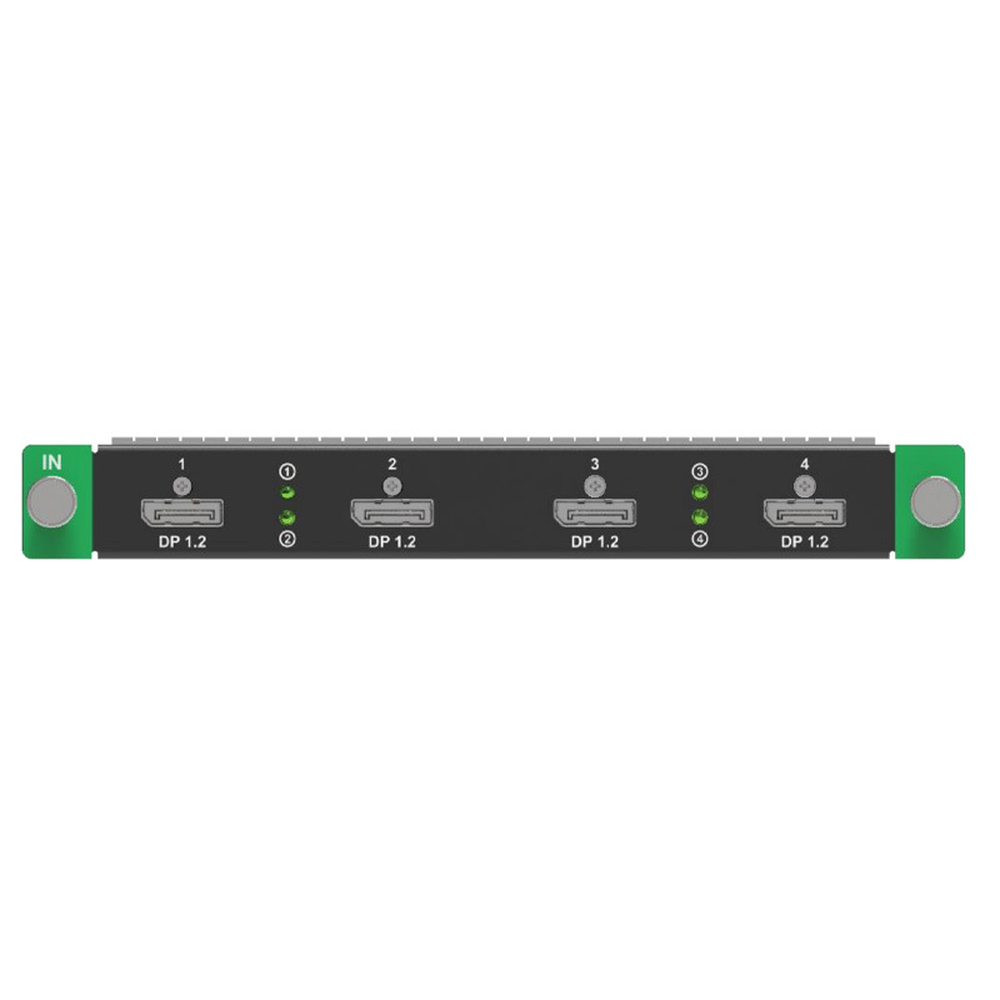

The NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card (MX_4xDP1.2) from DJDeals.com delivers four dedicated DisplayPort 1.2 inputs engineered specifically for the NovaStar COEX series flagship controllers, enabling high-fidelity signal management at the professional level. With support for resolutions up to 4096×2160@60Hz and an exceptional range of frame rates spanning from 23.98 Hz all the way to 240 Hz, the NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card is built to handle the most demanding live event and installation display environments.
The NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card pairs seamlessly with the MX2000 Pro and MX6000 Pro controllers, giving professionals a reliable pathway for feeding ultra-high-resolution content into large-scale LED video wall systems. Its HDCP 2.3 compliance, paired with backward compatibility down to HDCP 1.3, ensures that protected content pipelines remain secure and uninterrupted across a wide variety of source devices.
Beyond raw resolution capability, the NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card from DJDeals.com offers robust EDID management that accommodates both standard resolutions up to 3840×2160@60Hz and fully custom input resolutions, giving system integrators the flexibility to tailor signal parameters precisely to their display configurations. Whether driving wide-format canvases that stretch to 8192 pixels in width or tall portrait installations reaching 8192 pixels in height, the NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card provides the resolution headroom and signal integrity that professional productions require.
NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card (MX_4xDP1.2) Features:
- 4-Port DisplayPort 1.2 Input Card: Designed specifically for NovaStar COEX series flagship controllers, including the MX2000 Pro and MX6000 Pro, providing four dedicated DP 1.2 input connections for professional LED display system integration.
- Maximum Resolution: Supports up to 4096×2160@60Hz or 8192×1080@60Hz (Forced), enabling ultra-high-resolution content delivery for large-scale video wall applications.
- Minimum Resolution: Supports a minimum input resolution of 800×600@60Hz, ensuring compatibility with a broad range of source devices and configurations.
- Maximum Width and Height: Max width reaches 8192 pixels (8192×1080@60Hz), and max height reaches 8192 pixels (1080×8192@60Hz), accommodating wide-format landscape and tall portrait LED installations alike.
- Supported Frame Rates: Compatible with an extensive range of frame rates — 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60, 71.93, 72, 75, 100, 119.88, 120, 143.86, 144, and 240 Hz — covering broadcast, cinematic, and high-refresh-rate display standards.
- EDID Management: Supports standard resolutions up to 3840×2160@60Hz as well as custom input resolutions, giving integrators precise control over signal parameters to match specific display requirements.
- HDCP 2.3 Compliant: Fully compliant with HDCP 2.3 and backwards compatible with HDCP 2.2, HDCP 1.4, and HDCP 1.3, ensuring secure transmission of protected content across a wide range of source devices.
- Interlaced Signal Inputs: Interlaced signal inputs are not supported; only progressive scan signals are accepted.
NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card (MX_4xDP1.2) Specifications:
- Connector Type: DP 1.2
- Number of Ports: 4
- Max Resolution: 4096×2160@60Hz or 8192×1080@60Hz (Forced)
- Min Resolution: 800×600@60Hz
- Max Width: 8192 pixels (8192×1080@60Hz)
- Max Height: 8192 pixels (1080×8192@60Hz)
- Frame Rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
- EDID Management: Supports standard resolutions up to 3840×2160@60Hz; supports custom input resolutions
- HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2, HDCP 1.4, and HDCP 1.3
- Interlaced Signal Inputs: Not supported
- Country of Origin: CN
- Master Carton Quantity: 1
- Quantity Unit of Measure: EA
NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card (MX_4xDP1.2) Documents:
NovaStar MX_4xDP1.2 4-Port DP 1.2 Input Card (MX_4xDP1.2) System User Manual
