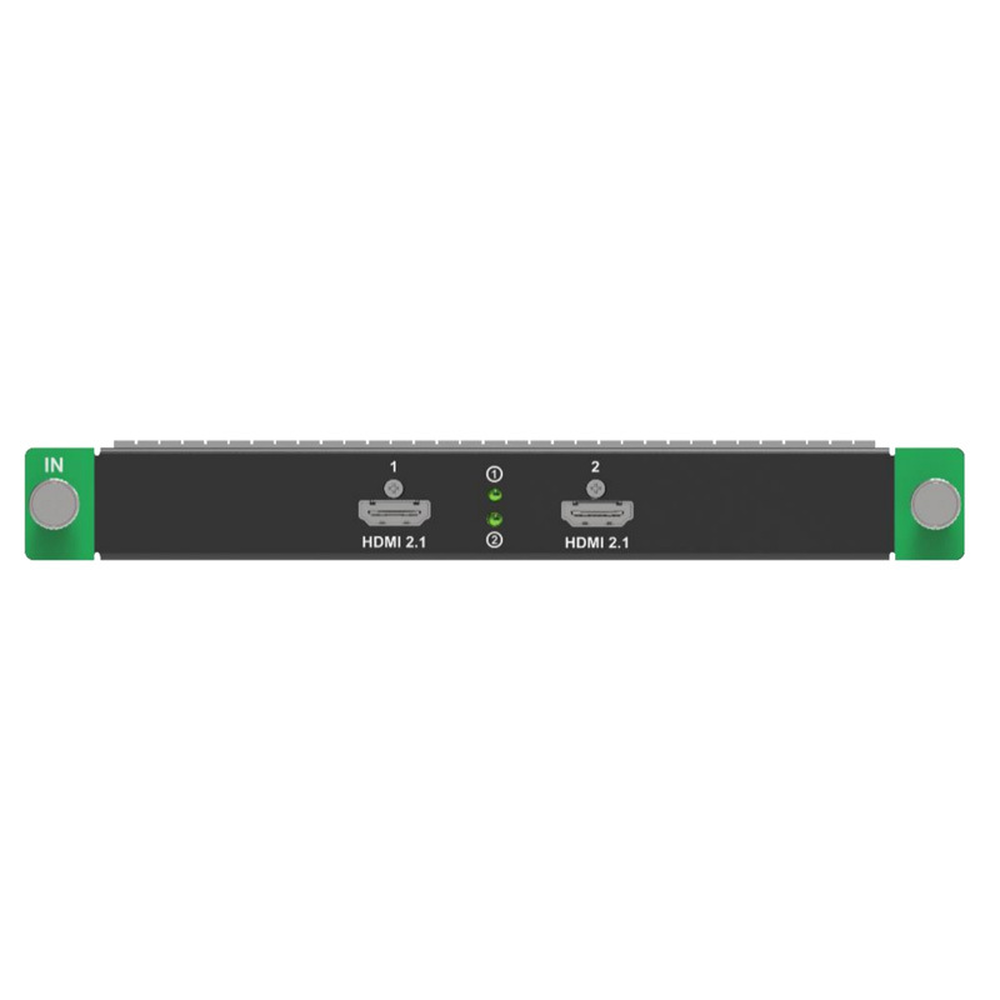

The NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card (MX_2xHDMI2.1) from DJDeals.com delivers two HDMI 2.1 ports engineered for ultra-high-definition signal processing in professional LED wall installations. Designed as a hot-swappable modular card for NovaStar MX6000 and MX2000 Pro controllers, it handles everything from standard broadcast resolutions all the way up to 8K at high frame rates.
The NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card supports an exceptional range of frame rates — from 23.98 Hz all the way up to 240 Hz — making it equally at home in cinematic production environments and high-speed live event displays. Its comprehensive HDR support, including HDR10 compliance with SMPTE ST 2084 and SMPTE ST 2086 standards as well as HLG, ensures that color and luminance data are preserved faithfully from source to screen.
Whether you are running multi-source configurations in a broadcast truck or managing massive LED canvases at a live concert, the NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card from DJDeals.com provides the signal integrity, resolution flexibility, and content-protection compliance that demanding professionals require. Its hot-swappable design minimizes downtime, allowing cards to be exchanged without powering down the controller chassis.
NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card (MX_2xHDMI2.1) Features:
- 2-Port HDMI 2.1 Input Card: 2-port HDMI 2.1 input card for NovaStar MX6000/2000 Pro controllers
- Supported Resolutions: Supports max resolution: 8192×4320@30Hz (Forced); Min resolution: 800×600@60Hz
- Maximum Dimensions: Max width: 8192 pixels (8192×4320@30Hz); Max height: 8192 pixels (4320×8192@30Hz)
- Frame Rates: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/71.93/72/75/100/119.88/120/143.86/144/240 Hz
- HDR Support: Supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards; Supports HLG
- EDID Management: Supports standard resolutions up to 3840×2160@60Hz; Supports custom input resolutions
- HDCP Compliance: HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3
- Hot-Swappable Modular Interface: Hot-swappable modular interface for ultra-high-definition broadcast and high-frame-rate LED walls
NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card (MX_2xHDMI2.1) Specifications:
- Interface Type: HDMI 2.1
- Number of Ports: 2
- Max Resolution: 8192×4320@30Hz (Forced)
- Min Resolution: 800×600@60Hz
- Max Width: 8192 pixels (8192×4320@30Hz)
- Max Height: 8192 pixels (4320×8192@30Hz)
- Frame Rates: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/71.93/72/75/100/119.88/120/143.86/144/240 Hz
- HDR: Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards; Support HLG
- EDID Management: Support standard resolutions up to 3840×2160@60Hz; Support custom input resolutions
- HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3
- Country of Origin: CN
- Quantity Unit of Measure: EA
- Master Carton Quantity: 1
NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card (MX_2xHDMI2.1) Documents:
NovaStar MX_2xHDMI2.1 Dual HDMI 2.1 Input Card (MX_2xHDMI2.1) System User Manual
