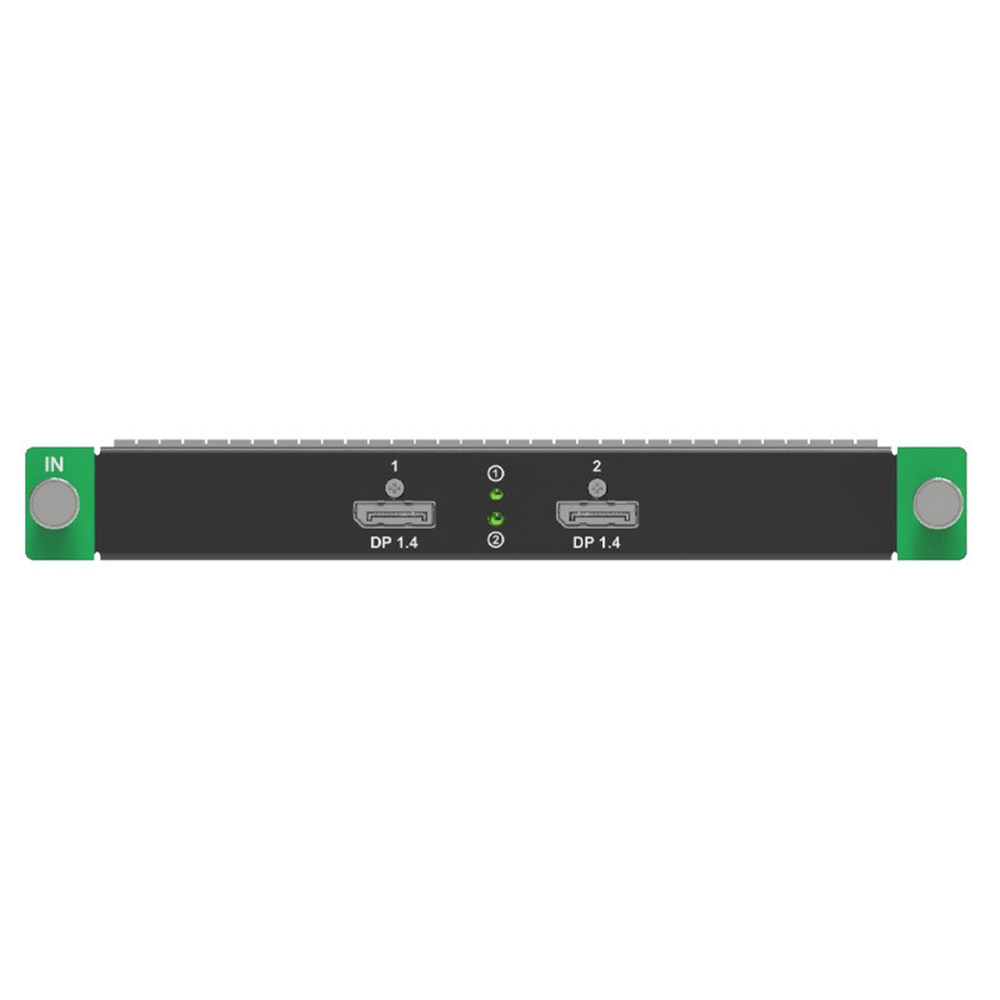

The NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card (MX_2xDP1.4) from DJDeals.com delivers exceptional ultra-high-definition video input capability for professional LED display installations, supporting resolutions up to 7680×4320 through two dedicated DisplayPort 1.4 connectors. Engineered for use with NovaStar’s flagship COEX series controllers, the NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card brings advanced HDR compliance and broad frame-rate support to demanding live event and broadcast environments.
The NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card stands out among professional input cards with its comprehensive HDR10 support, conforming to both SMPTE ST 2084 and SMPTE ST 2086 standards, as well as HLG compatibility, ensuring accurate, lifelike color reproduction across a wide range of source content. With HDCP 2.3 compliance and backward compatibility reaching all the way to HDCP 1.3, the NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card accommodates virtually any protected content source without signal degradation or compatibility issues.
Flexible EDID management allows the NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card to support standard resolutions up to 3840×2160@60Hz as well as fully custom input resolutions, giving operators precise control over how source devices communicate with the system. Supporting an extensive list of nineteen frame rates — from 23.98Hz all the way up to 240Hz — the NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card is a versatile, future-ready solution for high-end video processing workflows.
NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card (MX_2xDP1.4) Features:
- Dual DisplayPort 1.4 Input Connectors: Two DisplayPort 1.4 input connectors for ultra-high-definition video sources.
- Maximum and Minimum Input Resolution: Maximum input resolution: 7680×4320@30Hz (Forced); Minimum resolution: 800×600@60Hz.
- Maximum Pixel Dimensions: Maximum width: 8192 pixels (8192×4320@25Hz); Maximum height: 8192 pixels (4320×8192@25Hz).
- Supported Frame Rates: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/71.93/72/75/100/119.88/120/143.86/144/240 Hz.
- HDR Support: HDR10 compliant with SMPTE ST 2084 and SMPTE ST 2086 standards; also supports HLG.
- EDID Management: Supports standard resolutions up to 3840×2160@60Hz and custom input resolutions.
- HDCP Compliance: HDCP 2.3 compliant, backwards compatible with HDCP 2.2, HDCP 1.4, and HDCP 1.3.
- Interlaced Signal Inputs: Not supported.
- Controller Compatibility: Compatible with NovaStar COEX series flagship controllers: MX2000 Pro and MX6000 Pro.
- Country of Origin: China.
NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card (MX_2xDP1.4) Specifications:
- Connector Type: DP 1.4
- Quantity: 2
- Max Resolution: 7680×4320@30Hz (Forced)
- Min Resolution: 800×600@60Hz
- Max Width: 8192 pixels (8192×4320@25Hz)
- Max Height: 8192 pixels (4320×8192@25Hz)
- Frame Rates: 23.98/24/25/29.97/30/47.95/48/50/59.94/60/71.93/72/75/100/119.88/120/143.86/144/240 Hz
- HDR: Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards; Support HLG
- EDID Management: Support standard resolutions, up to 3840×2160@60Hz; Support custom input resolutions
- HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3
- Interlaced Signal Inputs: Not supported
- Master Carton Quantity: 1
- Country of Origin: CN
- Quantity Unit of Measure: EA
NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card (MX_2xDP1.4) Documents:
NovaStar MX_2xDP1.4 Dual 8K DisplayPort 1.4 Input Card (MX_2xDP1.4) System User Manual
