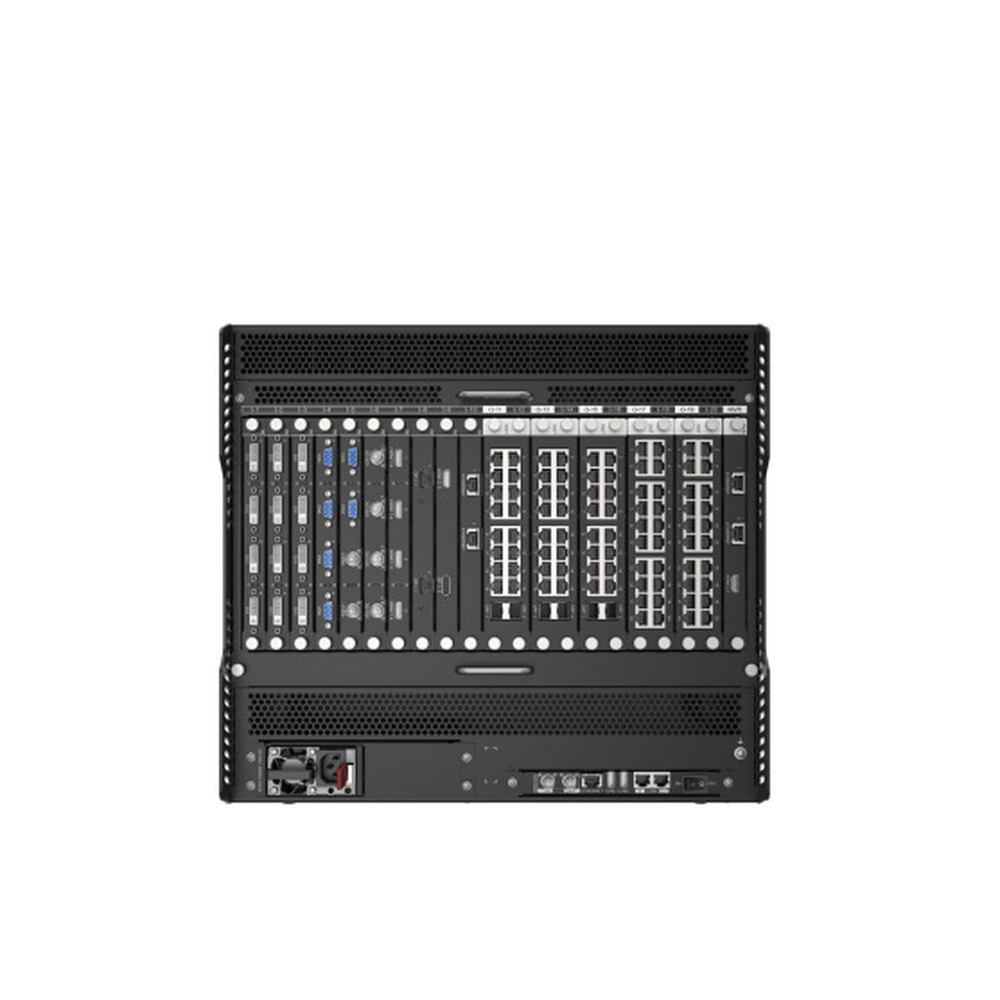

The NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) from DJDeals.com is a powerhouse all-in-one video wall solution engineered for large-scale LED installations that demand the highest levels of performance and reliability. Combining professional-grade splicing, scaling, and LED control in a single 9U rackmount chassis, the NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) sets a new standard for signal density, visual fidelity, and operational flexibility.
Whether you’re driving fine-pitch LED walls at a broadcast facility, a live event venue, or a high-profile corporate installation, the NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) delivers the pixel capacity and layering depth to bring any creative vision to life. With support for up to 130 million pixels at maximum configuration and HDR10/HLG high-frame-rate processing, every detail on screen is rendered with stunning clarity and cinematic smoothness.
System operators and AV integrators will appreciate the NovaStar H9 9U Chassis Video Wall Splicer (H9 Master)’s browser-based control architecture, which eliminates the need for dedicated software and allows full configuration from any device — Windows, Mac, iOS, or Android. Add in hot-swappable card slots, redundant power supply support, and built-in real-time hardware monitoring, and the result is a chassis purpose-built for mission-critical, around-the-clock deployments.
NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) Features:
- Massive Slot Density: A 9U rackmount chassis featuring 15 input slots and 5 output slots (or up to 10 output slots depending on configuration), offering the ultimate in signal flexibility.
- Extreme Loading Capacity: Supports 65 million pixels (standard) or up to 130 million pixels (with maximum fiber output card configurations).
- True All-in-One Solution: Combines professional video splicing, scaling, and LED control into a single unit, significantly reducing rack space and cabling complexity.
- Superior Layering Capabilities: Supports up to 16 layers per output card (up to 80–160 layers total depending on card setup), enabling complex multi-window layouts and intricate visual overlays.
- Cross-Platform Web Control: Utilizes a Browser/Server (B/S) architecture, allowing for full system configuration via any web browser on Windows, Mac, iOS, or Android — no software installation required.
- High-Fidelity Visuals: Fully supports 4K input/output, 10-bit color depth, HDR10/HLG, and high-frame-rate processing for smooth, cinematic quality on fine-pitch LEDs.
- Mission-Critical Reliability: Features a hot-swappable design for all cards and supports dual redundant power supplies to ensure 24/7 continuous operation without downtime.
- Advanced Monitoring: Built-in real-time hardware status tracking for fans, temperature, and voltage, with automatic fault alarms.
NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) Specifications:
- Chassis Size: 9U Rackmount
- Input Slots: 15 Slots (Cards sold separately)
- Output Slots: 5 to 10 Slots (Configuration dependent)
- Max Pixel Capacity: 65M (Standard) / 130M (Max)
- Max Layers: 16 per card / 80+ Total
- Control Connectivity: Dual RJ45 (Control & Preview), USB, Genlock
- Power Supply: 100–240V AC (Redundant Optional)
- Country of Origin: CN
- Master Carton Quantity: 1.0
- Quantity Unit of Measure: EA
NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) Documents:
NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) Spec Sheet
NovaStar H9 9U Chassis Video Wall Splicer (H9 Master) User Manual
