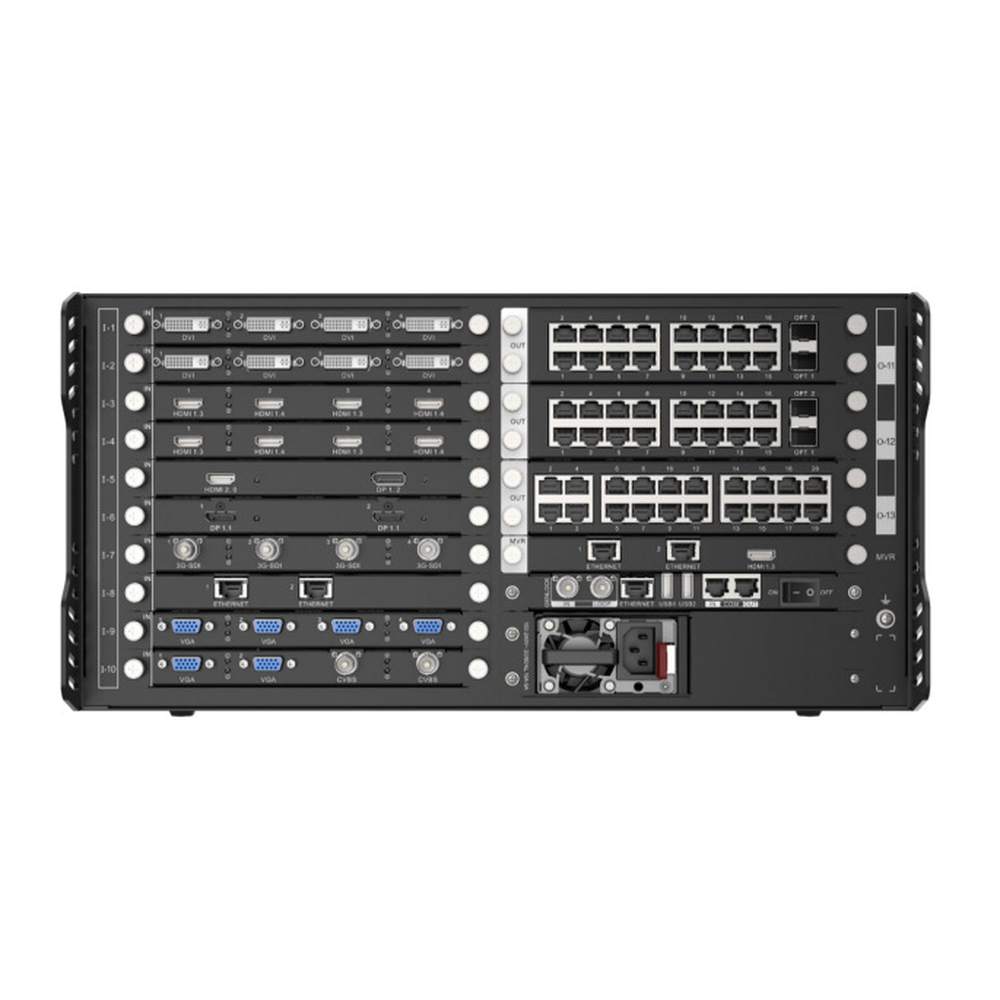

The NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) from DJDeals.com is a professional-grade video wall processing solution engineered for large-scale LED display installations that demand exceptional pixel capacity and rock-solid reliability. Built around a spacious 5U rackmount chassis, the NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) unifies high-end video processing and LED sending card functionality into a single, streamlined unit.
The NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) is purpose-built for mission-critical environments where downtime simply is not an option. With hot-swappable input and output cards, support for a redundant power supply, and real-time hardware monitoring, operators can maintain and upgrade the system without ever taking it offline — making the NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) an ideal choice for broadcast studios, command centers, live events, and permanent installation venues.
For integrators and AV professionals who require the highest standards in color accuracy and processing power, the NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) delivers 10-bit color depth, HDR10/HLG support, and high-frame-rate processing across configurations reaching up to 65 million pixels. Its web-based Browser/Server control architecture means that system configuration and management are accessible from any standard web browser on Windows, Mac, iOS, or Android — no dedicated software installation required.
NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) Features:
- High-Capacity 5U Chassis: Features 10 input slots and 3 output slots, providing extensive room for complex signal routing and massive display configurations.
- Enormous Loading Capacity: Supports up to 39 million pixels (standard) or a maximum of 65 million pixels (with the use of fiber opto-connector cards).
- True All-in-One Integration: Combines the functionality of a high-end video processor and an LED sending card into one unit, reducing points of failure and simplifying cable management.
- Advanced Multi-Layering: Supports up to 48 layers (16 layers per output card), allowing for sophisticated windowing, picture-in-picture (PiP), and complex visual overlays.
- Web-Based Control Interface: Features a Browser/Server (B/S) architecture, enabling full system configuration via any web browser on Windows, Mac, iOS, or Android without installing local software.
- Hot-Swappable Reliability: All input and output cards are hot-swappable, ensuring zero-downtime maintenance and the ability to upgrade hardware in the field.
- Industrial-Grade Stability: Engineered for 24/7 mission-critical environments with real-time monitoring of fans, temperature, and voltage, plus support for an optional redundant power supply.
- High-Fidelity Processing: Supports 10-bit color depth, HDR10/HLG, and high-frame-rate processing for smooth, vibrant visuals on fine-pitch LED walls.
NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) Specifications:
- Chassis Size: 5U Rackmount Chassis
- Input Slots: 10 Slots (Cards sold separately)
- Output Slots: 3 Slots (Cards sold separately)
- Max Pixel Capacity: 39M (Standard) / 65M (Max)
- Max Layers: 16 per card / 48 Total
- Control Connectivity: Dual RJ45 (Control & Preview), USB, Genlock
- Operating Temp: 0°C to +45°C
- Power Supply: 100–240V AC (Redundant Optional)
- Country of Origin: CN
- Shipping Height: 8.98 in.
- Shipping Width: 19.0 in.
- Shipping Depth: 20.98 in.
- Shipping Weight: 55.0 lbs.
- Master Carton Quantity: 1
- Quantity Unit of Measure: EA
NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) Documents:
NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) Spec Sheet
NovaStar H5 5U Rackmount Video Wall Splicer Master Case (H5 Master) User Manual
