The NovaStar H Series 4x HDMI Output Card (H_4xHDMI Output Card) from DJDeals.com delivers professional-grade HDMI output flexibility with support for single link, dual link, and high-refresh 144Hz output modes. Designed for demanding LED display applications, this output card provides precision color depth, custom resolutions, and output rotation capabilities that make it an essential component for advanced video processing setups.
The NovaStar H Series 4x HDMI Output Card supports both 8-bit and 10-bit color output across RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 formats, ensuring exceptional image fidelity in a wide range of display environments. Whether driving standard single-link displays or pushing high-resolution content through dual-link configuration, the NovaStar H Series 4x HDMI Output Card gives operators the control and output quality required for professional installations.
Built with practical status feedback in mind, the NovaStar H Series 4x HDMI Output Card features onboard status LEDs on each connector, allowing technicians to instantly confirm connection integrity at a glance. The card’s rotation and mirroring capabilities further expand its versatility, making it suitable for portrait, landscape, and creative display arrangements that require flexible signal routing.

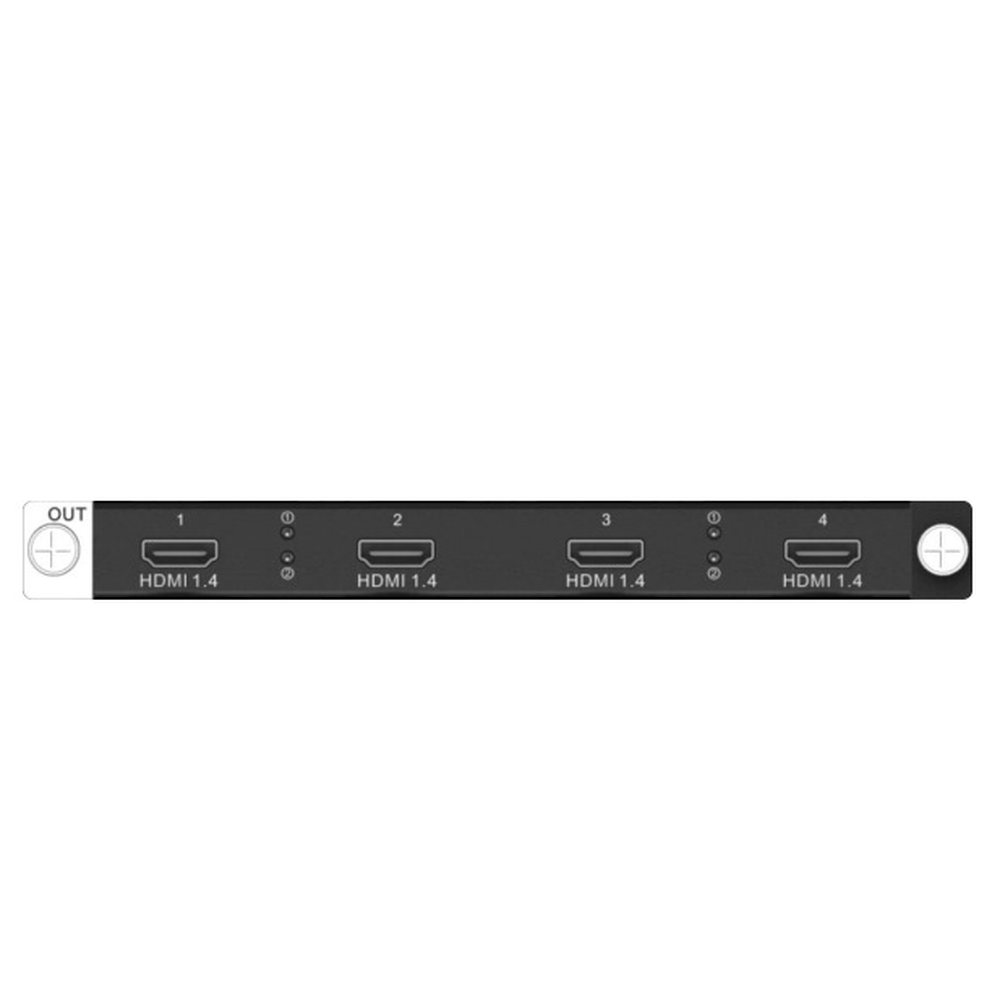

NovaStar H Series 4x HDMI Output Card (H_4xHDMI Output Card) Features:
- 4x HDMI 1.4: Supports single output, dual link output, and 144Hz output across all four HDMI 1.4 connectors.
- Single Link Output: Four connectors are all available for output. Each connector supports the maximum resolution of 2048×1152@60Hz. Custom resolutions: Max. width: 2560 pixels (2560×972@60Hz), Max. height: 2560 pixels (884×2560@60Hz).
- 8-bit Color Output (Single Link): Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output in Single Link mode.
- 10-bit Color Output (Single Link): Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output in Single Link mode.
- Output Rotation: Supports output rotation by multiples of 90°. In rotation mode, dual link output cannot be set and the layer quantity is halved with up to 8x SL layers supported.
- Rotation Mode — OSD Limitation: In rotation mode, the loaded screen does not support the image OSD function.
- Rotation Mode — Fade Transition Limitation: In rotation mode, the loaded screen does not support the fade transition effect.
- Rotation Mode — Card Compatibility Restriction: The cards supporting the rotation function cannot be used together with the cards of other types to load a screen. Even for the cards of the same type, the cards of the versions that support the rotation function and do not support this function cannot be used together to load a screen.
- Output Image Mirroring: Supports output image mirroring for flexible display orientation and signal routing configurations.
- Dual Link Output: Connectors 2 and 4 are available for output. Connector 1 copies the output on connector 2, and connector 3 copies the output on connector 4. Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz. Custom resolutions: Max. width: 4096 pixels (4096×1124@60Hz), Max. height: 4096 pixels (1014×4096@60Hz).
- 8-bit Color Output (Dual Link): Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output in Dual Link mode.
- 10-bit Color Output (Dual Link): Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output in Dual Link mode.
- Status LEDs: On — The output connector is connected normally; Off — The output connector is not connected.
NovaStar H Series 4x HDMI Output Card (H_4xHDMI Output Card) Specifications:
- Country of Origin: CN
- Quantity Unit of Measure: EA
- Master Carton Quantity: 1.0
- Shipping Weight: 1.7
- Shipping Height: 0.83 in.
- Shipping Width: 9.7 in.
- Shipping Depth: 7.6 in.
NovaStar H Series 4x HDMI Output Card (H_4xHDMI Output Card) Documents:
NovaStar H Series 4x HDMI Output Card (H_4xHDMI Output Card) User Manual
