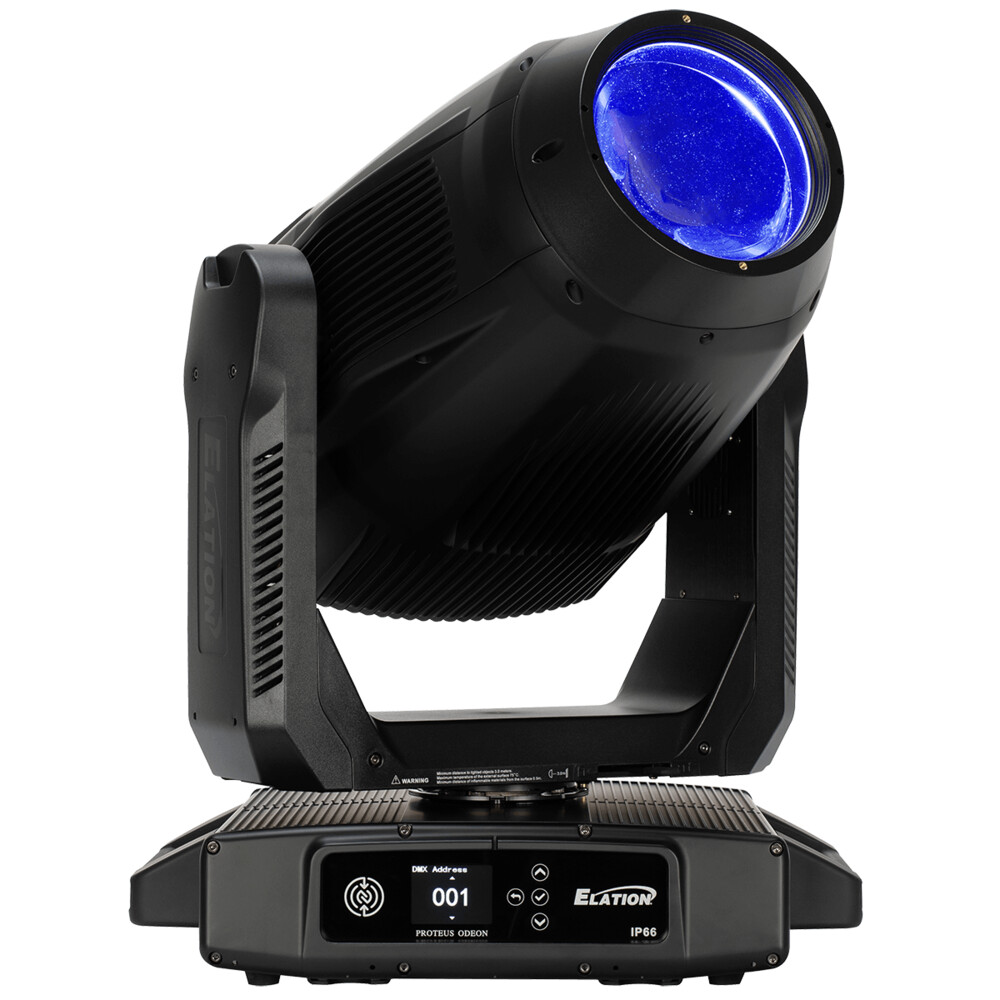

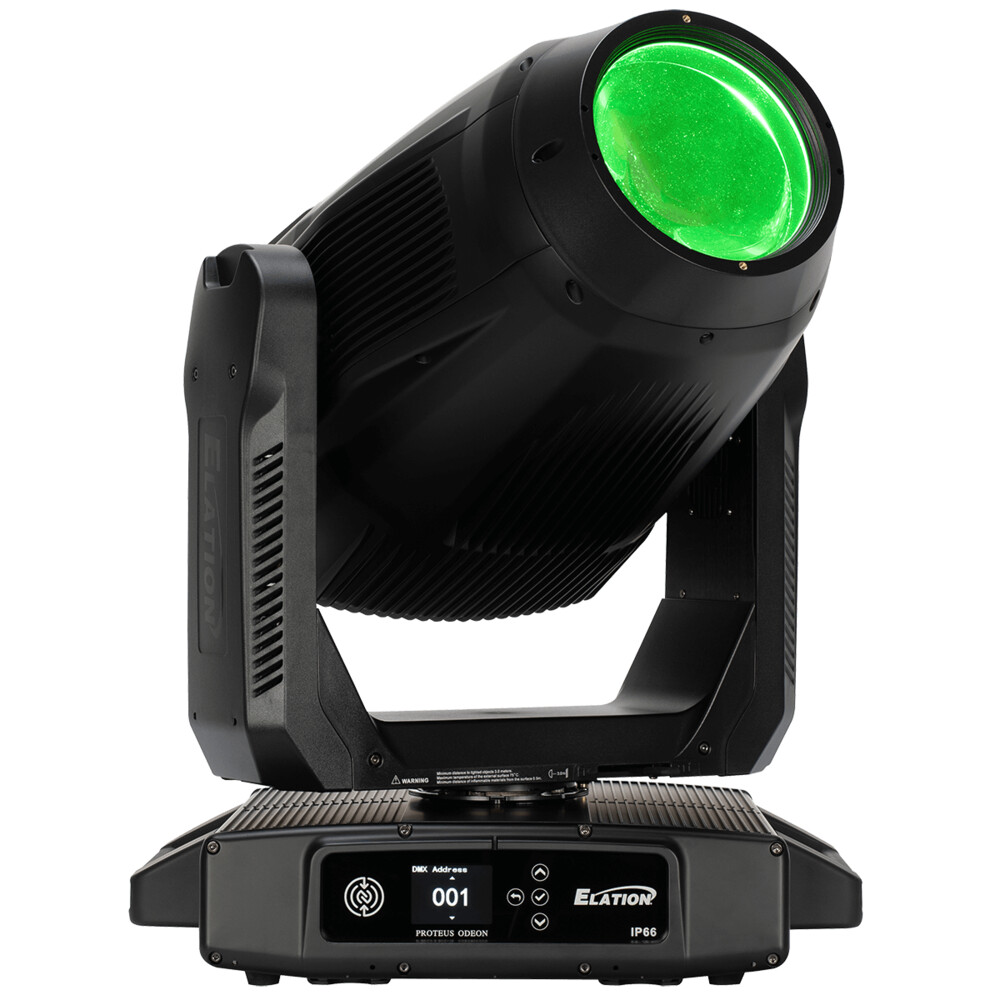

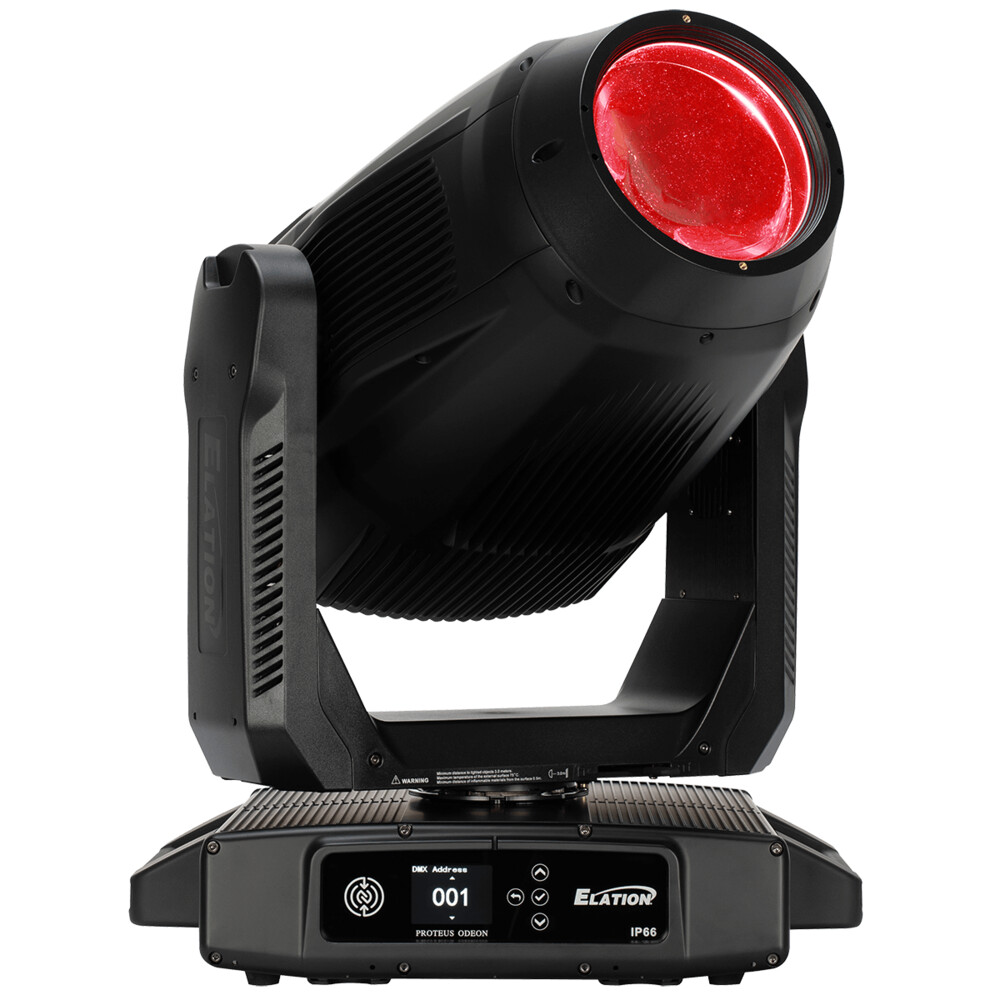

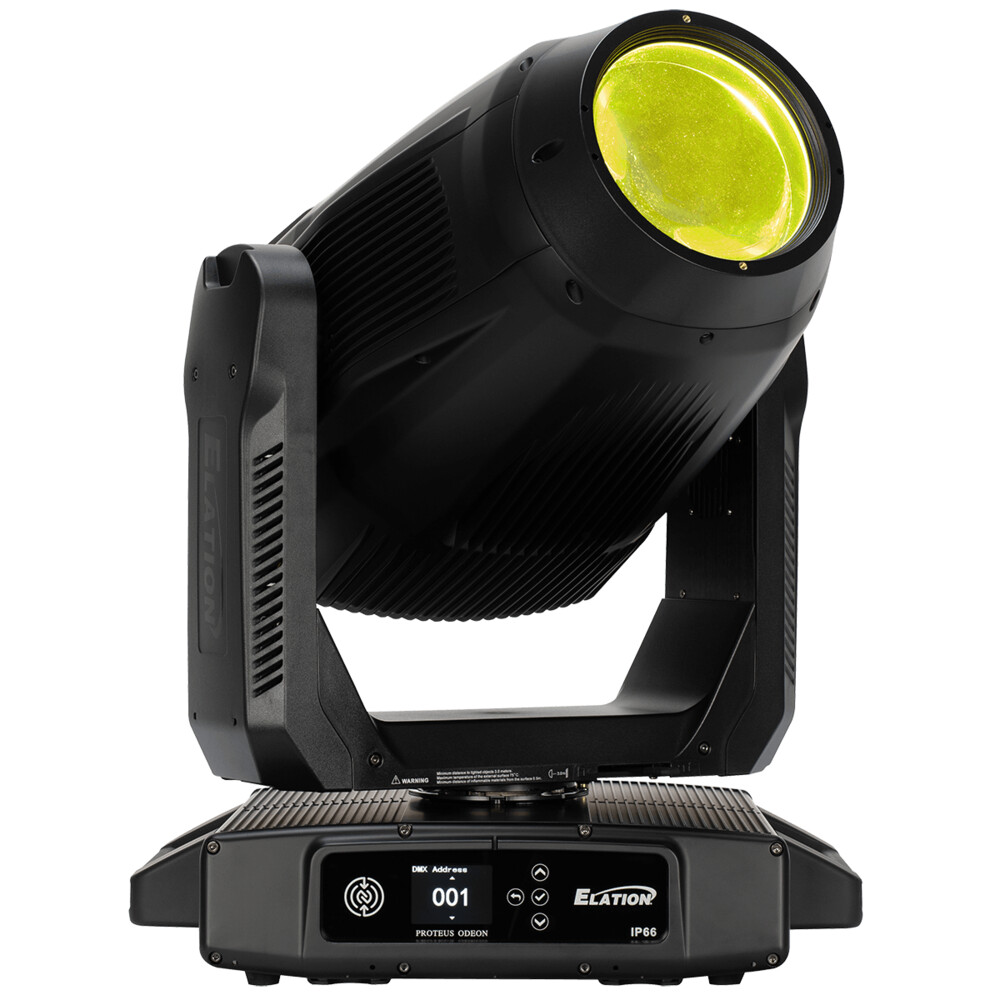

The Elation Professional PROTEUS ODEON (PRO621) from DJDeals.com is a powerful yet compact IP66-rated LED profile fixture delivering up to 32,000 lumens from an 850W Variable CRI White LED engine with TruTone remote CRI adjustment from CRI 70 to CRI 93. The PROTEUS ODEON provides a comprehensive FX package with three gobo wheels, animation wheel, overlapping dual prisms, dual frost, high-speed iris, and a 4-blade indexable framing system — all in a rugged IP66 housing with motorized zoom from 5.5° to 50° for outstanding projection and beam qualities in any environment.
Elation Professional PROTEUS ODEON (PRO621) Features:
- 850W Variable CRI LED Engine — 32,000 Lumens. The custom-designed High Efficiency 850W 6,500K Variable CRI White LED engine delivers 32,000 total lumens at CRI 80, with a 30,000-hour average LED life and a flat field engine design optimized for precise projection at long distances.
- TruTone Variable CRI Adjustment. Seamlessly adjustable from CRI 70 to CRI 93, TruTone technology allows lighting designers to select the best blend of light output and color accuracy for any application — from high-output concert touring to high-fidelity broadcast and architectural lighting.
- IP66 Outdoor Certification. Fully sealed against dust and water ingress, the PROTEUS ODEON is engineered for permanent outdoor installations, touring productions, cruise ships, and any environment where rugged weather resistance is required.
- 4-Blade Indexable Framing System. Four rotating full-blackout framing blades with plus/minus 45 degree framing indexing provide precise beam shape control for clean architectural projections, theatrical lighting shapes, and broadcast-quality spot work.
- 3 Gobo Wheels with 20 Total Gobos. Three gobo wheels offer 6 rotating gobos (Wheel 1), 7 rotating gobos (Wheel 2), and 7 static gobos (Wheel 3), combined with a full 360° bi-directional animation wheel for rich texture projection at any scale.
- Dual Prisms & Dual Frost Filters. 4-facet and linear rotating prisms combined with two variable frost filters (light and wash) deliver a wide range of beam effects from precise tight spots to soft diffuse washes, with smooth internal macro transitions.
- Wide Zoom Range 5.5° to 50°. Motorized zoom covers 5.5° through 50° (beam angle 4.9° to 48.9°) out of a compact fixture body, making the PROTEUS ODEON equally capable of precision long-distance gobo work and broad stage wash coverage.
- CMY Color Mixing & Color System. Full CMY color mixing, linear CTO color correction, and 5 dichroic colors including UV filter deliver rich, nuanced color control for any application from subtle architectural washes to bold theatrical moments.
- Advanced Control Architecture. Four DMX channel modes with DMX, RDM, Art-Net, and sACN support, 16-bit pan/tilt/dimming control, motorized focus with auto-focus presets, and a wired digital communication network for inter-fixture connectivity.

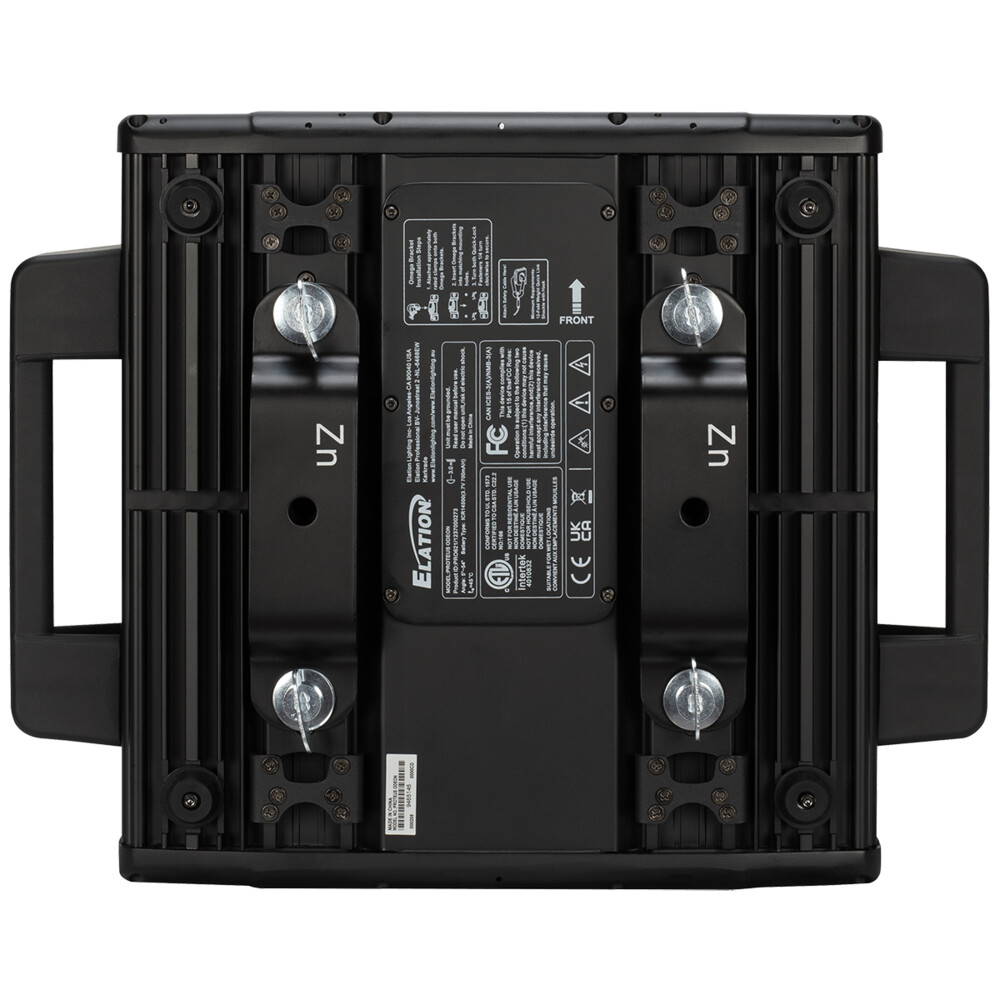

- Complete Accessories Included. Ships with omega brackets (x2), an IP65-rated RJ45 data cable for fixture-to-fixture interconnect, and an IP65-rated locking power cable for plug-and-play deployment in any installation.
Elation Professional PROTEUS ODEON (PRO621) Specifications:
- Light Source: High Efficiency 850W 6,500K Variable CRI White LED Engine
- LED Life: 30,000 hours average
- Total Lumens: 32,000 @ CRI 80
- CRI Range: TruTone variable CRI up to CRI 93
- Zoom Range: 5.5° – 50°
- Beam Angle: 4.9° – 48.9°
- Field Angle: 5.7° – 53°
- Effects: Motorized Zoom, 4 Rotating Full Blackout Framing Blades ±45°, Full 360° Bi-Directional Animation Wheel, 4-Facet & Linear Rotating Prisms, 2 Variable Frost Filters, Internal Color/Framing/Prism/Frost Macros, Motorized Iris w/ Variable Pulse Effects, Variable 16-bit Dimming, High Speed Electronic Shutter & Strobe, DMX Controllable LED Refresh Rate
- Pan Angle: 540° / 630°
- Tilt Angle: 250°
- Color: CMY Color Mixing, Linear CTO Color Correction, 5 Dichroic Colors including UV Filter
- Gobo Wheels: 3 wheels — 6 rotating (Wheel 1), 7 rotating (Wheel 2), 7 static (Wheel 3)
- DMX Channel Modes: 4 modes
- Control Protocols: DMX, RDM, Art-Net, sACN
- Display: Full Color 180° Reversible LCD, 6-Button Touch Panel
- Connectivity: IP65 Locking 5-pin XLR In/Out, IP65 Locking RJ45 Ethernet In/Out, IP65 Locking Power In
- Length: 18.41″ (467.66mm)
- Width: 14.57″ (370mm)
- Height: 27.2″ (692mm)
- Weight: 97.7 lbs. (43.4 kg)
- Power Supply: AC 120–240V, 50/60Hz
- Max Power Consumption: 1,500W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP66
- Approvals: CE, cETLus, FCC, IP66, UKCA
- Included: Omega Brackets (x2), IP65 RJ45 Data Cable, IP65 Locking Power Cable
- SKU: PRO621
- UPC: 810008264225
