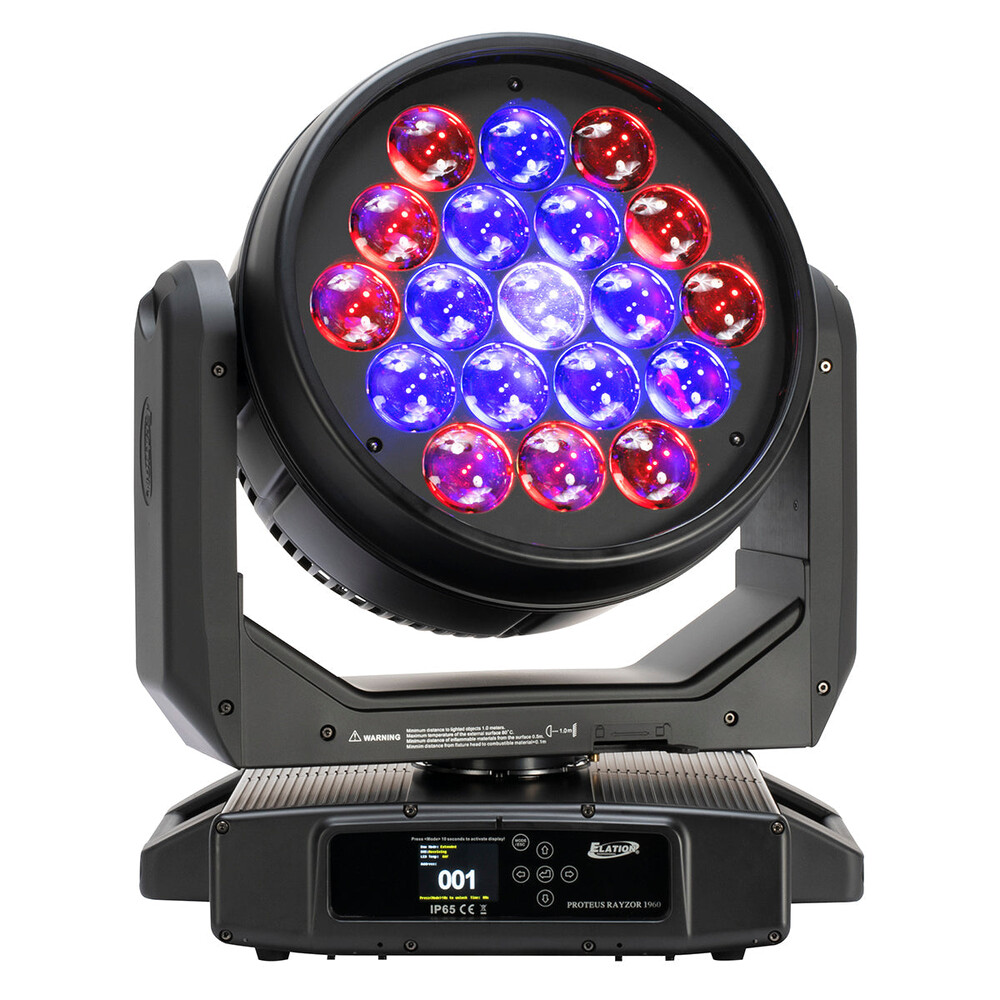

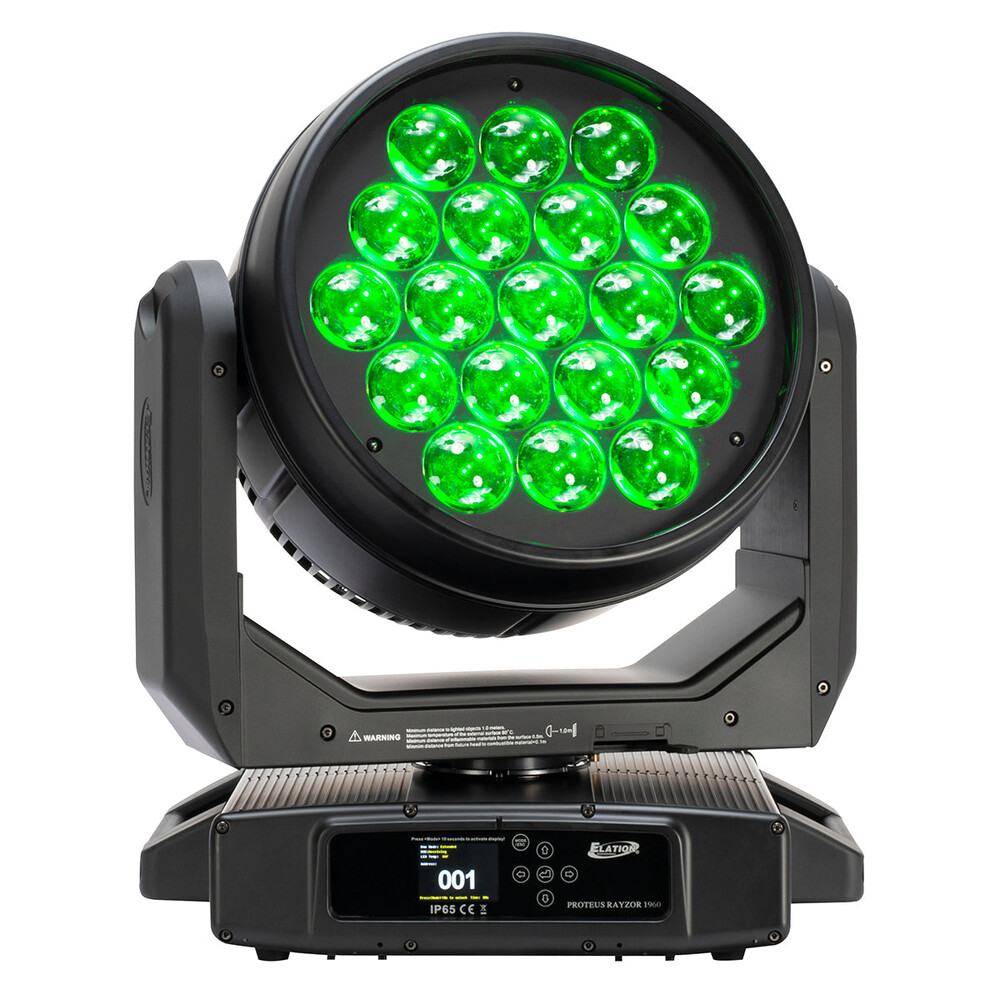

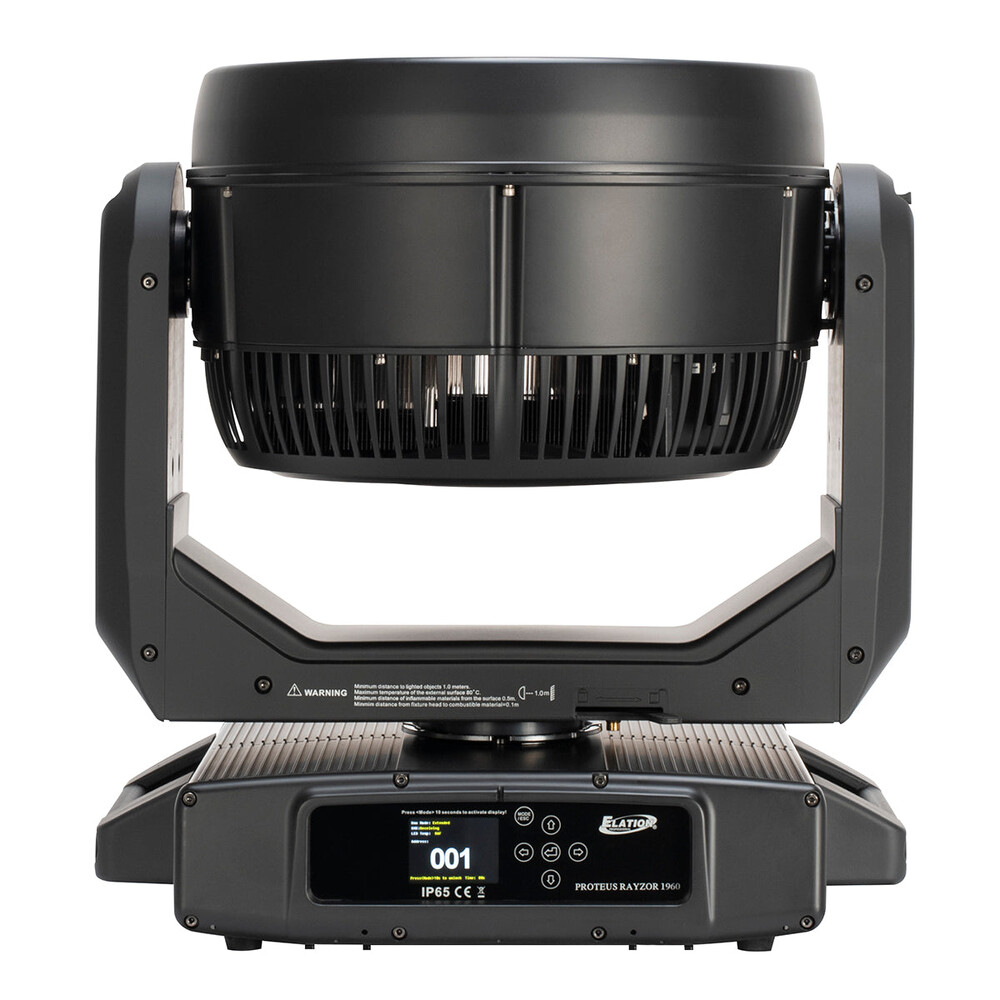

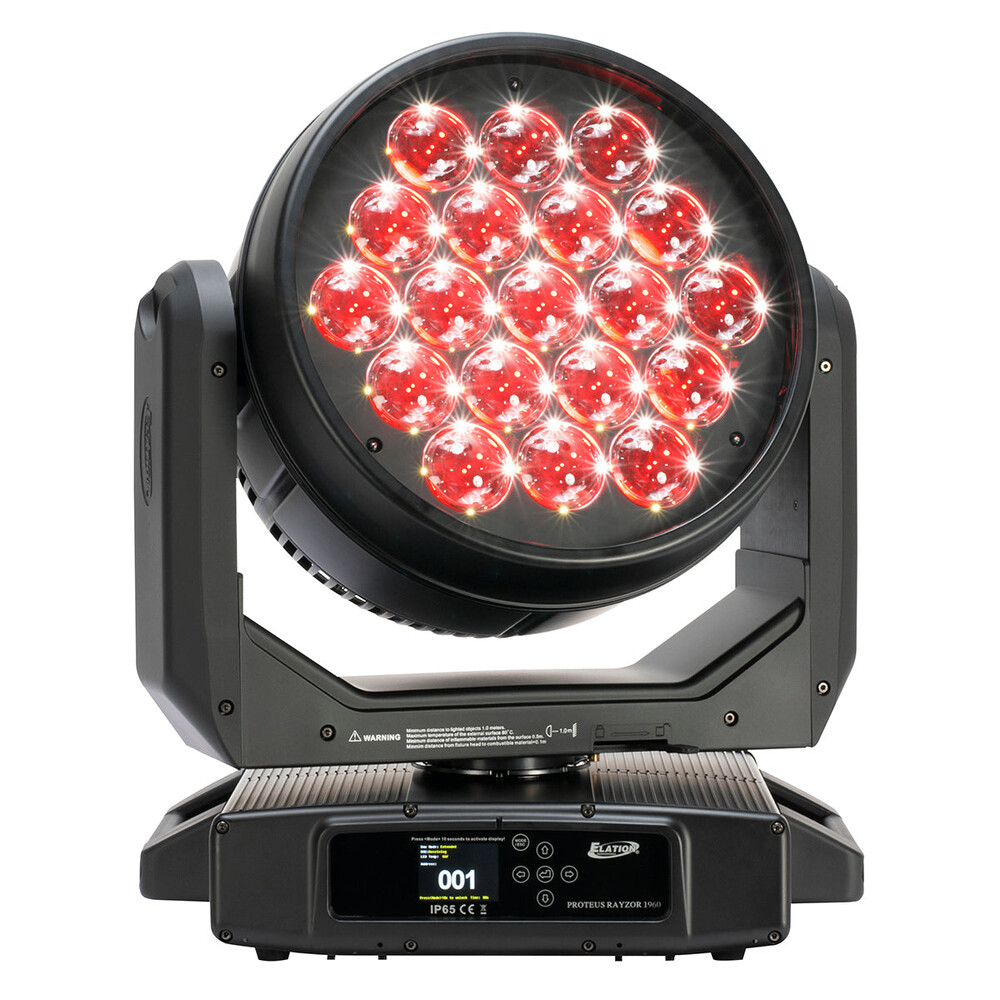

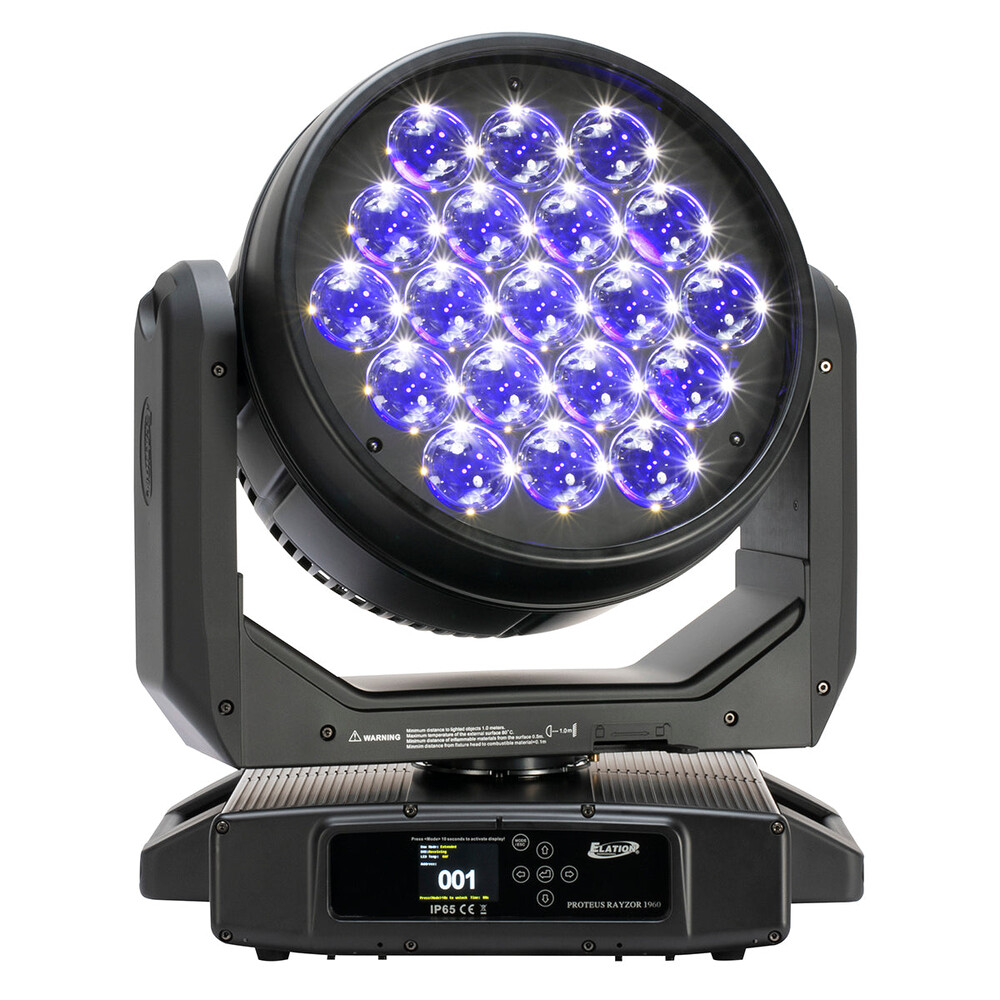

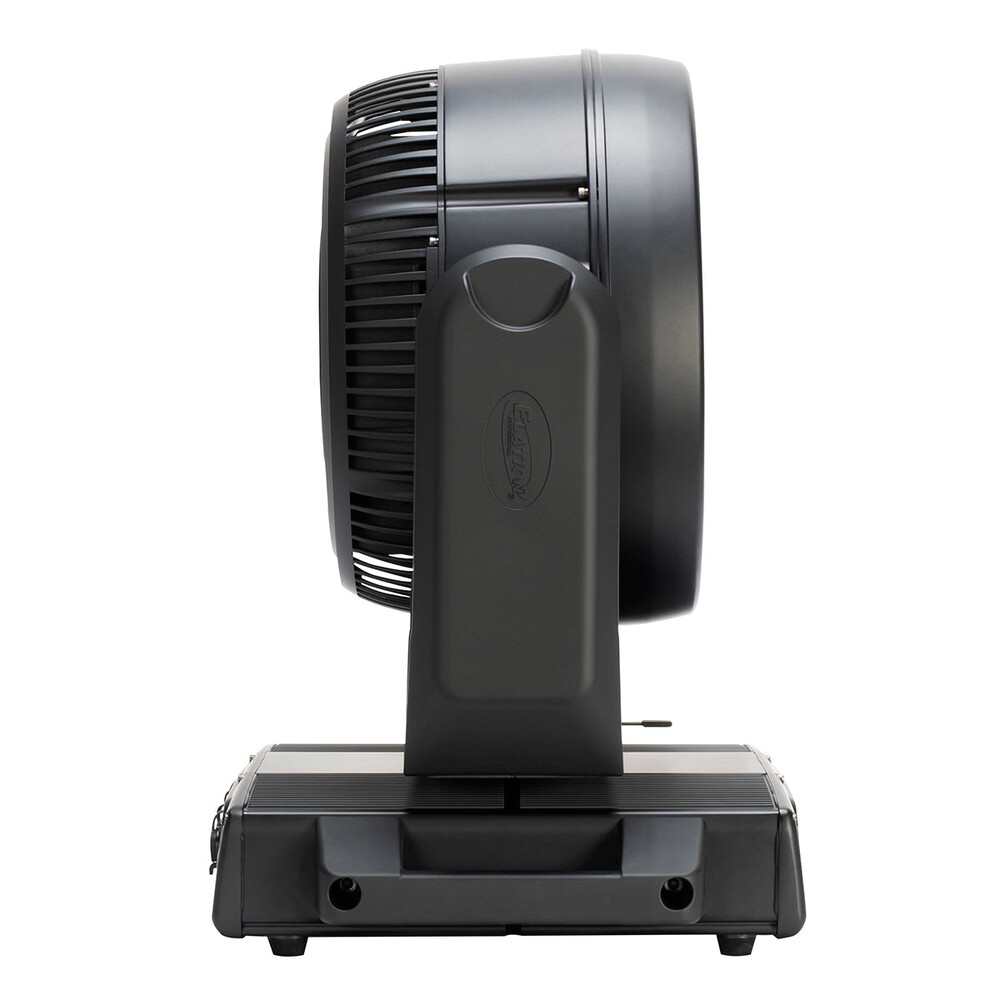

The Elation Professional PROTEUS RAYZOR 1960 (PRR196) from DJDeals.com is a compact yet extremely powerful IP65-rated wash effects fixture featuring 19 independently controlled 60W OSRAM RGBW LEDs delivering 18,100 lumens, 76 pixel-controlled SparkLED effects built into the oversized front lenses, and fast continuous 360° pan and tilt rotation for unprecedented aerial beam and wash designs. The PROTEUS RAYZOR 1960 provides an extreme zoom range from 5° to 55°, three DMX channel modes up to 176 channels for full pixel control, and ships with FIL foam-in-lay packaging — ideal for large-format outdoor concerts, stadiums, and touring productions.
Elation Professional PROTEUS RAYZOR 1960 (PRR196) Features:
- 19x 60W OSRAM RGBW LEDs — 18,100 Lumens. Nineteen independently controlled 60W OSRAM RGBW LED cells deliver 18,100 lumens of total output at CRI 80 with a 50,000-hour average LED life and 1,140W total power, providing large-format wash and mid-air beam output competitive with traditional discharge wash fixtures.
- 76x SparkLED Pixel Effect System. Elation’s patented SparkLED technology places 76 individual 2W white LEDs strategically inside the oversized front lenses, creating a unique internal lens illumination layer that provides an additional creative layer of pixel effects — a never-before-seen method of internal lens illumination for depth and visual impact.
- 360° Continuous Pan & Tilt Rotation. Continuous 360° rotation on both pan (540° / 360° continuous) and tilt (270° / 360° continuous) axes at variable speed from slow sweeping motion to extreme high-speed rotation enables designers to create aerial beam spirals, fan effects, and coordinated multi-fixture patterns impossible with conventional movement fixtures.
- IP65 Outdoor Certification. Fully sealed against dust and water ingress, the PROTEUS RAYZOR 1960 is engineered for permanent outdoor installations, touring stages, large-format festival productions, and any environment demanding both high output and weather resistance.
- Extreme Zoom Range 5° to 55°. Motorized zoom spans from 5° for intense mid-air beam columns to 55° for exceptionally wide, even wash coverage — providing designers both aerial beam performance and broad stage wash capability from the same rigging position.
- Full Pixel Control — 176 DMX Channels. Three channel modes (25/100/176 channels) enable simple single-color operation through full per-cell pixel control of all 19 RGBW zones and 76 SparkLED cells, supporting complex pixel mapping, chases, and video content integration on large rigs.
- Linear Color Temperature Presets. Adjustable from 2700K to 8000K with full RGBW color mixing, pixel control, electronic strobe, variable dimming curves with 16-bit resolution, and DMX-adjustable refresh rate (900–25,000 Hz) for broadcast-compliant flicker-free operation.
- IP65 Sealed Connectivity. IP65-rated 5-pin XLR DMX In/Out, RJ45 Ethernet In/Out (Art-Net, sACN), and locking IP65 power connections ensure sealed, reliable performance in permanent outdoor rigs and touring trusses exposed to the elements.
- RDM Support & Touch Interface. Full RDM support for remote addressing and diagnostics, 6-button touch control panel, and full-color 180° reversible LCD display for local fixture management without requiring ladder access in installed positions.

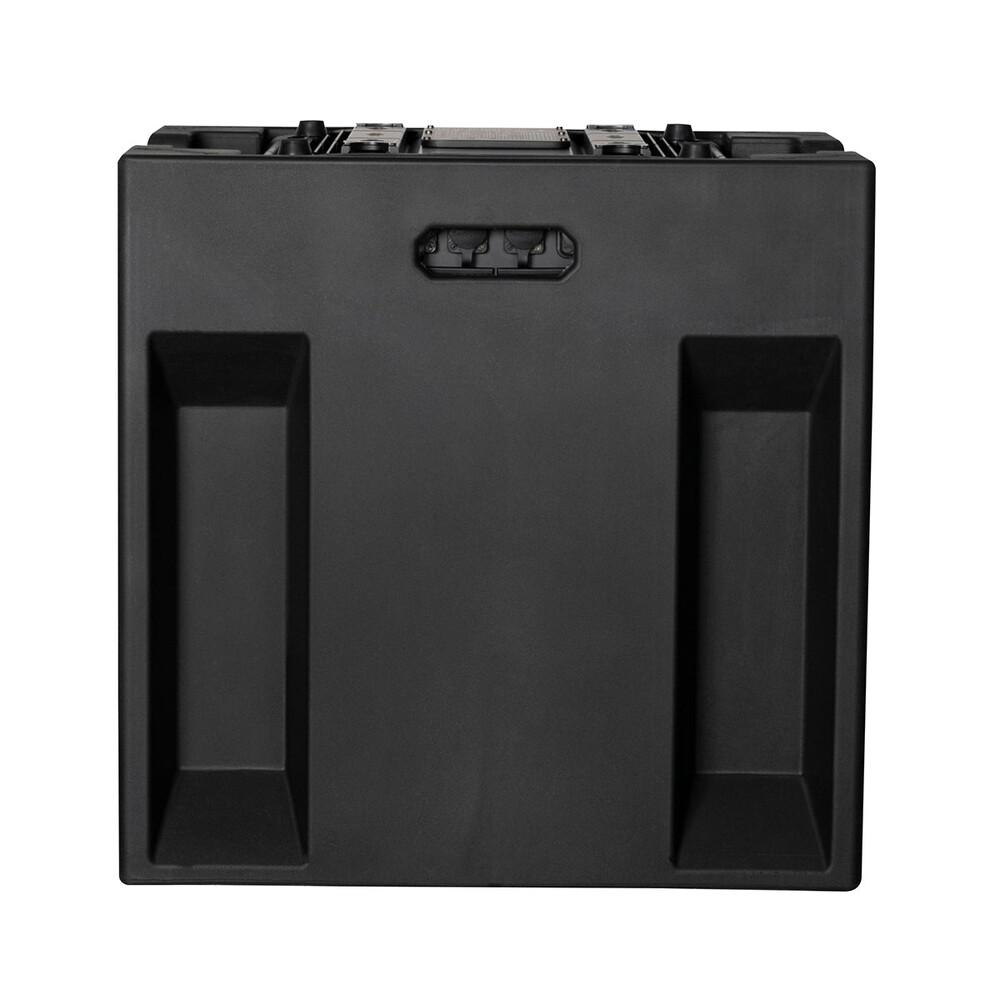

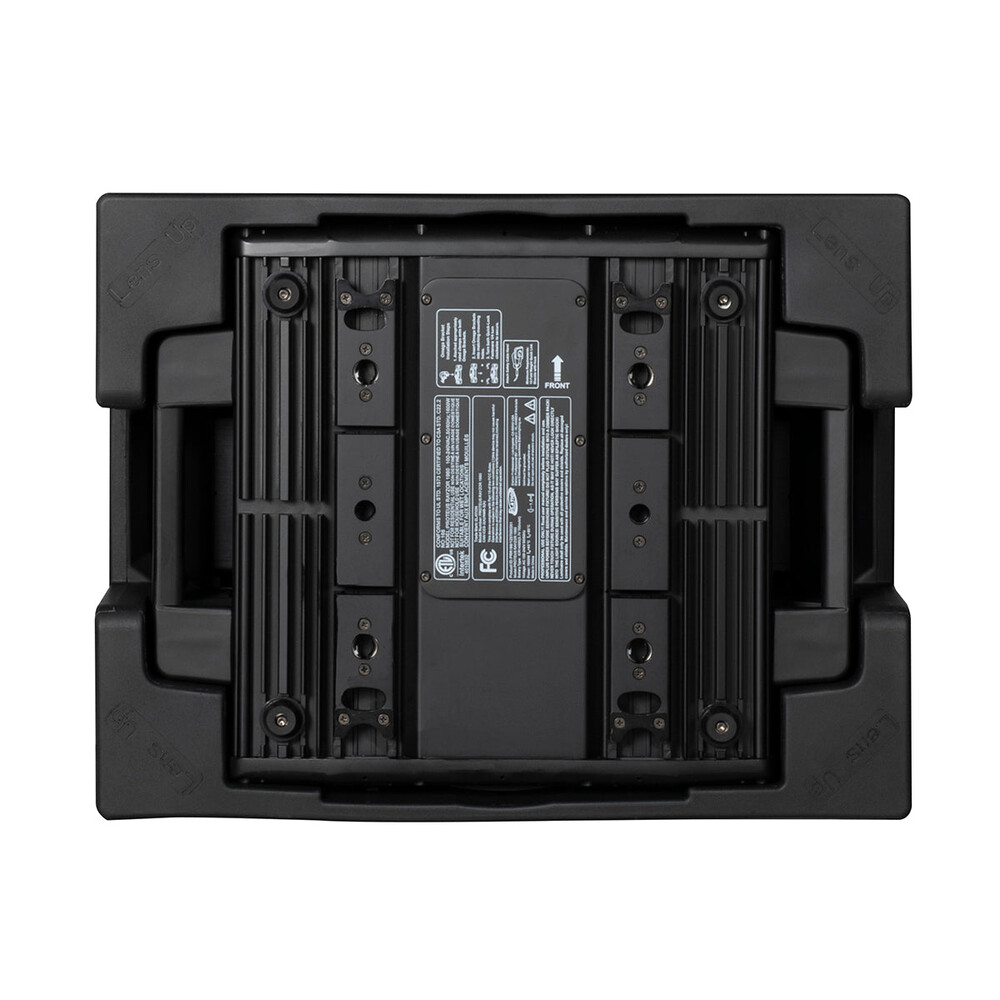

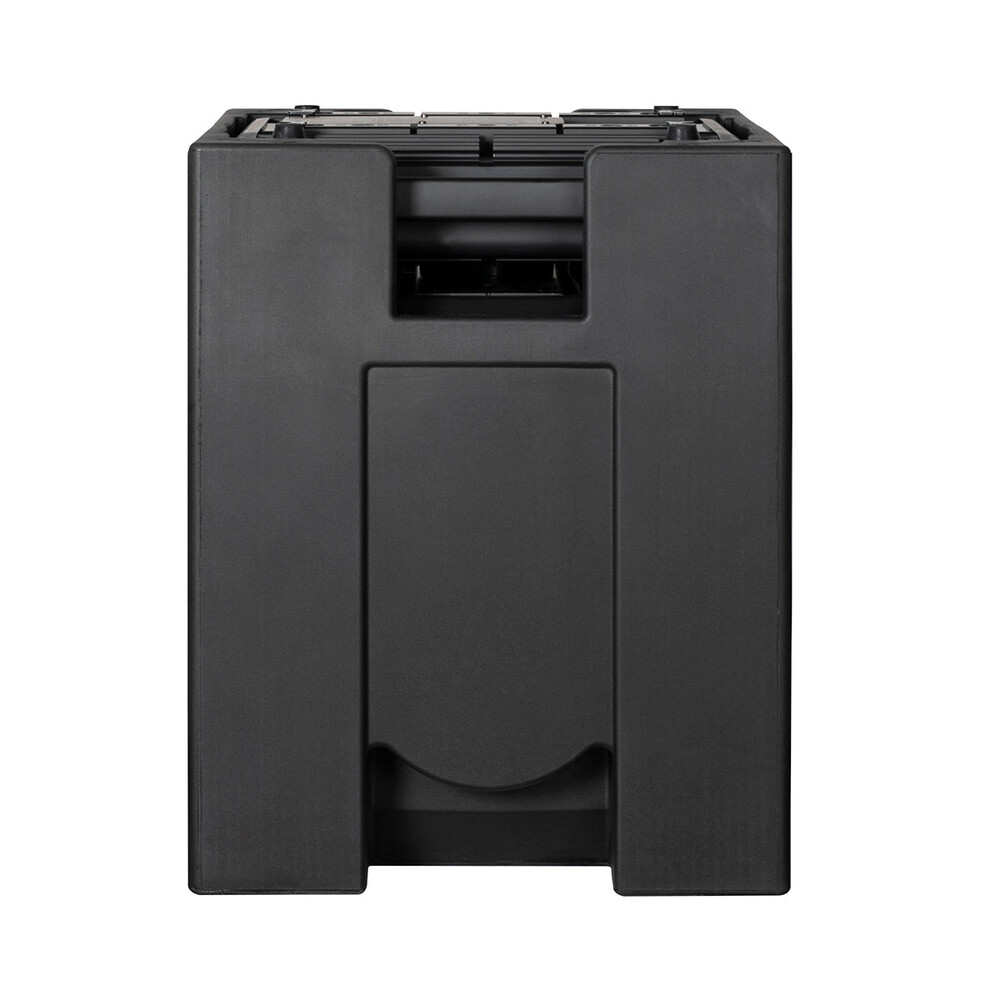

- FIL Foam-In-Lay Packaging. Ships with a custom-fitted FIL polyurethane foam insert for enhanced impact protection during international touring transport, designed to fit standard custom flight cases for efficient packing in large production rigs.
Elation Professional PROTEUS RAYZOR 1960 (PRR196) Specifications:
- LED Sources: (19) 60W OSRAM RGBW LEDs, (76) 2W White SparkLED
- LED Life: 50,000 hours average
- Total Lumens: 18,100
- CRI: 80
- Zoom Range: 5° – 55°
- Beam Angle: 5.6° – 53.6°
- Field Angle: 7.8° – 71°
- Effects: Motorized Zoom, Linear Color Temperature Presets (2700–8000K), RGBW Color Mixing & Pixel Control, White SparkLED Lens Effect, Color Presets & Macros, Electronic Strobe, Variable 16-bit Dimming
- Pan Angle: 360° continuous / 540°
- Tilt Angle: 360° continuous / 270°
- DMX Channel Modes: 3 modes (25 / 100 / 176 channels)
- Control Protocols: DMX, RDM, Art-Net, sACN
- DMX Refresh Rate: Adjustable 900–25,000 Hz
- Display: Full Color 180° Reversible LCD, 6-Button Touch Panel
- Connectivity: IP65 5-pin XLR DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power Cable In
- Length: 14.81″ (376.26mm)
- Width: 18.41″ (467.68mm)
- Height: 22.80″ (579.04mm)
- Weight: 73.0 lbs. (33.1 kg)
- Power Supply: AC 100–240V, 50/60Hz
- Max Power Consumption: 1,600W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP65
- Approvals: CE, cETLus, IP65, UKCA
- SKU: PRR196
- UPC: 810008263464
