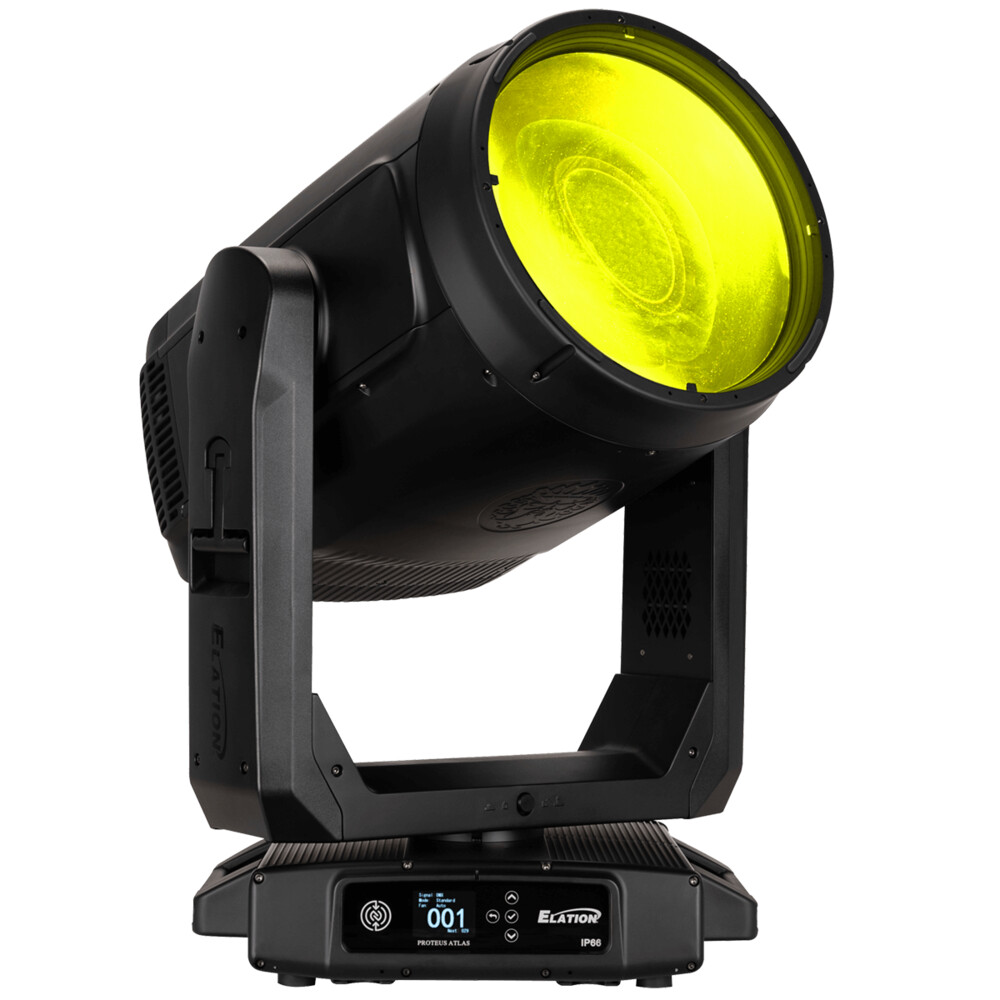

The Elation Professional PROTEUS ATLAS (PRA501) from DJDeals.com is a premier IP66-rated outdoor beam and hybrid fixture powered by a 500W Laser-Pumped Phosphor Light Engine that delivers an extraordinary 1,000,000 Lux at 20 meters through a massive 320mm lens. Engineered for large-scale concerts, permanent outdoor installations, and cruise ships, the PROTEUS ATLAS combines ultra-long throw beam performance with CMY color mixing, dual frost, gobos, prisms, and the SkyMotion standalone synchronized movement system. With continuous 360° pan rotation, IP66 weatherproof construction, and wide-format power supply support (100–240V), it sets a new benchmark for outdoor automated lighting.
Elation Professional PROTEUS ATLAS (PRA501) Features:
- 500W Laser-Pumped Phosphor Light Engine. Produces 1,000,000 Lux at 20 meters and 100,000 Lux at 100 meters with a 9000K, CRI 70 output and a 12,000-hour lamp life — rivaling traditional Xenon searchlights at a fraction of the power.
- IP66 Weatherproof Certification. Fully sealed against dust and water ingress, making the PROTEUS ATLAS suitable for permanent outdoor installations, concert touring, cruise ships, and theme parks in any climate.
- Ultra-Narrow 0.6° to 8.5° Beam Angle. A massive 320mm front lens delivers bold, sky-cutting beams with extraordinary throw distance. Ultra-fast motorized zoom transitions seamlessly from piercing pencil beams to broader beam textures.

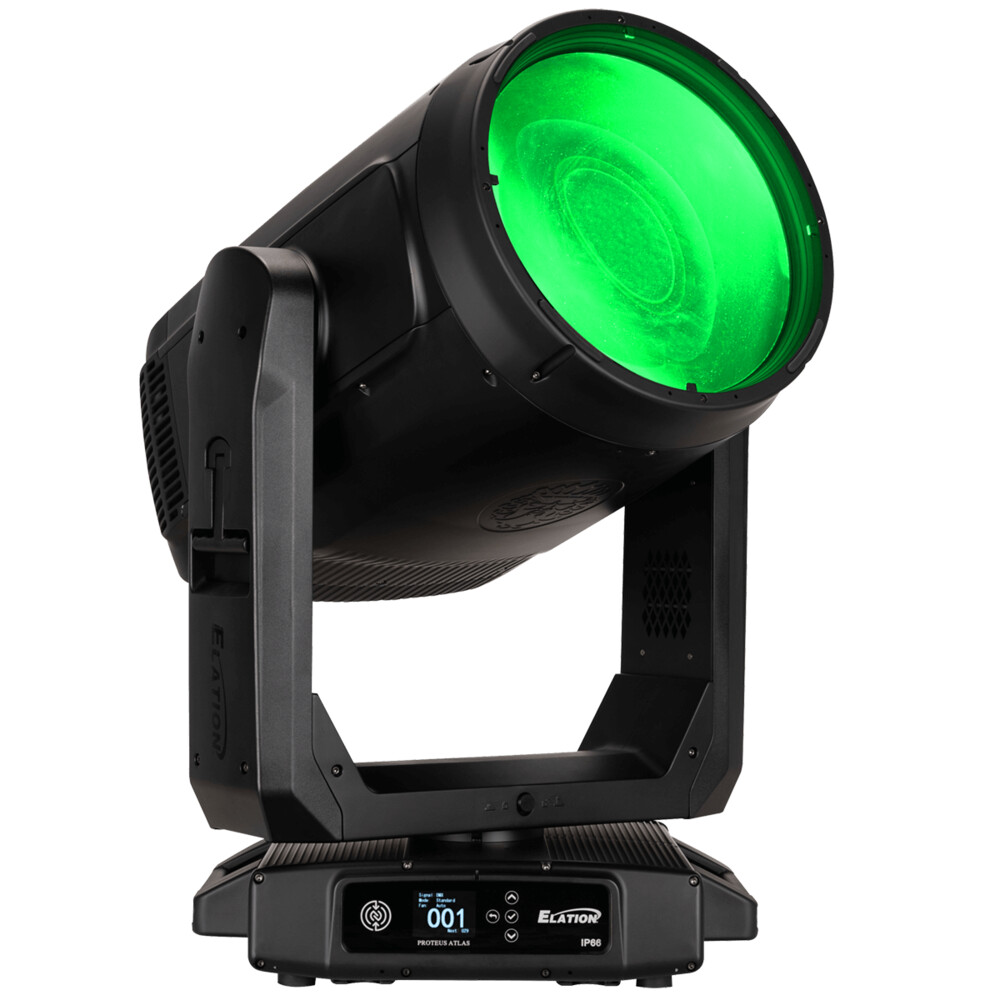

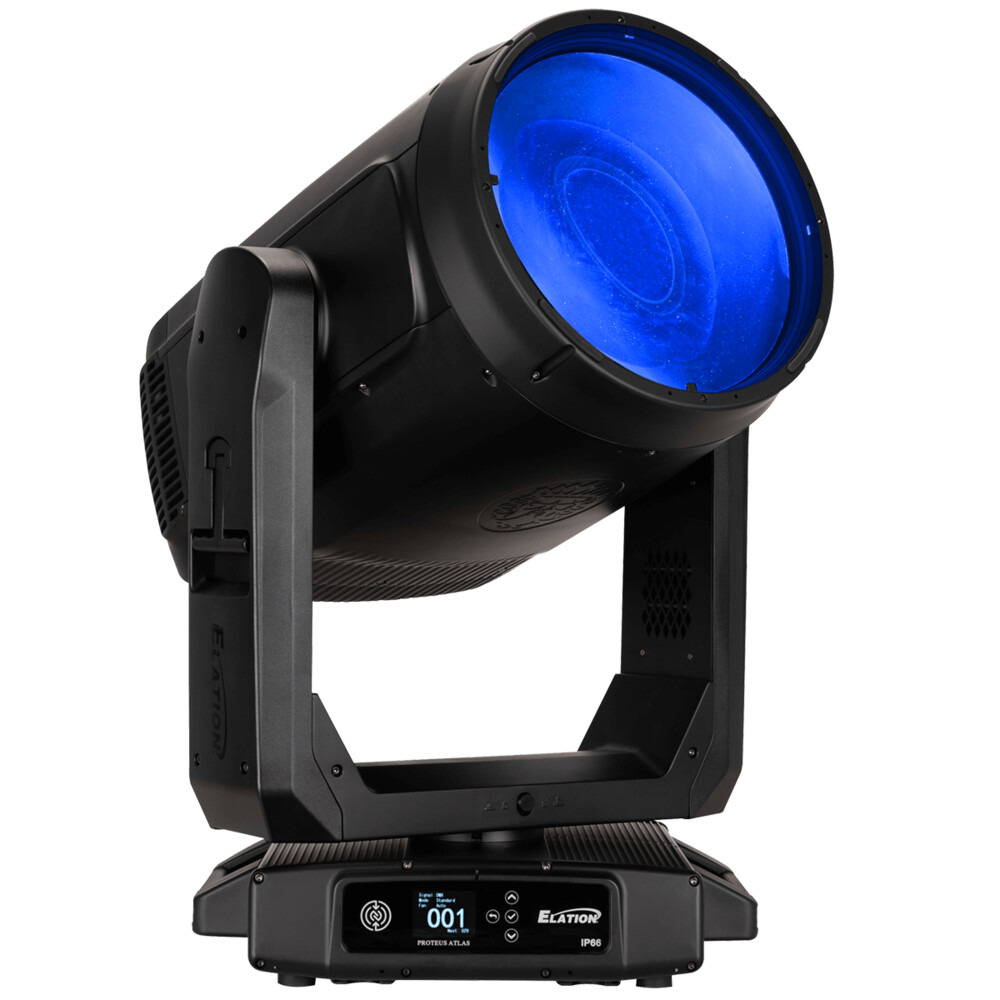

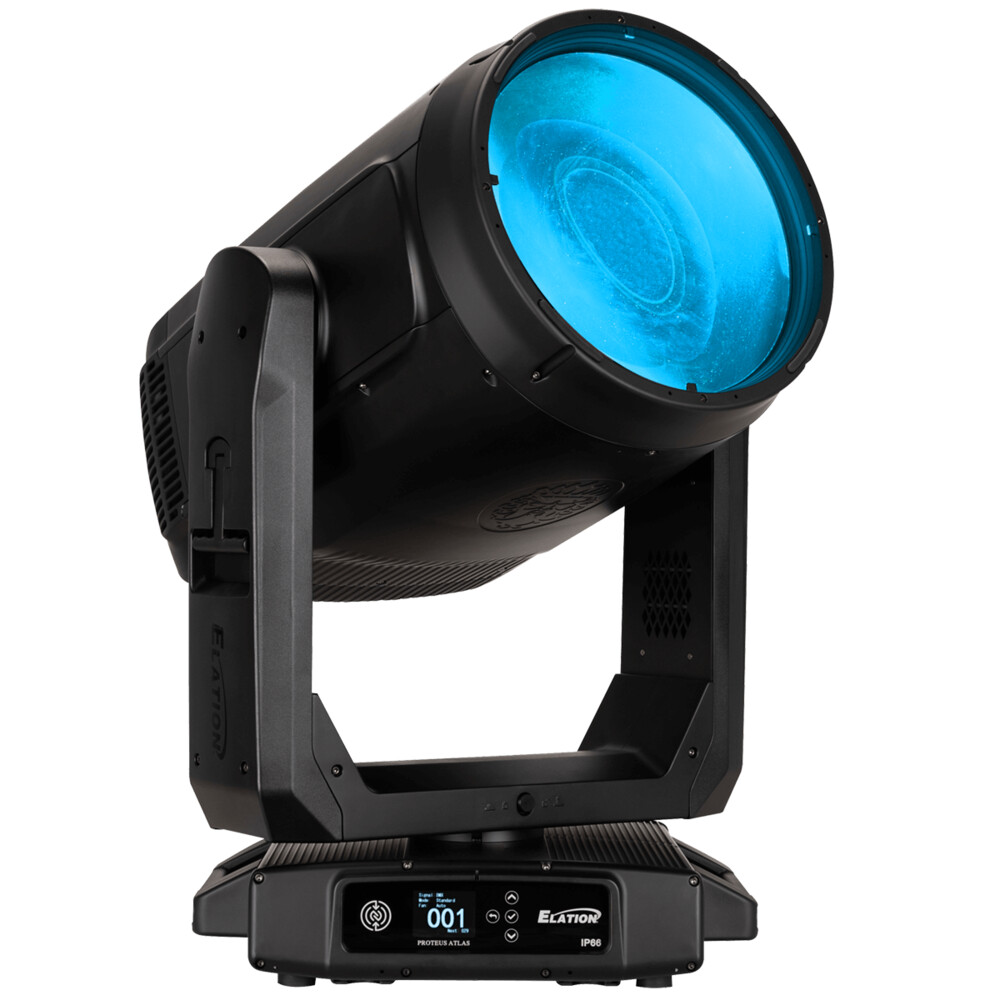

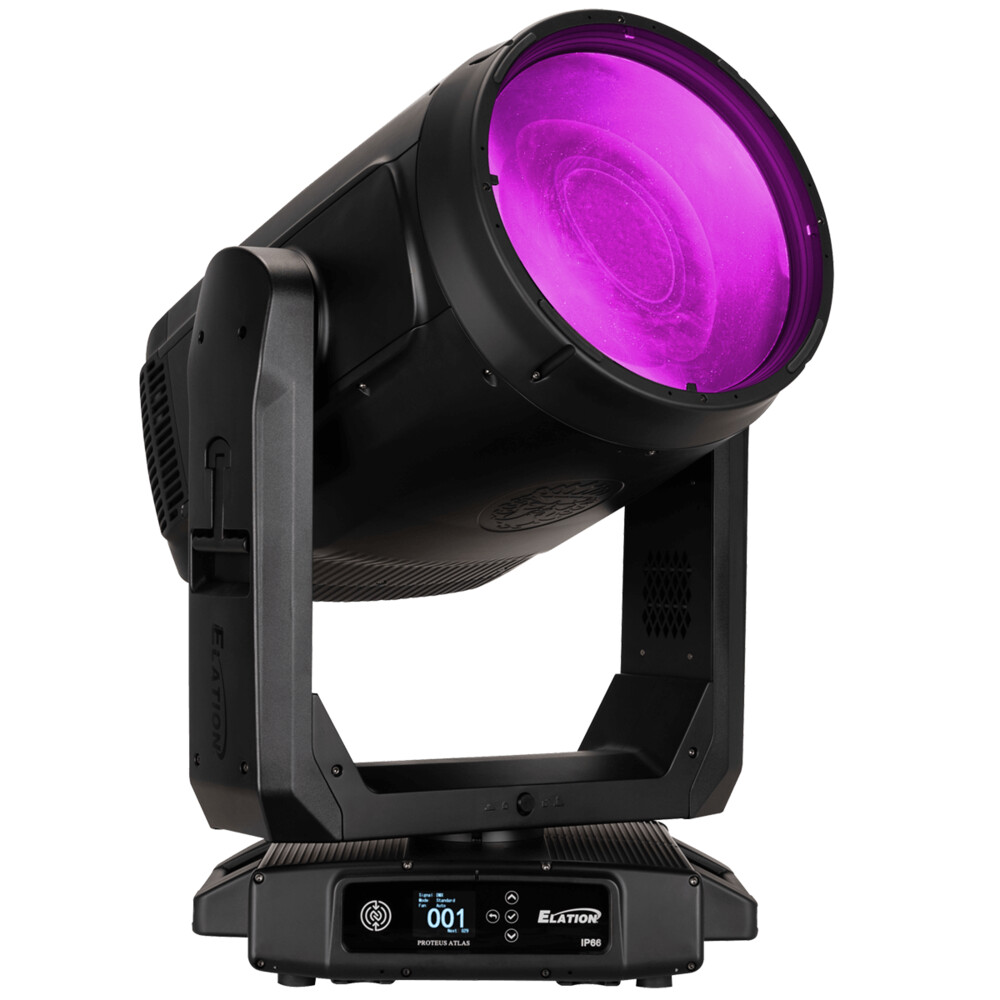

- CMY Color Mixing & 25-Position Color Wheel. Full CMY subtractive color mixing system combined with a 25-position color wheel provides an expansive palette for saturated washes, atmospheric moods, bold single-color bursts, and everything in between.
- SkyMotion Standalone Synchronization System. Multiple PROTEUS ATLAS fixtures interconnect and synchronize movement patterns — adjustable in size, speed, and color directly from the onboard display — without the need for a lighting console.
- Comprehensive FX Package. Dual frost filters for hot-spot beam and wash FX, 2×3 prisms on dual planes, a 2-gobo wheel system with 13 interchangeable rotating/indexing metal gobos and 24 static stamped metal gobos, plus a high-speed digital shutter and strobe.
- 360° Continuous Pan with 250° Tilt. Precision motors deliver smooth continuous pan rotation (360°/540°) and 250° tilt range for dramatic aerial sweeps, synchronized searchlight effects, and creative mid-air beam work.

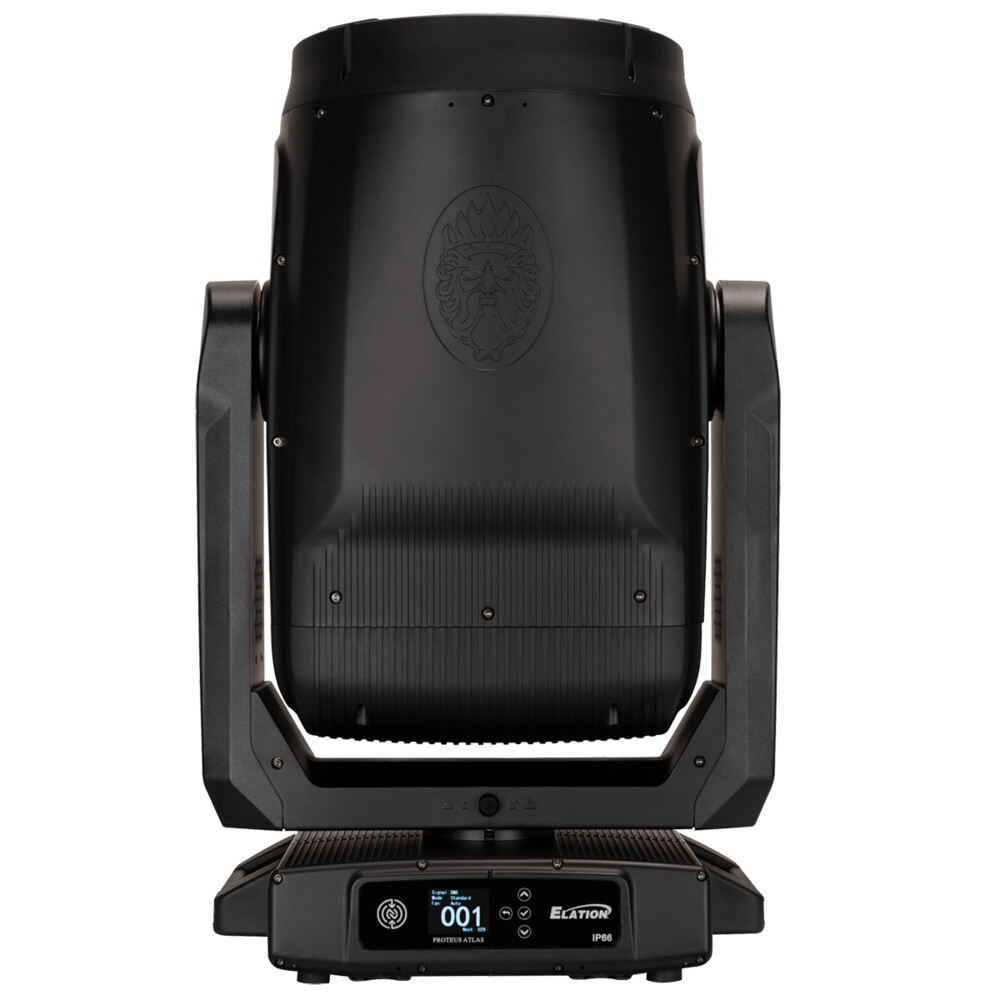

- Advanced Control & Connectivity. Supports DMX, RDM, Art-Net, and sACN protocols across two channel modes (30/41 channels). Features NFC support, a full-color 180° reversible LCD menu display, IP65-rated 5-pin DMX In/Out, RJ45 Ethernet In/Out, and locking power connections.
- Foam-In-Lay Protective Packaging. Ships with a custom-fitted FIL (Foam In Lay) polyurethane foam insert for enhanced impact protection during transport and storage — easily fits into standard flight cases (not included).
- Wide Voltage Range. Accepts 100–240V AC at 50/60Hz with a maximum power consumption of 700W, offering global deployment flexibility with no transformer required.
Elation Professional PROTEUS ATLAS (PRA501) Specifications:
- Light Source: 500W Laser-Pumped Phosphor Light Engine, 9000K, CRI 70
- Lamp Life: 12,000 hours
- Lux Output: 1,000,000 Lux @ 20m; 100,000 Lux @ 100m
- Beam Angle: 0.6° – 8.5°
- Effects: Dual Frost (Hot-Spot Beam, Wash FX), Ultra-Fast Zoom Focus, 2×3 Prisms on Dual Planes, Digital Shutter & Strobe
- Pan Angle: 360° / 540°
- Tilt Angle: 250°
- Color System: Full CMY Color Mixing System, 25-Position Color Wheel
- Gobo Wheel 1: 13 Interchangeable Rotating/Indexing Metal Gobos
- Gobo Wheel 2: 24 Static Stamped Metal Gobos
- DMX Channel Modes: 2 modes (30 / 41 channels)
- Control Protocols: DMX, RDM, Art-Net, sACN
- NFC Support: Yes
- Display: Full Color 180° Reversible LCD Menu Display, 4-Button Touch Panel
- Connectivity: IP65 5-pin DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power In
- Length: 14.6″ (370mm)
- Width: 20″ (508mm)
- Height: 31.5″ (800mm)
- Weight: 124.1 lbs. (56.3 kg)
- Power Supply: AC 100–240V, 50/60Hz
- Max Power Consumption: 700W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP66
- Approvals: CE, cETLus, UKCA, FCC, IP66, FDA
- SKU: PRA501
- UPC: 810008264829
