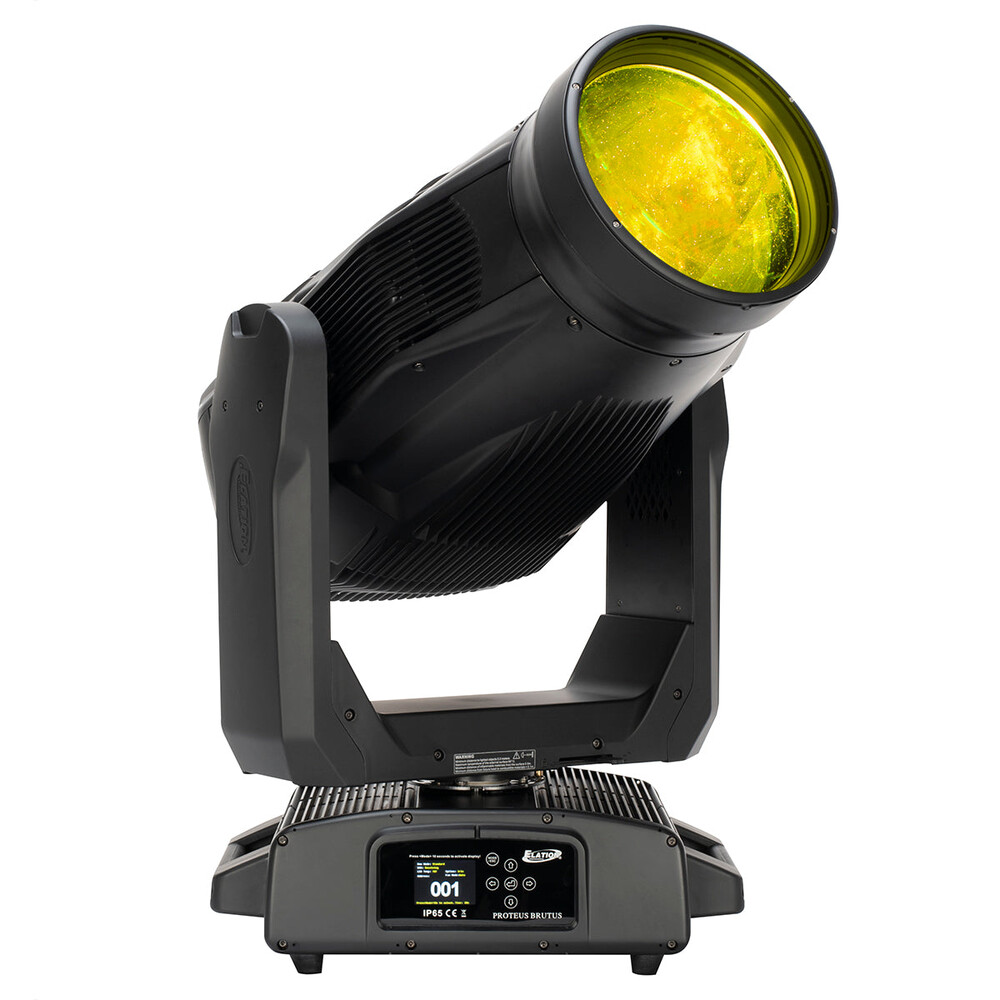

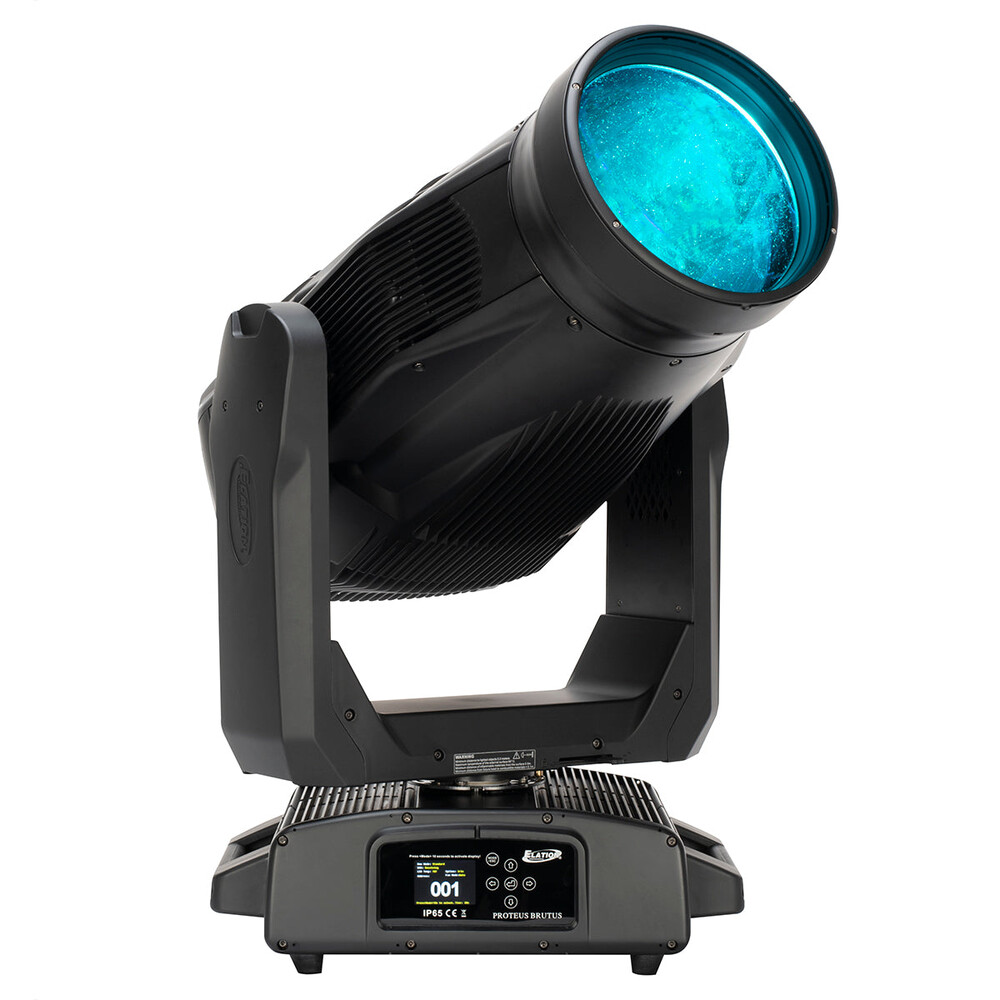

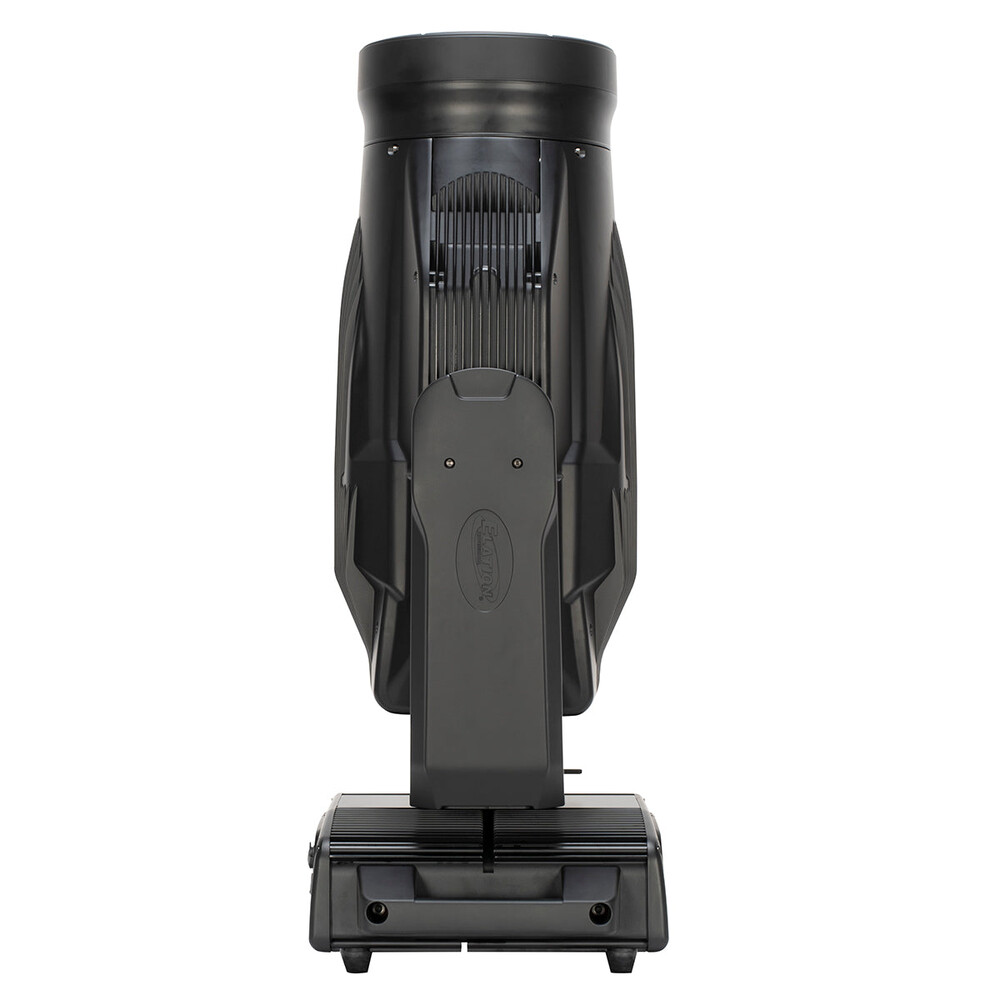

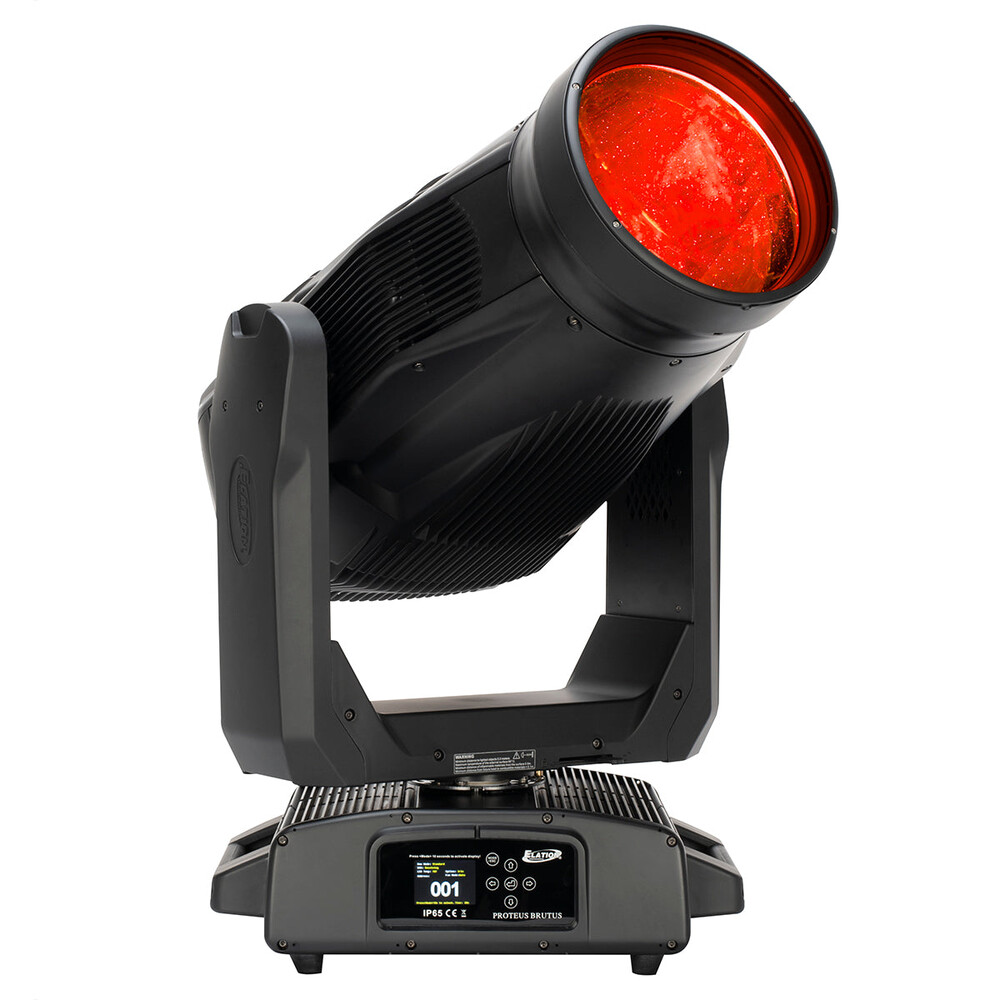

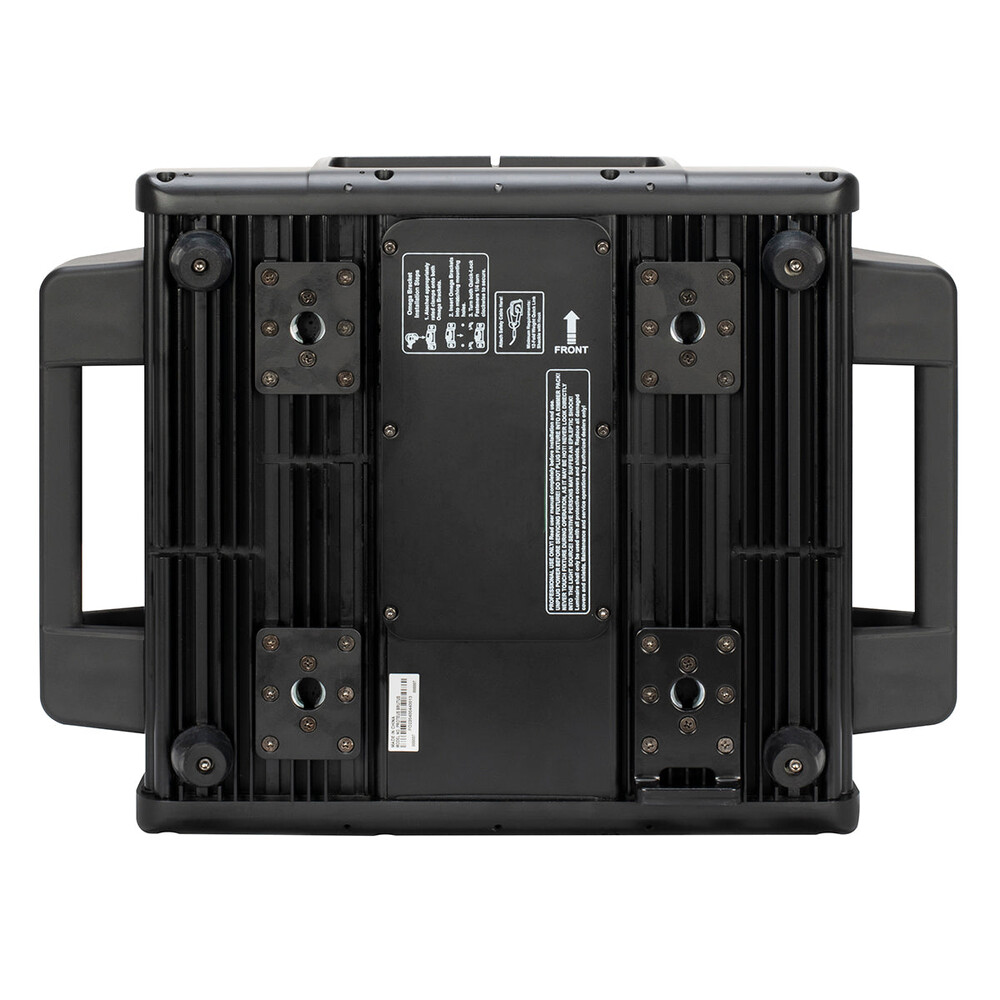

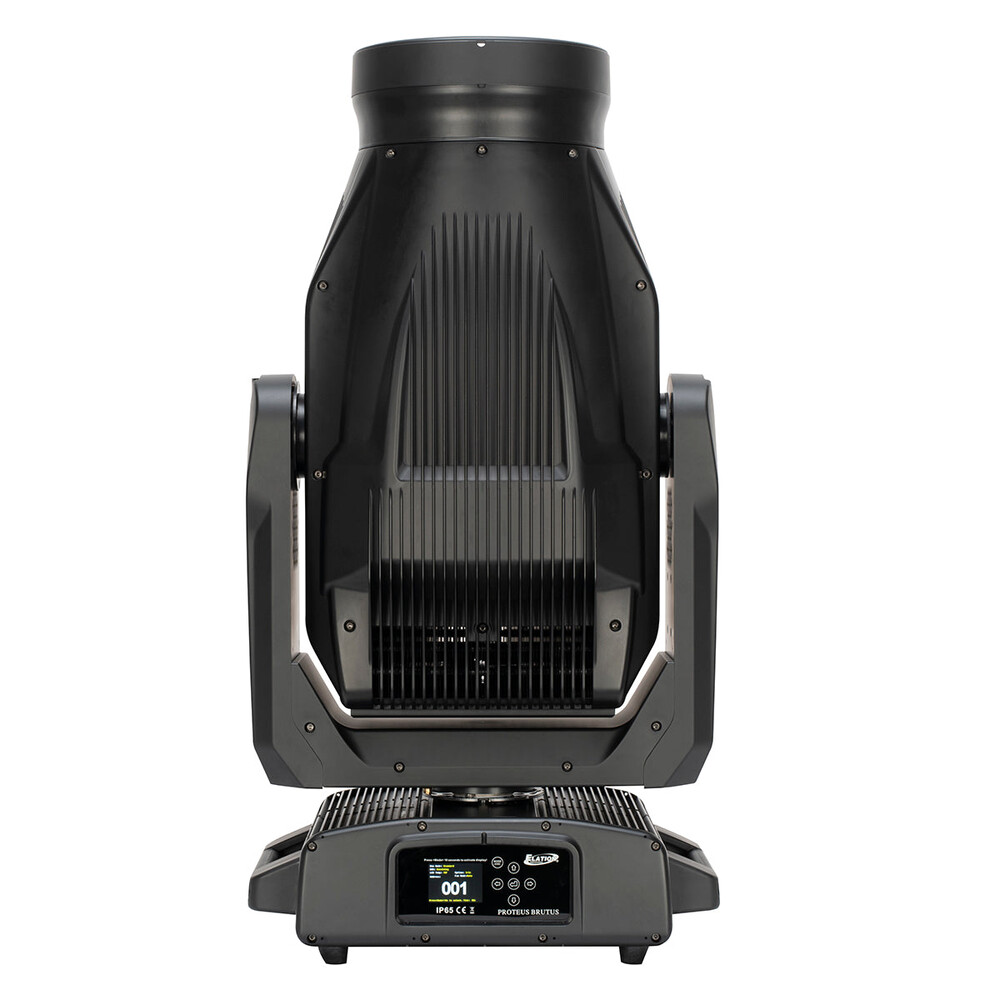

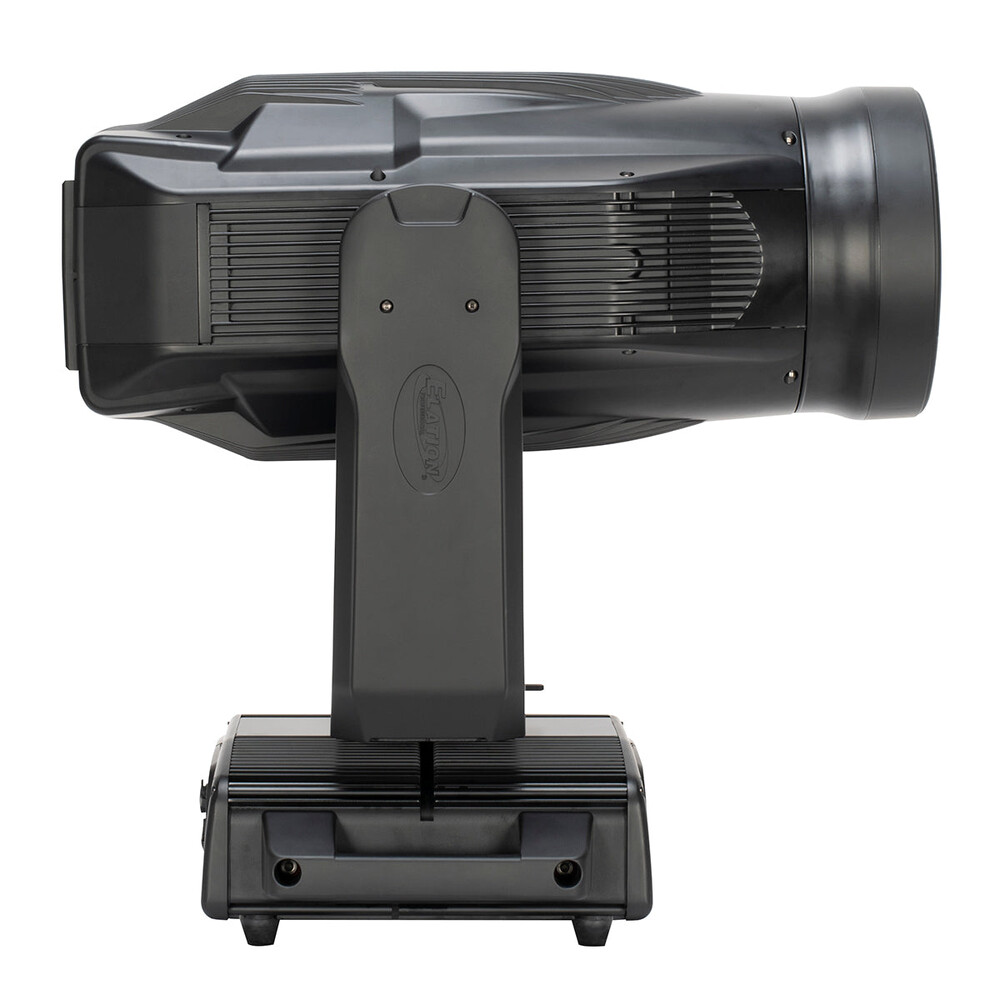

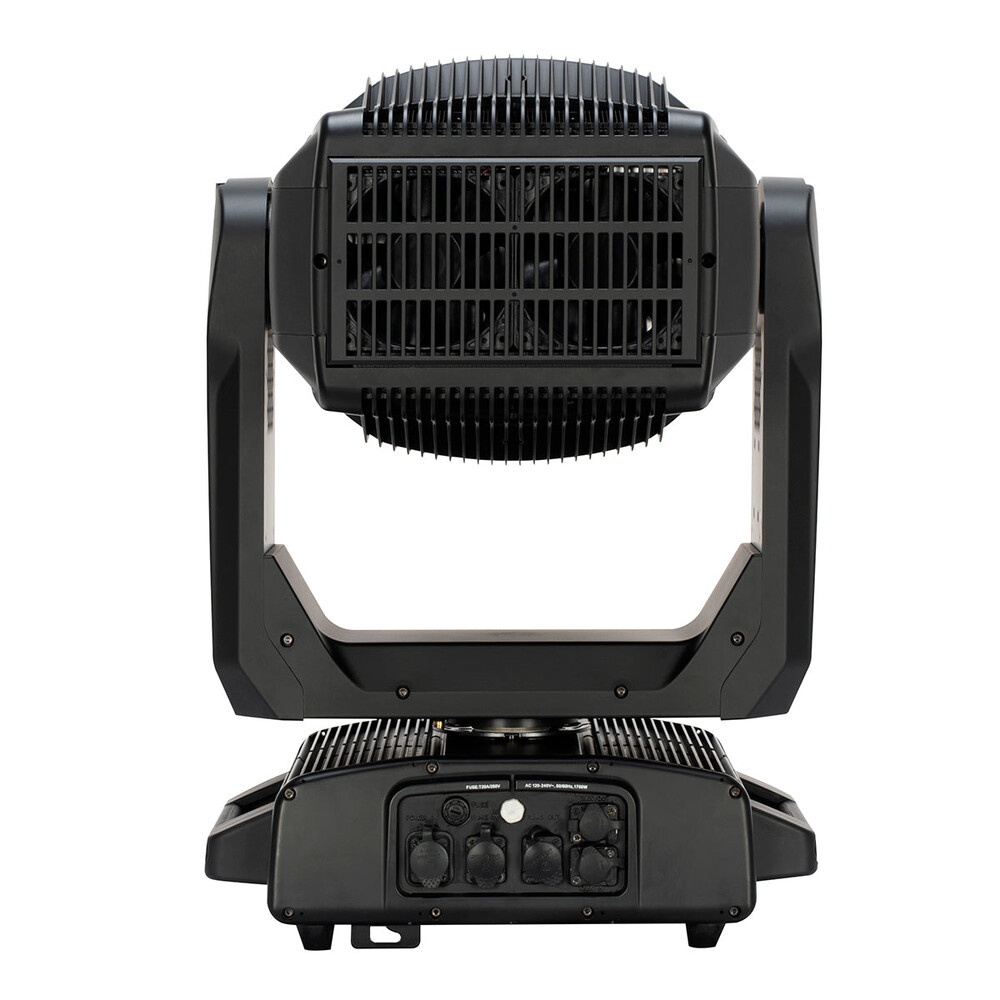

The Elation Professional PROTEUS BRUTUS (PRB201) from DJDeals.com is an extremely bright IP65-rated LED wash and FX fixture delivering up to 75,000 lumens from a custom 1200W Peak Field LED engine, engineered for large outdoor concerts, theme parks, and cruise ships. The PROTEUS BRUTUS features CMY color mixing, a 6-position color wheel with UV, rotating gobos, animation wheel, motorized iris, frost, and an optional indexable framing module — all in an IP65 housing with a 220mm front aperture and wide zoom range from 4.5° to 45°.
Elation Professional PROTEUS BRUTUS (PRB201) Features:
- 1200W Peak Field LED Engine — 75,000 Lumens. The custom-designed 1200W 6,500K Bright White LED engine delivers an astounding 75,000 lumens of total fixture output with CRI 70+ (82+ with HCRI filter) and a 30,000-hour average LED life, making it one of the most powerful LED wash fixtures available.
- IP65 Outdoor Rated Housing. Fully sealed against dust and water, the PROTEUS BRUTUS is built for permanent outdoor installations, touring stages, cruise ships, and theme parks where equipment is exposed to the elements year-round.
- 220mm (8.7″) Front Aperture with Wide Zoom. A massive 220mm front aperture combined with a wide 4.5° to 45° zoom range (beam angle 4.4° to 39.4°) gives designers both intense mid-air beam performance and wide, even stage wash coverage from a single fixture.
- Optional Full Blackout Framing Module. An optional indexable framing system with 4 rotating full-blackout blades and plus/minus 45 degree framing indexing converts the PROTEUS BRUTUS into a full wash/spot hybrid for theatrical and broadcast applications.
- CMY Color Mixing & 6-Position Color Wheel. Full CMY subtractive color mixing combined with a 6-position color wheel including High CRI filter and UV enables vibrant, accurate color reproduction across the full spectrum from deep saturates to precise whites.
- 360° Animation Wheel & Rotating Gobos. A full 360° bi-directional animation wheel combined with 6 rotating/indexing interchangeable beam shaping and FX gobos delivers dynamic projection textures, atmospheric effects, and complex aerial patterns.
- Motorized Iris & Advanced Dimming. Motorized iris with variable pulse effects, variable 16-bit dimming curve modes, high-speed electronic shutter and strobe, and DMX-controllable LED refresh rate provide complete lighting control for any application.
- 540°/630° Pan & 266° Tilt. Precision motors with 540°/630° pan range and 266° tilt range deliver fast, fluid movement for aerial wash effects, wave patterns, and coordinated lighting sequences across multiple fixtures.
- Four DMX Channel Modes. Supports 25, 36, 34, and 56 DMX channel modes with DMX, RDM, Art-Net, and sACN protocol support, 16-bit pan/tilt/dimming control, motorized focus, and a wired digital communication network for inter-fixture communication.
- FIL Packaging & Long-Term Durability. Ships with a custom-fitted FIL (Foam In Lay) polyurethane foam insert for transport protection. CE, cETLus, and IP65 certified for global deployment and long-term outdoor service life.
Elation Professional PROTEUS BRUTUS (PRB201) Specifications:
- Light Source: 1200W 6,500K Bright White Peak Field LED Engine
- LED Life: 30,000 hours average
- Total Lumens: 75,000
- CRI: 70+ (82+ with HCRI Filter)
- Peak Field Ratio: 2:1
- Zoom Range: 4.5° – 45°
- Beam Angle: 4.4° – 39.4°
- Field Angle: 6.8° – 49.7°
- Effects: Motorized Zoom (220mm/8.7″ front aperture), Full 360° Bi-Directional Animation Wheel, Variable Frost Filter, Motorized Iris w/ Variable Pulse Effects, Variable 16-bit Dimming, High Speed Electronic Shutter & Strobe, DMX Controllable LED Refresh Rate
- Pan Angle: 540° / 630°
- Tilt Angle: 266°
- Color: CMY Color Mixing, Linear CTO Color Correction, 6 Dichroic Colors including High CRI Filter & UV
- Gobos: 6 Rotating/Indexing Interchangeable Beam Shaping + FX Gobos
- Optional Framing Module: 4 Rotating Full Blackout Blades, ±45° Indexing
- DMX Channel Modes: 4 modes (25 / 36 / 34 / 56 channels)
- Control Protocols: DMX, RDM, Art-Net, sACN
- Display: Full Color 180° Reversible LCD, 6-Button Touch Panel
- Connectivity: IP65 5-pin XLR DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power Cable In
- Length: 25.3″ (643.6mm)
- Width: 18.0″ (456.9mm)
- Height: 34.2″ (869mm)
- Weight: 104.1 lbs. (47.2 kg)
- Power Supply: AC 120–240V, 50/60Hz
- Max Power Consumption: 1,700W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP65
- Approvals: CE, cETLus, IP65, UKCA
- SKU: PRB201
- UPC: 810008263471
