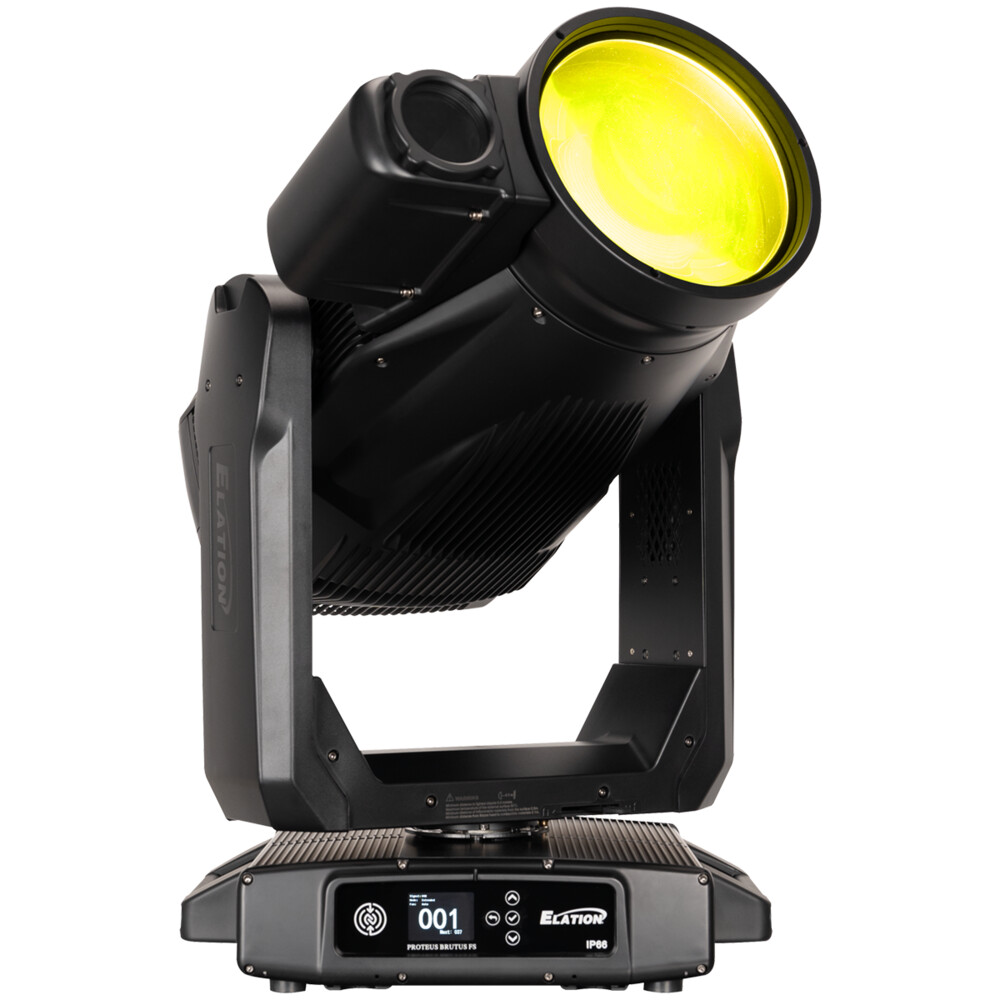

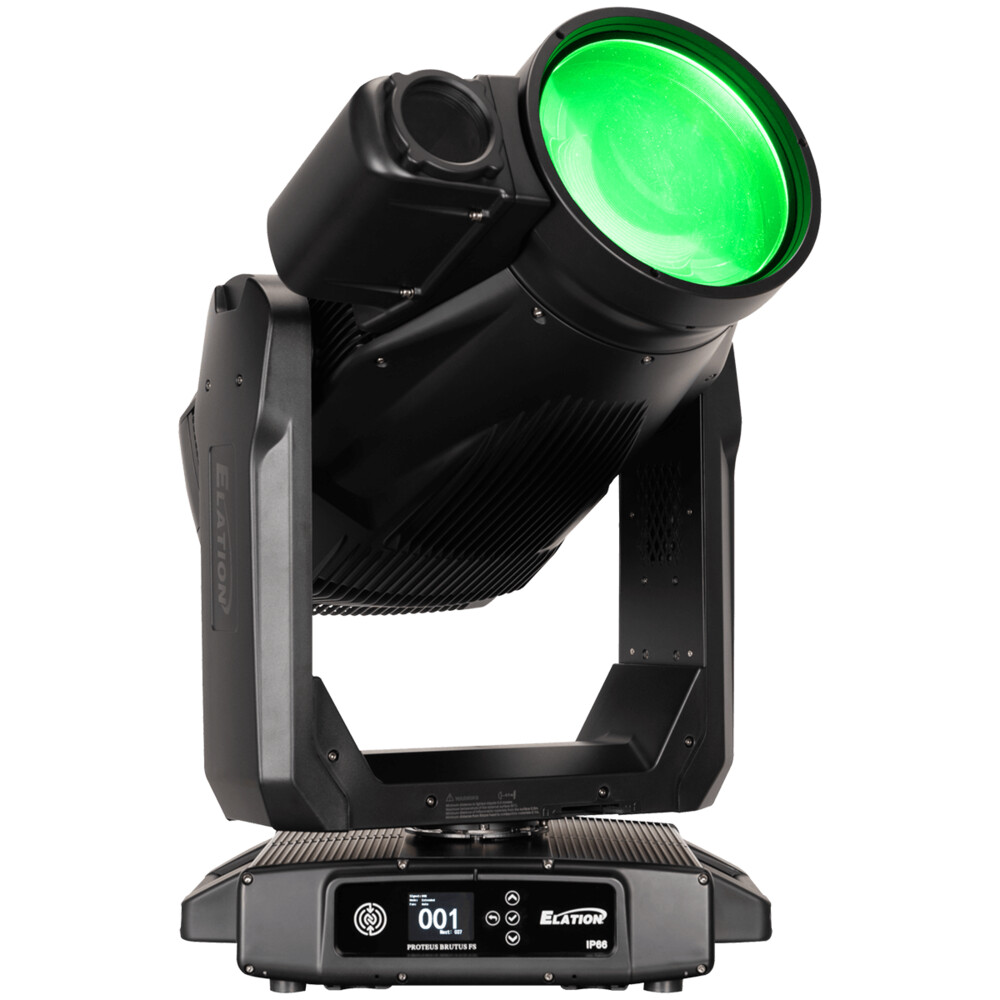

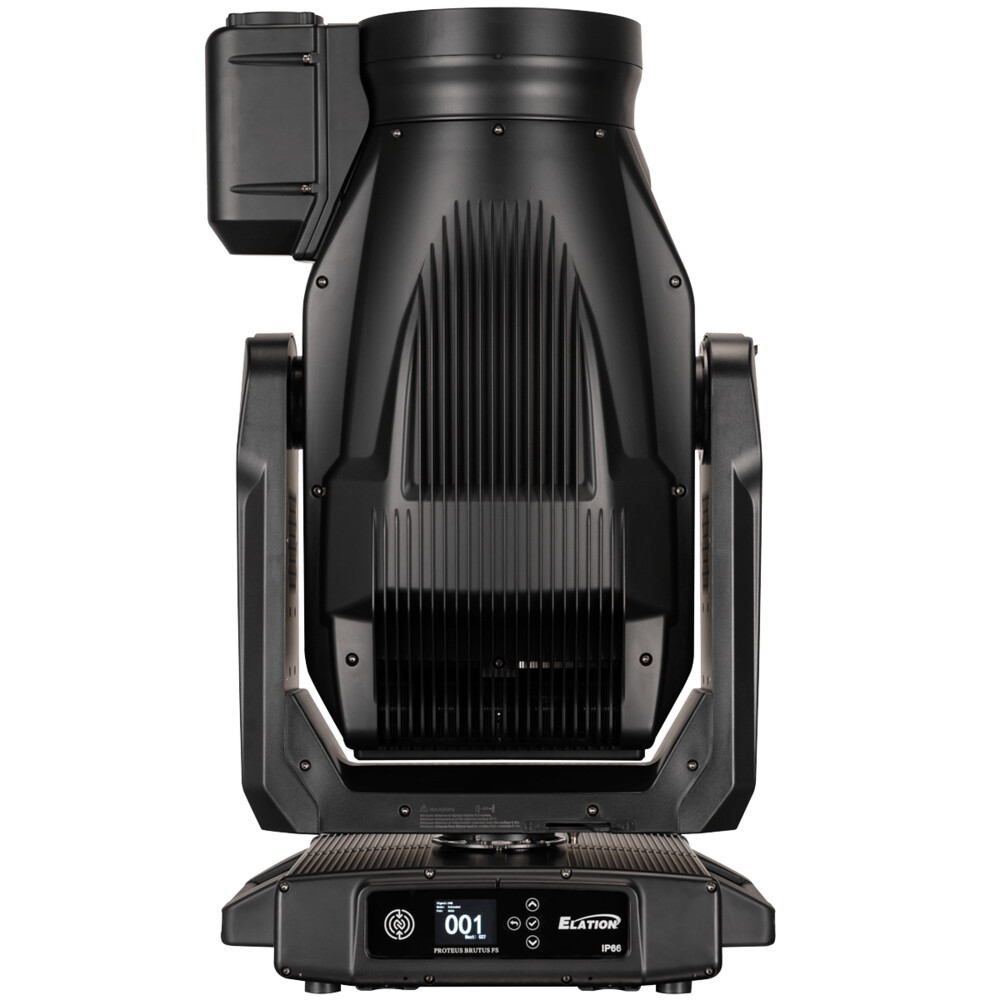

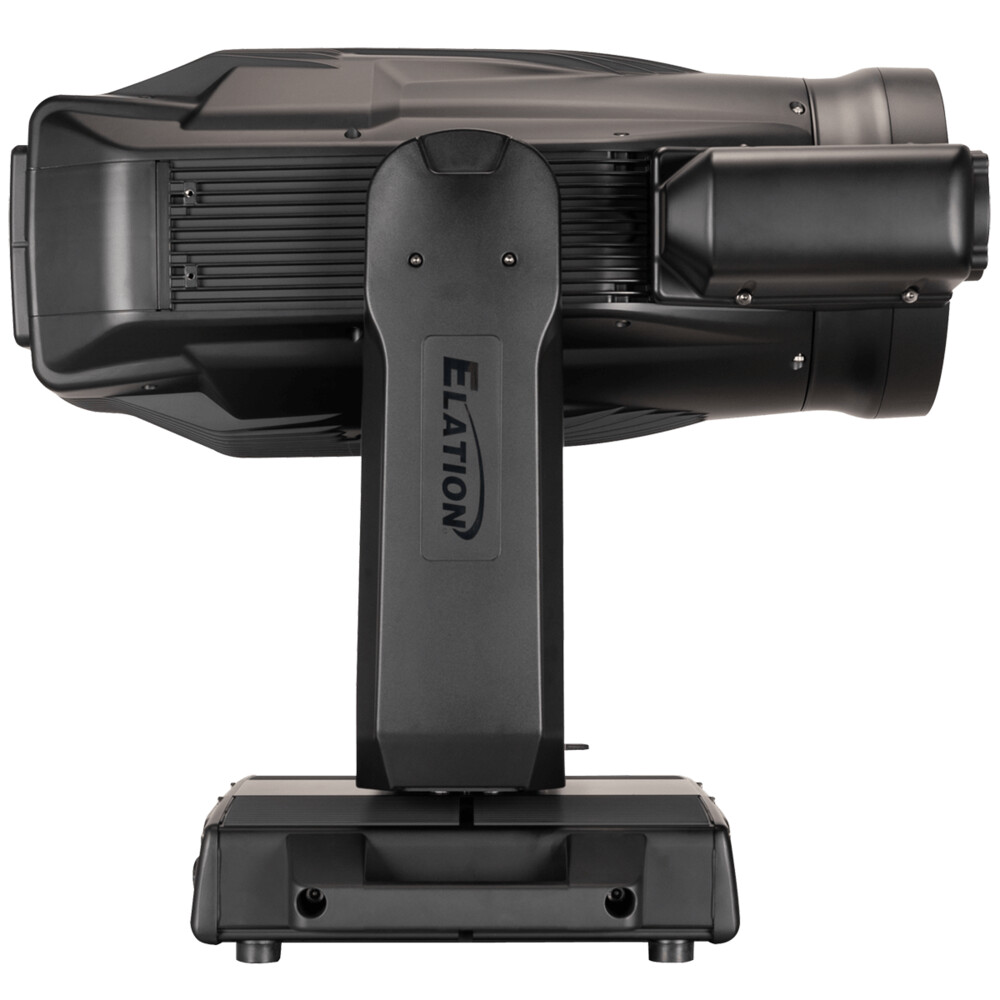

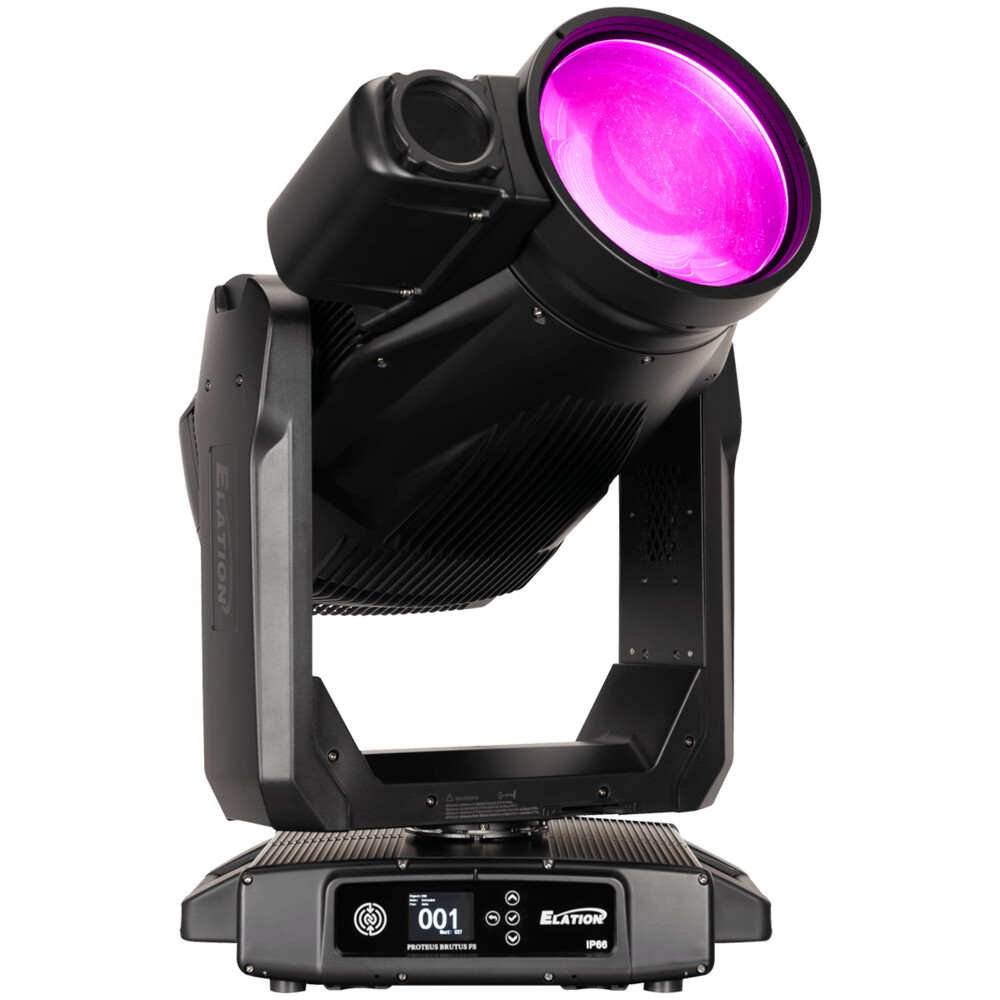

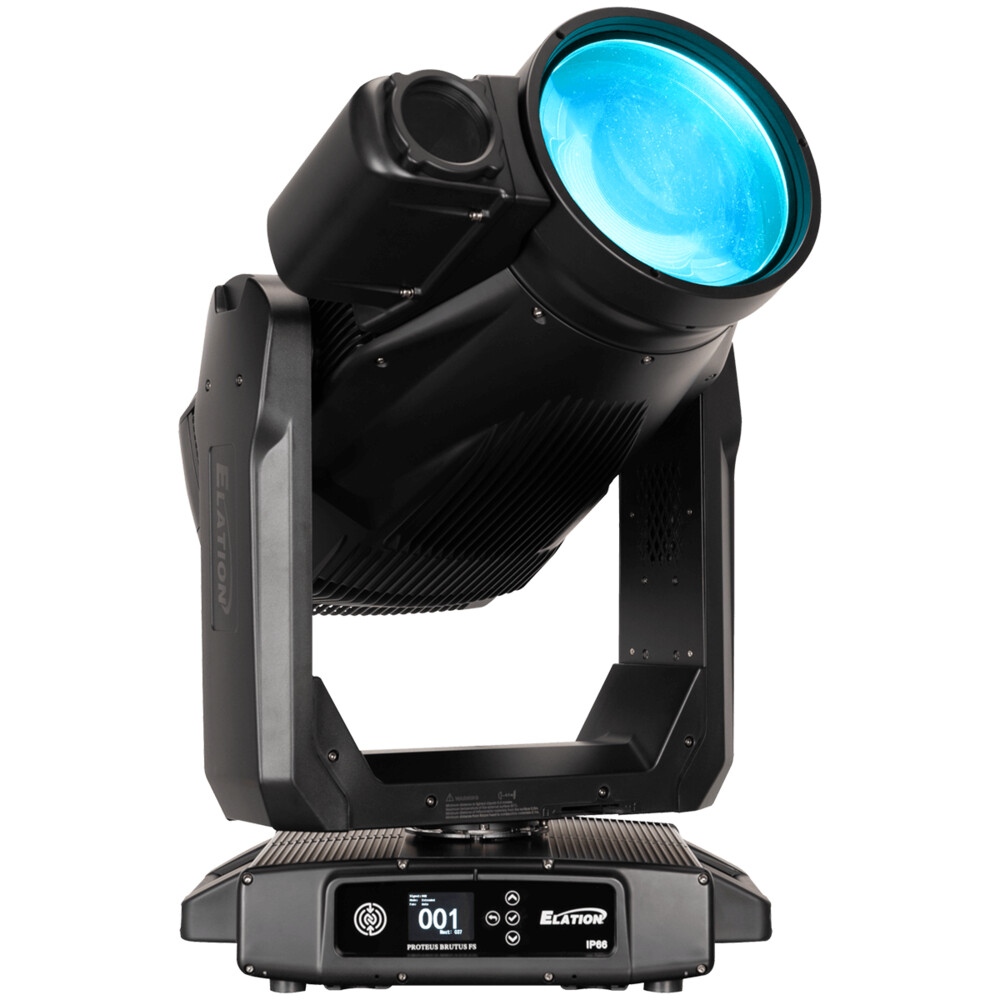

The Elation Professional PROTEUS BRUTUS FS (PRB234) from DJDeals.com is an extremely bright IP66-rated LED follow spot fixture delivering 16,000 lux at 20 meters from a 1200W 6,500K LED engine, designed for medium to long throw follow spot applications both indoors and outdoors. The PROTEUS BRUTUS FS supports manual operation with removable handles or remote automated tracking, integrates an IP-rated camera housing for NDI, POE, and SDI systems, and provides CMY color mixing, variable CRI from 70 to 90, motorized zoom from 3° to 35°, and motorized iris for precise follow spot control.
Elation Professional PROTEUS BRUTUS FS (PRB234) Features:
- 1200W 6,500K LED Engine with 16,000 Lux Output. Delivers 16,000 lux (1,470 fc) center intensity at 20 meters with a 30,000-hour average LED life, providing the power and throw distance required for large venue follow spot applications from concert halls to outdoor arenas.
- IP66 Weatherproof Housing. Fully sealed against dust and water for reliable performance in outdoor events, amphitheaters, cruise ships, and demanding indoor environments.
- Manual or Remote Automated Operation. Removable manual handles allow traditional follow spot operation, while full compatibility with leading automated remote tracking systems (Marshall, Aida Imaging, Hanwha, BirdDog) enables camera-based remote operation.
- Integrated IP-Rated Camera Housing. A removable IP66-rated camera chassis with pre-wired NDI (IP65 RJ45/POE++), HD-SDI (IP65 BNC), and AUX control (IP65 4-pin XLR 12V) connections accommodates Marshall, Aida, Hanwha, and BirdDog cameras for seamless tracking system integration.
- Variable CRI Filter (CRI 70–90). Linear CRI adjustment from CRI 70 to CRI 90 via the adjustable HCRI filter provides superior color accuracy for broadcast, film, and live performance where flattering skin tones and accurate color reproduction are essential.
- CMY Color Mixing & Variable CTO. Full CMY subtractive color mixing system combined with linear CTO color correction delivers smooth, nuanced color control for theatrical follow spot applications requiring precise color matching and seamless cross-fades.
- Zoom Range 3° to 35°. Motorized zoom transitions from a narrow long-throw 3° beam to a 35° coverage angle, covering intimate soloists to full-stage ensembles with smooth, console-controlled zoom transitions during live performance.
- Motorized Focus, Iris & Frost Control. Motorized iris with variable pulse, motorized focus, variable frost filter, and 5 rotating/indexing interchangeable metal gobo shapes provide complete remote beam shaping for all follow spot scenarios.
- Variable Pan/Tilt Acceleration Control. DMX-controllable motor acceleration for pan (540°) and tilt (260°) enables operators to dial in smooth, natural movement that follows performers without mechanical snap or lag.
- Multi-Protocol Network Control. Two channel modes (27/36 channels) with DMX, RDM, Art-Net, and sACN support, plus a 4-button touch panel and 180° reversible full-color LCD display for local control and diagnostics.
Elation Professional PROTEUS BRUTUS FS (PRB234) Specifications:
- Light Source: 1200W 6,500K Bright White LED Engine
- LED Life: 30,000 hours average
- Lux Output: 16,000 lux (1,470 fc) center intensity @ 20m
- CRI: 70+ (up to 90 with adjustable HCRI Filter)
- Zoom Range: 3.5° – 35°
- Beam Angle: 2.9° – 35°
- Field Angle: 3.8° – 41°
- Pan Angle: 540°
- Tilt Angle: 260°
- Color: CMY Color Mixing, Linear CTO, Linear CRI Adjustment (CRI 70–90)
- Gobo/Beam Shapes: 5 Rotating/Indexing Interchangeable Metal Gobos
- Effects: Motorized Zoom, Long Throw/Ultra Long Throw Beam Mode, Motorized Focus, Motorized Iris, Variable Frost, Variable 16-bit Dimming, High Speed Electronic Shutter & Strobe, Variable Pan/Tilt Motor Acceleration Control
- DMX Channel Modes: 2 modes (27 / 36 channels)
- Control Protocols: DMX, RDM, Art-Net, sACN
- Camera Connections: NDI (IP65 RJ45 POE++), HD-SDI (IP65 BNC), AUX Control (IP65 4-pin XLR 12V Camera Power)
- Camera Compatibility: Marshall CV350/CV355/CV5056, Aida Imaging NDI 200/NDI3-300, Hanwha Vision SNZ6320/SNZ6320A, BirdDog PF120
- Display: Full Color 180° Reversible LCD, 4-Button Touch Panel
- Connectivity: IP65 5-pin XLR DMX In/Out, IP65 RJ45 Ethernet In, IP65 Locking Power Cable In
- Length: 18.4″ (468mm)
- Width: 14.6″ (370mm)
- Height: 32.5″ (825mm) — without camera or handles
- Weight: 119.1 lbs. (54.0 kg) — without camera or handles
- Power Supply: AC 120–240V, 50/60Hz
- Max Power Consumption: 1,500W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP66
- Approvals: CE, cETLus, IP66, UKCA, FCC
- SKU: PRB234
- UPC: 840063546974
