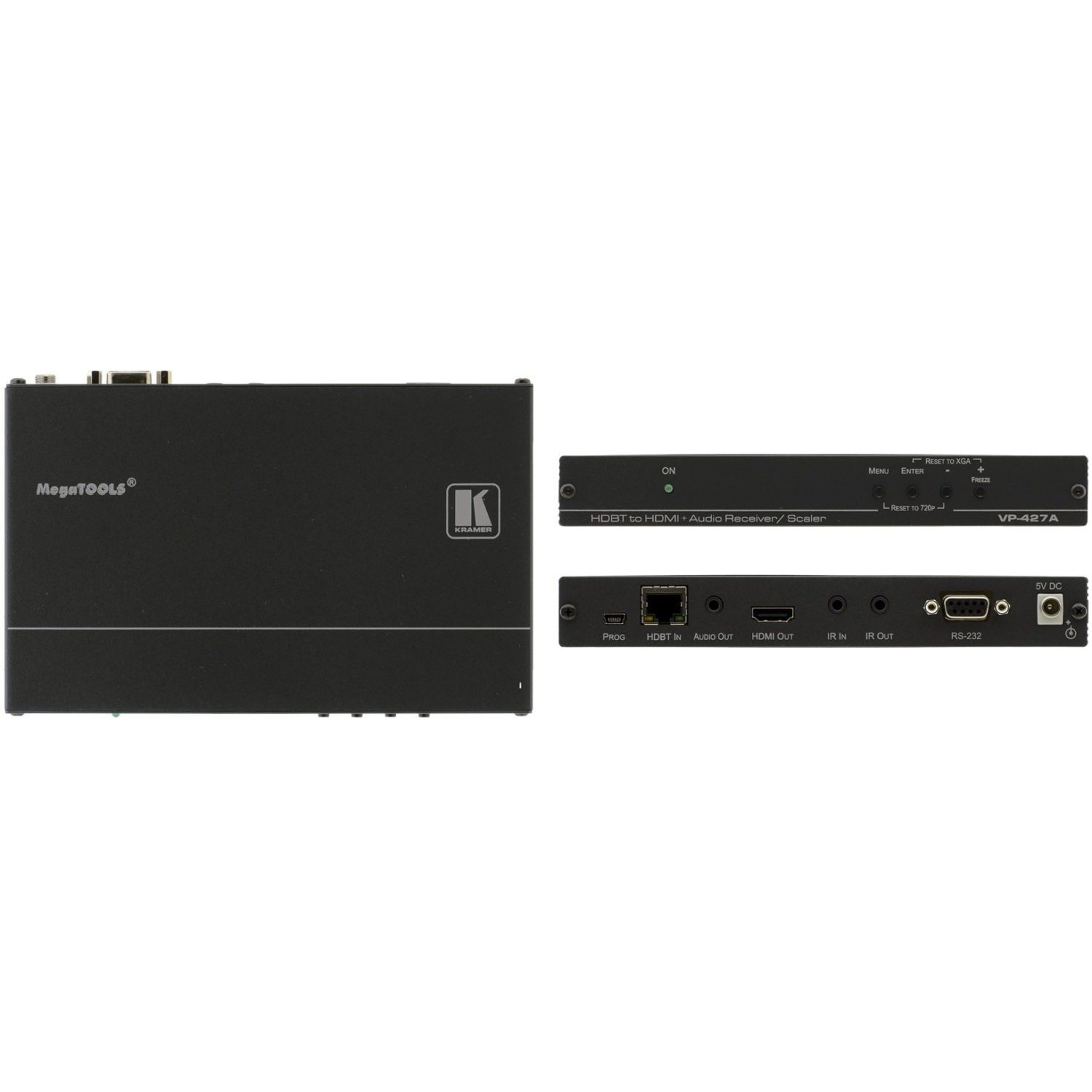

The Kramer VP-427A HDBaseT to HDMI & Audio ProScale Receiver/Scaler (VP-427A) from DJDeals.com is a receiver/scaler for HDBaseT twisted pair, HDMI, bidirectional RS-232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI, IR and RS-232 signals. It up- or down-scales the picture to match the resolution of the HDMI monitor. It includes a simultaneous analog audio output of the embedded HDMI audio.
Kramer VP-427A HDBaseT to HDMI & Audio ProScale Receiver/Scaler Features:
- Max. Data Rate -6.75Gbps (2.25Gbps per graphic channel).
- Bidirectional RS-232 Port -For embedding/de-embedding control commands in the HDBaseT data stream.
- Infrared Input and Output Ports -For controlling devices over the HDBaseT data stream.
- System Range -Up to 70m (230ft).
- Embedded Audio -Support for LPCM 2CH.
- Analog Audio Output -Includes a simultaneous unbalanced stereo audio output of the embedded HDMI audio.
- Constant Output Sync -Even when the input video signal is lost or interrupted.
- ProcAmp Control -Contrast, brightness, fine tune & R, G, B level/gain.
- On-Screen Display (OSD) -For easy setup and adjustment, accessible via the front-panel buttons.
- Non-Volatile Memory -Saves final settings.
- Freeze Button.
- USB Port -For upgrading firmware.
- Size-Compact MegaTOOLS-2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
Kramer VP-427A HDBaseT to HDMI & Audio ProScale Receiver/Scaler Specifications:
Kramer VP-427A HDBaseT to HDMI & Audio ProScale Receiver/Scaler Features:
- INPUTS: 1 HDBaseT twisted pair on an RJ-45 connector, 1 IR on a 3.5mm mini jack.
- OUTPUTS: 1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio on a 3.5mm mini jack.
- PORTS: 1 bidirectional RS-232 port on a 9-pin D-sub connector.
- OUTPUT RESOLUTIONS: Native, 480p, 570p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×800, 1280×1084, 1360×768, 1400×1050, 1440×900, 1600×1200, 1680×1050, 1920×1200.
- OUTPUT REFRESH RATE: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions.
- LATENCY: 30ms approx.
- VIDEO COLOR DEPTH: Input: 8/10/12-bit, output: 8-bit.
- EMBEDDED AUDIO: Supports LPCM 2CH.
- RS-232 BAUDRATE: 115200bps max.
- CONTROLS: Front panel buttons, 1 USB for programming.
- INDICATORS: ON LED.
- POWER CONSUMPTION: 5V DC, 1.5A.
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non-condensing.
- SHIPPING DIMENSIONS: 35.10cm x21.20cm x7.20cm (13.82″ x8.35″ x2.83″ ) W, D, H
- SHIPPING WEIGHT: 1.0kg (2.2lbs) approx.
- INCLUDED ACCESSORIES: Power supply.
- OPTIONS: RK-T2B 19″ rack adapter.
