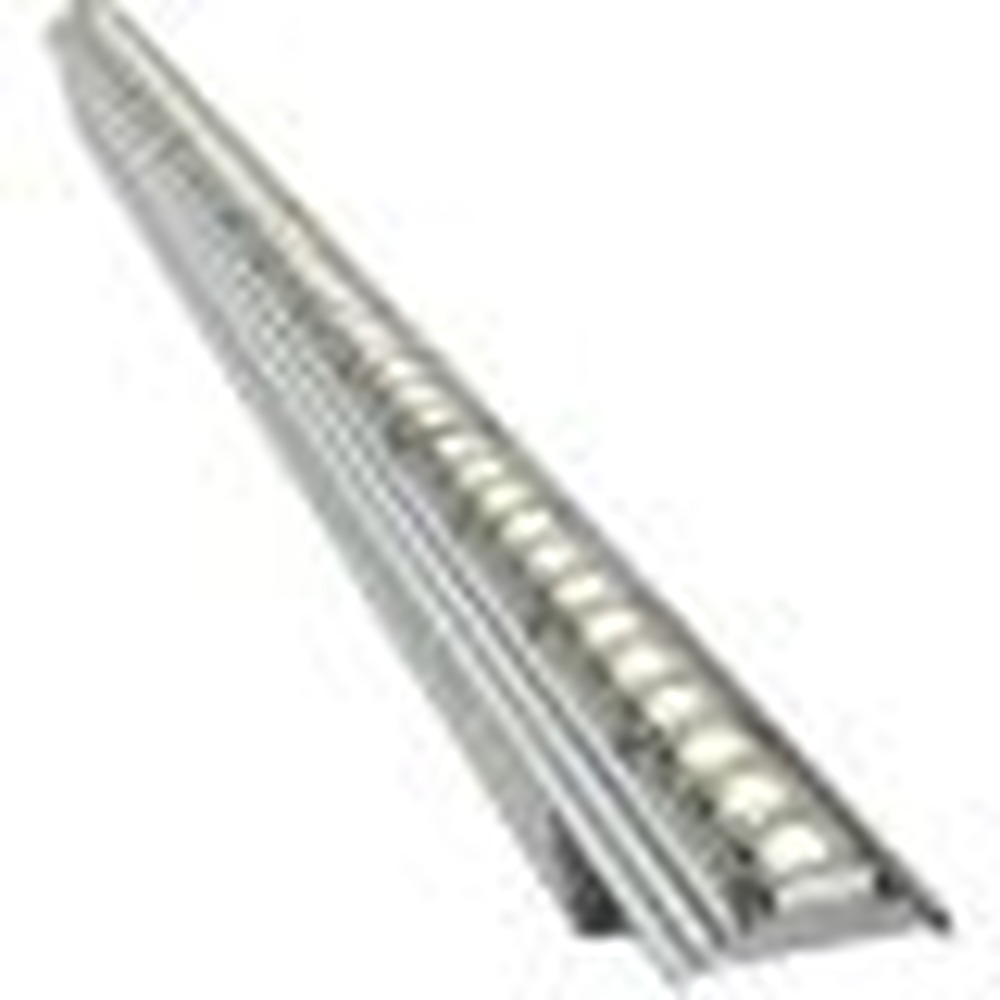

The Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) from DJDeals.com delivers warm, architectural-grade illumination with a 2700K color temperature and a precise 60×30° beam angle engineered to highlight textures and structural details with stunning clarity. Built on patented Powercore technology with an IP66 rating and IK10 impact resistance, the Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) is a professional-grade solution designed to perform beautifully in demanding indoor and outdoor environments alike.
The Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) produces 881.6 lumens at an efficacy of 43 lm/W, offering energy-conscious performance without sacrificing quality. With a CRI of 82.7 and full digital dimming from 0% to 100% via the Data Enabler Pro, the Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) gives lighting designers precise control over every aspect of the output, from intensity to color accuracy.
Housed in extruded anodized aluminum with a UV-protected polycarbonate lens, the Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) is built to last in environments ranging from 40°F to 122°F operating temperatures. Constant torque locking hinges allow for secure, precise positioning, while push-and-click connectors make installation straightforward and efficient — making this luminaire an excellent choice for architects, lighting designers, and installation professionals seeking reliable, long-term performance.
Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) Features:
- 2700K Color Temperature: A warm 2700K color temperature delivers an inviting, flattering light output well suited to architectural and decorative applications.
- 60 x 30-Degree Beam Angle: The precisely engineered 60×30° beam angle targets architectural details and textures with controlled, accurate illumination.
- 881.6 Lumens Output at 43 lm/W Efficacy: The Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) delivers 881.6 lumens of output at an efficacy of 43 lm/W, providing efficient, high-quality lighting suited to a variety of architectural installations.
- Digital Dimming (0% to 100%): Full-range digital dimming from 0% to 100% is achieved via the Data Enabler Pro and the complete range of Color Kinetics DMX or Ethernet controllers, giving users comprehensive command over light intensity.
- CRI of 82.7: A CRI of 82.7 ensures accurate color rendering across a variety of settings, faithfully representing surfaces, materials, and finishes under the warm 2700K light output.
- Patented Powercore Technology: Powercore technology provides efficient power control directly from line voltage, eliminating the need for external drivers and simplifying installation.
- Compatible with Color Kinetics and Third-Party Controllers: The Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) is compatible with Color Kinetics controllers, including the iPlayer 3, iPlayer 4, Antumbra iColor Keypad, and ColorDial Pro, as well as third-party controllers.
- IP66-Rated: An IP66 rating provides robust protection against water and dust ingress, making the Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) suitable for use in both wet and dry locations.
- Extruded Anodized Aluminum Housing with UV-Protected Polycarbonate Lens: The durable extruded anodized aluminum housing paired with a UV-protected polycarbonate lens ensures long-lasting performance and resistance to environmental wear.
- Temperature Operating Range of 40°F to 122°F: A wide operating temperature range from 40°F to 122°F ensures reliable, consistent performance across a variety of indoor and outdoor environments.
- Vibration Resistance (ANSI C136.31, 3G): Vibration resistance compliant with ANSI C136.31 at 3G guarantees reliable performance even under rugged conditions and physical stress.
- IK10 Mechanical Impact Rating: An IK10 mechanical impact rating provides an elevated level of protection against physical damage, safeguarding the luminaire in demanding installation environments.
- Surge Protection up to 2KV Maximum Common: Built-in surge protection up to 2KV maximum common (L to Gnd or N to Gnd) shields the Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) against damaging electrical surges.
- Push-and-Click Connectors: Convenient push-and-click connectors enable fast, secure installation of Leader and Jumper Cables, reducing time on-site and simplifying the wiring process.
- Constant Torque Locking Hinges: Constant torque locking hinges allow the luminaire to be positioned precisely and held securely in place, supporting accurate aiming of the beam at architectural targets.
Color Kinetics eW Graze MX Powercore gen2 1FT 2700K 60×30° LED Graze Light (523-000114-04) Specifications:
- Color Temperature: 2700K
- Viewing Angle: 60° x 30°
- Lumens: 881.6
- Efficacy (lm/W): 43
- CRI: 82.7
- LED Channels: 2700K
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption: 20.5 W
- Surge Limits: 1KV maximum differential (L to N), 2KV maximum common (L to Gnd or N to Gnd)
- Control Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 3 channels per 1 ft section
- Control System: ColorKinetics full range of controllers, including iPlayer 3, iPlayer 4, Antumbra iColor Keypad, and ColorDial Pro, or third-party controllers
- Dimensions: 2.7 x 12 x 2.85 inches
- Weight: 2.1 lbs
- Housing Material: Extruded anodized aluminum
- Lens: Clear UV-protected polycarbonate
- Luminaire Connections: Integral male/female waterproof connectors
- Mounting: Multi-positional, constant torque locking hinges
- Temperature Ranges: 40°F to 122°F operating, 4°F to 122°F startup, 40°F to 176°F storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Not suitable for salt spray or harsh chemical environments
- Humidity: 0 to 95%, non-condensing
- IP Rating: IP66
