The American DJ VS3 9X5 Video Wall 45 Panel System (VS3 9X5) from DJDeals.com.
ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.
The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS3 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.

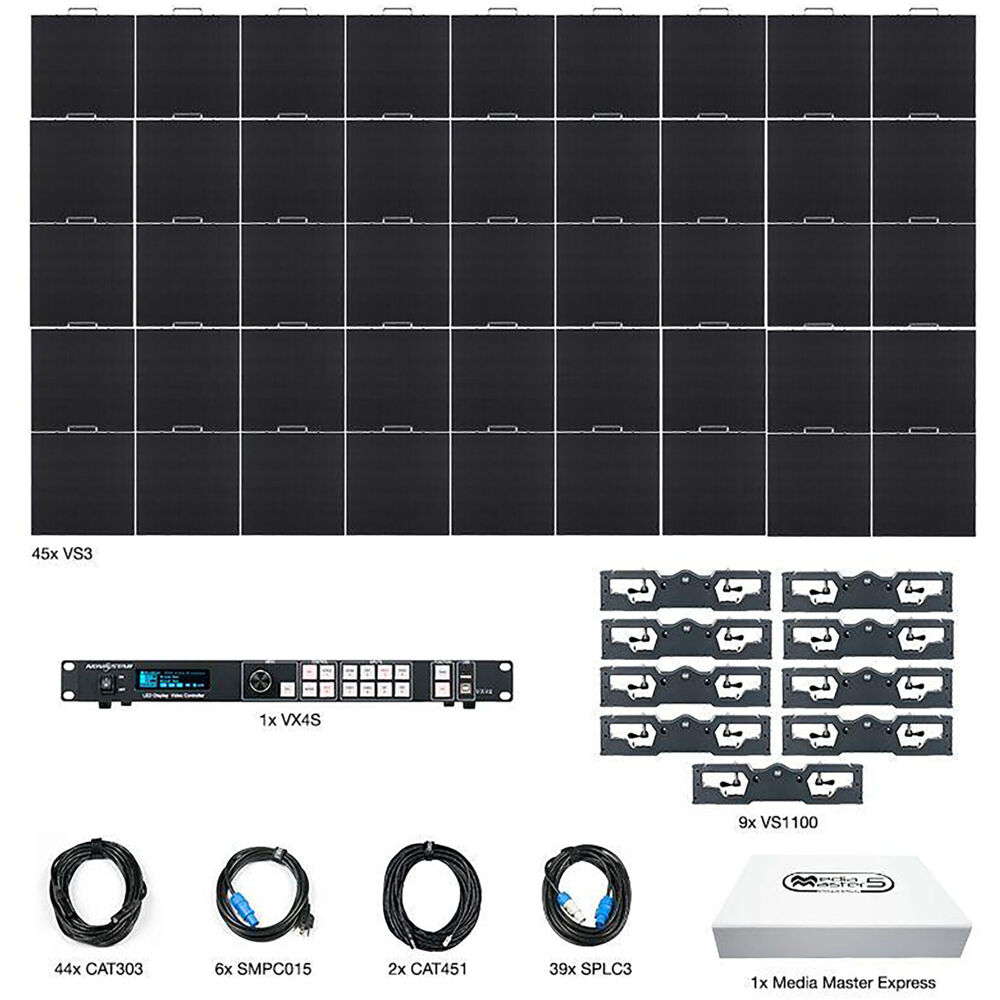

American DJ VS3 9X5 Video Wall 45 Panel System Includes:
45 x VS3 3.91mm Pixel Pitch Video Panels (VS3015)
44 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
39 x 3-foot Locking In/Out Power Cables (SPL013)
6 x 15-foot Locking In/Out Main Cables (SMP027)
1 x Novastar VX4S Video Processor (VX40001)
1 x ArKaos Media Master Express Software
9 x VSRB1 Vision Series Rigging Bars (VS1100)
American DJ VS2 9X5 Video Wall Panel System Specifications:
- VS3
- Pixel Pitch: 3.91mm
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 128×128; 65536 per square meter
- Module Quantity: 4
- Front and rear serviceable: 4 easy to replace video modules on each panel
- Magnets: on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
- Mechanical Ratings, Surface Flatness: gaps <0.5mm
- Optical Ratings
- Brightness: 1000 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
- Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 170W/per panel
- Ave. Power Consumption: 68W/per panel
- Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
- Control System
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: <0.02%
- Weight: 17 pounds
- Dimensions: 19.68″ x 19.68″ x 2.74″
- Novastar VX4S
- Input Resolution: up to 1920 x 1200 p @60Hz input resolution
- Electrical
- Max Power Consumption: 16W
- AC 100-240V – 50/60Hz – 0.65A
- Control/Connections
- (1) RJ45 LAN for IP Based Control
- (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
- (2) USB Type A and (2) USB Type B Ports (1 set on each side)
- (1) 1/8 inch (3.5mm) Audio Input
- Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
- Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
- Locking IEC Power Input
- Weight: 5.6 pounds
- Dimensions (LxWxH): 19″ x 10.8″ x 1.8″
- VSRB1
American DJ VS3 9X5 Video Wall 45 Panel System Features:
- Weight: 10 pounds
- Dimensions (LxWxH): 19.6″ x 3″ x 4.75″
