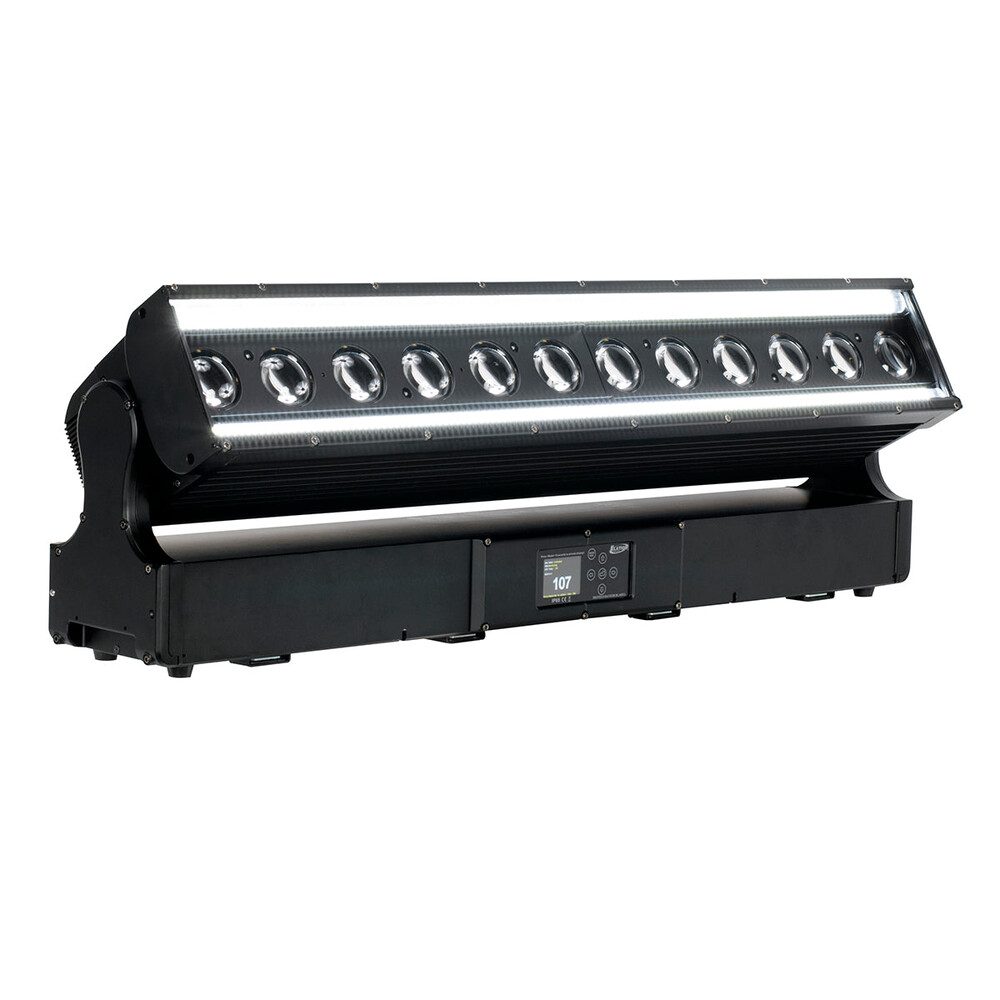

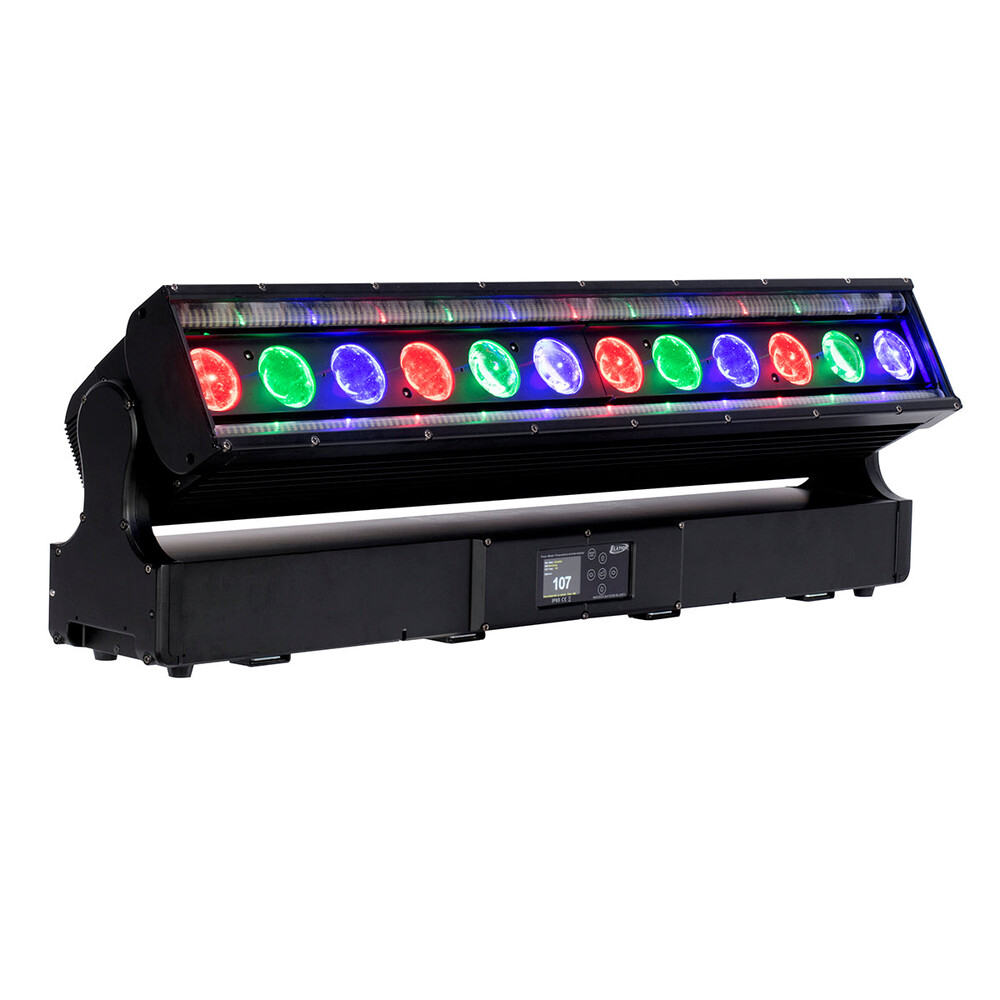

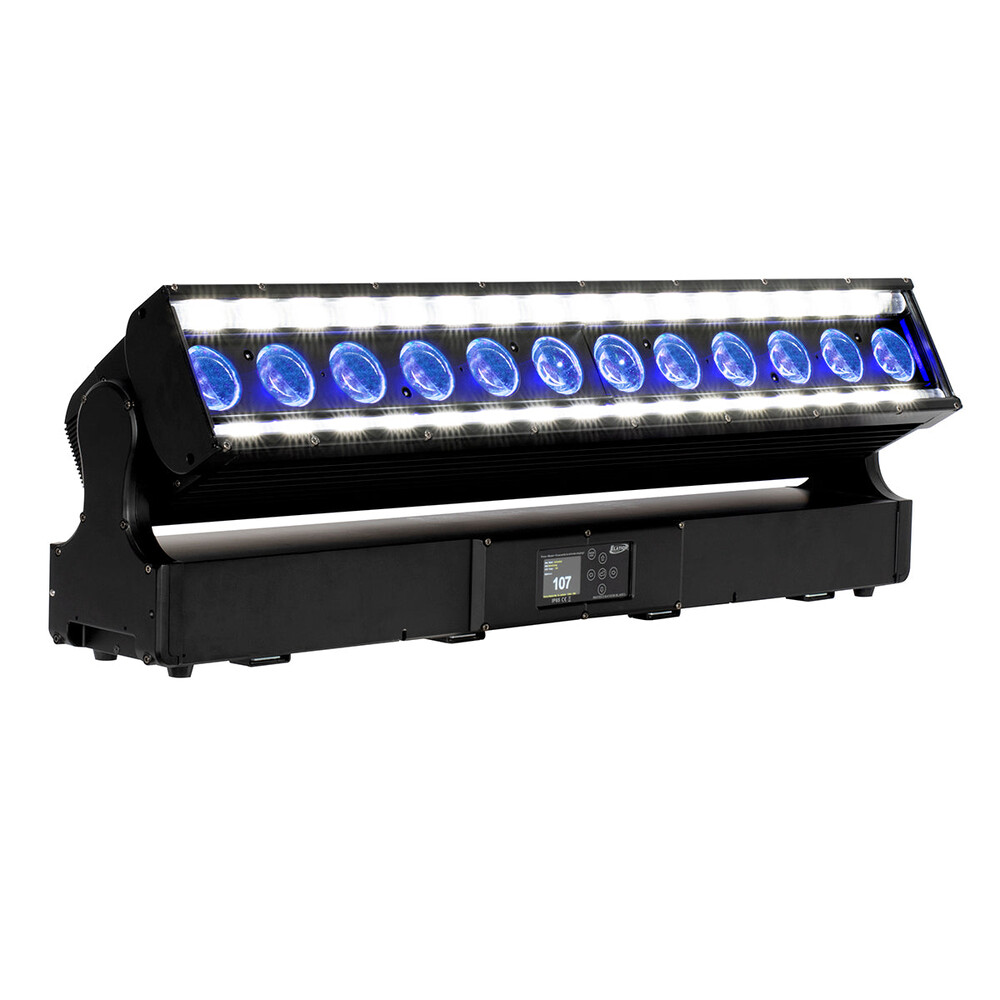

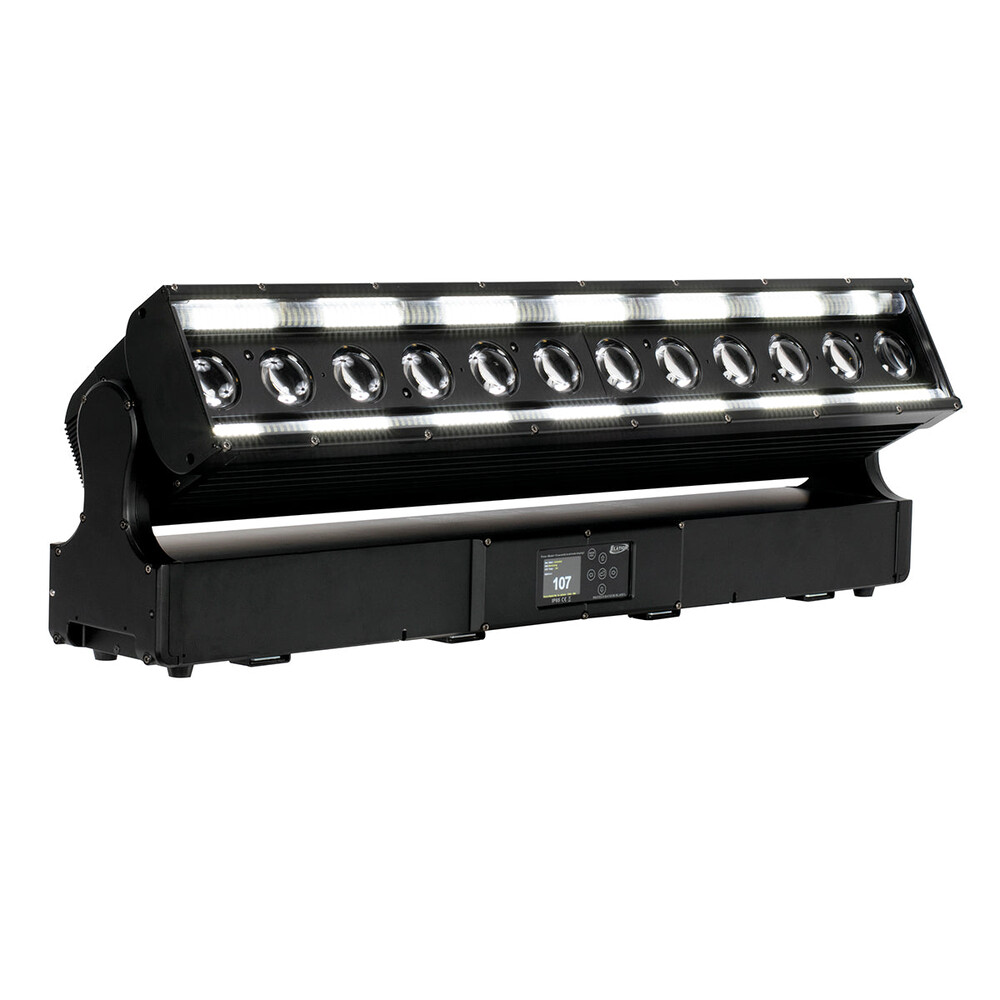

The Elation Professional PROTEUS RAYZOR BLADE L (PRR048) from DJDeals.com is a striking IP65-rated linear wash, strobe, and SparkLED effects fixture combining 12 independently controlled 60W OSRAM RGBW LEDs delivering 11,000 lumens, 48 pixel-controlled SparkLED effects, and dual 128-pixel high-intensity white strobe lines — all in a compact linear tilt FX fixture with motorized zoom from 6° to 45°. Designed for unlimited creative placement indoors or outdoors, the PROTEUS RAYZOR BLADE L delivers mid-air beams, audience blinders, stage washes, and animated effects from a single IP65-certified unit.
Elation Professional PROTEUS RAYZOR BLADE L (PRR048) Features:
- 12x 60W OSRAM RGBW LEDs — 11,000 Lumens. Twelve independently controlled 60W OSRAM RGBW LED cells deliver 11,000 lumens of total output with CRI 80 and 50,000-hour average LED life, providing intense mid-air beams, smooth wide washes, and full pixel color control across the entire fixture length.
- 48x SparkLED Pixel Effect System. Elation’s patented SparkLED technology places 48 individual 2W white LEDs inside the large RGBW front lenses, creating a unique internal lens illumination layer visible in both beam and wash modes for maximum visual impact and depth perception on stage.
- Dual 128-Pixel High-Intensity Strobe Lines. Two high-intensity strobe arrays of 128 1W cool white LED dots each flank the Rayzor lenses across the full fixture length, providing powerful audience blinder effects, precise pixel-controlled flash patterns, and dramatic strobe curtains that complement the RGBW wash.
- IP65 Linear Tilt FX Design. The compact linear housing with motorized tilt sweep (192°) delivers mid-air light curtains, sweeping beam effects, and wide wash coverage from a footprint-optimized fixture that installs flat against trusses, stages, and architectural surfaces.
- Zoom Range 6° to 45°. Motorized zoom transitions from a 6° tight beam for mid-air beam lines to a 45° wide wash angle, with linear color temperature presets (2700–8000K), RGBW color mixing, pixel color control, and color presets/macros for complete lighting control.
- 6 DMX Channel Modes. Six channel modes (28/76/140/108/120/188 channels) provide flexibility for simple single-color operation through full pixel-level control of all RGBW, SparkLED, and strobe zones — adaptable to any console and production scale.
- 360° Continuous Pan & Tilt Movement. Continuous 360° rotation capability with DMX-adjustable refresh rate (900–25,000 Hz) and 16-bit dimming enables variable speed effects from slow sweeping light curtains to high-speed strobing beam patterns.
- IP65 Network Connectivity. IP65-rated 5-pin XLR DMX In/Out, RJ45 Ethernet In/Out (Art-Net, sACN), and locking IP65 power connections ensure sealed, reliable installation in permanent outdoor and touring environments.
- RDM Support & Touch Control. Full RDM support, 6-button touch panel, and full-color 180° reversible LCD display provide remote addressability, local diagnostics, and fixture configuration without requiring physical access in installed positions.
- FIL Packaging for Transport. Ships with a custom-fitted FIL (Foam In Lay) polyurethane foam insert for enhanced impact protection during touring and international transport, optimized for custom flight case fitment.
Elation Professional PROTEUS RAYZOR BLADE L (PRR048) Specifications:
- LED Sources: (12) 60W OSRAM RGBW LEDs, (48) 2W White SparkLED, (256) 1W Strobe LED
- LED Life: 50,000 hours average
- Total Lumens: 11,000 (RGBW)
- CRI: 80
- Zoom Range: 6° – 45°
- SparkLED Color Temperature: 4000K
- Strobe Line Color Temperature: 6500K
- Effects: Motorized Zoom, Linear Color Temperature Presets (2700–8000K), RGBW Color Mixing & Pixel Control, White SparkLED Lens Effect, Dual White Strobe Lines (128 pixels per side), Color Presets & Macros, Electronic Strobe, Variable 16-bit Dimming
- Tilt Angle: 192°
- DMX Channel Modes: 6 modes (28/76/140/108/120/188 channels)
- Control Protocols: DMX, RDM, Art-Net, sACN
- DMX Refresh Rate: Adjustable 900–25,000 Hz
- Display: Full Color 180° Reversible LCD, 6-Button Touch Panel

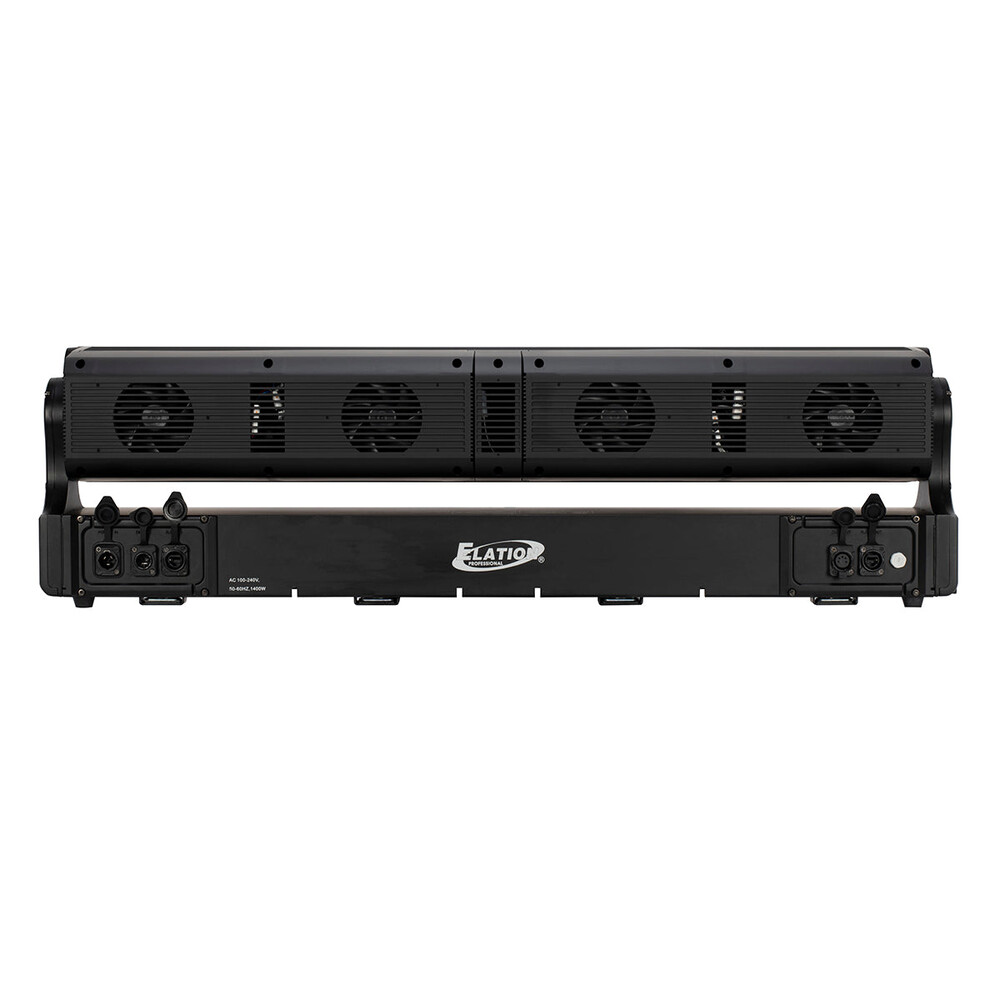

- Connectivity: IP65 5-pin XLR DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power Cable In
- Length: 39.5″ (1004mm)
- Width (Base): 7.6″ (194mm)
- Width (Head): 6.1″ (155mm)
- Height (head up): 13.2″ (336mm)
- Height (head 90°): 11.3″ (288mm)
- Weight: 72.7 lbs. (33 kg)
- Power Supply: AC 100–240V, 50/60Hz
- Max Power Consumption: 1,400W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP65
- Approvals: CE, cETLus, IP65
- SKU: PRR048
- UPC: 810008263013
