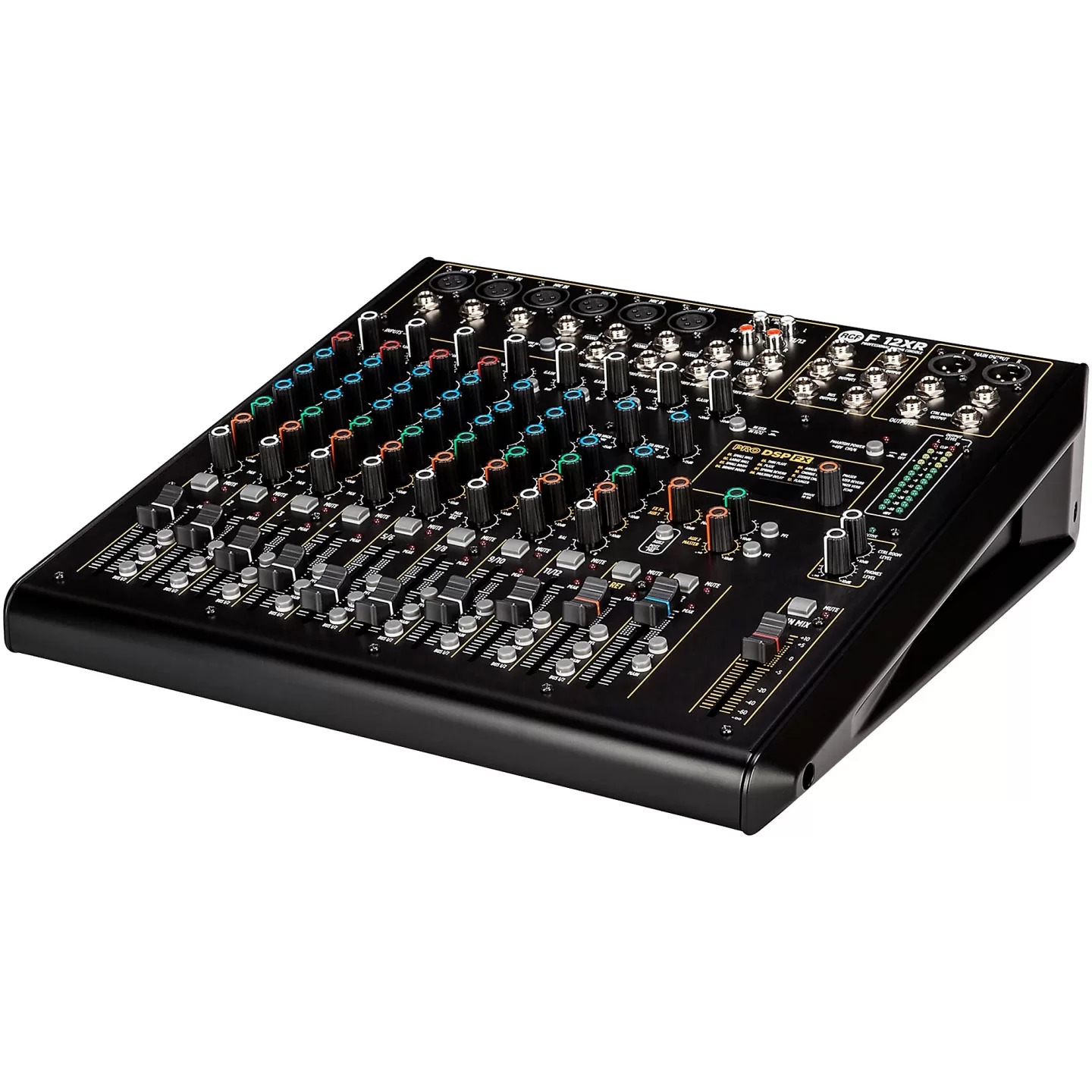

The RCF F 12XR 12 Channel Pro Audio Mixer from DJDeals.com features 6 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and recording via USB port, with balanced main output (Stereo XLR + TRS) and 4 single control compressors. The mono channels are provided with 3-band EQ and stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 aux sends (1 pre,1pre/post fader). It also features a stereo output BUS and 60mm faders.
Flexibility
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
EQ
State-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.
Preamps
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket. The channel 4 features Hi-Z input level for musical instruments such as acoustic instruments with piezo transducers, electric bass and guitars or stompboxes
RCF F 12XR 12 Channel Pro Audio Mixer Features:
- 6 Mic preamp inputs, 4 mono Line inputs
- 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 4 single control compressors
- Balanced main output +28 dB (Stereo XLR + TRS)
- One Stereo output bus and 2 Aux sends (1 pre, 1 pre/post)
- 60 mm faders
- Internal universal power supply
- Designed and engineered in Italy
RCF F 12XR 12 Channel Pro Audio Mixer Specifications:
Format
- Analog/digital: Analog
- Number of channels: 12
- Busses/groups: 2
- Aux sends: 2
- Powered: No
Inputs
- Total inputs: 12
- Mic preamps: 6
- XLR/TRS combo jacks: 0
- XLR only jacks: 6
- 1/4″ only jacks: 12
- S/PDIF in: No
- ADAT/optical in: No
- RCA in: 1 (pair)
- USB: No
Outputs
- Total outputs: 6
- XLR out: 2
- 1/4” out: 4
- Sub Group Out: 0
- RCA out: 1 (pair)
- AES / EBU: No
Other Connectivity
- Connections: USB
- Headphone output(s): 1
Onboard effects
- Compression: No
- Reverb: Yes
- Delay: Yes
- Chorus/flange: Yes
Equalization
- Type: Rotary
- EQ bands: 3/2 band
- Master graphic: No
Other
- Width: 13.98″
- Height: 3.82″
- Depth: 13.98″
- Weight: 3.97 lb.
- Automation: No
- Fader type: 60 mm
- Motorized faders: No
- Bundled software: No
RCF F 12XR 12 Channel Pro Audio Mixer Documents:
RCF F 12XR 12 Channel Pro Audio Mixer Spec Sheet & Downloads
