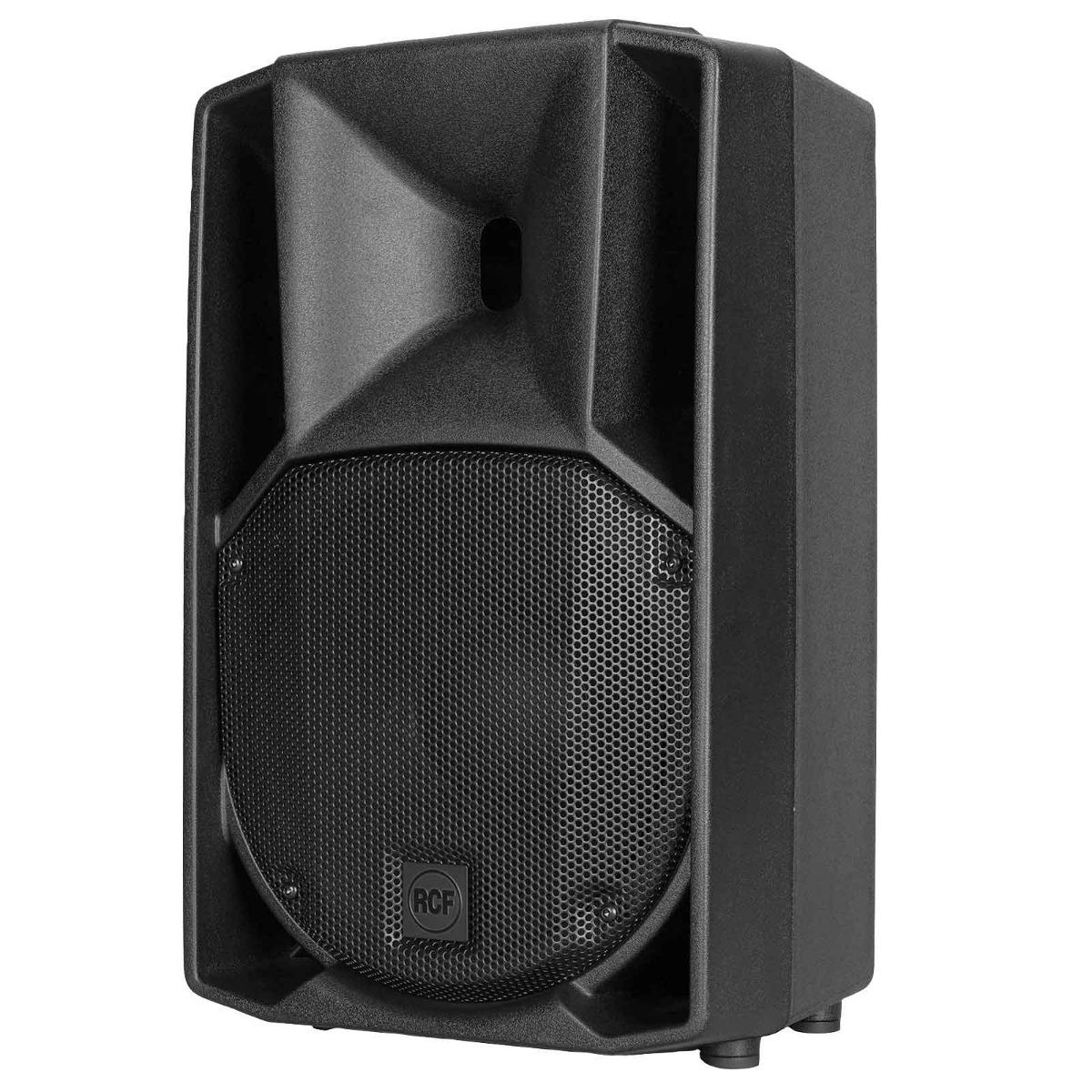

The RCF ART 710-A MK5 1400W 2-Way 10″ Powered Speaker from DJDeals.com is a unique product in its category. The 1.75″ compression driver offers unique vocal clarity and sound projection. The 10″ woofer offers an extremely linear response and a precise, deep low-frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The new 1.75″ compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer. Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 7.
Class-D Headroom, Fan-Less Reliability
The ART 710-A MK5 delivers 1400 W peak via a high-efficiency Class-D module. Its aluminum structure doubles as a heat sink for convection cooling, keeping performance stable through long sets without a fan.
1.75″ HF Driver for Clean, Confident Highs
The redesigned 1.75″ voice-coil compression driver improves durability and transient detail, projecting vocals and keys with clarity that cuts through busy rooms.
10″ Woofer with Tight, Musical Punch
Engineered for a linear LF response and strong thermal handling, the 10″ transducer delivers punch without smear—ideal for dance music and live playback.
FiRPHASE Alignment, Natural Imaging
FiRPHASE filtering aligns phase through the crossover, preserving stereo image and ensuring the tonal balance heard at the console translates across the audience area.
XBoost: Fuller Bass When You Need It
Toggle XBoost on the rear panel to increase the perception of bass while keeping woofer excursion under control—perfect for full-range DJ sets or warm background music.
Rugged Cabinet and Mounting Options
The PP composite enclosure resists vibration at high SPLs. Carry via the top handle, mount on a 35 mm pole, angle as a wedge, or use the 2 × M10 points with approved hardware.
RCF ART 710-A MK5 1400W 2-Way 10″ Powered Speaker Features:
- 129 dB Max SPL.
- 1400 WATT 2-way peak power.
- 90° x 70°, Wide dispersion constant directivity horn.
- Innovative DSP Processing.
- 1,75″ Compression Driver.
- 10″ Woofer.
- FiRPHASE Technology.
- XBOOST Low Frequencies Enhancer.
RCF ART 710-A MK5 1400W 2-Way 10″ Powered Speaker Specifications:
Acoustical Specifications
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 129 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Transducers
Compression Driver: 1 x 1.0″, 1.75″ v.c
Woofer: 10″, 2.5″ v.c
Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor Section
Crossover Frequencies: 1600
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, MIC/Line
Power Section
Total Power: 1400 W Peak
High frequencies: 400 W Peak
Low frequencies: 1000 W Peak
Cooling: Convection
Connections: VDE
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Hardware: 2 x M10
Handles: 1 on top
Pole mount/Cap: Yes
Color: Black
Size
Height: 548 mm / 21.57 inches
Width: 340 mm / 13.39 inches
Depth: 305 mm / 12.01 inches
Weight: 14.2 kg / 31.31 lbs
Shipping Information
Package Height: 585 mm / 23.03 inches
Package Width: 425 mm / 16.73 inches
Package Depth: 405 mm / 15.94 inches
Package Weight: 16.8 kg / 37.04 lbs
