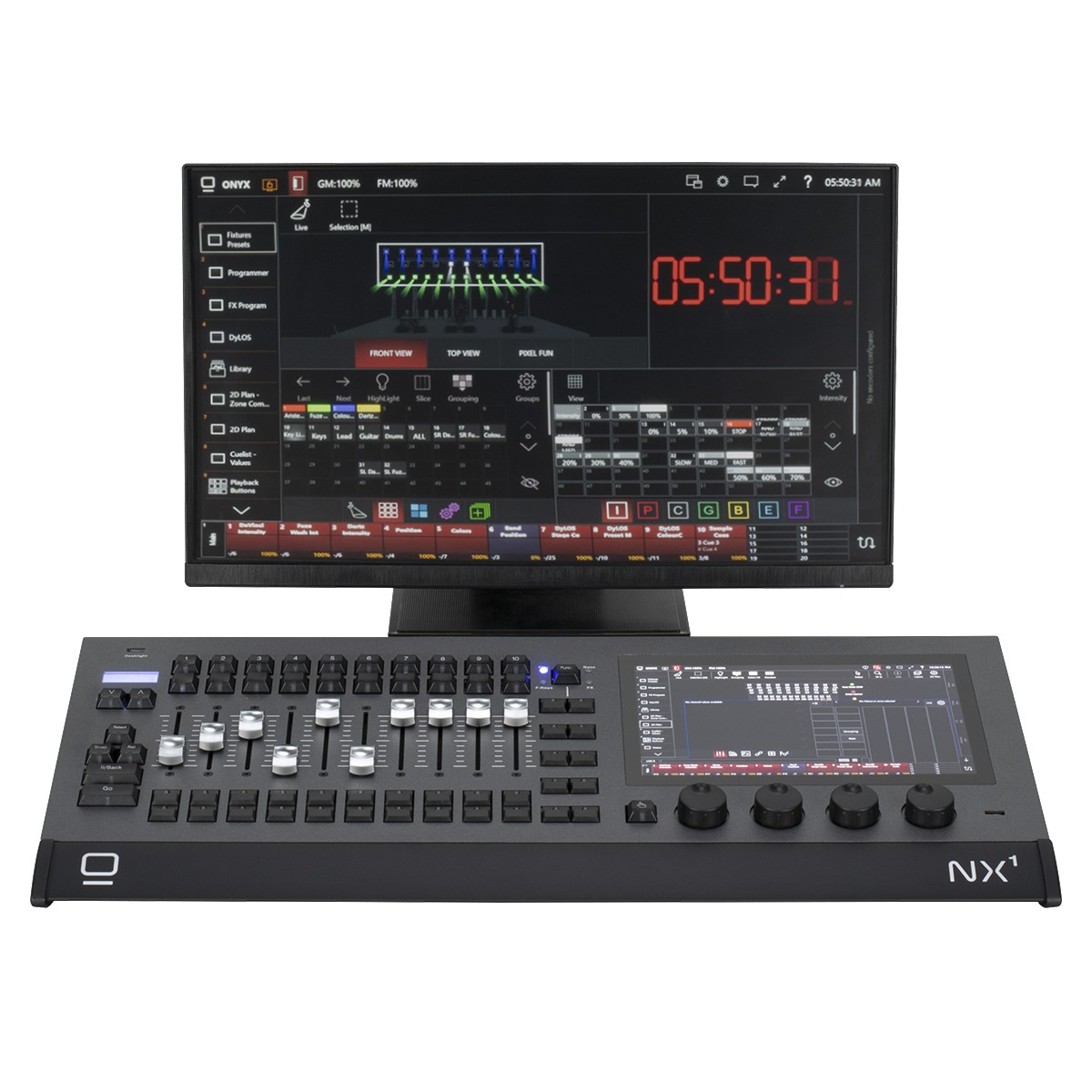

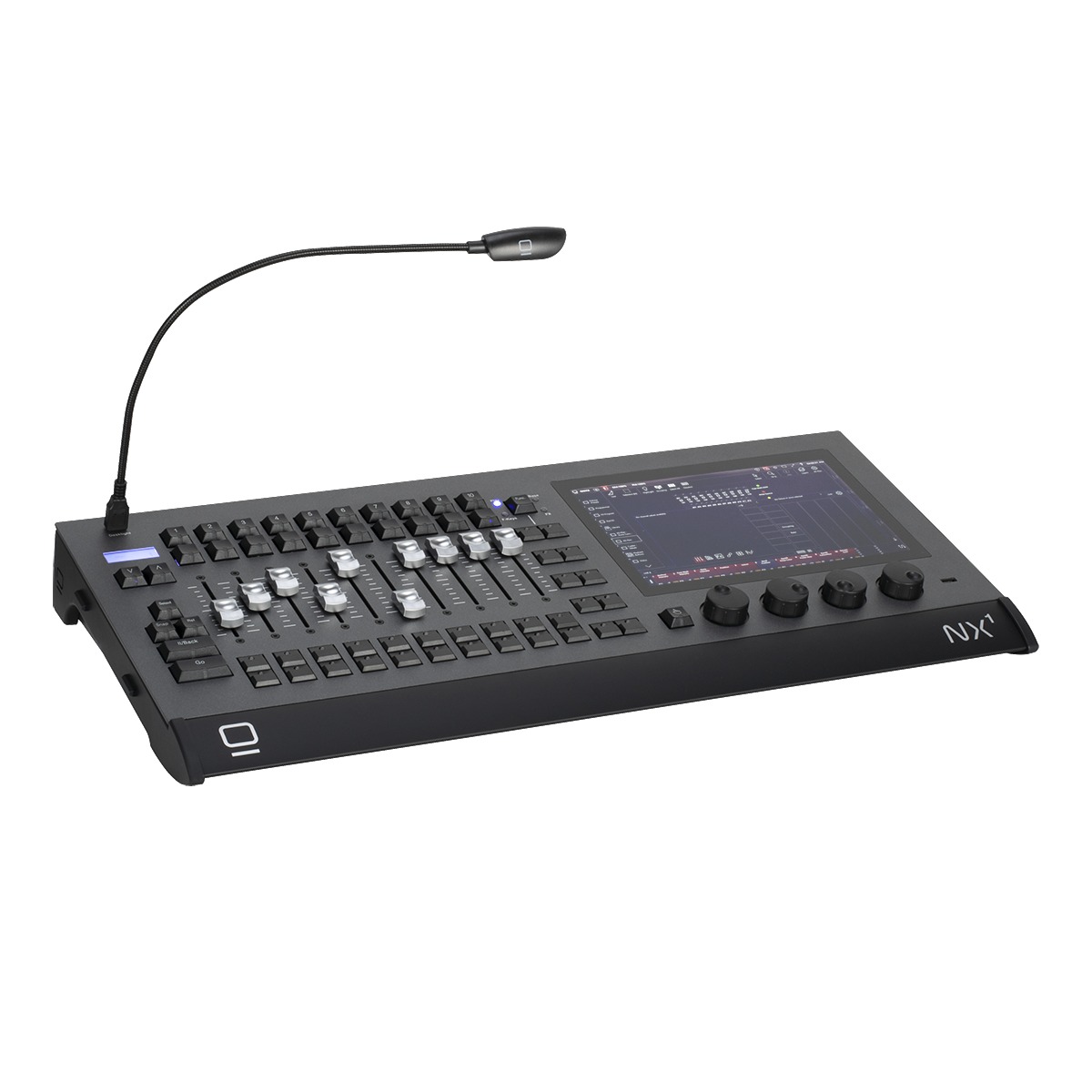

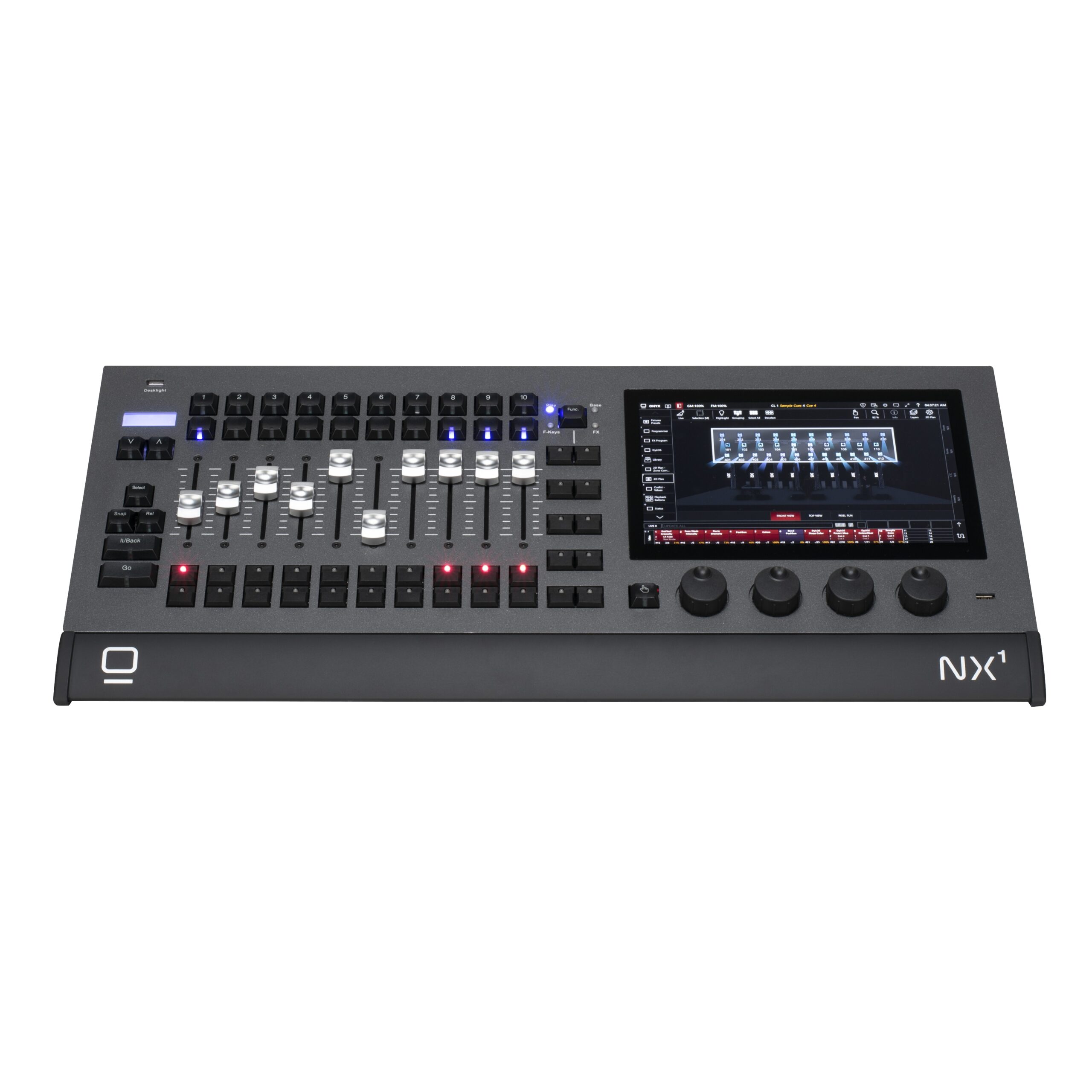

The Obsidian Control Systems NX1-16 Lighting Console (NX1016) from DJDeals.com is the essential lighting controller in the innovative and powerful ONYX platform, delivering a fully featured 16-universe console in an ultra-compact package. Utilizing the full ONYX Operating System, the NX1-16 includes a high-brightness 10.1″ HD multi-touch screen, four assignable parameter encoders, ten full motorized playbacks with four freely assignable buttons, and a dedicated Master Go section. Powerful Intel processing, 16 GB DDR5 RAM, and a 500 GB NVMe SSD enable fast boot times and the ability to handle 16 universes right inside the console. One additional touch monitor is supported for expanded access at any time, and the NX1-16 is further expandable with the NX K keypad and NX P motorized playback wing via a magnetic alignment system.
Obsidian Control Systems NX1-16 Lighting Console (NX1016) Features:
- Portable & Compact Console. Ultra-compact form factor with a fully featured ONYX platform experience — no compromises on features despite the small footprint.
- 10.1″ Full HD Multi-Touch Screen. Industrial-grade 1920x1200px touchscreen with support for one additional external touch monitor via HDMI for expanded programming access.
- 16-Universe ONYX License. Ships with the full ONYX 16-universe license, supporting Art-Net, sACN, and ONYX X-Net output via dual Gigabit RJ45 Ethernet ports.
- 10 Motorized Playbacks. Ten 60mm motorized playback faders, each with four function-assignable buttons, plus ten customizable playback or multi-function keys and a Master Go section.
- 4 Digital Rotary Encoders. Parameter encoders with push function and status LED for fast, direct fixture parameter control during live programming.
- Industrial Processing Hardware. Intel CPU, 16 GB DDR5 RAM, Intel UHD graphics, 500 GB NVMe M.2 storage drive, and quiet thermal design using advanced copper heat pipe coolers.
- 4x DMX / RDM Ports. Four 5-pin locking XLR DMX/RDM ports (bidirectional In/Out) plus two Gigabit Ethernet ports for network DMX distribution.

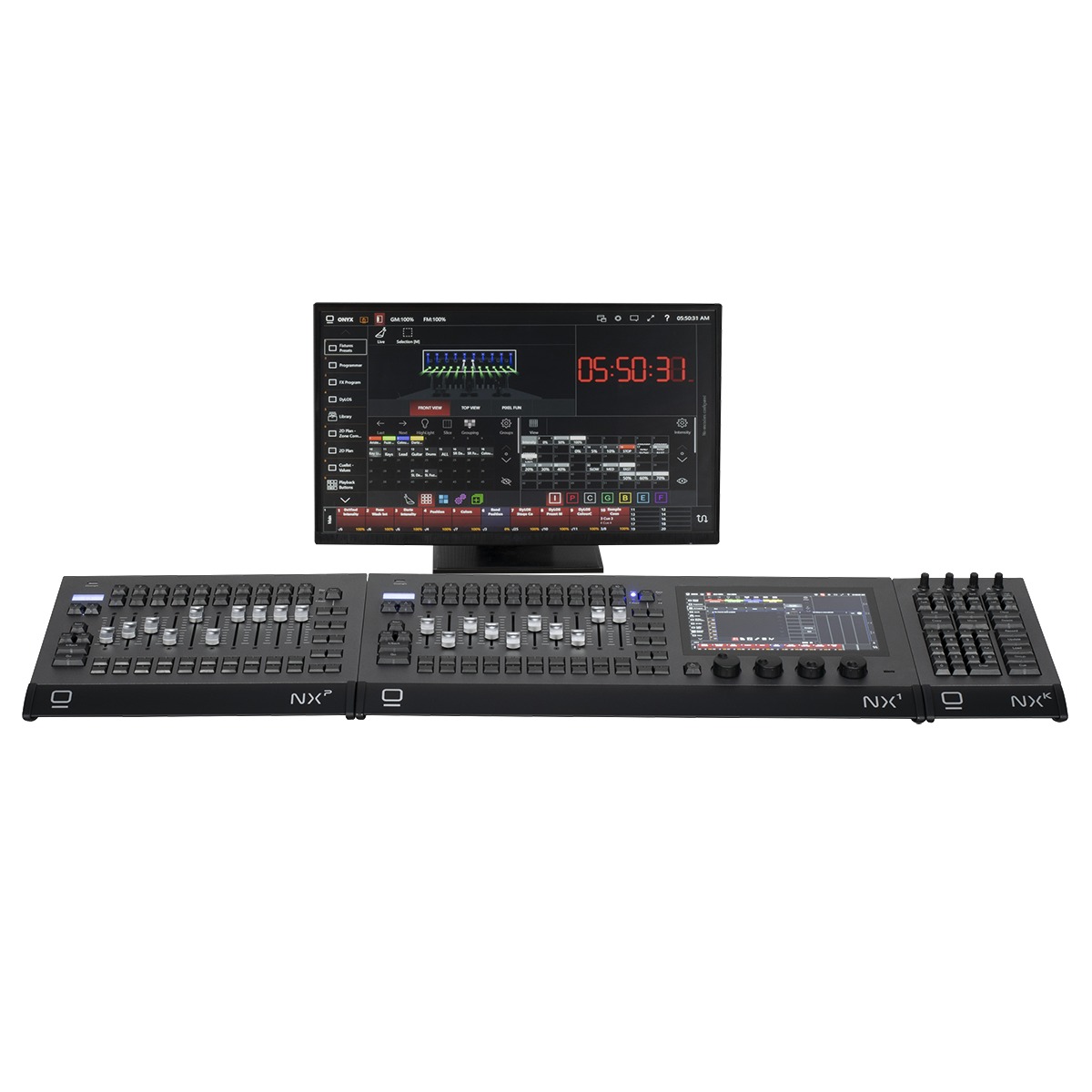

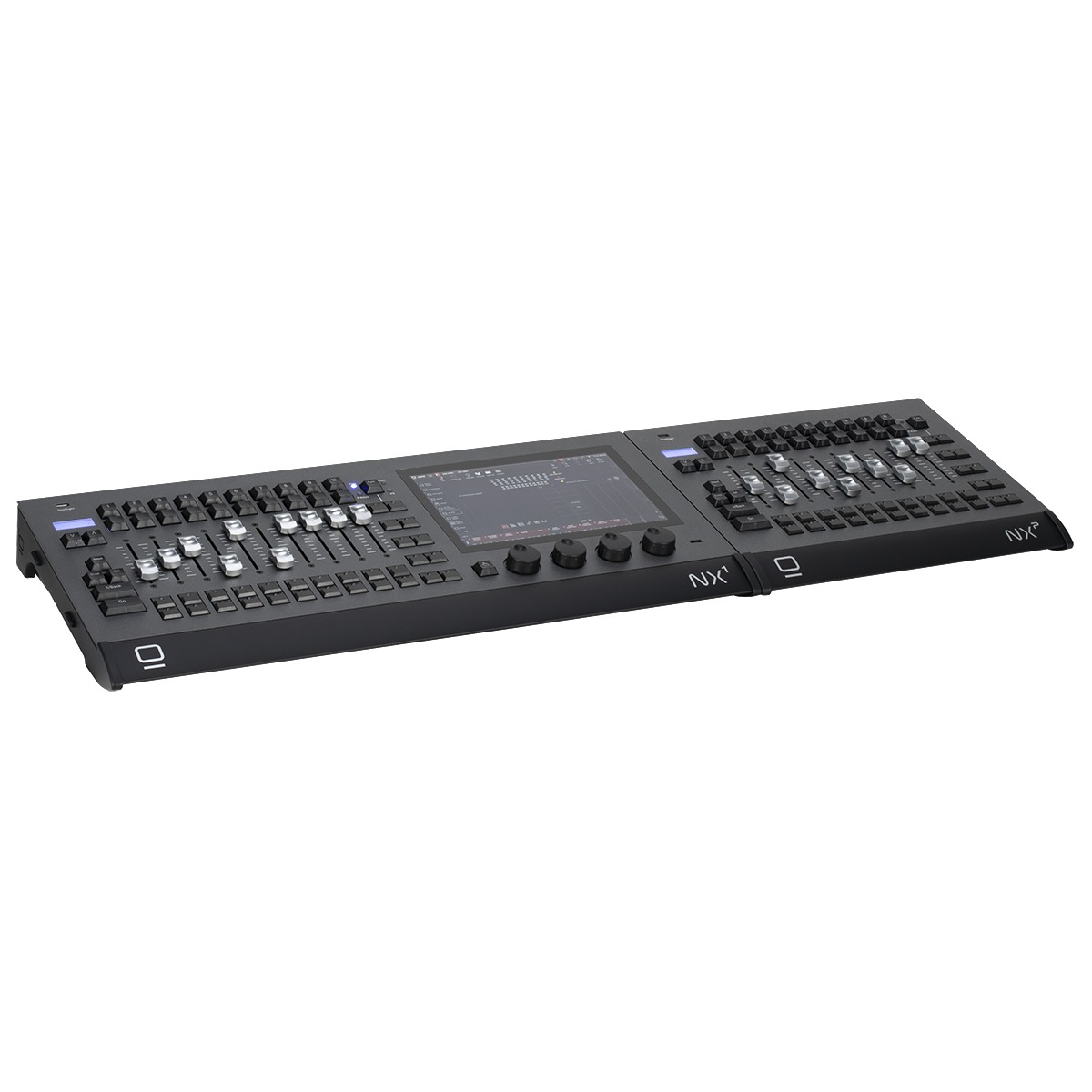

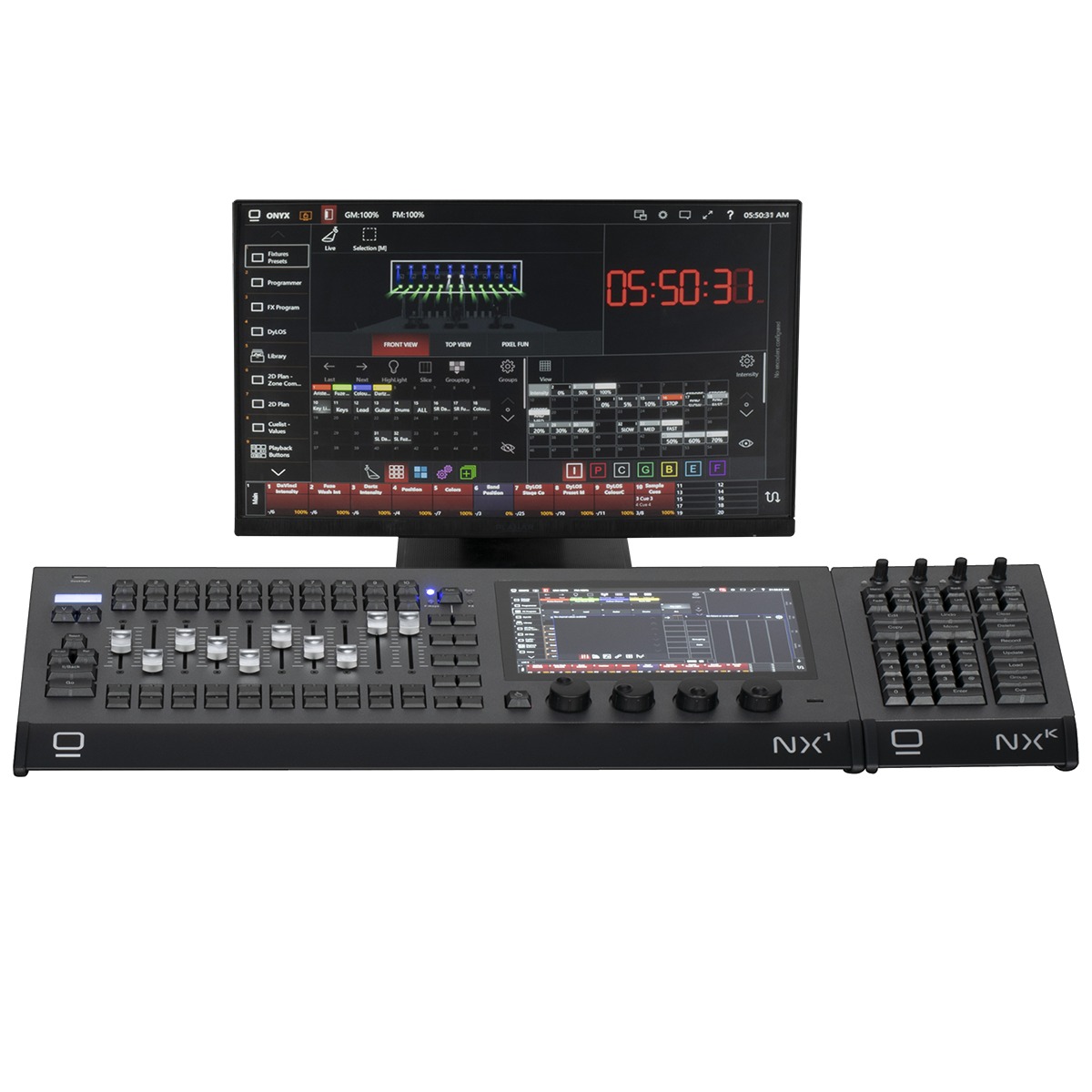

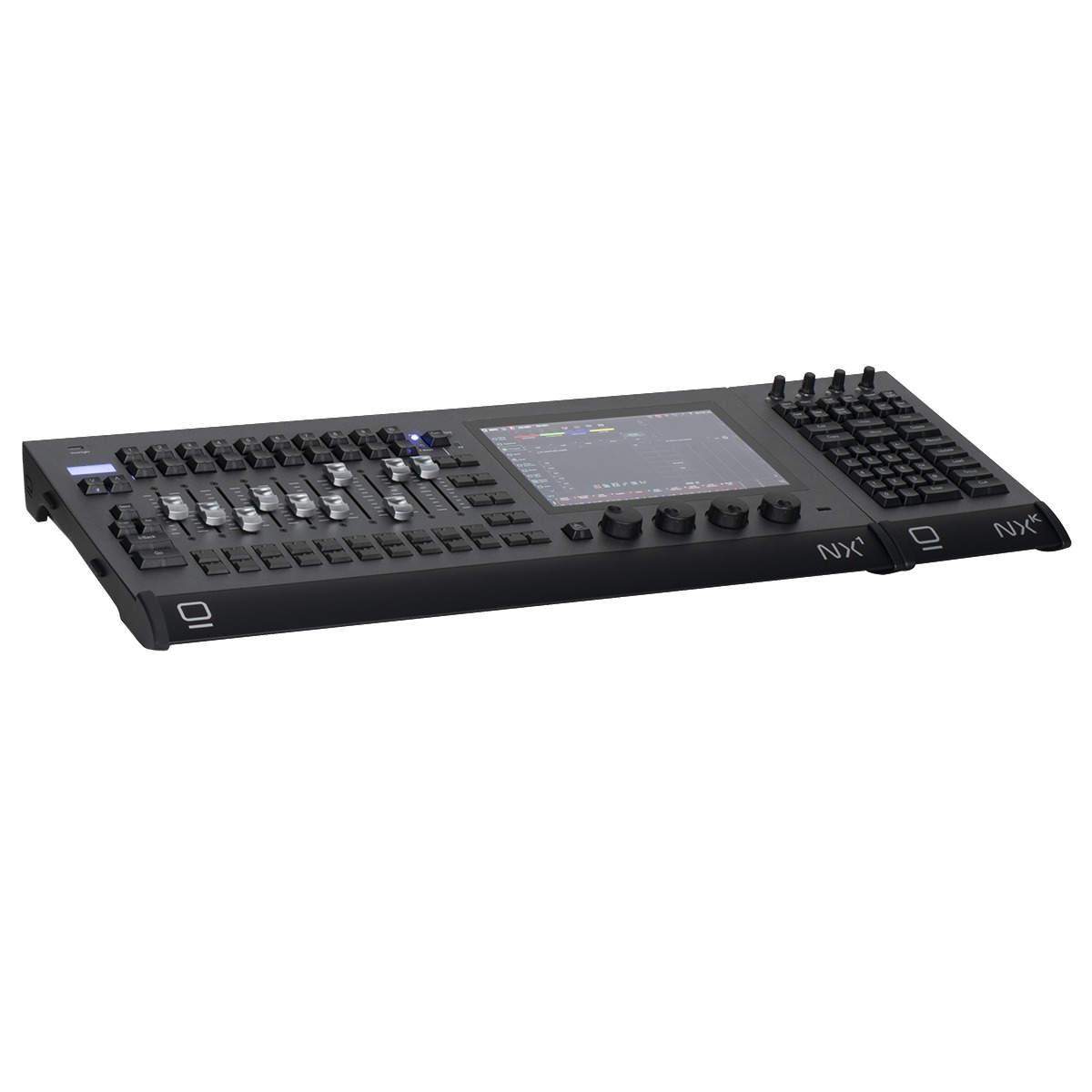

- Expandable with NX K & NX P. Magnetic alignment system allows attachment of the NX K keypad or NX P motorized fader wing to either side of the console.
- Windows IoT Embedded OS. Runs Windows IoT Embedded for reliability and stability, with USB 3.0 OS installation/recovery drive included.
Obsidian Control Systems NX1-16 Lighting Console (NX1016) Specifications:

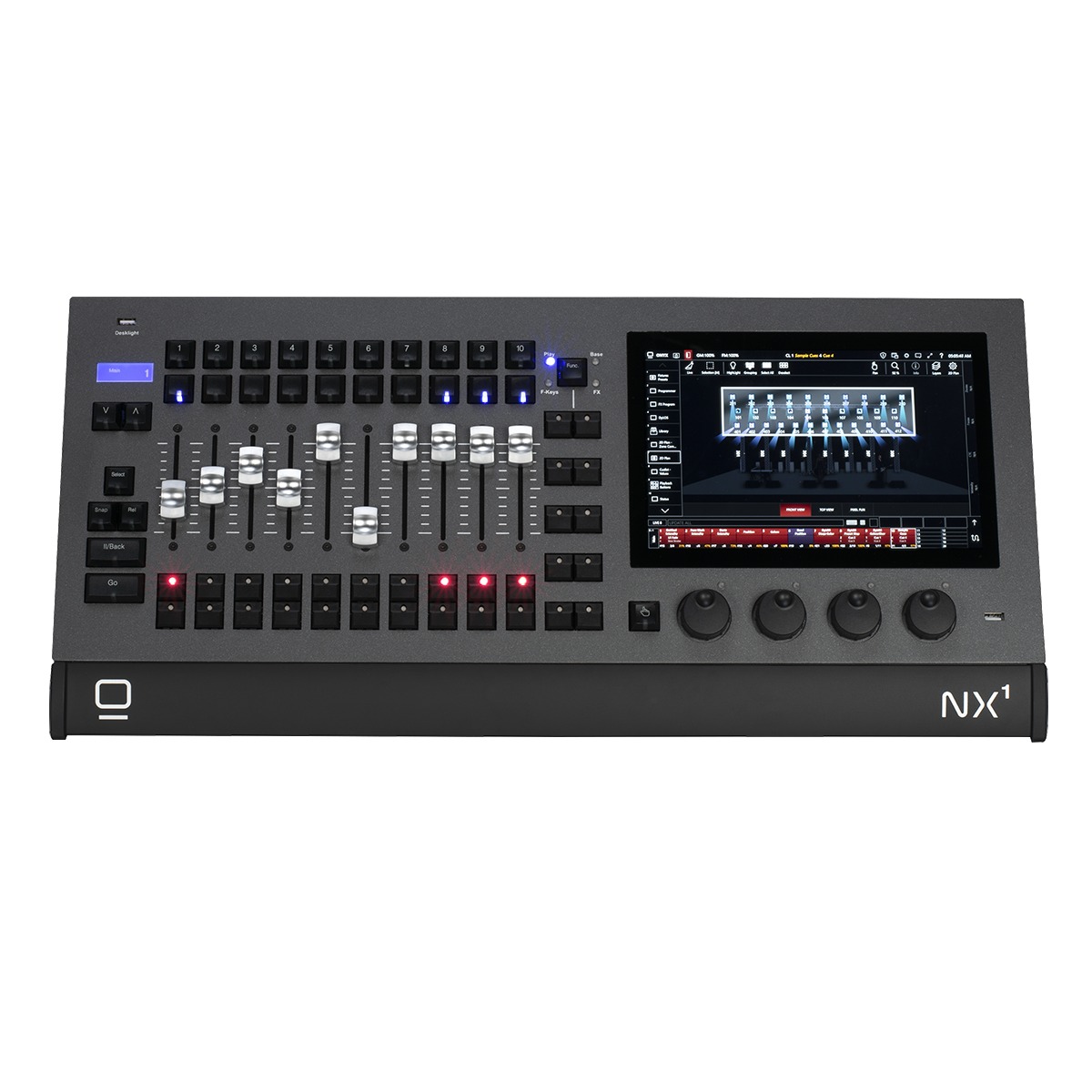

- Surface: 10x 60mm motorized playback faders, 4x function-assignable buttons each; 10x customizable playback/multi-function keys; Playback Select button; Master Go section (Go, Pause, Snap, Release); 4x digital rotary encoders with push & status LED; Virtual Keypad control
- Screen: Industrial 10.1″ TFT 16:9 touchscreen, 1920x1200px
- Storage: 500 GB NVMe M.2 storage drive
- RAM: 16 GB DDR5
- Graphics: Intel UHD graphics processor
- Operating System: Windows IoT Embedded
- DMX Ports: 4x DMX / RDM Universe In/Out, 5-pin locking XLR
- Network: 2x Gigabit RJ45 Ethernet for Art-Net, sACN, ONYX X-Net
- External Display: 1x HDMI
- USB: 2x USB 3.2, 2x USB 2.0
- Audio: 2x 3.5mm Jack (Out + Mic In); USB 5V desk lamp connector
- Power: IP65 Locking Power In; 100–240V 50/60 Hz, 104W
- Dimensions: 298.5mm L x 636mm W x 71mm H (11.75 in. x 25 in. x 2.8 in.)
- Weight: 8.1 kg (17.8 lbs.)
- UPC: 810008265994
