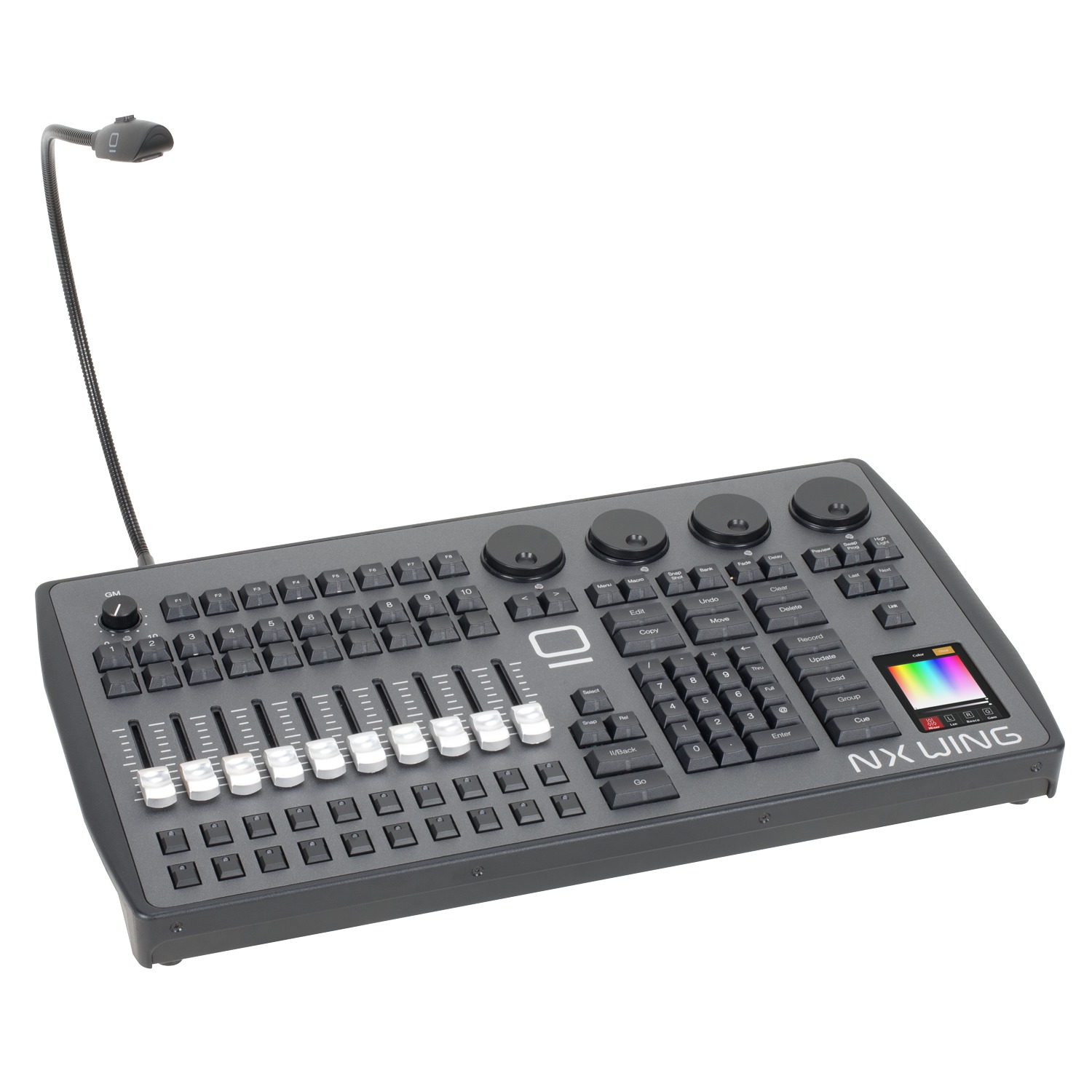

Obsidian Control Systems NX Wing USB Control Surface (NXW884)

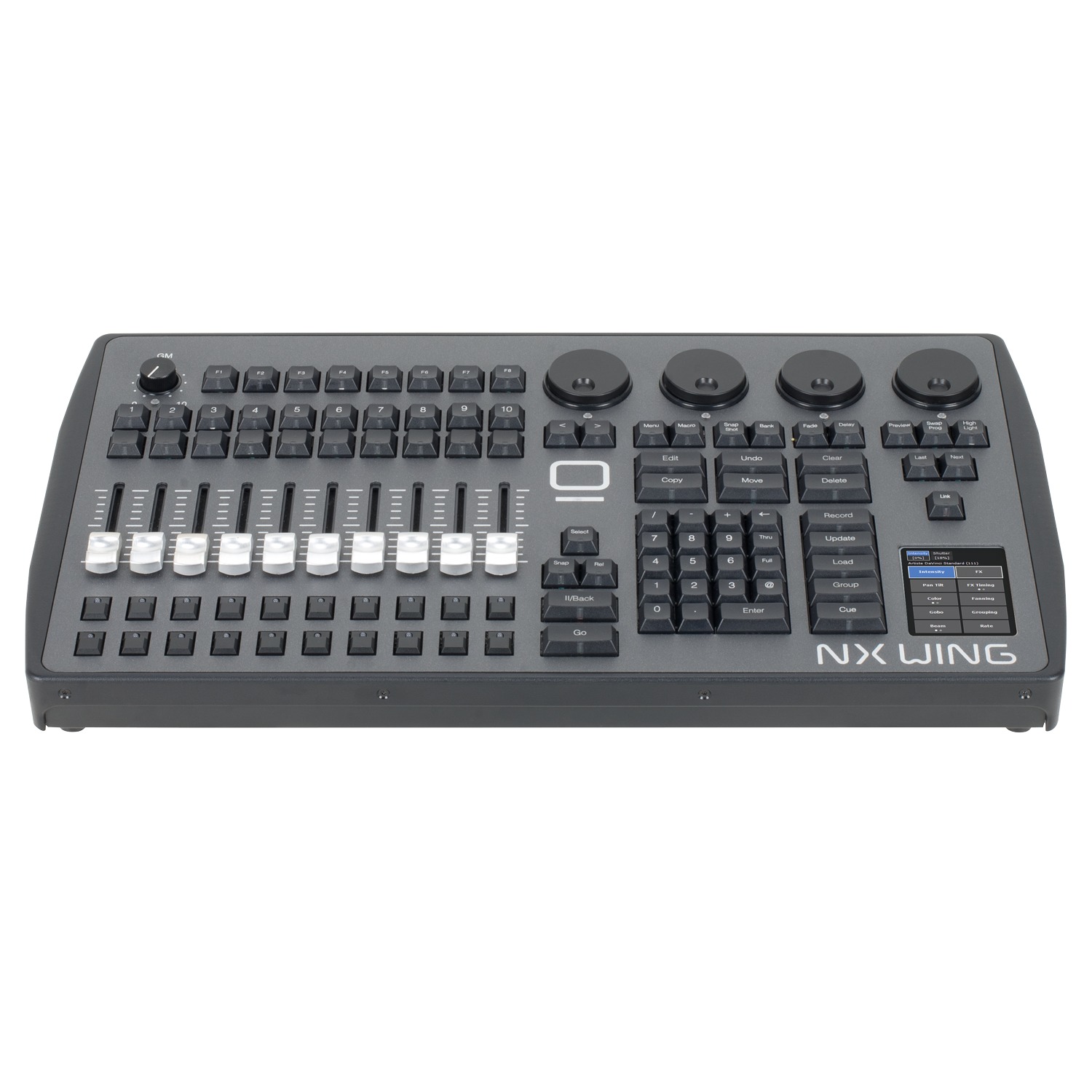

Obsidian Control Systems NX Wing USB Control Surface (NXW884) - Image 2

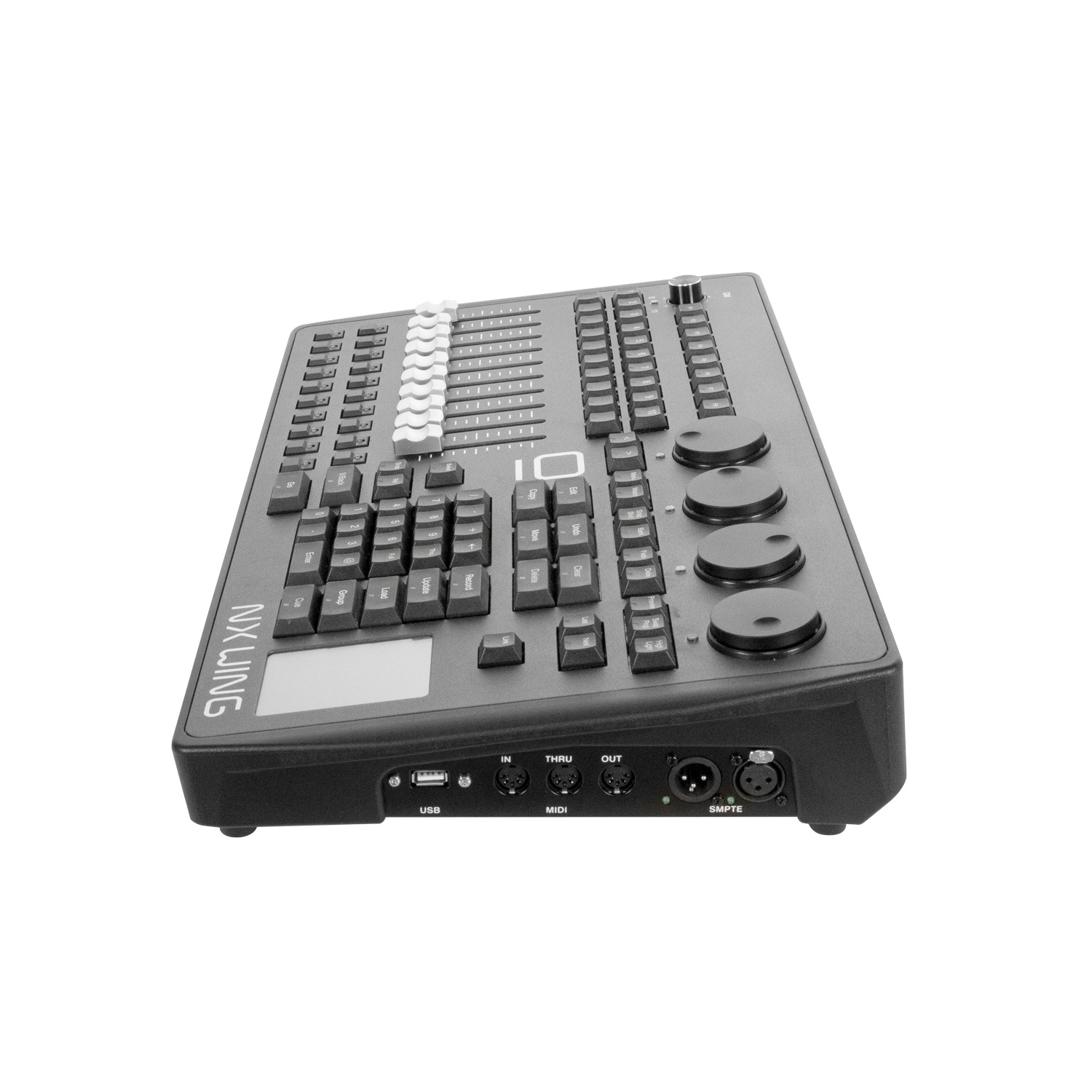

Obsidian Control Systems NX Wing USB Control Surface (NXW884) - Image 3

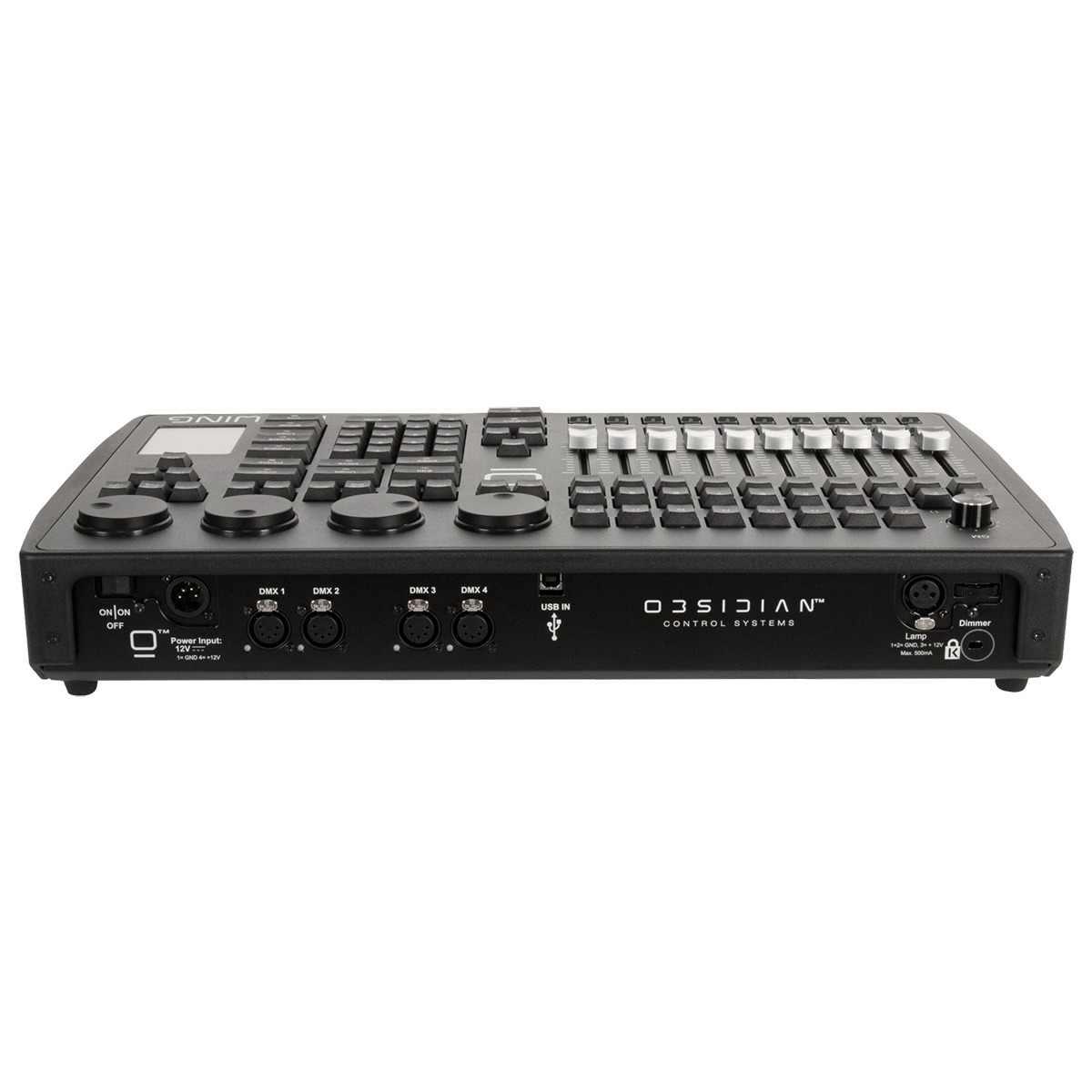

Obsidian Control Systems NX Wing USB Control Surface (NXW884) - Image 4

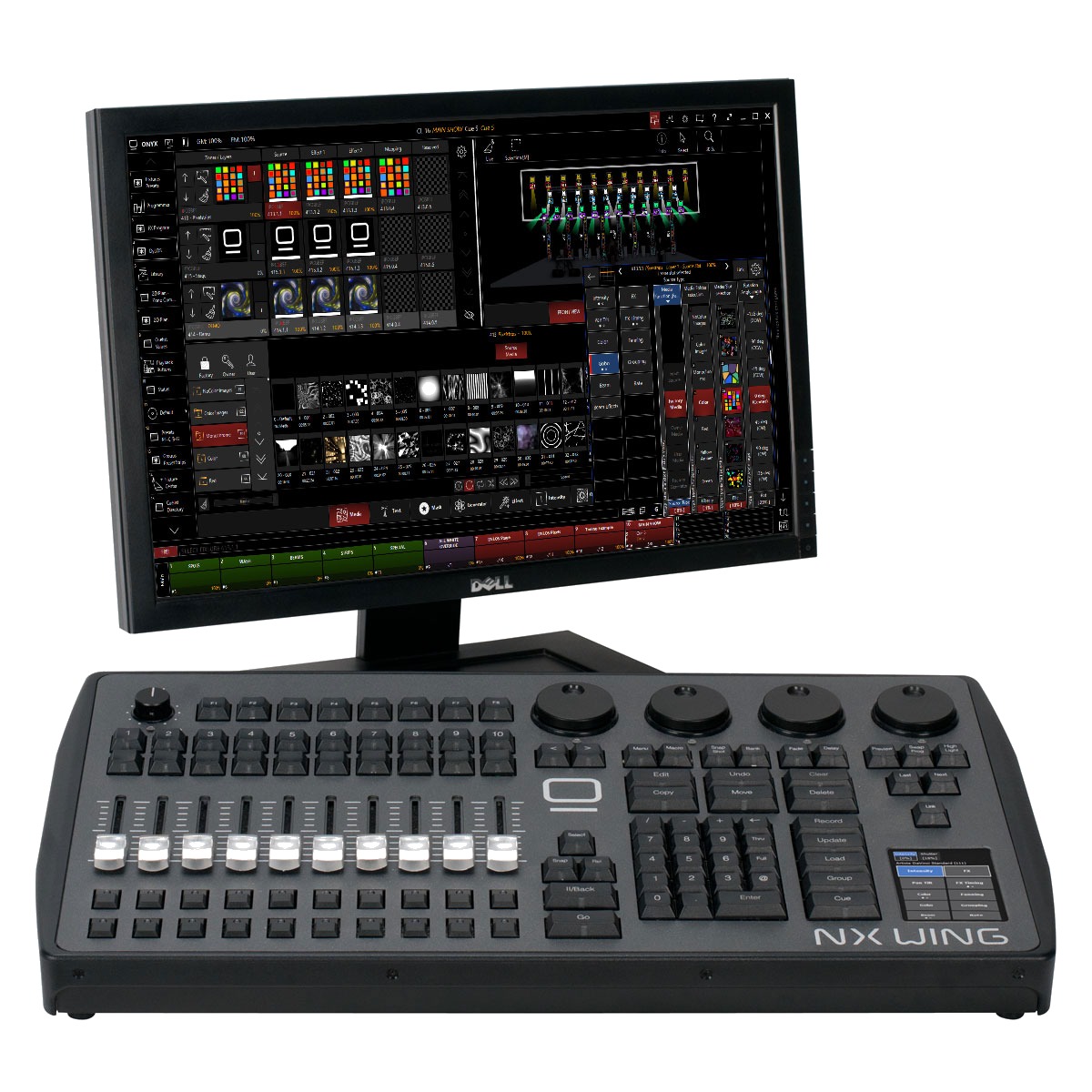

Obsidian Control Systems NX Wing USB Control Surface (NXW884) - Image 5

Obsidian Control Systems NX Wing USB Control Surface (NXW884)

Name: Obsidian Control Systems NX Wing USB Control Surface (NXW884)
Brand: Obsidian Control Systems
SKU: NXW884
Price: 3500 USD
Availability: InStock
Rating: 5 (1 reviews)

0 reviews | 0 questions

$3,500.00

The Obsidian Control Systems NX Wing USB Control Surface (NXW884) from DJDeals.com is the complementary USB control surface for the ONYX platform, based on the NX 2 console with an identical footprint and layout. Featuring ten playback faders, a 3.5″ RGB touchscreen, four encoders, four DMX ports, MIDI, and SMPTE Timecode connectivity, the NX Wing unlocks 64 universes of ONYX control when connected to a PC. Note: legacy model; current successor is the NX W (NXW888).

UPC: 837874008715MPN: NXW884 Category: Lighting Controllers & Interfaces Tags: DMX Controllers, NX Console, Obsidian Control Systems, ONYX Lighting Software, Stage Lighting Brand: Obsidian Control Systems

The Obsidian Control Systems NX Wing USB Control Surface (NXW884) from DJDeals.com is the complementary USB control surface to the ONYX platform, sharing the same rugged design and components as the NX 2 console with an identical footprint and layout. Through its USB connection, the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system. The NX Wing provides four DMX ports, MIDI In/Out/Thru, and SMPTE Timecode In/Out, while unlocking 64 universes of control when connected to ONYX on a PC. Note: this is the legacy model; the current successor is the Obsidian NX W (NXW888).

Obsidian Control Systems NX Wing USB Control Surface (NXW884) Features:

10 Playback Faders. Ten 60mm playback faders with four function-assignable buttons each, replicating the full playback section of the NX 2 console.
3.5″ RGB Touchscreen. Integrated 3.5″ RGB touchscreen for parameter groups, effect parameters, fanning, and global timing.
64-Universe ONYX Premier License. Unlocks 64 universes of ONYX output when connected to a PC running ONYX software.
4x DMX Ports. Four 5-pin locking XLR DMX/RDM Universe In/Out ports for direct DMX connectivity at the wing.
MIDI & SMPTE Timecode. MIDI In/Out/Thru (MSC, MIDI notes, MTC) via 5-pin DIN; SMPTE Timecode In/Out via 3-pin XLR for show synchronization.
Full Numerical Keypad. Grand master fader, Blind/Highlight/Last/Next, full numerical keypad and command keys for complete programming access.
4 Digital Rotary Encoders. Fixture parameter encoders with push function and status LED for direct parameter access.
Rugged Build Quality. Same industrial components and rugged design as the NX 2 console — suitable for touring and demanding production environments.

Obsidian Control Systems NX Wing USB Control Surface (NXW884) Specifications:

Surface: 10x 60mm playback faders, 4x function-assignable buttons each; 8x multi-function keys; Playback Select; Master Go; 4x digital rotary encoders; 3.5″ RGB touchscreen; Grand master fader; Full numerical keypad
DMX Ports: 4x DMX / RDM Universe In/Out, 5-pin locking XLR
MIDI: In/Out/Thru (MSC, notes, MTC), 5-pin DIN
Timecode: SMPTE In/Out, 3-pin XLR
Power: 12 VDC external PSU (included); 100–240V AC, 50/60 Hz
USB: USB 2.0 B
Dimensions: 300mm L x 540mm W x 99mm H (11.9 in. x 21.3 in. x 3.9 in.)
Weight: 4.6 kg (10.2 lbs.)
