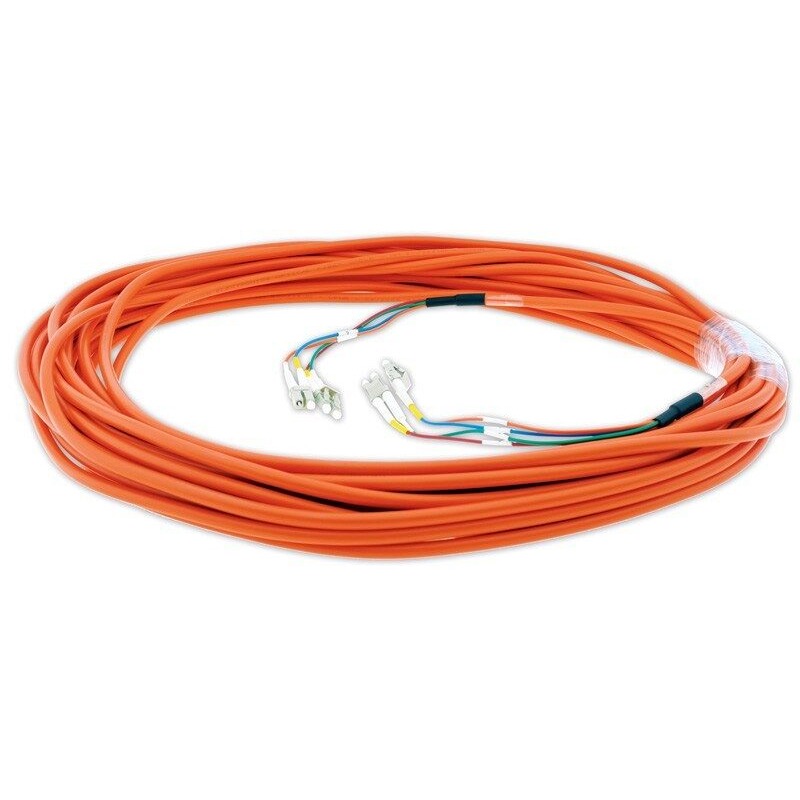

Kramer’s C-4LC/4LC is constructed of four color coded multi-mode 50/125um simplex cables of 2.0mm (0.079in) diameter each, contained in a round overall orange jacket. It is intended primarily as a companion to various Kramer detachable transmitter/receiver sets.
Specifications
- Fiber: Multimode 50/125um optical fiber
- Fiber Cord: PVC (OFNR) 2.0 x4
- Outer Diameter: 7.0mm (0.275in), orange
- Operating Wavelength: 850nm
- Insertion Loss: 0.3dB
- Temperature: -40° to 80°C (-40° to 176°F)
