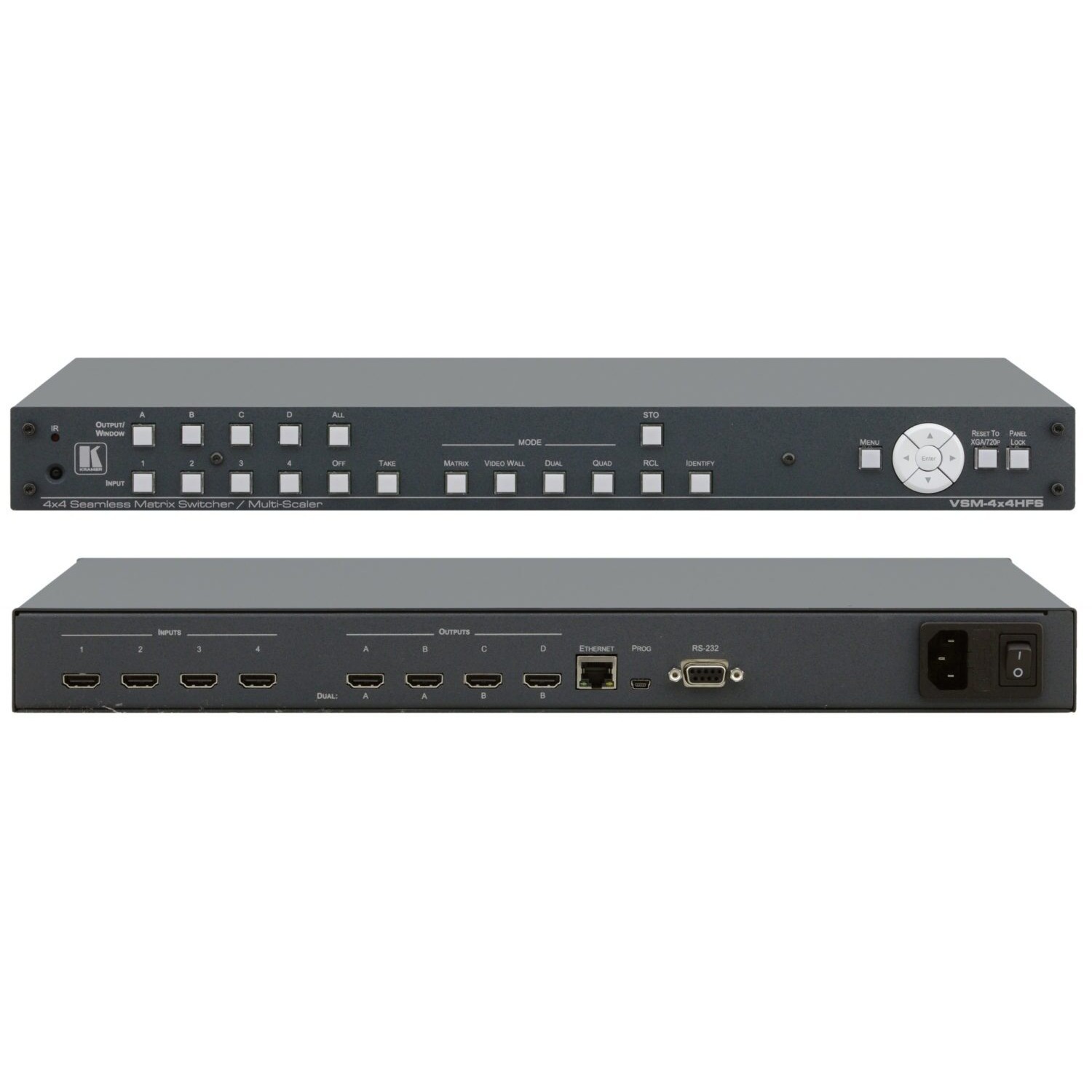

The VSM-4x4HFS is a seamless matrix switcher that can also be used as a 2×2 video wall driver or dual and quad multi-viewers. The unit allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The VSM-4x4HFS supports HDMI resolutions with deep color, up to eight channels of audio and includes per-port HDCP and EDID settings.
Features
- PixPerfect Scaling Technology -Kramer’s precision pixel mapping and high quality scaling technology.
- HDTV Compatible.
- HDCP Compliant.
- 4 HDMI Inputs and 4 Scaled HDMI Outputs.
- Selectable Operation Modes -Matrix switcher, video wall, dual display (PIP/P&P) and quad display.
- Seamless Switching -Frame-to-frame video cuts (zero transition time).
- Bezel Correction Options -In video wall mode.
- HDMI Support -Deep Color.
- Embedded Audio -Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD, LPCM 2CH/6CH/8CH, AC3.
- HDCP and EDID Settings per Port.
- Resolution -VGA to WUXGA and 480i to 1080p input, 480p to 1080p output.
- Multiple Output Aspect Ratios.
- Built-in ProcAmp -Color, hue, sharpness, noise, contrast and brightness.
- Flexible Control Options -Front panel buttons, IR remote control with OSD (On-Screen Display), RS-232, Ethernet with built-in Web browser.
- 4 Preset Memory Locations -Quick access to common IN-OUT configurations and non-volatile memory settings in each operation mode.
- Mini USB Connector -For upgrading firmware.
- Size-Standard 19″ (1U). Rack “ears” included.
Specifications
- INPUTS: 4 HDMI connectors (HDMI, HDCP version 1.1).
- OUTPUTS: 4 HDMI connectors (HDMI, HDCP version 1.1).
- OUTPUT RESOLUTIONS: NATIVE, 480p, 576p, 720p50, 720p60, 1080p24, 1080p50, 1080p60, 1024×768, 1280×800, 1280×1024, 1366×768, 1440×900, 1600×900, 1600×1200, 1680×1050 or 1920×1200.
- POWER SOURCE: 100-240V AC, 27VA max.
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non-condensing.
- DIMENSIONS: 19″ x7″ x1U (W, D, H) rack mountable.
- WEIGHT: 2.7kg (6lbs) approx.
- INCLUDED ACCESSORIES: Power cord, rack “ears”, IR remote control.
