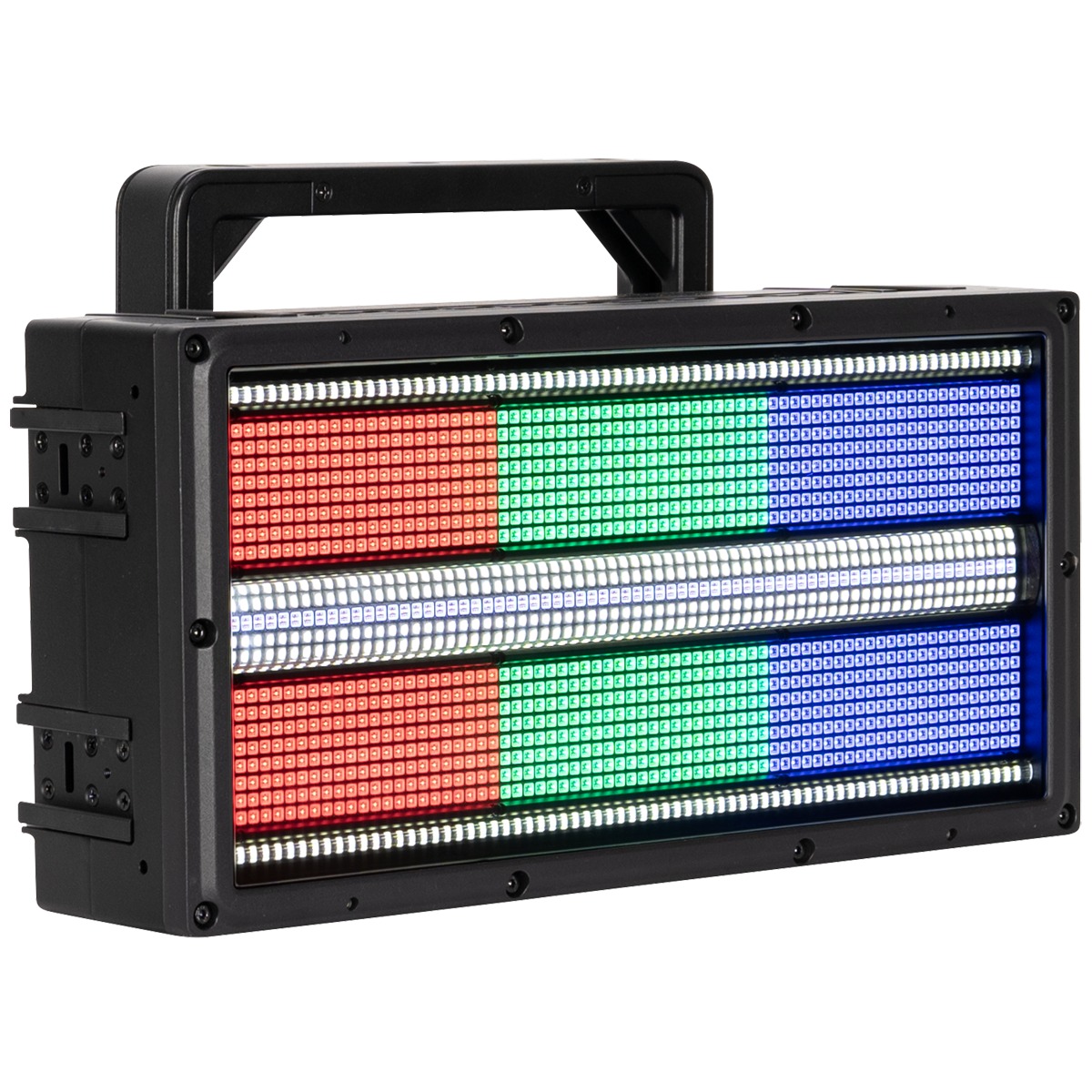

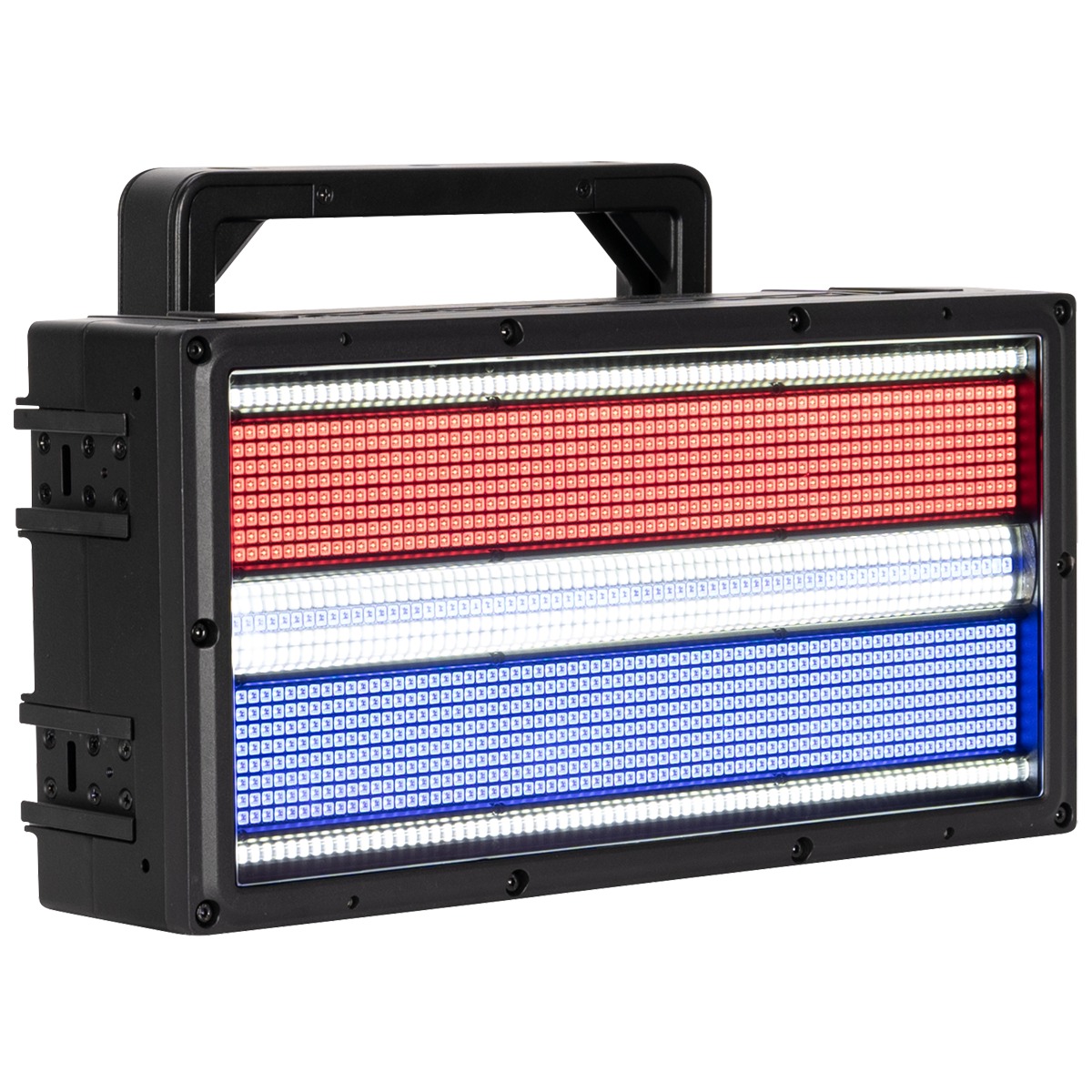

The Elation Professional PULSE PANEL (PUL001) from DJDeals.com. The PULSE PANEL features the same LED layout found on the Pulse Panel FX. 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall.
Elation Professional PULSE PANEL (PUL001) Features:
- The PULSE PANEL. The PULSE PANEL features the same LED layout found on the Pulse Panel FX.

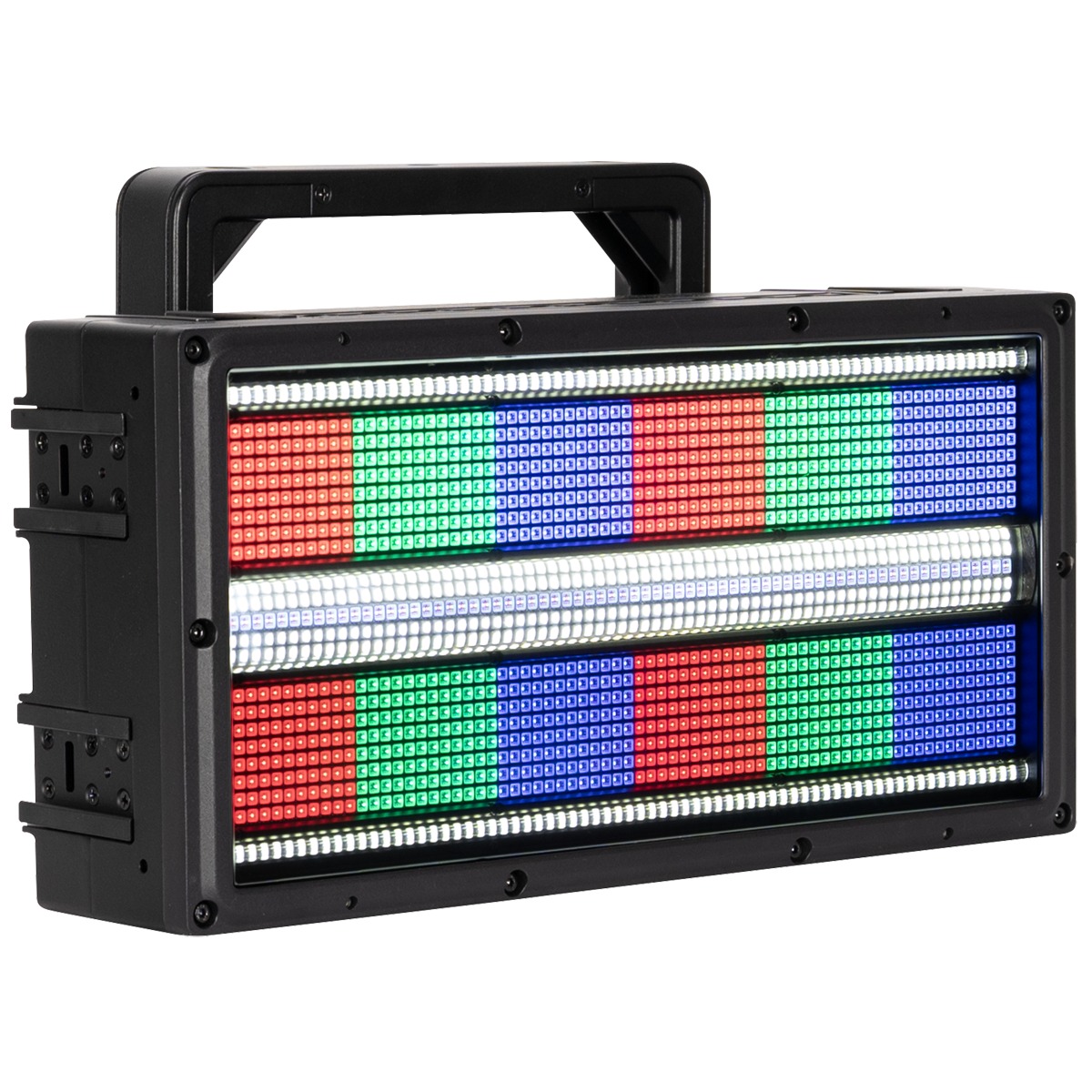

- 1,152 1.5W RGB. 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall.

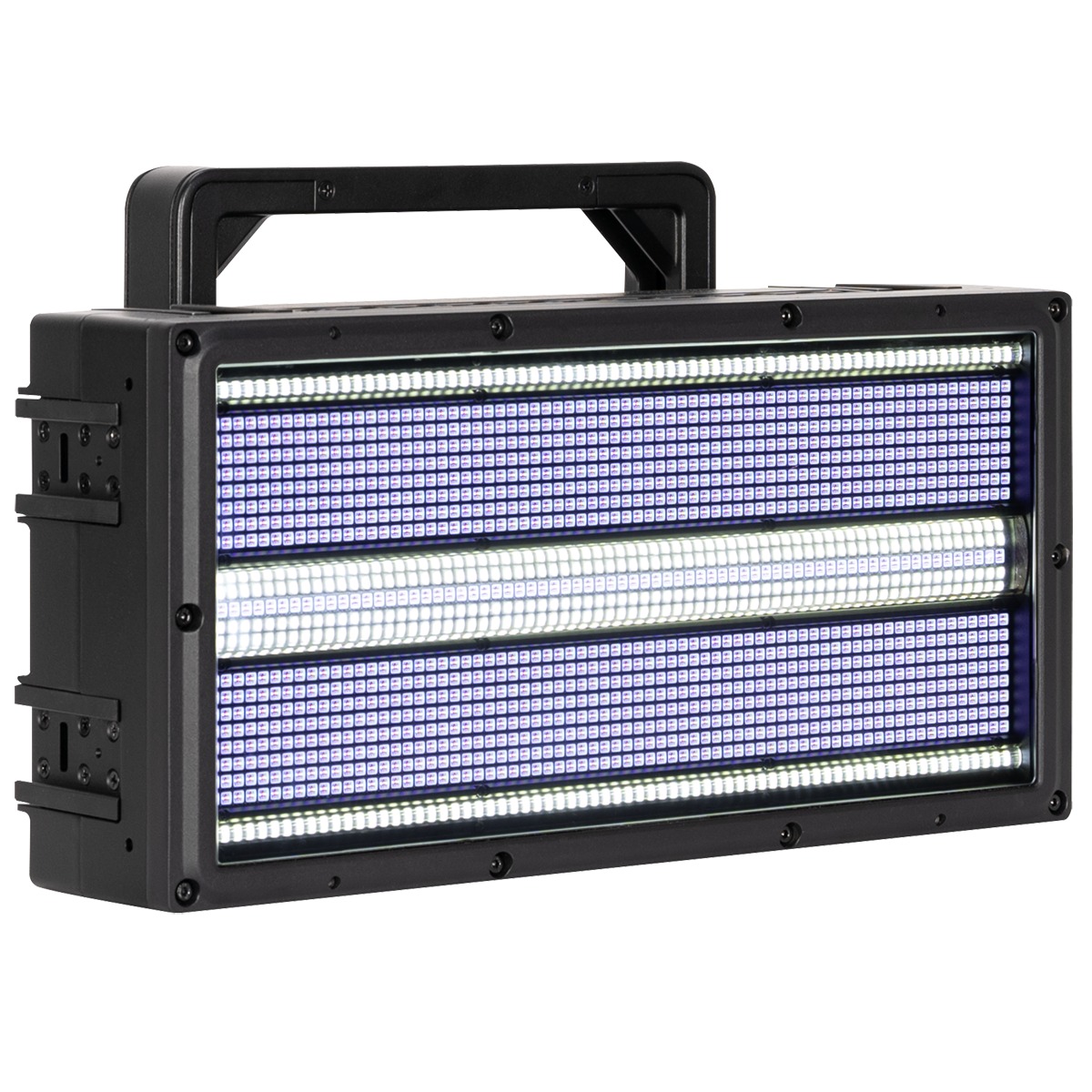

- High-Speed Strobe. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall.
- IP Rating. IP65
- Max Power Consumption. Max Power Consumption 1400W
- LED Lifespan. 50,000 Hour Average LED Life
Elation Professional PULSE PANEL (PUL001) Specifications:
Source
- LED Source: (1248) 1.5W RGB LED
- LED Lifespan: 50,000 hours average
Photometric Data
- Total Lumen Output: 77,919
- Output (Integrating Sphere): 77,919 Lumens
- RGBL Output: 49,868 Lumens
- CW Output: 110,709 Lumens
Effects
- 24 Zones of RGB Plate LEDs (6 x 4) 48 Zones of CW Strobe LEDs (12 x 4) 12 Zones of RGB StrobeLine LED’s (12 x 1)
- 1- 20Hz Strobe Rate Library of Customizable RGB and CW Strobe Effects Variable Dimming Modes and Curves
Color
- RGB Color Array

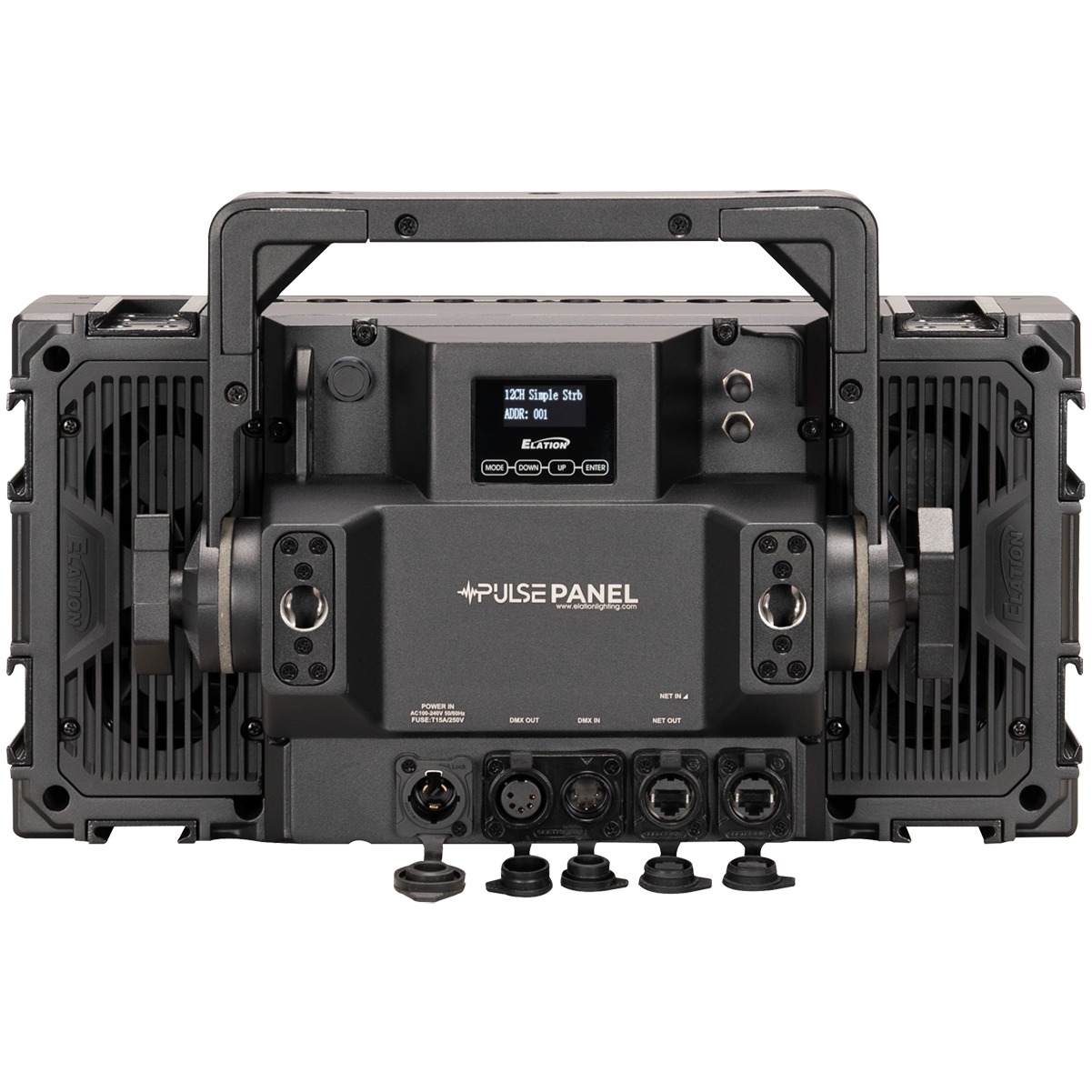

Control / Connections
- DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)
- 4 Button Control Panel, LED Display
- Aria x2 Wireless Device Management
- RDM (Remote Device Management)
- IP65 5pin XLR DMX In/Out
- IP65 Locking Power Cable In
Size / Weight
- Weight: 29.5 lbs. (13.4kg)
Electrical / Thermal
- AC Input: AC 100-240V –
- Max Power Consumption: 1400W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C) BTU/hr (+/- 10%) 4774
- BTU/hr: 10
Included Items
- Safety
- Cable
- IP65 Locking
- Power
- Cable 2x
- Fixture
- Interconnect
- Splice
Optional Items
- SŌL/PULSE HD Yoke (SPHDY) Fixture Interconnect Splice Package (FISP06) Interconnect Clamp Adapter (FICA01) PULSE PANEL Frost (PPL101) PULSE PANEL Black Lens (PPL202) 50501990448 (180mm Zinc Omega Bracket)
Approvals / Ratings
- Certifications: CE | cETLus | IP65 | FCC | UKCA
- IP Rating: IP65
