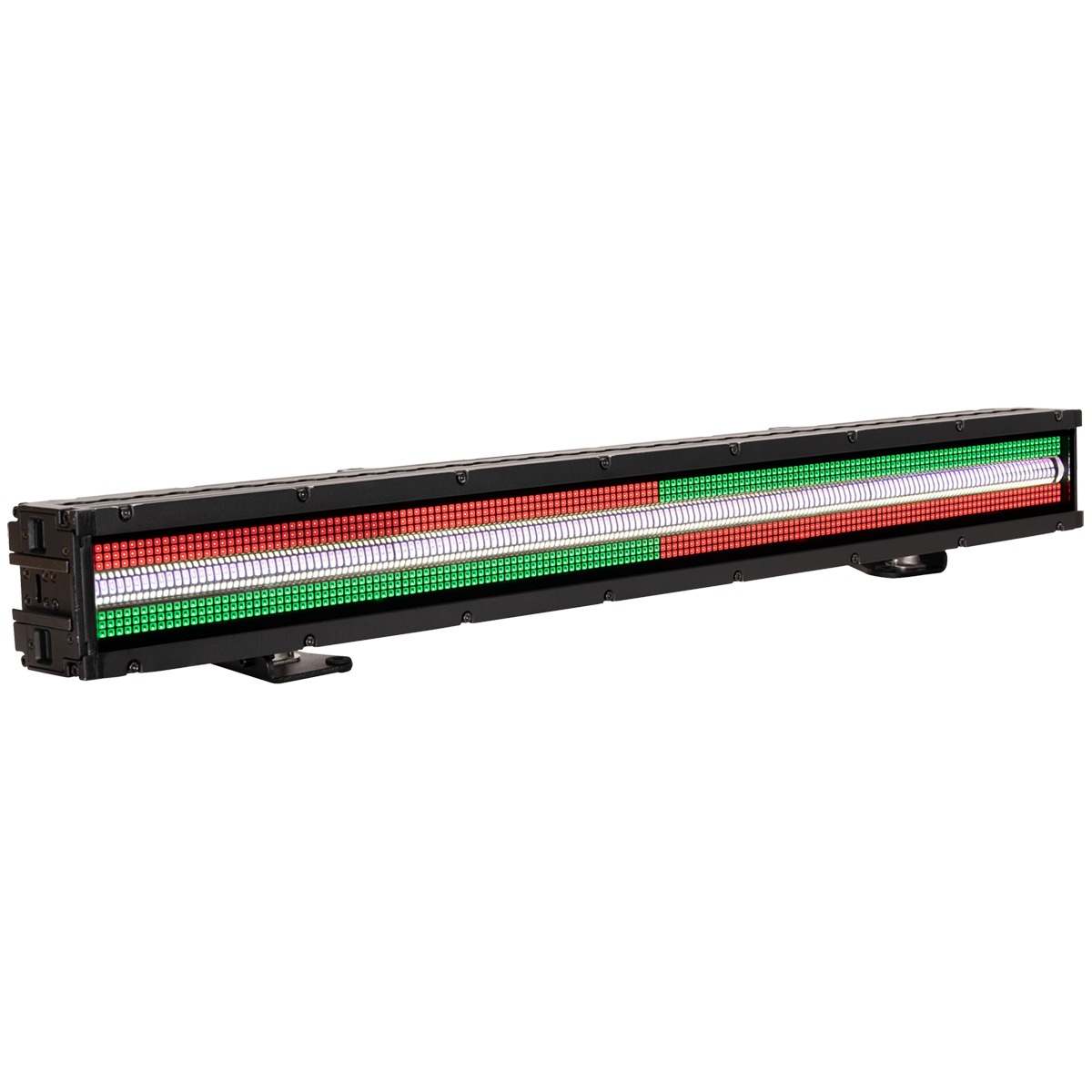

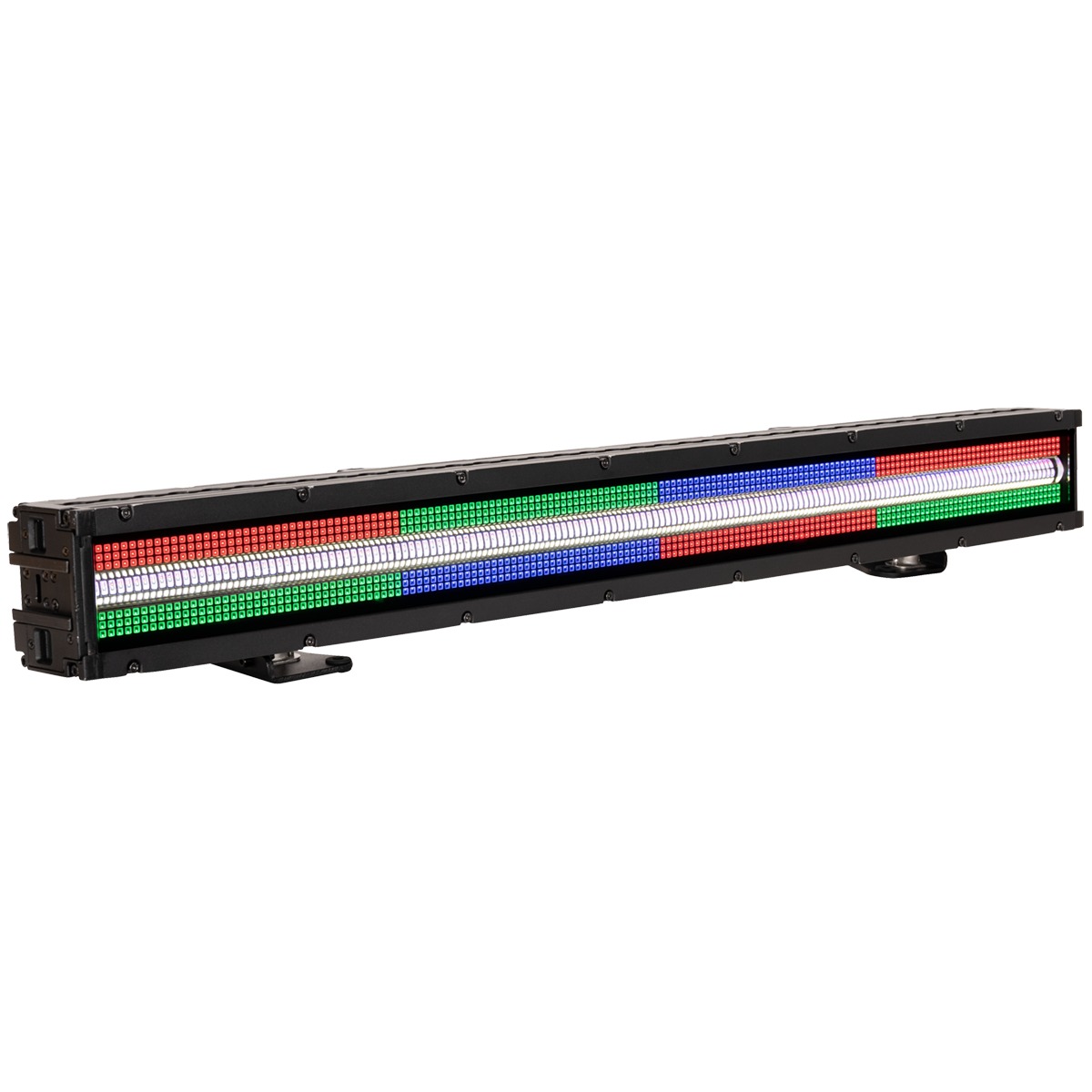

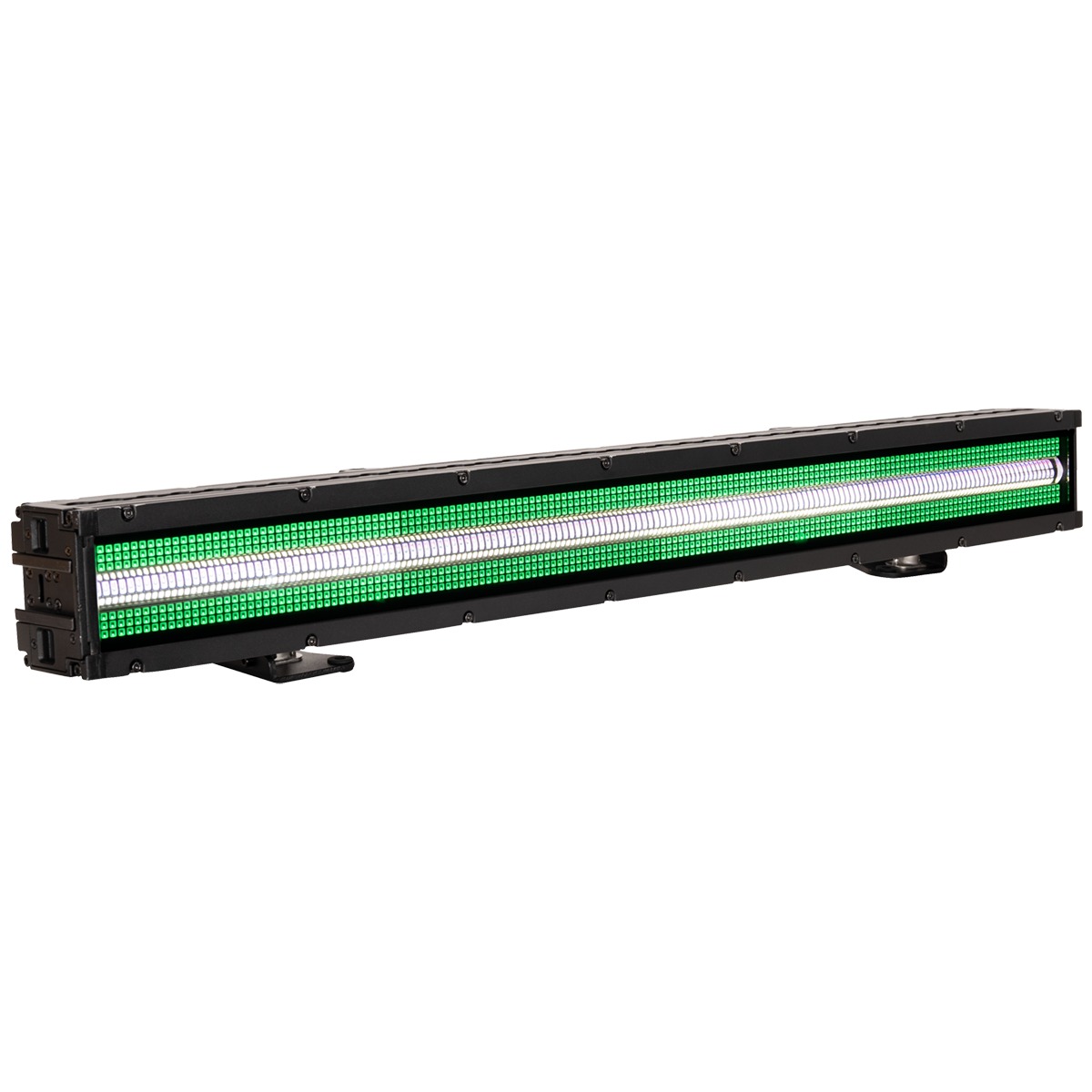

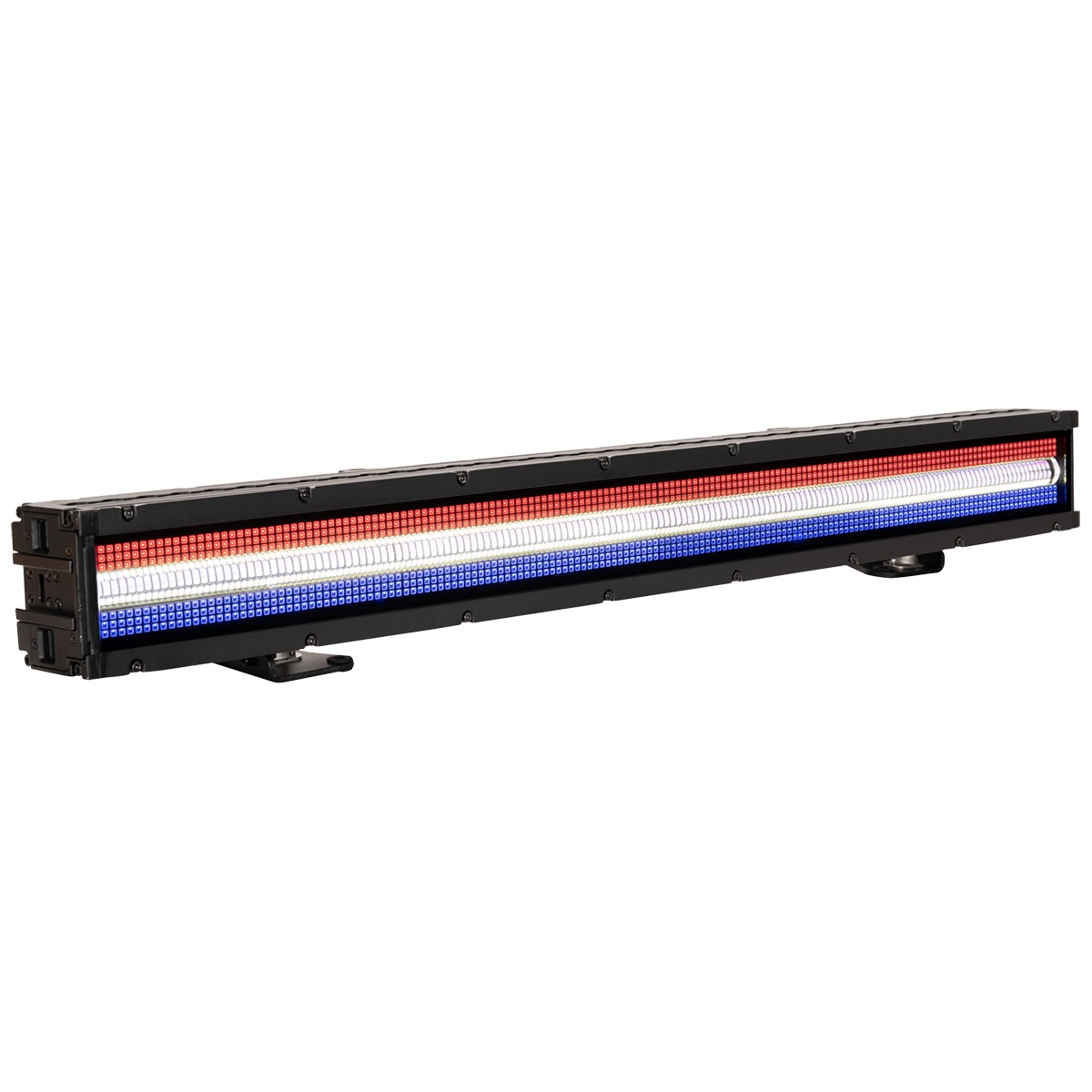

The Elation Professional PULSE BAR L (PUL024) from DJDeals.com. Measuring a meter in length, the PULSE BAR L incorporates 960 1.5W RGB LEDs distributed across 40 zones along its perimeter. Additionally, it features a central strobe line equipped with 400 5W cool-white LEDs across 40 zones, complemented by 160 1.5W RGB LEDs arranged in 20 zones at its core.
Elation Professional PULSE BAR L (PUL024) Features:
- Measuring a meter. Measuring a meter in length, the PULSE BAR L incorporates 960 1.5W RGB LEDs distributed across 40 zones along its perimeter.
- High-Speed Strobe. Additionally, it features a central strobe line equipped with 400 5W cool-white LEDs across 40 zones, complemented by 160 1.5W RGB LEDs arranged in 20 zones at its core.
- IP Rating. IP65
- Max Power Consumption. Max Power Consumption: 1300W
- LED Lifespan. 50,000 Hour Average LED Life
Elation Professional PULSE BAR L (PUL024) Specifications:
Source
- LED Source: (1120) 1.5W RGB LED
- LED Lifespan: 50,000 hours average
Photometric Data
- Total Lumen Output: 22,614
- Output (Integrating Sphere): 22,614 Lumens
- RGBL Output: 8,434 Lumens
- CW Output: 25,191 Lumens
Effects

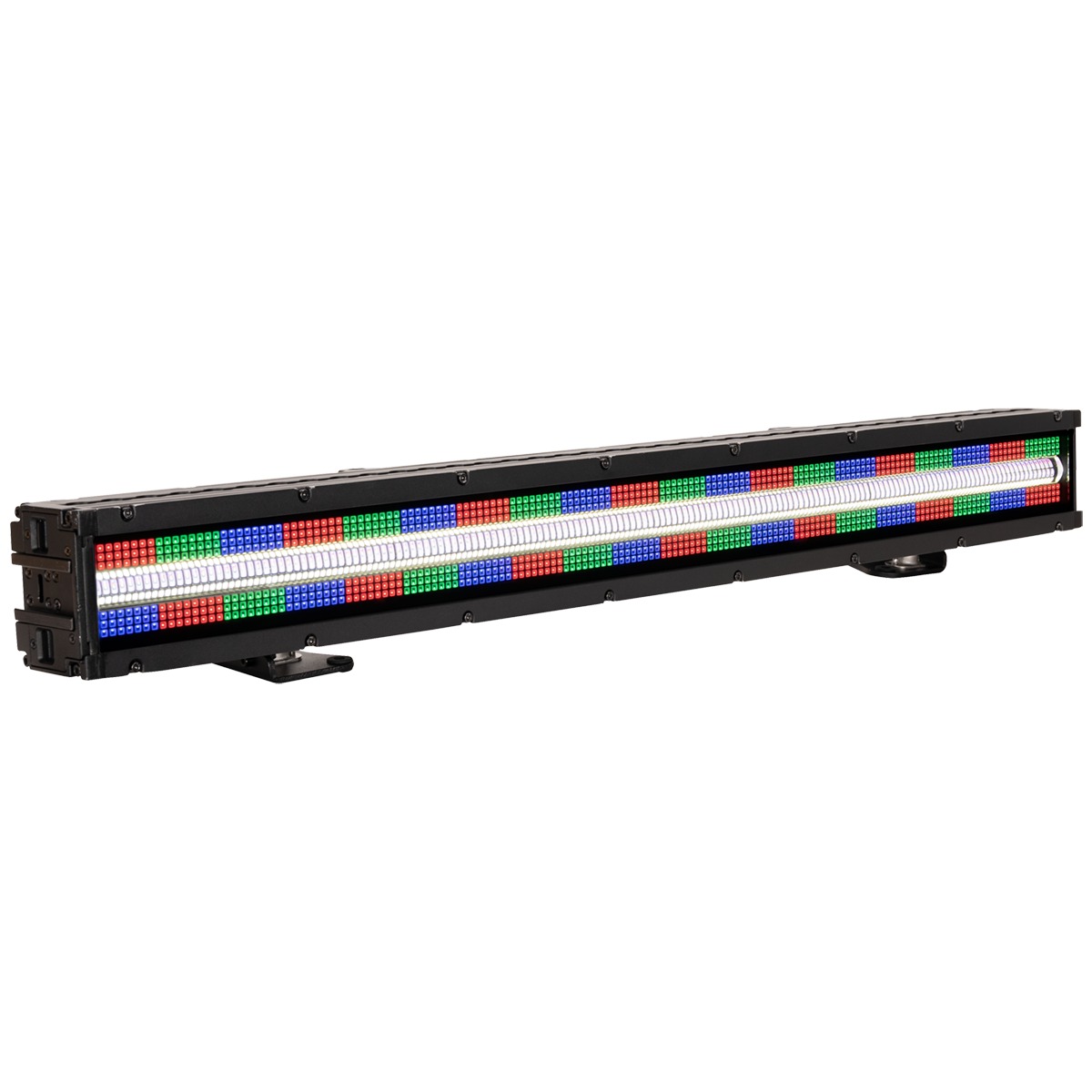

- 40 Zones of RGB Plate LEDs (20 x 2) 40 Zones of CW Strobe LEDs (20 x 2) 20 Zones of RGB StrobeLine LED’s (20 x 1)
- 1- 20Hz Strobe Rate Library of Customizable RGB and CW Strobe Effects Variable Dimming Modes and Curves
Color
- RGB Color Array
Control / Connections
- DMX Channel Modes (3ch, 11ch, 22ch, 52ch, 92ch, 234ch, 132ch, 242ch, 220ch)
- 4 Button Control Panel, LED Display DMX
- Art-NET
- sACN Protocol Support

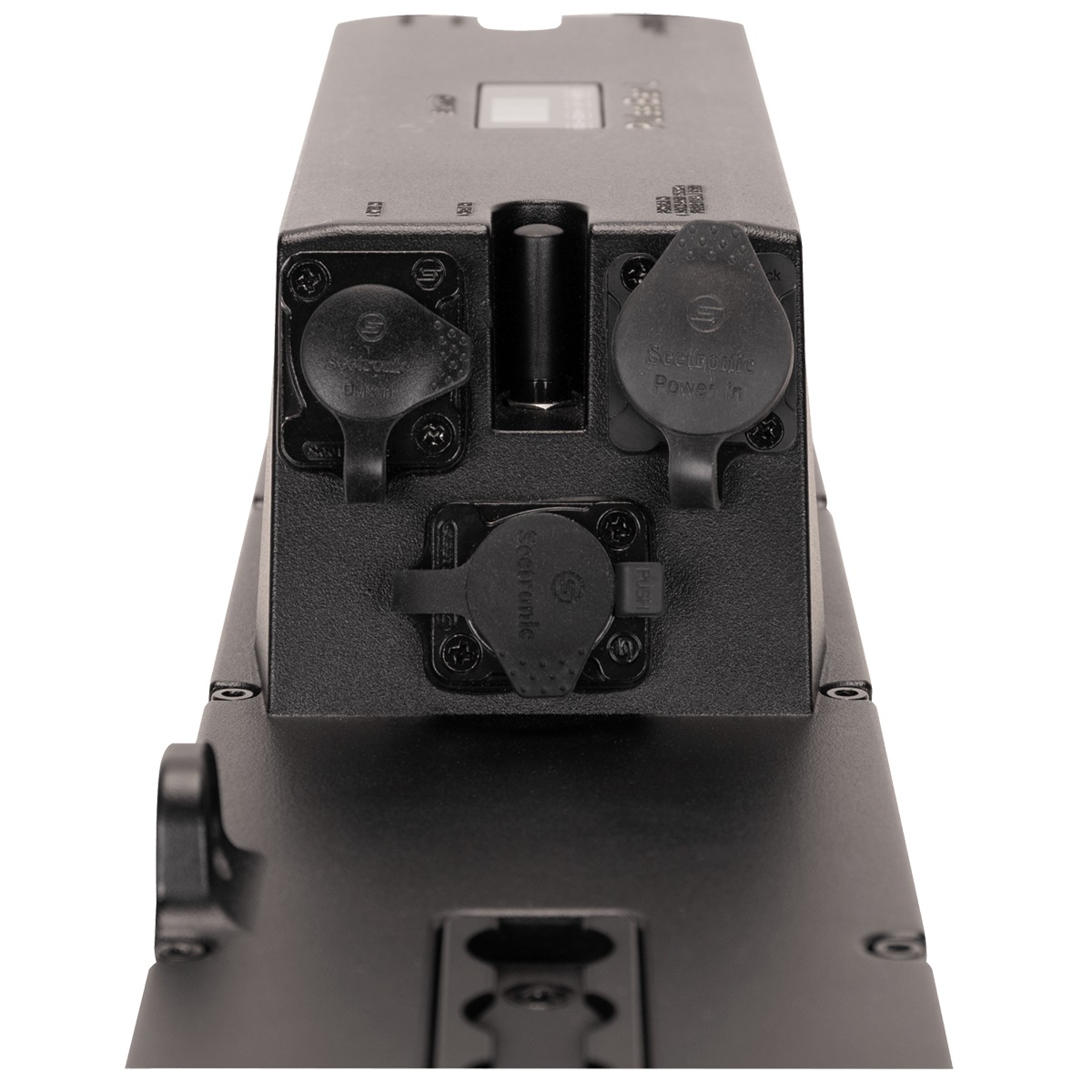

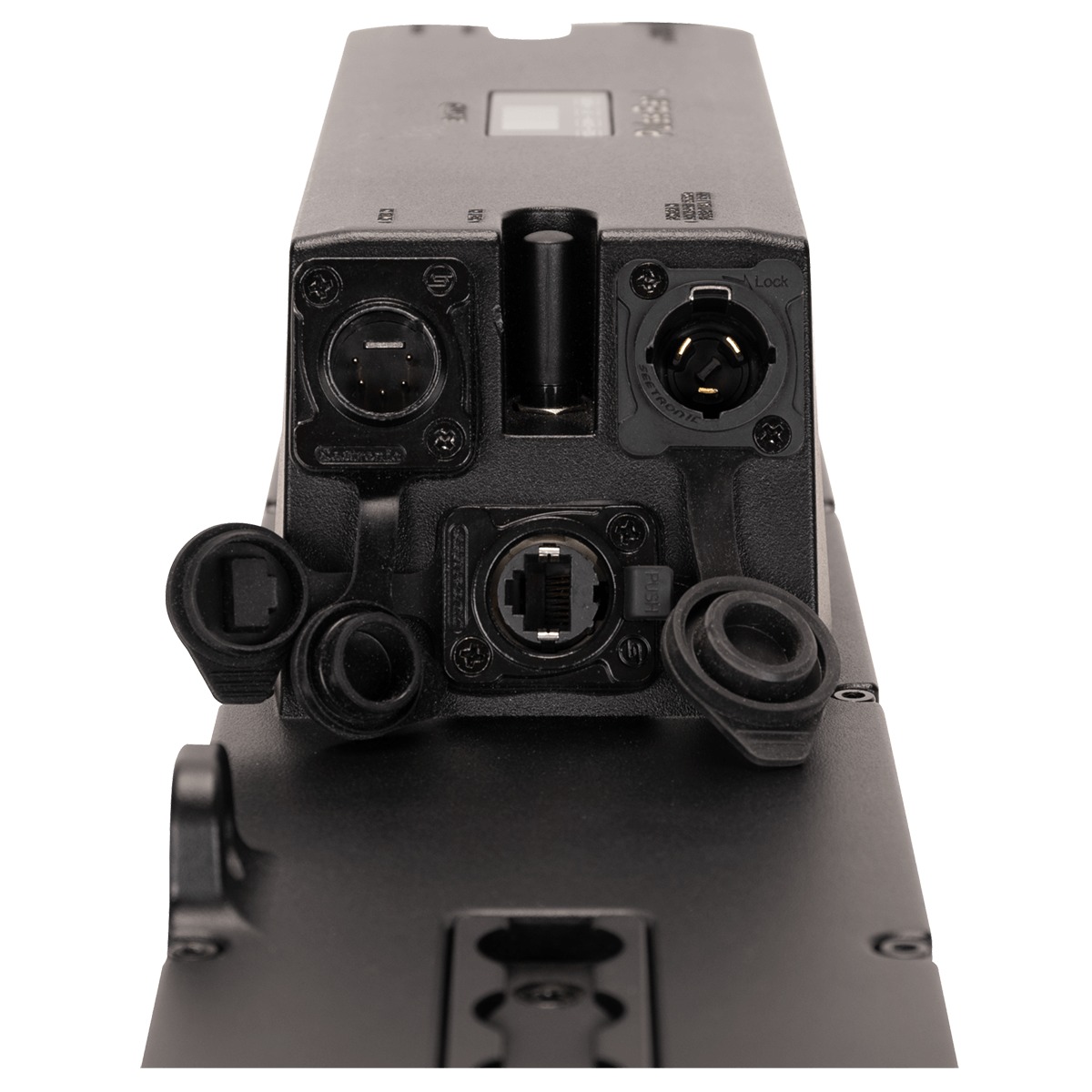

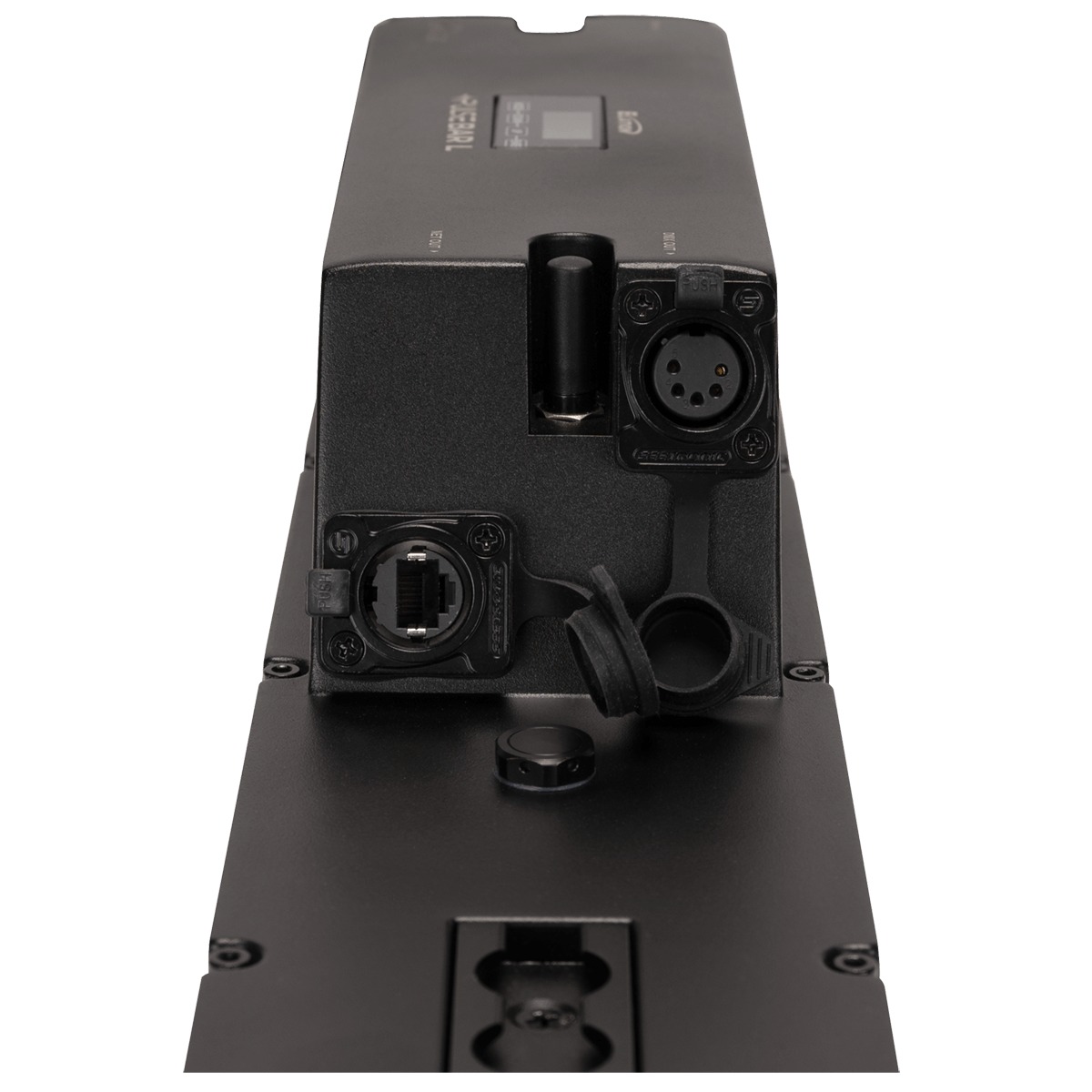

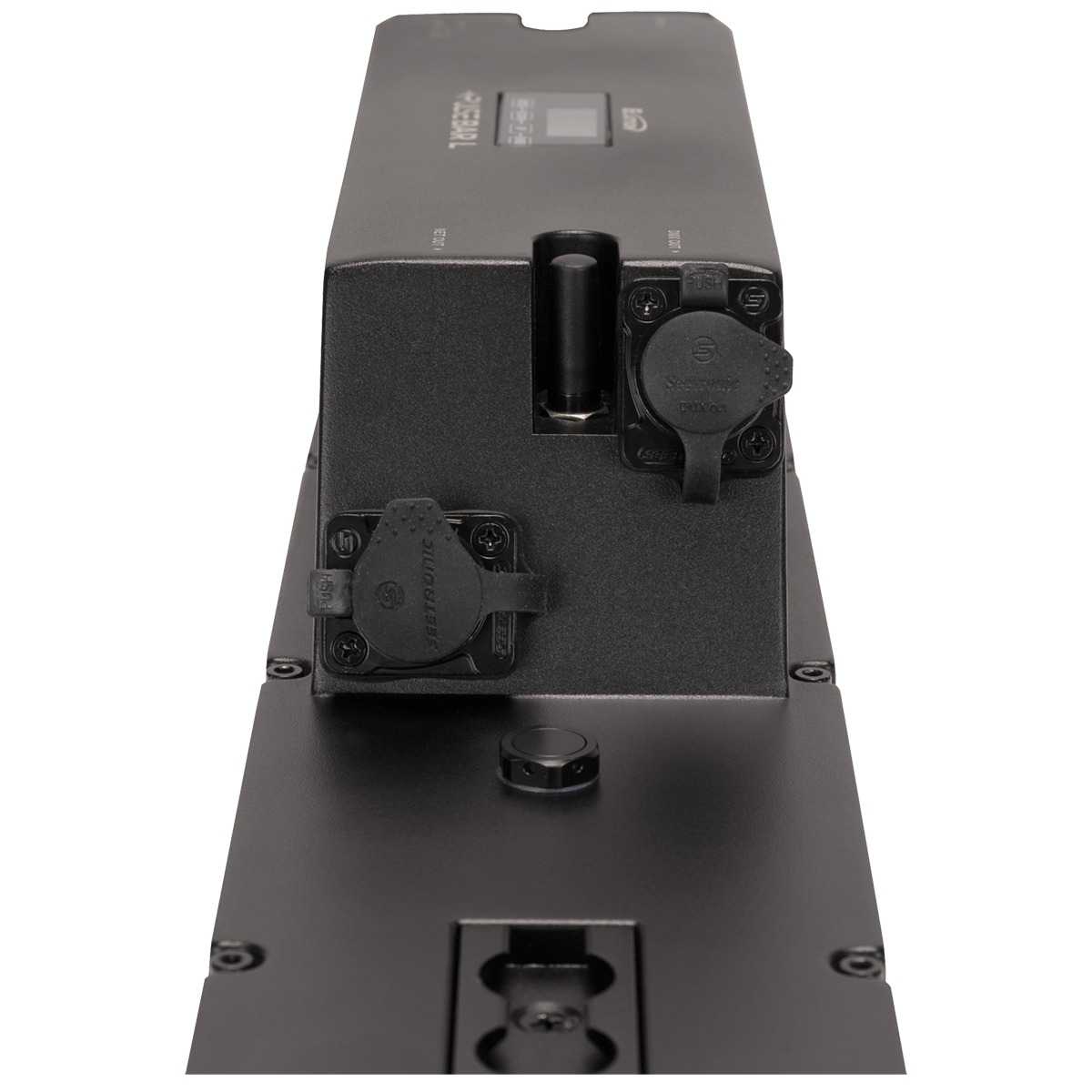

- Aria x2 Wireless Device Management RDM (Remote Device Management) IP65 RJ45 Ethernet In/Out (
- Art-Net, sACN, KlingNet)
- IP65 5pin XLR DMX In/Out
- IP65 Locking Power Cable In
Size / Weight
- Weight: 27.55 lbs (12.5kg)
Electrical / Thermal
- AC Input: AC 100-240V –
- Max Power Consumption: 1300W
- Operating Temperature: 5°F to 113°F (-15°C to 45°C) BTU/hr (+/- 10%) 4433
- BTU/hr: 10
Included Items
- Safety
- Cable
- IP65 Locking
- Power
- Cable
- Fixture
- Interconnect
- Splice
Optional Items
- BAR L NSP Lens (BLL021) BAR L WFL Lens (BLL061) BAR L XFL Lens (BLL101) BAR L L140 Lens (BLL141) BAR L L1060 Lens (BLL161) BAR L Frost (BLL001) BAR L Dome Frost Lens (BLL181) BAR L Black Lens (BLL125) # 8050000053 – Omega Bracket (Qty.2) Fixture Interconnect Splice Package (FISP06) L-Track to M10 Adapter,70mm (LTR001) L-Track to M10 Adapter, 44.5mm (LTR008) L Track C-Clamp & Adapter Assembly, 70mm (LTR100) L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112) Interconnect Clamp Adapter (FICA01)
Approvals / Ratings
- Certifications: CE | cETLus | IP65 | FCC | UKCA FIRMWARE UPDATE Current Update
- IP Rating: IP65
