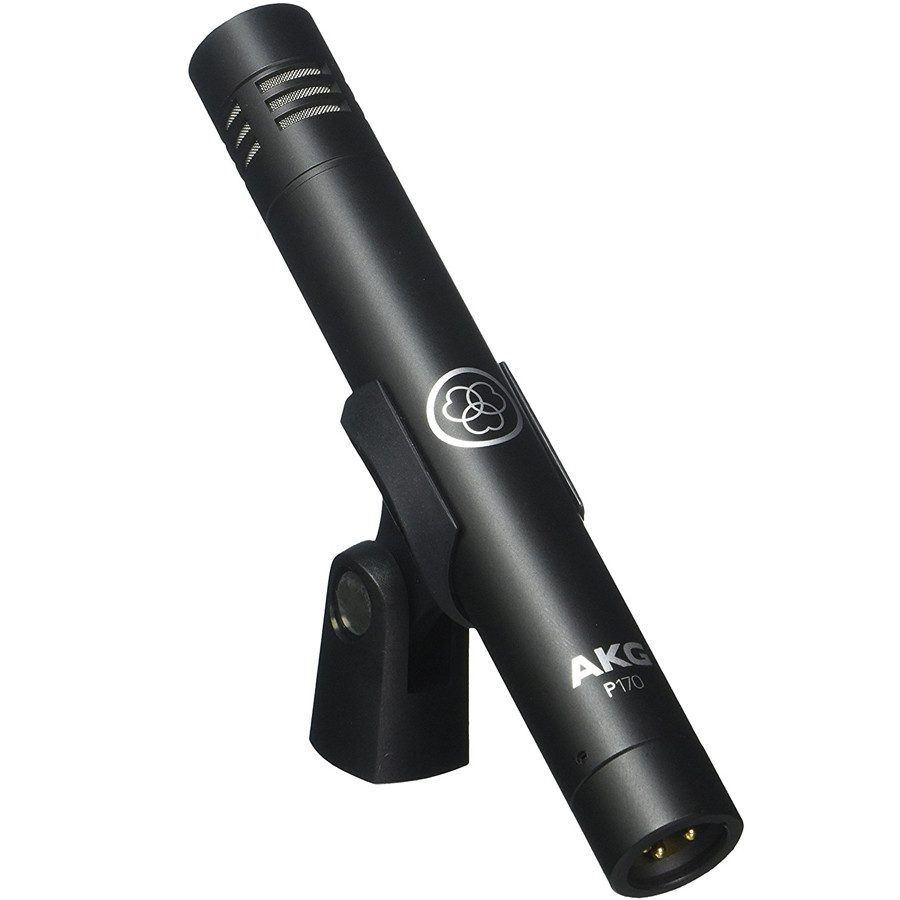

The AKG P170 High-Performance Instrumental Microphone is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.
AKG P170 High-Performance Instrumental Microphone Features:
- Rugged all-metal body and robust design-withstands tough day-to-day use
- Switchable attenuation pad-for high SPL applications up to 155 dB SPL
AKG P170 High-Performance Instrumental Microphone Specifications:
- General Specifications
- Audio frequency bandwidth:20-20000 Hz
- Equivalent noise level: 19 dB-A
- Sensitivity: 15 mV/Pa
- Signal to Noise: 75 dB-A
- Preattenuation Pad: -20 dB
- Electrical impedance: <= 200 Ohms
- Recommended load impedance: >=1000 Ohms
- Polar Pattern: Cardioid
Powering Interface
- Voltage: 44 to 52 V
- Current: <= 3 mA
Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
Dimensions
- Height: 160 mm
- Diameter: 22 mm
- Net Weight: 130 g
AKG P170 High-Performance Instrumental Microphone Includes:
- 1 xP170 Microphone
- 1 xStand Adapter
