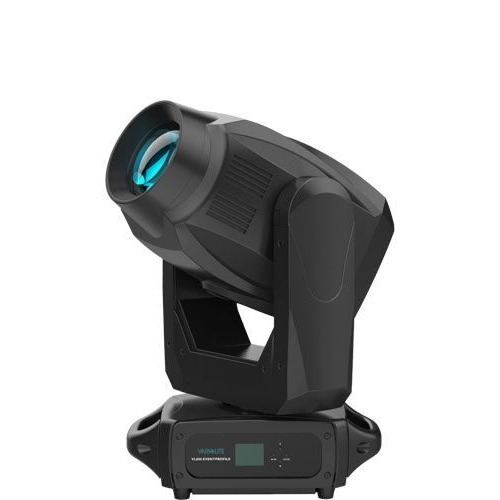

The Vari-Lite VL800 EVENT PROFILE 350 Watt LED Moving Head Profile from DJDeals.com is a compact LED event profile fixture that has the DNA of Vari-Lite built in. This high output framing profile luminaire offers full CYM+CTO color mixing and the signature “Vari-Lite smooth” movement that designers expect. The VL800 EVENTPROFILE includes professional-grade features in a small, tour-ready form factor, supplying a fixed color wheel; static and rotating gobo wheels; and prism, frost, and iris. With camera-ready frequency adjustment options and multi-mode fan control, the VL800 EVENTPROFILE is ready for any application.
Product Features
- Cost-effective, high output LED profile built by Vari-Lite – affordable LED framing profile from a brand you trust.
- Full CMY-CTO color mixing – variable color mixing with saturation control, offering numerous vivid and creative color options
- Static and rotating gobo wheels, prism, frost, and iris – professional features in a small form factor. Multiple visual options for a variety of uses.
- Multi-mode fan control – adjust settings to control fan noise. Offers a low dB experience across all frequencies, eliminating buzzing or hums from an otherwise quiet device. Mode options include standard, studio, and whisper mode.
- Adjustable frequency to exceed camera frame rates – camera friendly fixtures for IMAG or live televised events
Product Specifications
Source
- Type: LED
- Wattage: 350W
Optical Performance
- Output Lumens: 17,000 (Boost), 13,000 (Standard), 10,000 (Studio)
- Output CRI: 76
- Output CCT: 6500K
- Narrow @ 5 Meter: 27,300 Lux
- Wide @ 5 Meter: 4,060 Lux
- Narrow @ 10 Meter: 6,900 Lux
- Wide @ 10 Meter: 480
Beam
- Angle: 8 to 40 Degree
Imaging
- Gobo Wheel 1: 7 interchangeable glass gobos, fully rotating / indexable
- Gobo Wheel 2: 8 fixed gobos
- Framing Shutters: 4 blade, continous wipe shutter 45 degree open +/- rotation control of entire assembly
- Iris: 16 leaf
- Prism: 1 x 3 facet circular prism
- Frost: 30 degree medium
Color System
- Color Mixing: Variable CMY
- CTO: Variable
- Fixed Color Wheel: 6 + open
Movement
- Max Pan Angle: 540 degree
- Max Tilt Angle: 270 degree
Noise Levels (Base Level 18.6 db)
- 1 Meter Full Operation: 48db (Boost Mode), 43.6db (Standard Mode), 37.8db (Studio Mode)
- Standby: 3m Idle – full output db
- Fan Preset modes: Boost, Standard, Studio
- Fan Run Mode: On (Continuous) / Auto
- Additional Fan Control: Variable fan speed channel *standard mode only
User Interface
- Type: 4-button color LCD
Power
- Range: 100-240V @ 50/60Hz
- Power In/Thru: In and Out
- Connection Type: Neutrik TRUE1
- Wattage (MAX): 575W
Data Connections
- DMX (RDM): 16-Bit Enhanced (45)
- Ethernet: Art-Net, Streaming ACN
Physical
- IP Rating: IP20
- Finish: Black
- Fixture Dimensions: 25″ x 15″ x 16″
- Shipping Dimensions: 28″ x 19″ x 15″
- Fixture Weight: 46.3 lbs
- Shipping Weight: 64 lbs
- Hanging Centers: 16.5″
- Hanging Type: 107mm Omega Clamps
Warranty & Approbations
- Warranty: 2 Years
- Approval / Listings: CE, ETL, UL, FCC CSA, RoHS, ISO 9001
