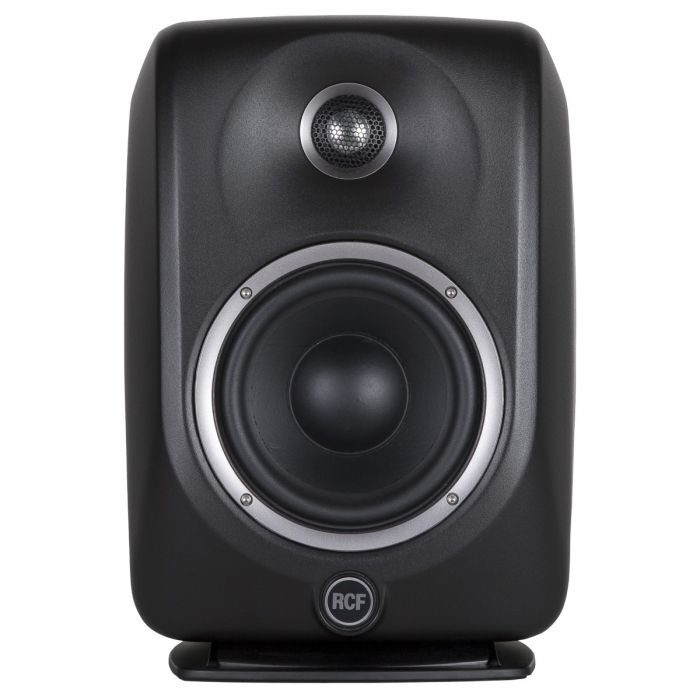

MYTHO 6 is a two-way reference studio monitor that features a high quality large metal dome tweeter for the best vocal reproduction and a 6″ neodymium vented woofer with a large sized 51 mm voice coil that guarantees very high energy for tight and controlled bass reproduction and perfect thermal stability with minimum power compression. The magnetic circuit features a special air ventilation to reduce air compression, air noises and minimize distortion in large excursion situations. The MYTHO 6 is equipped with two separate amplifiers: 200 W for the low frequencies and 100 W for the high. The design is a classic AB circuit, unparalleled for low distortion and natural sound. The signal processing is executed from a dedicated high quality DSP processing. It features a solid aluminium cabinet internally braced and reinforced to improve low frequencies behaviour and reduce resonances.
Product Features
- True active 200 W + 100 W class AB design
- Dedicated DSP processing
- Fully featured input board
- 6.5″ neodymium ICC vented woofer
- 1″ aluminum dome tweeter
- Constant directivity wave-guide
- Die cast aluminum cabinet
- Reflection free cabinet design
- Low distortion reflex port
Product Specifications
Acoustical specifications
- Max SPL @ 1m: 114 dB
- Horizontal coverage angle: 110°
- Vertical coverage angle: 70°
Transducers
- Compression Driver: 1.0” neo
- Woofer: 6.5” neo
Input/Output section
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Input sensitivity: -6 dBu/+6 dBu
Processor section
- Crossover Frequencies: 1900 Hz
- Protections: Thermal, Excurs., RMS
- Limiter: Soft Limiter
- Controls: Bass Tilt, Roll-Off, Treeble Tilt, Desktop,
- DSP Controlled
Power section
- Total Power: 600 W Peak, 300 W RMS
- High frequencies: 200 W Peak, 100 W RMS
- Low frequencies: 400 W Peak, 200 W RMS
- Cooling: Convection
- Connections: VDE
Standard compliance
- CE marking: Yes
Physical specifications
- Cabinet/Case Material: Aluminium
- Hardware: Orientation Adjustable Stand
- Color: Black
Size
- Height: 370 mm / 14.57 inches
- Width: 265 mm / 10.43 inches
- Depth: 250 mm / 9.84 inches
- Weight: 12.5 kg / 27.56 lbs
Shipping informations
- Package Height: 490 mm / 19.29 inches
- Package Width: 360 mm / 14.17 inches
- Package Depth: 360 mm / 14.17 inches
- Package Weight: 14 kg / 30.86 lbs
