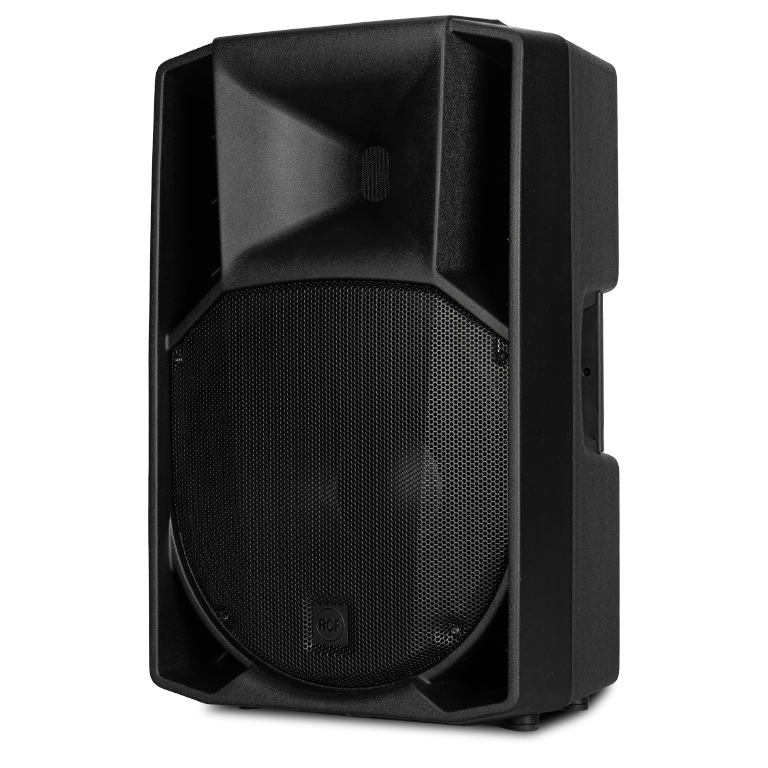

The RCF ART 735-A MK5 1400W 2-Way 15″ Powered Speaker from DJDeals.com is a high-output active loudspeaker built for large venues and demanding live sound applications. The 3.0″ voice-coil compression driver delivers powerful, extended high-frequency output with exceptional clarity, while the 15″ woofer provides deep, room-filling bass down to 45 Hz. The 800 Hz crossover frequency allows the compression driver to cover more of the critical mid-range, delivering coherent and powerful sound reproduction at high SPL levels. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The 3.0″ voice-coil compression driver and the 3.0″ voice-coil 15″ woofer are designed as a matched system, optimized together for maximum SPL and reliability at extended drive levels. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 7.
Class-D Headroom, Fan-Less Reliability
The ART 735-A MK5 delivers 1400 W peak via a high-efficiency Class-D module. Its aluminum structure doubles as a heat sink for convection cooling, keeping performance stable through long sets without a fan.
3.0″ V.C. HF Driver for High-Output Clarity
The 3.0″ voice-coil compression driver provides superior thermal capacity and output capability—maintaining crisp, detailed highs even during extended high-SPL performances.
15″ Woofer with Deep Extension and Authority
With an 800 Hz crossover and bass extension down to 45 Hz, the 15″ transducer—equipped with a 3.0″ voice coil—delivers deep, powerful bass that fills large spaces while maintaining control and definition.
FiRPHASE Alignment, Natural Imaging
FiRPHASE filtering aligns phase through the crossover, preserving stereo image and ensuring the tonal balance heard at the console translates across the audience area.
XBoost: Fuller Bass When You Need It
Toggle XBoost on the rear panel to increase the perception of bass while keeping woofer excursion under control—perfect for full-range DJ sets or warm background music.
Rugged Cabinet and Mounting Options
The PP composite enclosure resists vibration at high SPLs. Carry via the top handle, mount on a 35 mm pole, angle as a wedge, or use the 2 × M10 points with approved hardware.
RCF ART 735-A MK5 1400W 2-Way 15″ Powered Speaker Features:
- 132 dB Max SPL.
- 1400 WATT 2-way peak power.
- 90° x 60°, Constant directivity horn.
- Innovative DSP Processing.
- 3.0″ V.C. Compression Driver.
- 15″ Woofer with 3.0″ V.C.
- 800 Hz Crossover.
- FiRPHASE Technology.
- XBOOST Low Frequencies Enhancer.
RCF ART 735-A MK5 1400W 2-Way 15″ Powered Speaker Specifications:
Acoustical Specifications
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Transducers
Compression Driver: 1 x 1.0″, 3.0″ v.c
Woofer: 15″, 3.0″ v.c
Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor Section
Crossover Frequencies: 800
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, MIC/Line
Power Section
Total Power: 1400 W Peak
High frequencies: 400 W Peak
Low frequencies: 1000 W Peak
Cooling: Convection
Connections: VDE
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Hardware: 2 x M10
Handles: 1 on top
Pole mount/Cap: Yes
Color: Black
Size
Height: 709 mm / 27.9 inches
Width: 437 mm / 17.2 inches
Depth: 389 mm / 15.3 inches
Weight: 21.4 kg / 47.2 lbs
Shipping Information
Package Height: 756 mm / 29.75 inches
Package Width: 483 mm / 19.0 inches
Package Depth: 438 mm / 17.25 inches
Package Weight: 25.9 kg / 57.0 lbs
RCF ART 735-A MK5 1400W 2-Way 15″ Powered Speaker Documents:
RCF ART 735-A MK5 1400W 2-Way 15″ Powered Speaker Spec Sheet & Downloads
