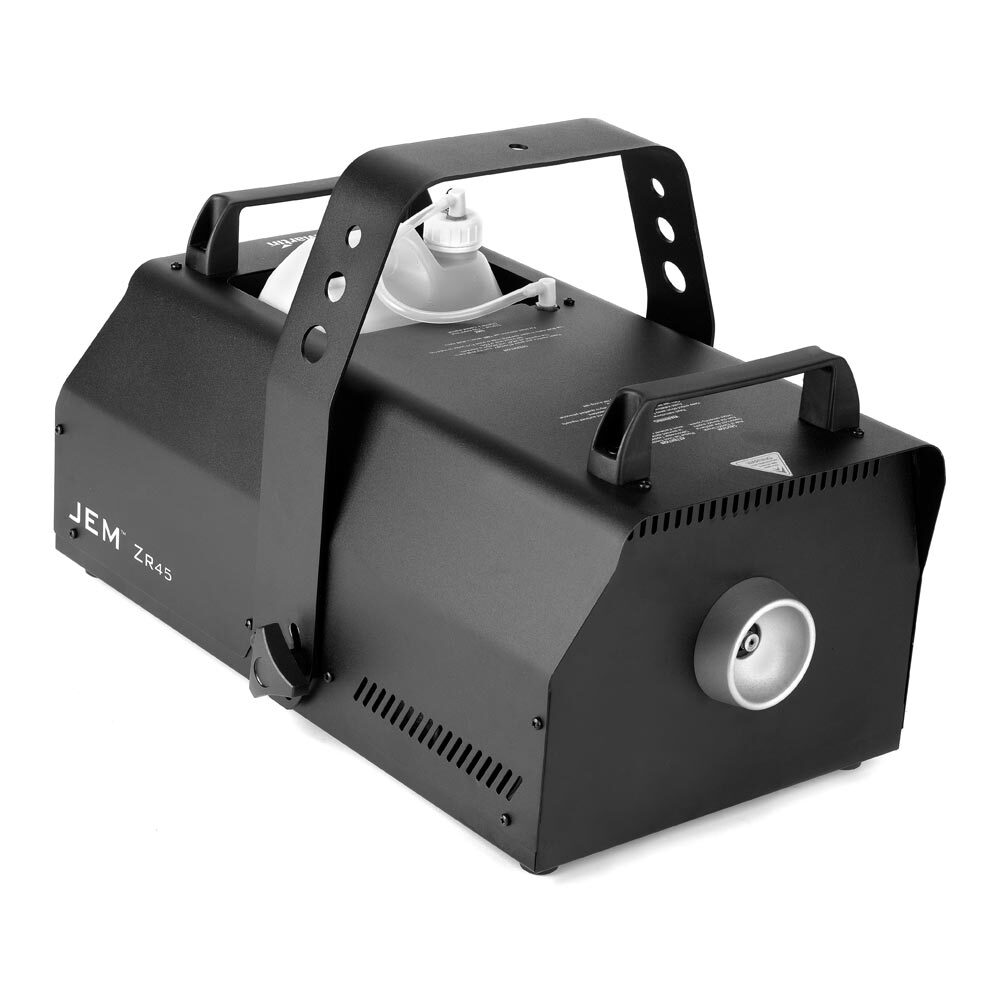

The JEM Professional ZR45 2000W 5L Fog Machine is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets. The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
JEM Professional ZR45 2000W 5L Fog Machine Features:
- 2,000 W (EU model)/1,800 W (US model) heat exchanger
- 80 ml in 30 seconds peak performance
- 1300 m³/min fog output
- Variable output control for subtle effects
- 9-10 minute warm-up time
- Digital remote, DMX and RDM
- Compatible with a wide range of JEM Pro fog fluids
- Floor standing or truss mounting (bracket included)
- PowerCON TRUE1
- 5-liter bottle
JEM Professional ZR45 2000W 5L Fog Machine Specifications:
Physical
- Length: 602 mm (23.1 in.)
- Width: 395 mm (15.6 in.)
- Height: 306 mm (12.1 in.)
- Height including hanging bracket: 393 mm (15.5 in.)
- Weight, dry: 17.7 kg (39.1 lb.)
- Weight, filled: 22.7 kg 50 lbs.)
Performance
- Coverage volume: 1300 m3 (45,909 ft3) per minute
- Fluid consumption (max.): 210 ml per minute
- Continuous effect output
- Ready time: 10 minutes
Control & Programming
- Control options: Integrated digital remote control, DMX, master/slave link mode, optional PLC interface
- Control parameters: Continuous or timer-controlled output
- Fog: Variable output control, 0-100%
- DMX channels: 1
- DMX compliance: ANSI E1.11-USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM
Construction
- Housing: Steel and aluminum
- Hanging bracket: Integrated yoke w/safety attachment point
- Color: Black
- Heat exchanger (US model): 1800 W, thermally protected
- Heat exchanger (EU model): 2000 W, thermally protected
- Fluid pump: Dual oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
- External fluid control: Fluid sensing
- Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR
Installation
- Mounting: Standing or hanging
- Orientation: Up to +/- 40° from horizontal
- Clearance around machine: 100 mm (4 in.)
Connections
- AC Power: Neutrik PowerCON TRUE1
- DMX, link mode in/out: 5-pin locking XLR
- Remote control: 3-pin locking XLR
- Firmware: AVR socket
- Optional PLC interface: 3- and 4-pin locking XLR
Electrical
- AC power: 100-130 V nominal, 50/60 Hz
- Main fuse: 20 AT (slow blow), 125 V
- Typical power and current: 1800 W, 15 A*
- *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Max. nozzle temperature: 290° C (554° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
Approvals
- US safety: UL 998
- Canadian safety: CSA C22.2 No. 104.01
Included Items
- Fluid reservoir, 5 l: P/N 34300506
- JEM ZR Series Digital Remote Control: P/N 92765048
- Power input cable, EU, powerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
- Power input cable, US, 20A, powerCON TRUE1, molded NEMA 5-20P, 2 m (6.6 ft.): P/N 11501046
Ordering Information
- JEM ZR45, EU: P/N 92215360
- JEM ZR45, US: P/N 92215370
