ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models are built on the same frame allowing panels with different resolutions to be used together. The Vision Series panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

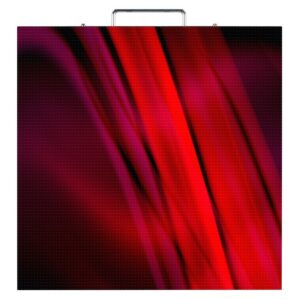

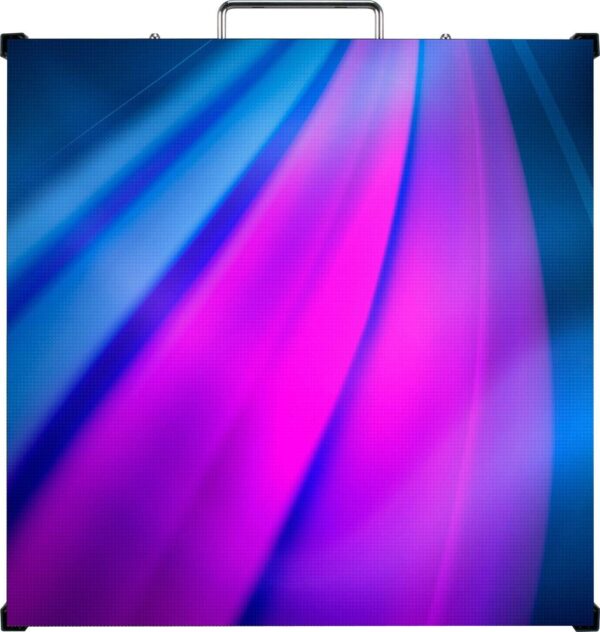

The ADJ VS2 2.97mm Pixel Pitch LED Video Wall Panel is a high-resolution video panel with a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The ADJ VS2 2.97mm Pixel Pitch LED Video Wall Panel connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the ADJ VSRB1 Single Panel Rigging Bar for Vision Series LED Video Wall Panels.
ADJ VS3IP Indoor/Outdoor LED Video Wall Panel Features:
- Corner Protectors to protect the corners of the VS2 during transport, set-up and teardown.
- Front and rear serviceable.
- 4 easy to replace video modules on each panel.
ADJ VS3IP 3.84mm Pixel Pitch Outdoor LED Video Wall Panel Specifications:
• Pixel Pitch: 2.97mm (0.12”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 168×168; 112896 per square meter
• Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.
FEATURES:
• Corner Protectors to protect the corners of the VS2 during transport, set-up and teardown
• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/21
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: cETLus (Pending)
OPTIONAL ACCESSORIES:
• VSFC8 (VS8100): Flight Case – Fits 8 Vision Series Video Panels
• VSRB1 (VS1100): Rigging Bar – Hang up to 20 Vision Series Video Panels vertically
• VSMRT (VSM111): Module Removal tool – Magnetically assists the tech in removing modules from the front side when servicing.
• VSRQR (VSM210): Quick Rig – Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2″ pipe or truss
• VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
• Novastar VX4S: Video Processor
• Novastar MCTRL-300: Video Processor
• Novastar Nova Pro HD: Video Processor
• Arkaos Media Master: Video Software
• Arkaos GrandVJ 2.0: Video Software
CABLES:
• Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
• Power Locking Link Cables
• Power Locking Main Power Cables
Certifications:
• cETLus approved (Control #5015975)
ADJ is pleased to introduce the Vision Series, the company’s next generation of LED video panels. Building on the reputation the brand has built for reliability, affordability and simplicity through its previous LED video products, the new range offers a versatile modular system packed with advanced level features. These include front serviceability, magnet-aided rigging, and fold-out corner protectors.
The new ‘VS’ Vision Series of LED video panels offers a versatile modular solution that has been developed to make life easier for video professionals installing LED walls on either a temporary or permanent basis. Each panel in the range features four individual modules, which are front serviceable, making it ideal for temporary hanging as well as permanent installation. Across the range, the modules are all mounted to the same frame, allowing panels of different resolutions to be used together and meaning that the same rigging bar and other accessories can be used for all VS models.

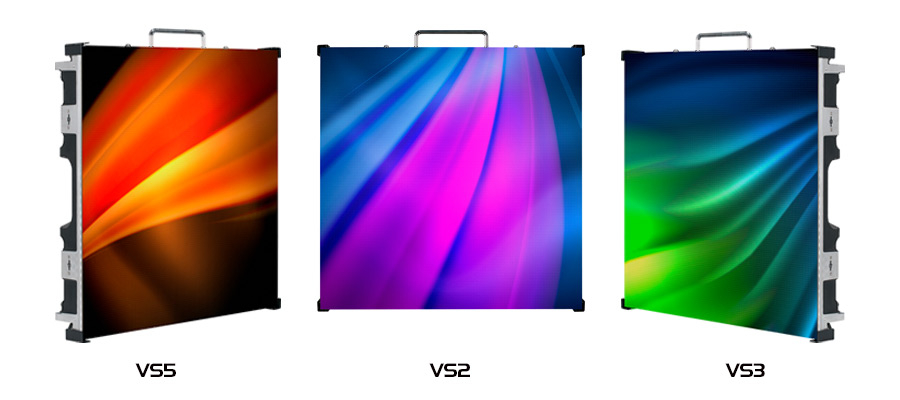

Featuring the highest quality LED binning as well as bright, clear output, the VS Series features three panel models. The VS5 offers a 5.95mm pixel pitch (84 x 84 pixel density), the VS3 has a 3.91mm pixel pitch (128 x 128 pixel density) and the VS2 offers the highest resolution in the range with a 2.97mm pixel pitch (168 x 168 pixel density). All three panels utilize 3-in-1 RGB SMD2121 LEDs with a brightness of 1000 NITS and a very high refresh rate of 3840Hz. They offer a wide viewing angle of 160° (horizontal) / 140° (vertical) and a high contrast ratio of 5000:1, allowing for the delivery of exceptionally vibrant video reproduction.
Every panel in the range is equipped with a high quality Novastar A5s data receiving card and features DataLock securely-locking ethernet input and output sockets that allow the signal from a compatible video processor (for example the Novastar MCRTL-300, VX4S or Nova Pro HD) to be linked from panel to panel. Each unit is also equipped with locking power input and output sockets, which can be used to link the power supply from one panel to another.
All of the panels feature in-built articulated protectors which fold out from the back of the unit to provide protection to the corners – the parts of the panels most prone to damage – during transit. In addition, each panel also features a convenient recessed carry handle built-in to its top edge. This makes the compact (19.68” x 19.68” x 2.75” / 500mm x 500mm x 69.6mm) and lightweight (17 lbs. / 7.7kg.) panels extremely easy to carry and rig.
Rigging of the panels is made even easier by the Vision Series’ innovative magnetic locating system. This pulls together the top of one panel to the bottom of another, allowing a technician to hold the new panel temporarily in place with just one hand while using their other hand to engage the pin-locking mechanism. This means that a single crew member can quickly and easily a erect a full wall of panels.
The VS Series is completed by a range of accessories that can all be used interchangeably with any of the panels in the range. The VSRB1 is an intelligently-designed rigging bar that can be used to vertically hang or ground stack up to 20 VS panels. The VSRQR is a convenient ‘quick rig’ attachment that fits to the rear of any Vision Series panel so that it can be fastened directly to a 2” pipe or truss. The VSSCSB is a support base that allows up to three VS panels to be mounted in a freestanding column, ideal for temporary digital signage applications. The VSMRT is a module removal tool that magnetically attaches to the front of Vision Series panels to aid technicians in removing modules from the front side when servicing.
A dedicated flight case, the VSFC8, has also been created specifically for protecting and transporting up to eight Vision Series LED panels. The robust wheeled road trunk features eight padded slots for the panels, a hinged lid that locks in place using two butterfly catches, a rubber bumper strip that runs around all four sides of the case, and two recessed bar handles on either end. It also features a useful clear plastic window that runs down one side, allowing users to easily identify how many panels are stored in a case without opening the lid. This also allows crew members to check which way the panels are facing if the case needs to be flipped on its end, so that they can ensure the LEDs are facing upwards.
“Since ADJ entered the LED video panel market with the AV Series over five years ago, we’ve enjoyed phenomenal success,” explains ADJ USA’s National Sales Manager, Alfred Gonzales. “ADJ video panels are now used worldwide, installed permanently in churches, nightclubs and entertainment centers, and utilized by production companies working on all kinds of tours and one-off events. However, at ADJ we never dwell on our past successes, but always strive to do even better. For the new Vision Series, we’ve combined everything that made the AV Series so popular – value, reliability and ease of use – while also addressing the feedback we’ve received from our valued customers. Front serviceability is something that integrators often ask for, which we are pleased to offer throughout this new range, while the innovative magnetic rigging system offered by the Vision Series will make life a whole lot easier for our event production and touring customers.”
