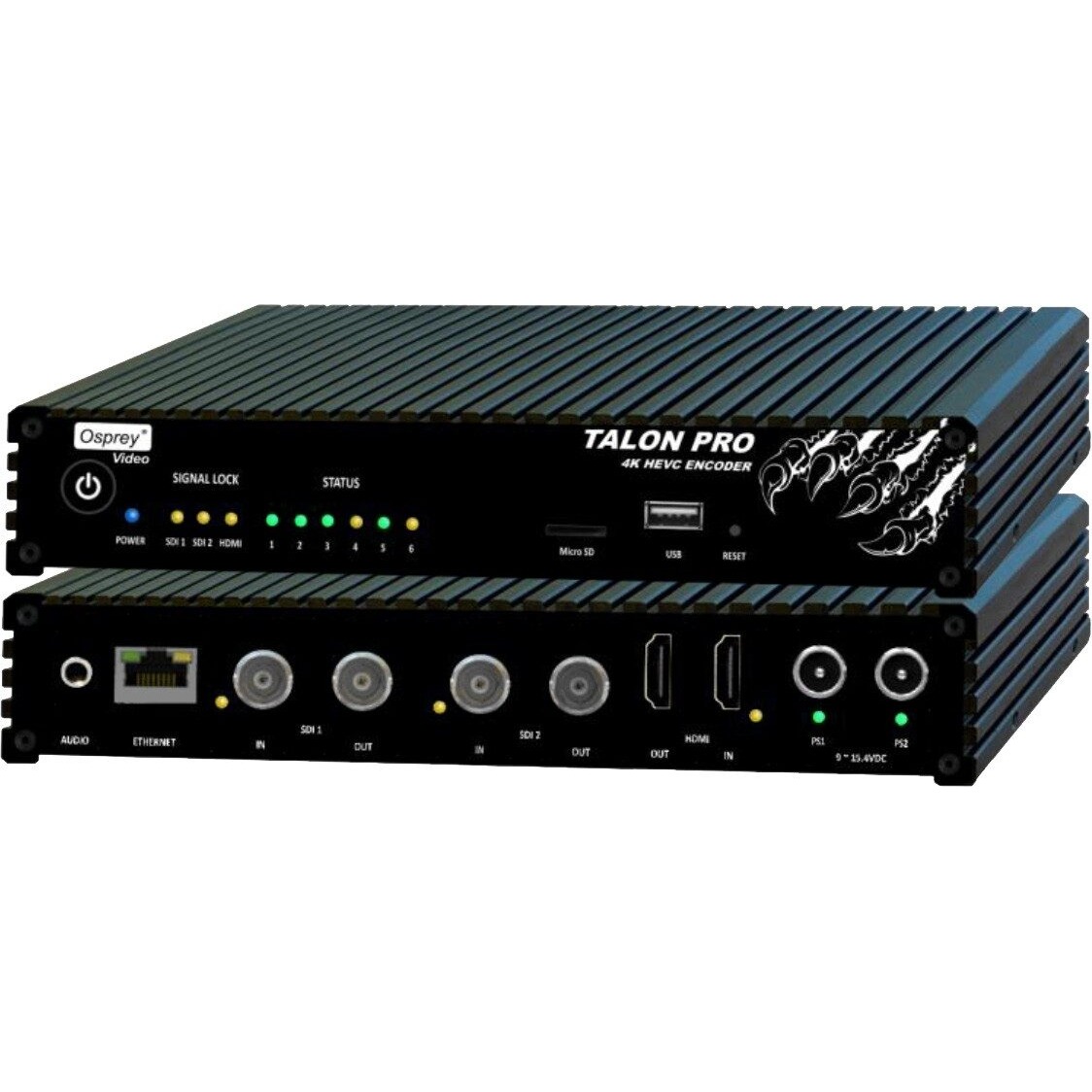

The Osprey Talon Pro 4K HEVC/AVC Hardware Encoder 96-02022 from DJDeals.com is a 4K HEVX/AVC encoder. The Talon Series are small form-factor Video Encoders designed to be easy to use, portable, and easily stream both your standard definition and high definition content to broadband and mobile networks. They feature a fan-less design with a low power consumption of <7W. The wide input voltage range of 9VDC – 15.4VDC also make it perfect candidates for battery operated equipment and installations.
Features
- H.265 / H.264 Encoding
- 3 Independent Encodes
- Redundant Power Inputs
- Small Fanless Form Factor
- Unbalanced Stereo Audio Input
- 2x 3G-SDI plus 1x 4K30 HDMI Inputs
- RTMP(S), RTP, RTSP, TSRTP and UDP
- CEA608 and CEA708 Closed Captions
- Six Configurable Dual Color Status LED’s
- User Selectable Loopouts (Active and Passive)
- Web-Based / Wireless Configuration and Video Monitoring
- HDMI Output for Post-Processing Monitoring of any Input
- USB and Micro SD Card Interfaces for .MP4 or .TS Format Video Archiving
- Included Mounting features – Desktop, Wall Brackets, ¼” Camera Mount
- 1U Side by Side Rackmount Option with included Redundant Power Supplies
Specifications
Osprey Talon Pro 4K HEVC/AVC Hardware Encoder 96-02022 Features:
- Video Inputs:
- 2x 3G/HD/SD-SDI with Loopouts*
- 1x HDMI 1.4 UHD
- Note: *Selectable as active or passive loopouts
Audio Inputs:
- 2x Embedded SDI
- 1x Embedded HDMI
- 1x Analog unbalanced stereo
Video Input Resolution:
- Up to 3840×2160 (UHD) 30fps on HDMI
- Up to 1920×1080 60fps on SDI
HDMI Output:
- Selectable preview of any input
Streaming Transports:
- RTMP, UDP, RTP, RTSP, SRT, Zixi,
MPEG2 TS over UDP, TSRTP
- Saving to MP4 and TS file
- CDN integration
Video Processing:
- Upscale/Downscale, Frame rate
- Conversion, De-interlacing, Text Overlay,
- Region of Interest, Image Rotation
Video Compression:
- H.264 (AVC), H.265 (HEVC), MJPEG
Encoding Controls
- Bitrate from 100Kbps to 15Mbps
- Frame rate Full, Half, Quarter and Sixth
- Low Latency option <55ms
Closed Captions
- Re-embeds existing CEA608/708 captions
Audio Compression:
- AAC-LC, AAC-HE, AAC-HEv2
Audio Sample Rate
- 32kHz, 44.1kHz, 48kHz
- Audio Bitrate 12Kbps to 384Kbps
Storage
- Micro SD card
- USB drive
Power
- 9.0 – 15.4VDC – 7W
- Redundant power connections
