The Obsidian Control Systems Netron RDM6D DIN Rail DMX/RDM Splitter (NDR601) from DJDeals.com is a compact DIN Rail or wall-mount DMX/RDM splitter with six opto-isolated outputs in a rugged powder-coated aluminum housing. Exchangeable connection plates allow RJ45, screw-terminal, or IDC wiring on the top, bottom, or front — accommodating any panel layout. Wide-range 9–48V DC powered and UL924 compliant with emergency cue system, test button, and contact closure for life-safety compliance.
Obsidian Control Systems Netron RDM6D DIN Rail DMX/RDM Splitter (NDR601) Features:

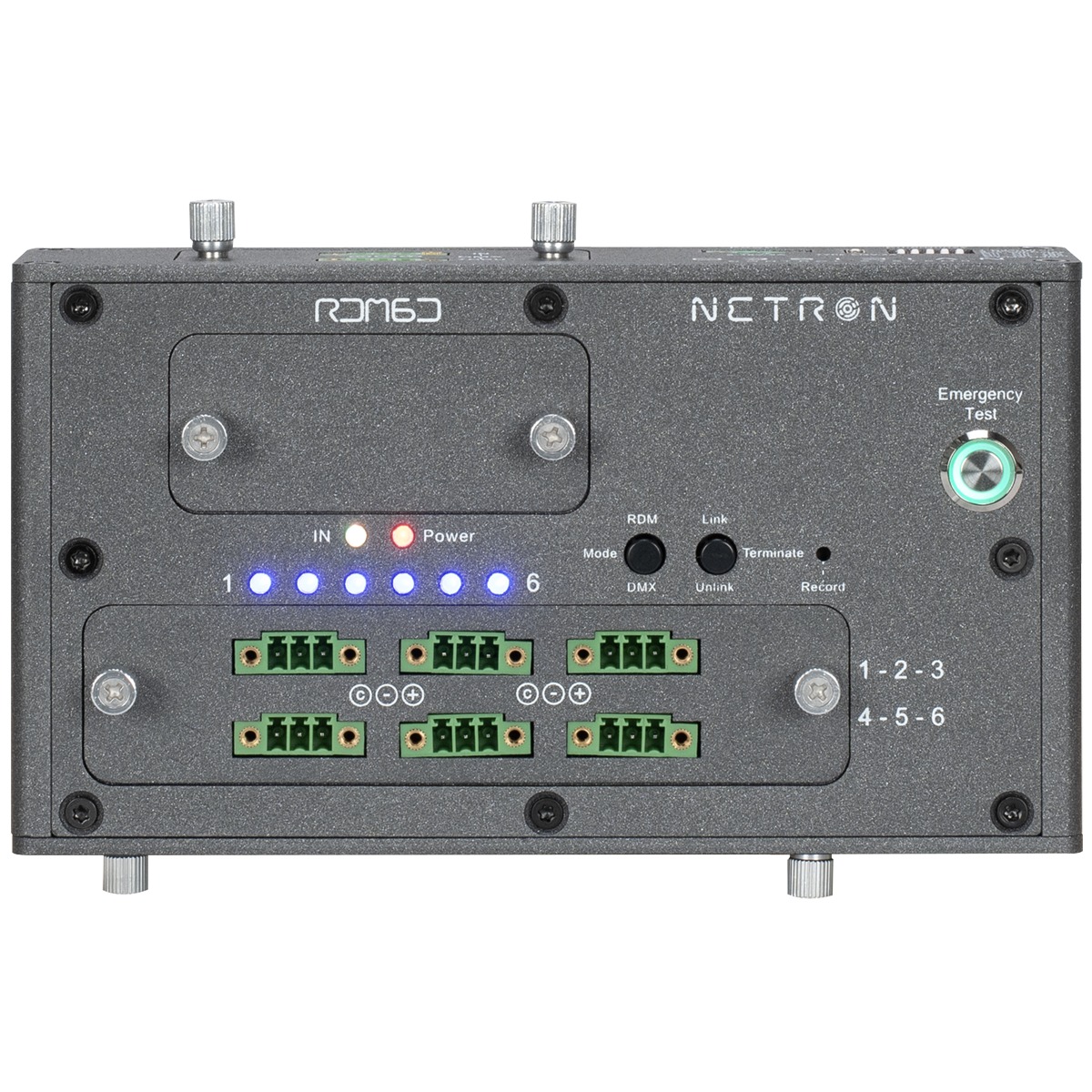

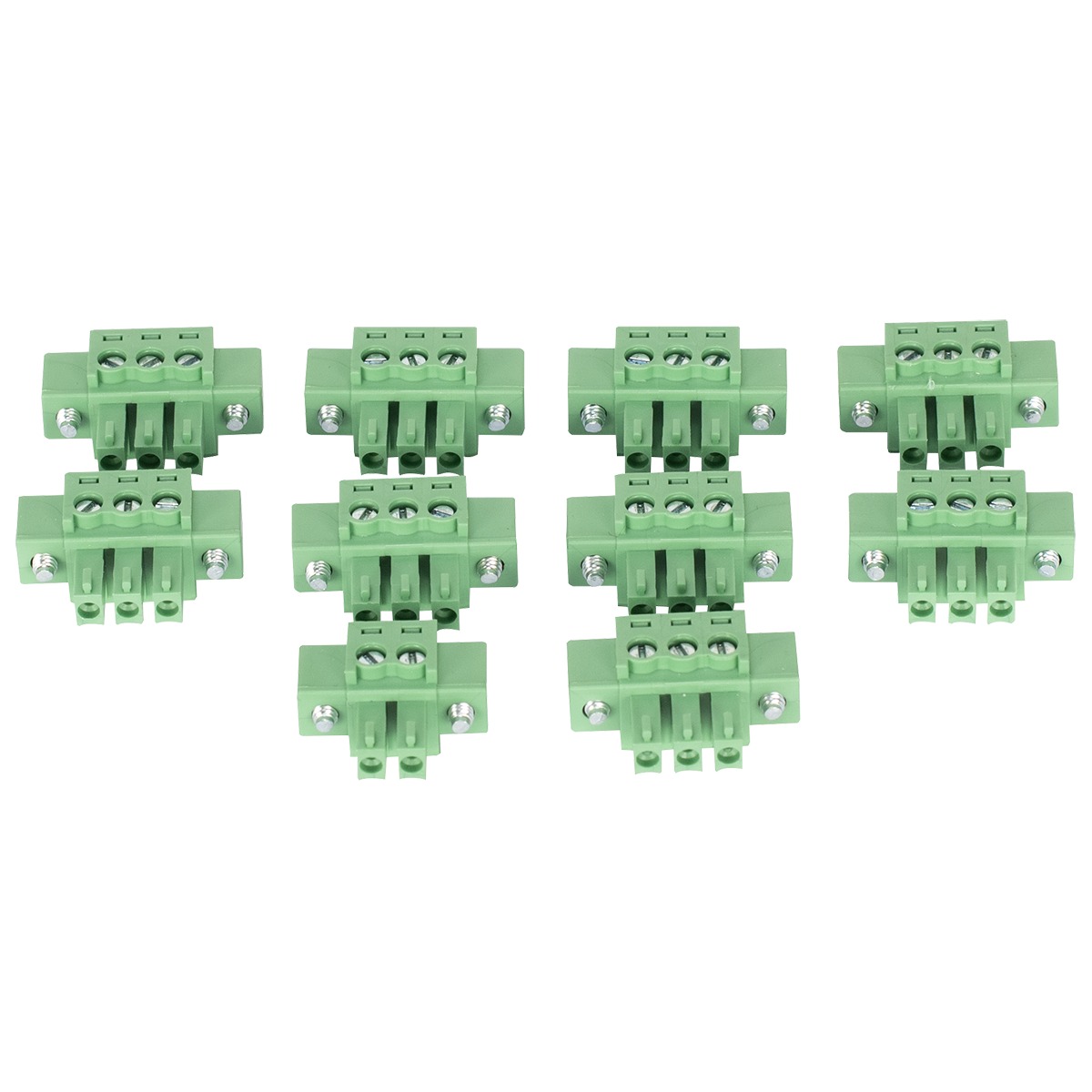

- 6 Opto-Isolated DMX/RDM Outputs. Six bidirectional DMX/RDM outputs configurable as RJ45 ESTA, screw-terminal, or IDC via exchangeable connection plates.

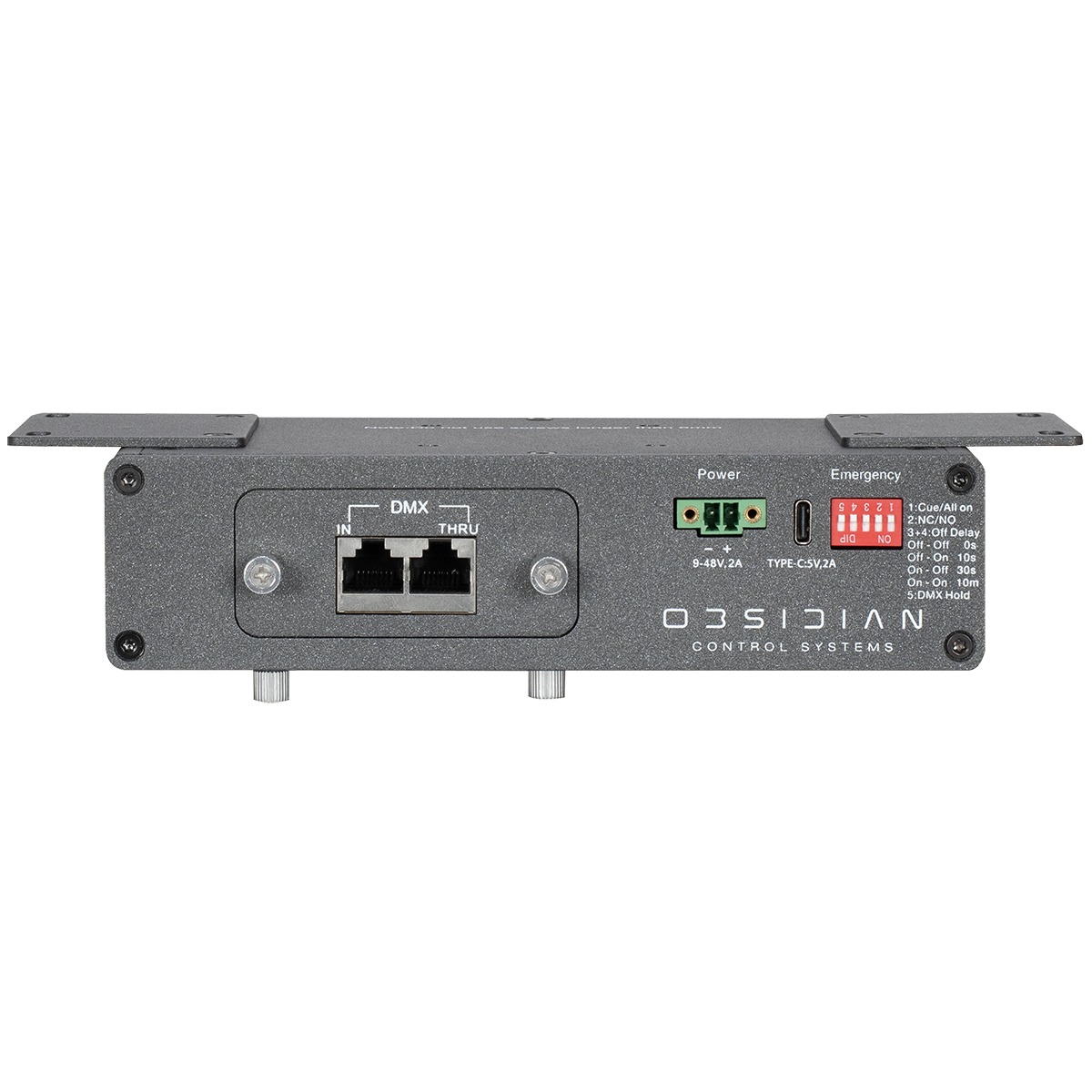

- 2 DMX Input Positions. DMX In and Thru ports configurable via exchangeable plates — top, bottom, or front positions.
- Configurable Port Positions. Connection plates installable on top, bottom, or front for maximum installer flexibility.
- 9–48V DC Wide-Range Power. Compatible with any standard building control panel power supply; USB-C (5V/2A) for temporary bench power.
- UL924 Emergency Cue System. Emergency cue with test button, wet/dry contact closure, and LED feedback for UL924 life-safety compliance.

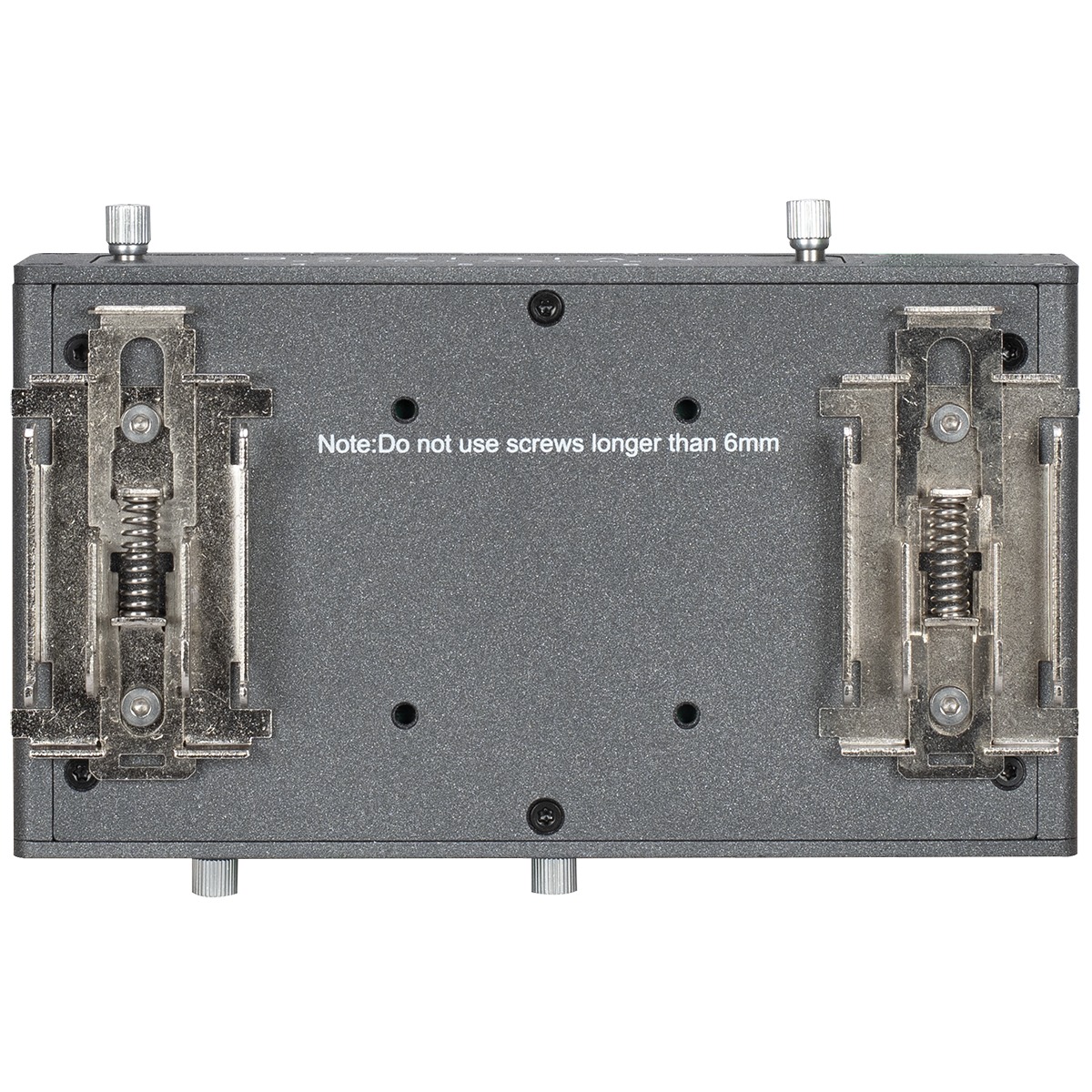

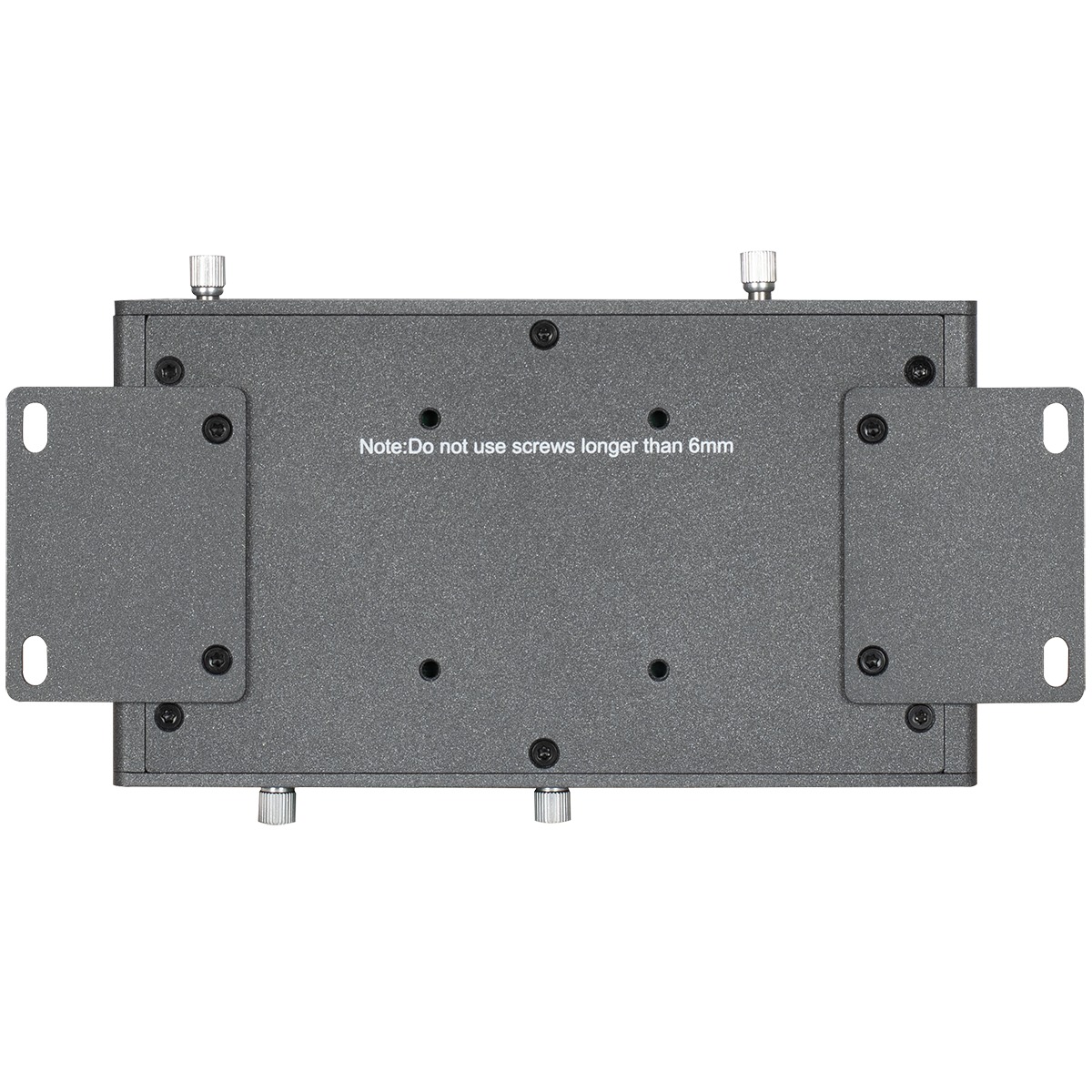

- DIN Rail & Wall Mount. Ships with DIN Rail clamps and wall mount plates; standard DIN Rail spacing.
- Compact Design. 116mm x 143mm x 52mm footprint fits in tight panel spaces.
Obsidian Control Systems Netron RDM6D DIN Rail DMX/RDM Splitter (NDR601) Specifications:
- DMX Outputs: 6x bidirectional DMX/RDM — RJ45, Terminal Block, or IDC (exchangeable plates)
- DMX Input: 2-port In/Thru (RJ45 or Terminal Block, configurable position)
- Emergency: 3-pin Terminal Block; Dry or 12V wet contact; test button (UL924)
- Power: DC 9–48V; USB-C (5V/2A)
- Mounting: DIN Rail; wall-mount (hardware included)
- Dimensions: 116mm L x 143mm W x 52mm H (4.7 in. x 5.6 in. x 2.1 in.)
- Approvals: cETLus / CE / IP20 / UL924
- UPC: 810008264140
