The Obsidian Control Systems Netron EP1D DIN Rail Single-Port Art-Net & sACN to DMX Gateway (NRE136) from DJDeals.com is the smallest and most compact node in the NETRON lineup, designed specifically for DIN Rail panel installation. A single 3-pin Phoenix terminal block DMX/RDM output (optically isolated, bidirectional) distributes sACN or Art-Net converted to DMX at any individual location in a building. Configured via the internal web remote or NETRON CLU tool; PoE or 9–48V DC powered. Unlocks ONYX NOVA 4-universe license.
Obsidian Control Systems Netron EP1D DIN Rail Single-Port Art-Net & sACN to DMX Gateway (NRE136) Features:
- DIN Rail Single-Port Gateway. Ultra-compact 36mm-wide DIN Rail node for panel installations requiring DMX output at individual points throughout a building.
- Phoenix Terminal Block DMX Output. 3-pin Phoenix terminal block DMX/RDM output — direct wire connection with no XLR connectors required.

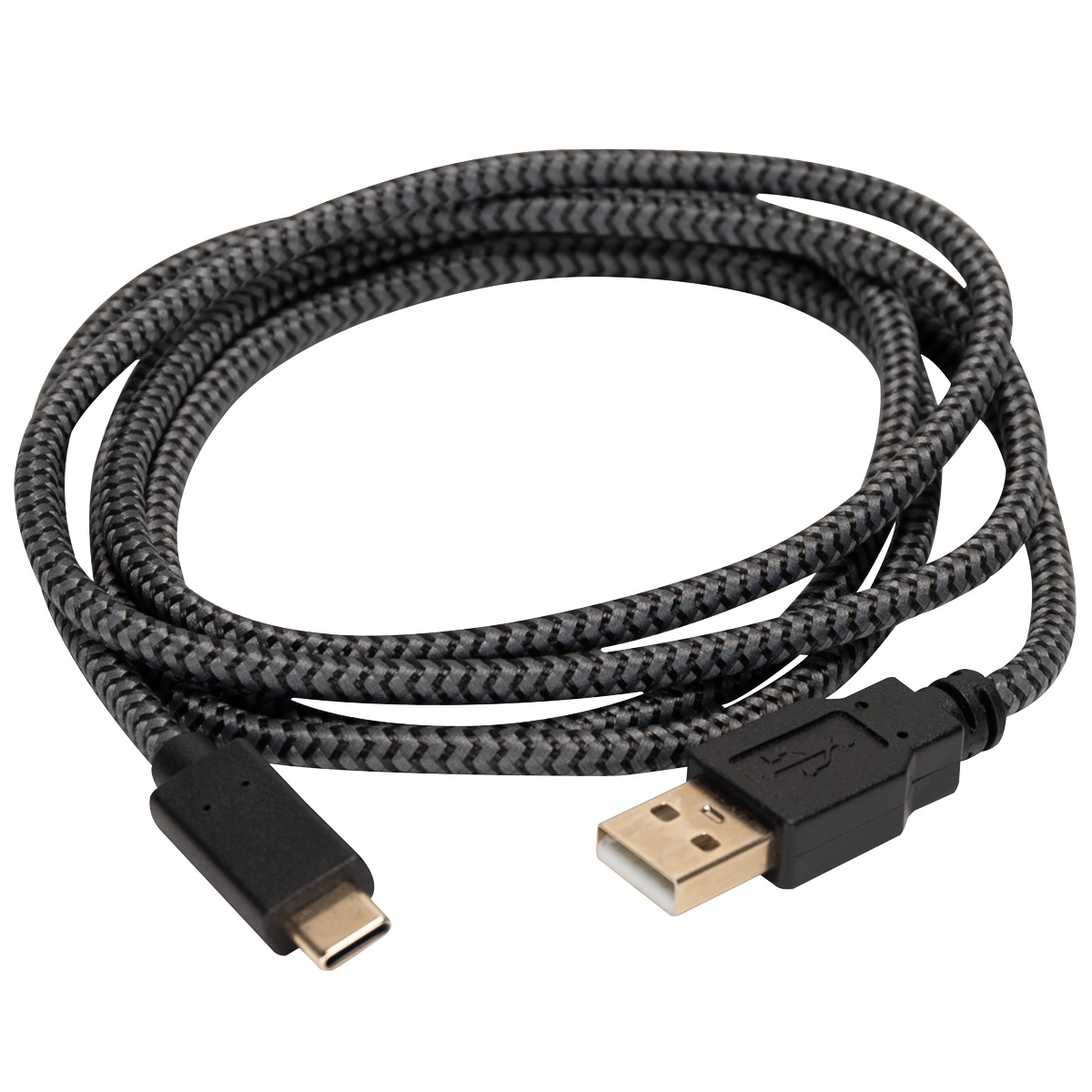

- PoE or 9–48V DC Power. PoE 802.3af or wide-range DC 9–48V from any panel supply; USB-C (5V/2A) for temporary bench power.
- RDM, Art-Net & sACN Support. Full protocol support: sACN E1.31, Art-Net, DMX512-A E1.11, and RDM E1.20 bidirectional.
- NETRON CLU & Web Remote. Remote configuration and firmware updates via internal web browser or NETRON CLU management tool.
- Factory & User Presets. Built-in factory presets for rapid consistent deployment across multiple units in a facility.
- Unlocks ONYX NOVA 4 Universe License. Includes ONYX NOVA 4-universe license activation.
Obsidian Control Systems Netron EP1D DIN Rail Single-Port Art-Net & sACN to DMX Gateway (NRE136) Specifications:
Obsidian Control Systems Netron EP1D DIN Rail Single-Port Art-Net & sACN to DMX Gateway (NRE136) Features:
- DMX Output: 1x 3-pin Phoenix Terminal Block; optically isolated; bidirectional DMX/RDM

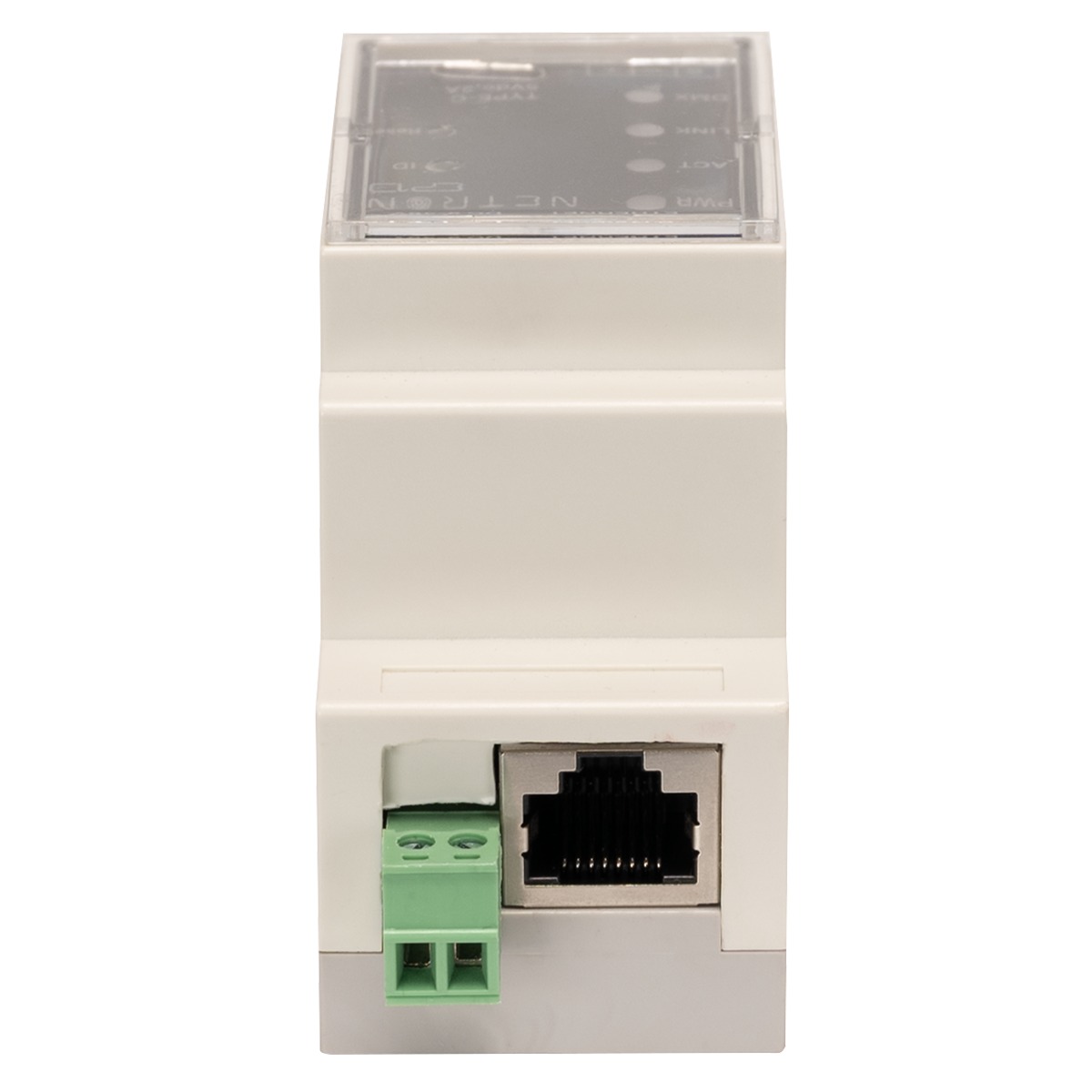

- Network: 1x RJ45 Gigabit Ethernet (PoE) — top
- Power: PoE 802.3af; DC 9–48V (2-pin terminal block); USB-C (5V/2A) temporary; 1.6W

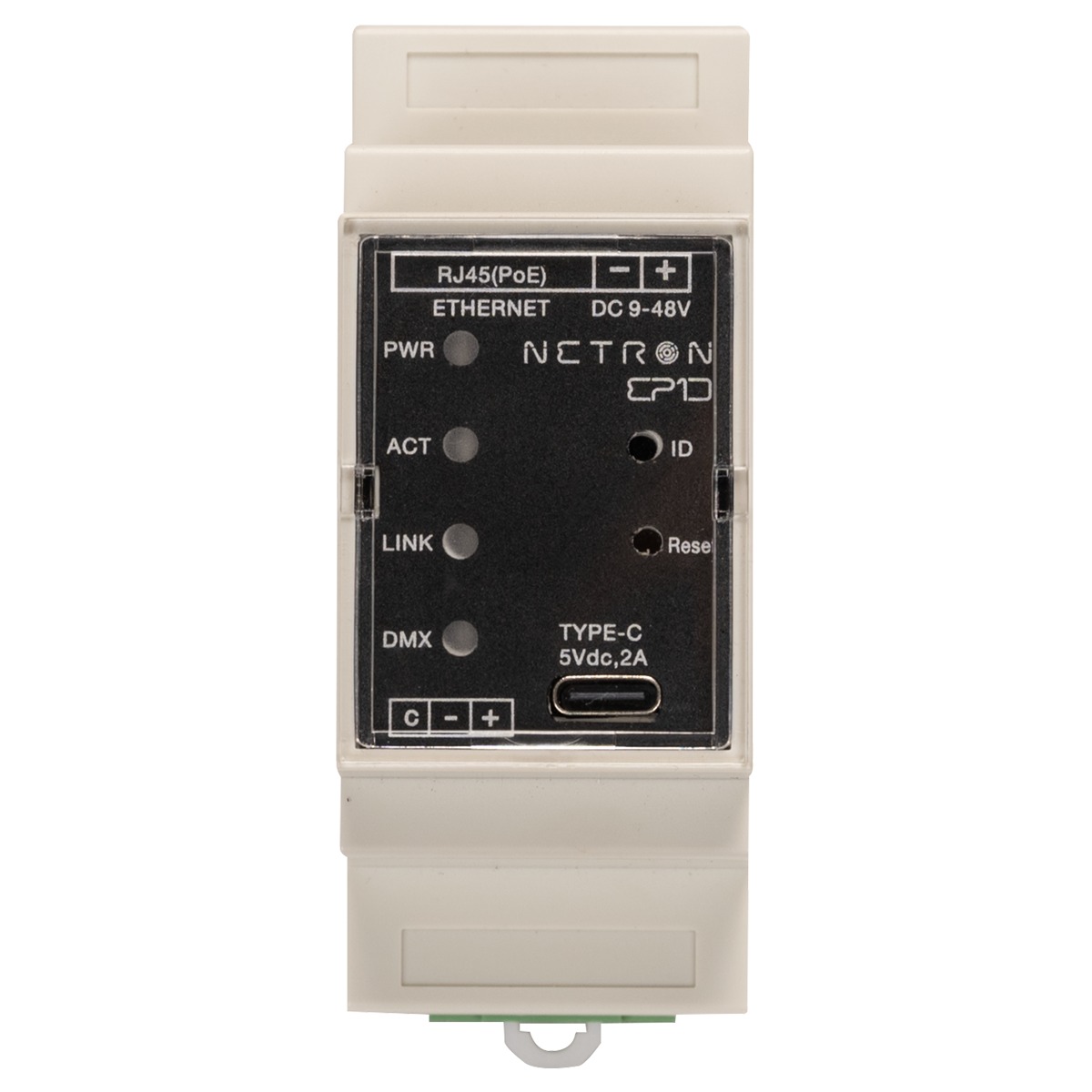

- LED Status: 4x LED status indicators (front)
- Mounting: DIN Rail
- Dimensions: 87mm L x 36mm W x 60mm H (3.4 in. x 1.4 in. x 2.4 in.)
- Weight: 0.2 kg (0.44 lbs.)
- Approvals: CE / cETLus
- UPC: 810008265260
