The Obsidian Control Systems Netron EN12i Art-Net & sACN to DMX Gateway (NRE234) from DJDeals.com is a high-density gateway with twelve RDM-compatible wire terminal or RJ45 outputs, designed for permanent rack installations. Innovative exchangeable backplates allow RJ45, screw-terminal, or IDC configurations — all hardware included. Front-access Gigabit and DMX ports, a 99-cue internal system with fade and hold times, contact closures, and optional BS10 remote button station support make the EN12i the definitive solution for large permanent DMX installations. Unlocks a 4-universe ONYX NOVA license.
Obsidian Control Systems Netron EN12i Art-Net & sACN to DMX Gateway (NRE234) Features:

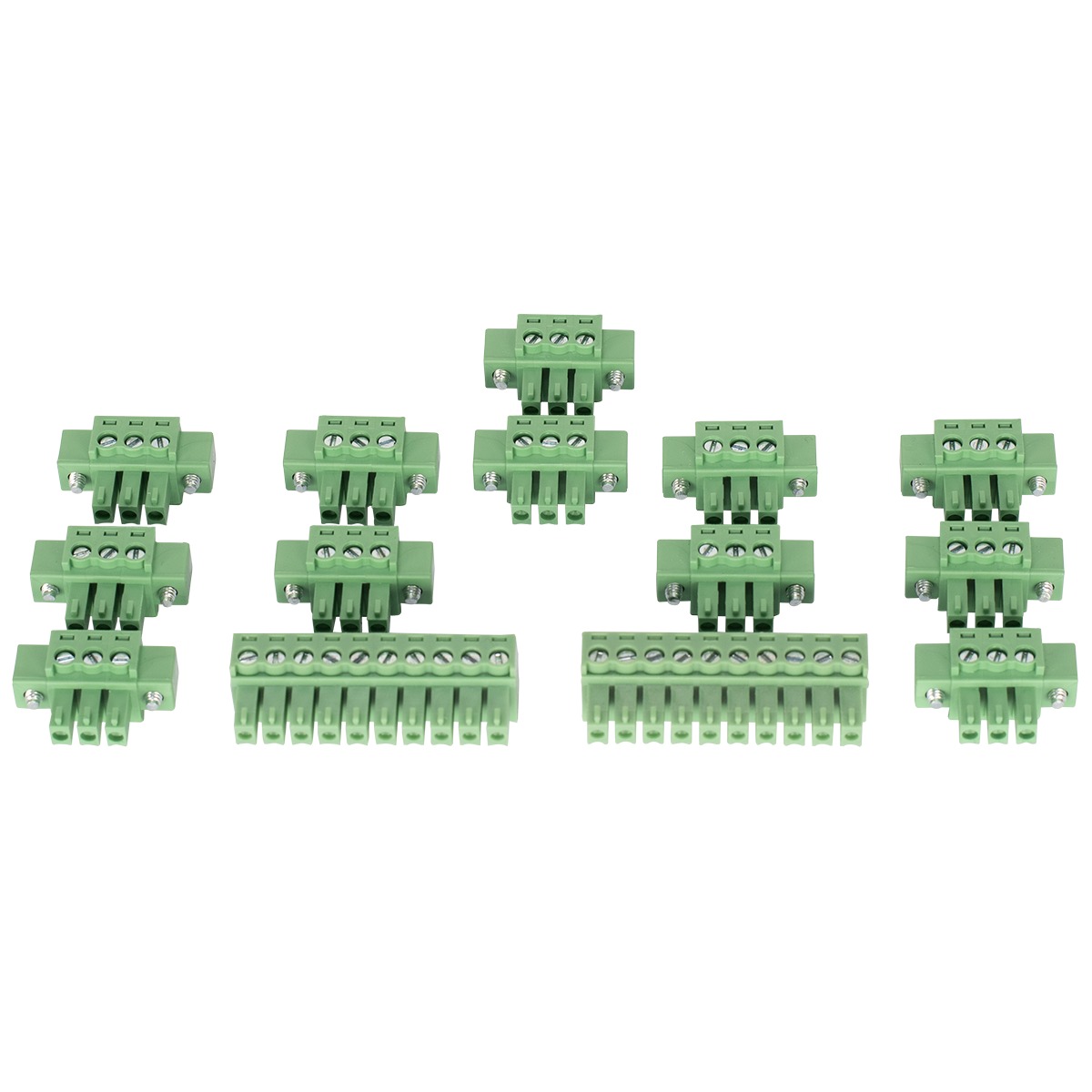

- 12 RDM-Compatible Outputs. Twelve bidirectional DMX/RDM ports configurable as RJ45 ESTA, screw-terminal, or IDC via exchangeable backplates — all hardware included.

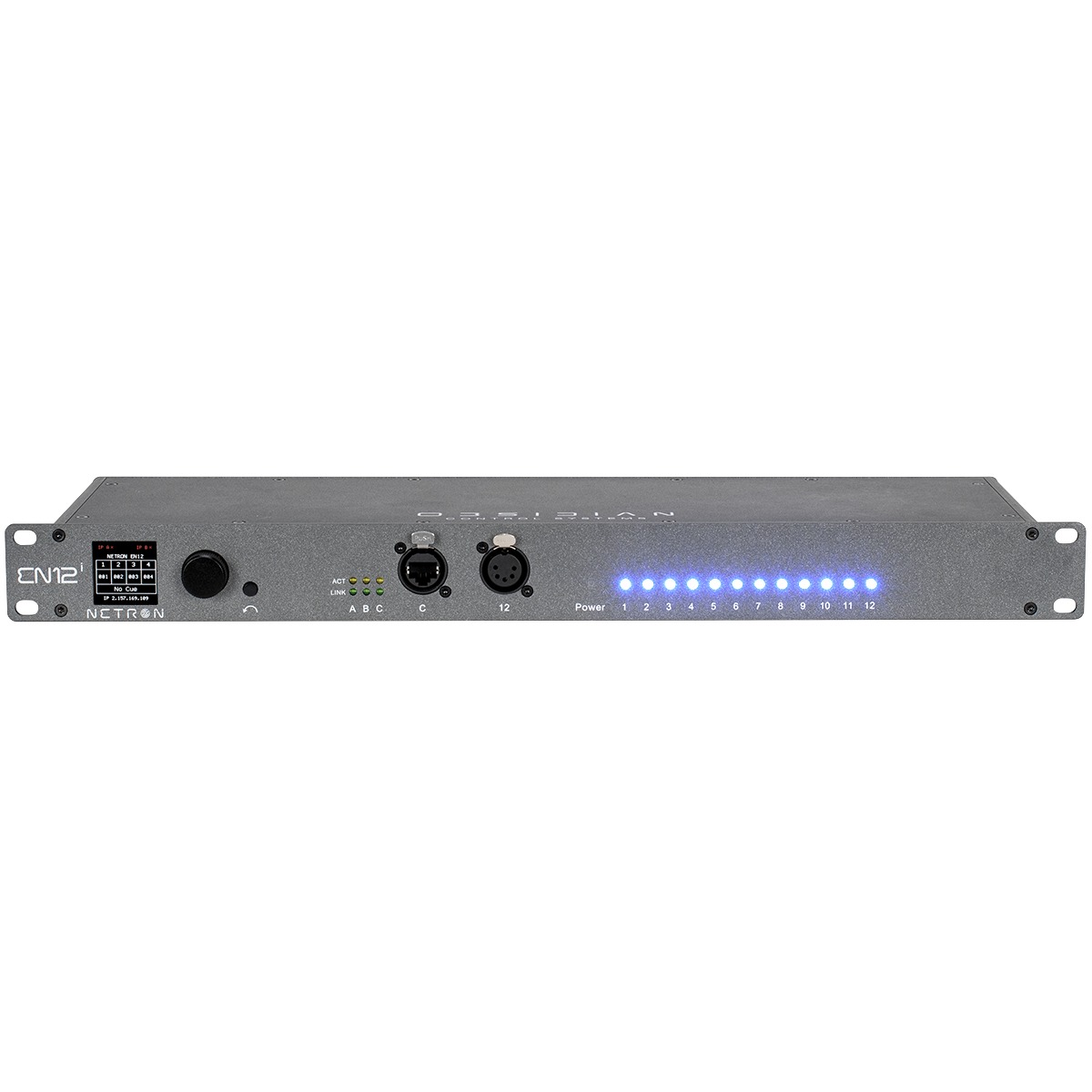

- Front-Access Ports. One front-facing 5-pin XLR DMX port and one Gigabit Ethernet port for convenient cable management.
- RDM, Art-Net & sACN Support. Full DMX512-A E1.11, RDM E1.20, sACN E1.31, and Art-Net protocol support with optical and galvanic isolation on all ports.
- 99-Cue Standalone System. Internal cue system with fade and hold times, cue linking, and sACN/Art-Net output during playback — suitable for basic architectural control.
- Contact Closures & Remote Station. Ten contact closure inputs and RJ45 remote port for optional BS10 Button Station cue/preset recall.
- PoE or AC Mains Powered. Accepts AC 100–240V (50/60 Hz) or PoE 802.3af for flexible installation power options.
- Gigabit Low-Latency Switch. Integrated 3-port Gigabit Ethernet switch (1 front, 2 back) with MDI/MDIX and IGMP support.
- 1.8″ OLED Display. Full-color OLED front panel display with rotary encoder for direct on-device configuration.
- NETRON CLU Compatible. Remote configuration and firmware updates via NETRON CLU management tool.
- Unlocks ONYX NOVA 4 Universe License. Includes ONYX NOVA 4-universe license activation.
Obsidian Control Systems Netron EN12i Art-Net & sACN to DMX Gateway (NRE234) Specifications:
- DMX Ports: 12x bidirectional DMX/RDM — RJ45 (ESTA), Terminal Block, or IDC; optical & galvanic isolation
- Front Ports: 1x 5-pin XLR DMX/RDM; 1x Locking RJ45 Gigabit Ethernet

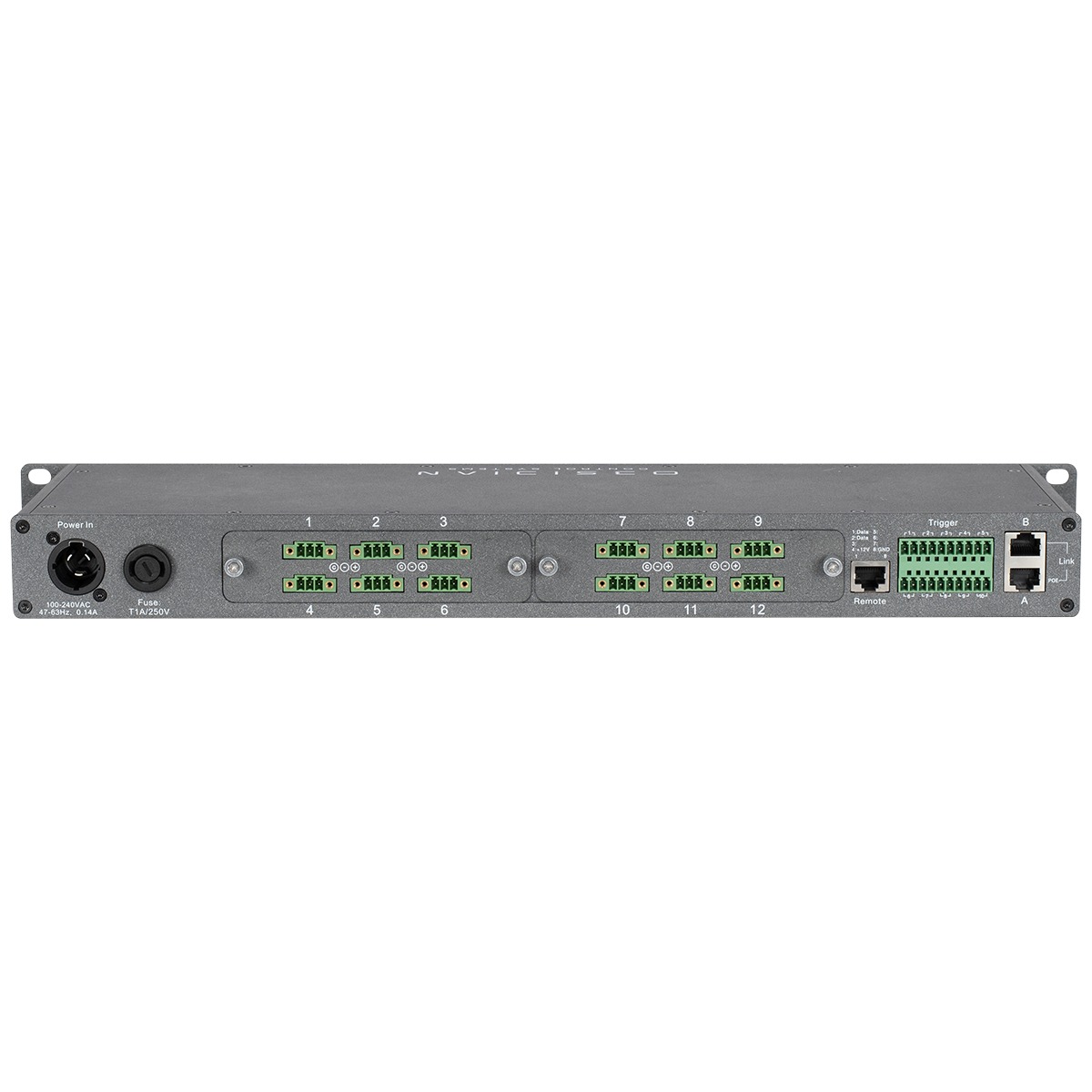

- Back Network: 2x Locking RJ45 Gigabit Ethernet (Low Latency Switch)
- Contact Closures: 10x (2x 10-pin Terminal Block); RJ45 remote port for BS10
- Protocols: sACN E1.31, Art-Net, DMX512-A E1.11, RDM E1.20
- Power: AC 100–240V 50/60 Hz; PoE 802.3af; 9W
- Mounting: Rackmount (1U)
- Dimensions: 165.8mm L x 482.5mm W x 44mm H (6.5 in. x 19 in. x 1.7 in.)
- Weight: 1.8 kg (4 lbs.)
- Approvals: cETLus / CE / FCC / IP20
- UPC: 810008264119
