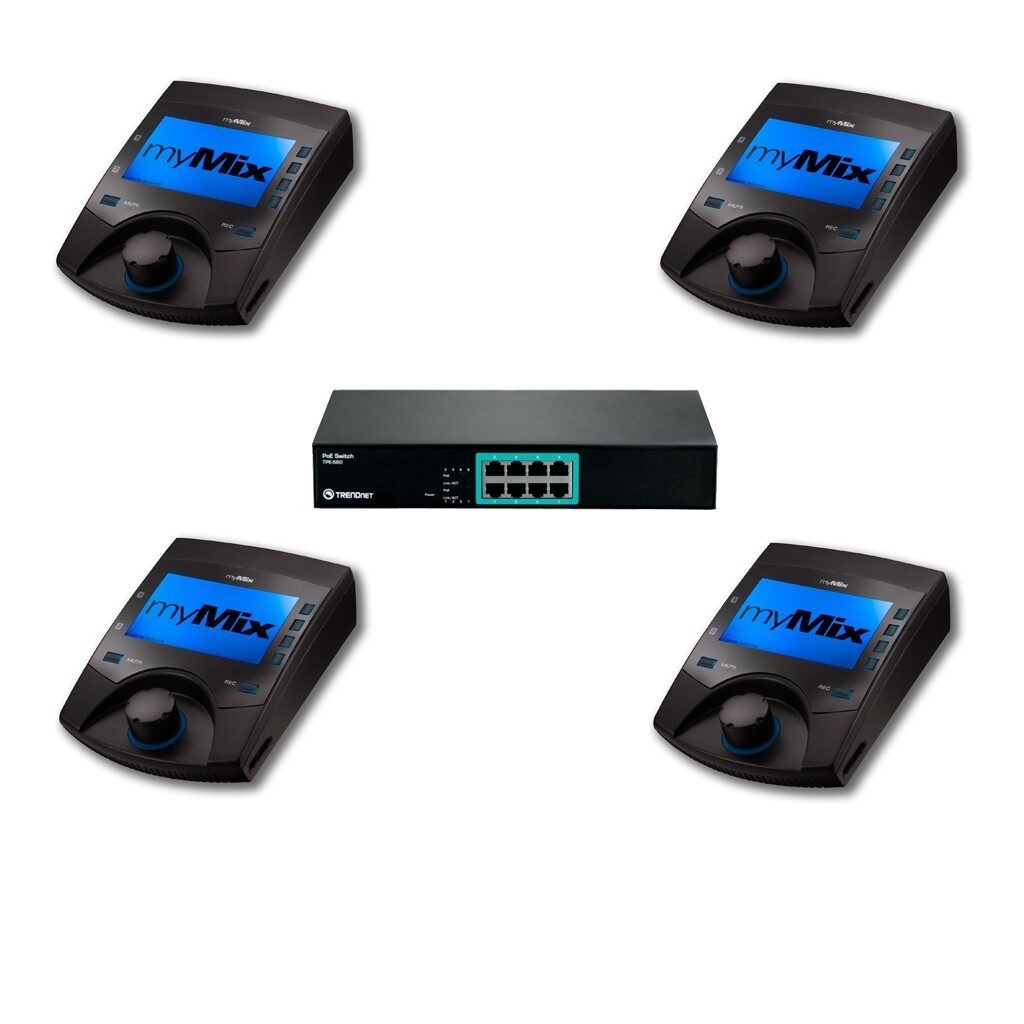

The MyMix Mix Pack 4 myMix Package with 1x TPE-S80 PoE Switch from DJDeals.com provide individual stereo mixes and multi-track recording for four (or more) musicians. Four myMix units provide eight inputs to connect and label microphone (phantom power available) and line level sources. All devices get connected with a CAT5* cable to the TPE-S80 POE switch. If you want to share the input signals with a console you can split the signal from DI-boxes for line level and use y-cable (or a mic split box) for microphones. If you have more than four people on stage, consider using a 4-ch headphone amp and share a mix (e.g. for the vocalists). The TPE-S80 provides power for 8 myMix units, so you can add 4 more myMix or 3 myMix and an IEX16 input expander to have more individual mixes and more audio channels available. Should you ever outgrow this system all you need to get is a larger switch with more ports.
*CAT5 and audio input cables are not included in the package.
myMix Mix Pack 4 Features:
Includes 4 myMix units, 1 TPE-S80 switch
8 audio inputs (4 x 2)
4x Multi-Track Recording and Playback
Includes mic stand adapters and power supplies
Easy to expand by adding more myMix
The two applications examples show that with some accessories 4 myMix can help an 7 piece band, and adding one more myMix a 8 piece band gets started with 5 myMix.

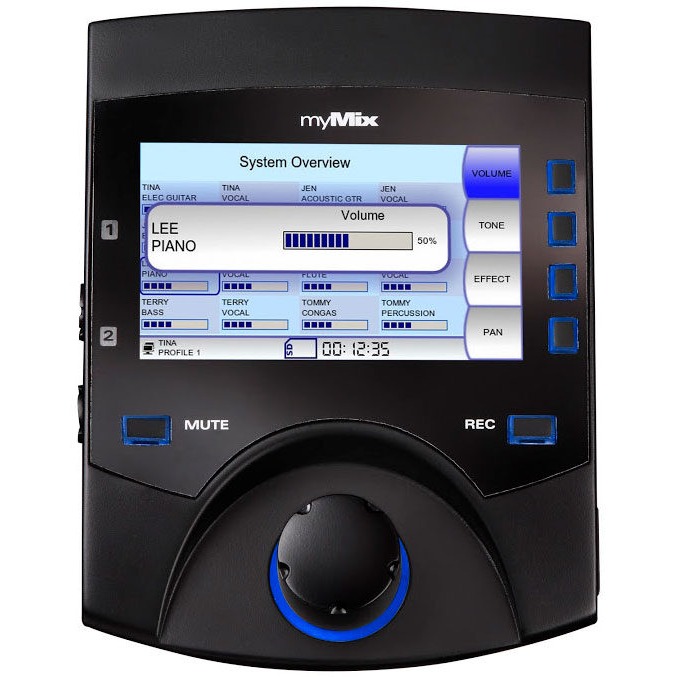

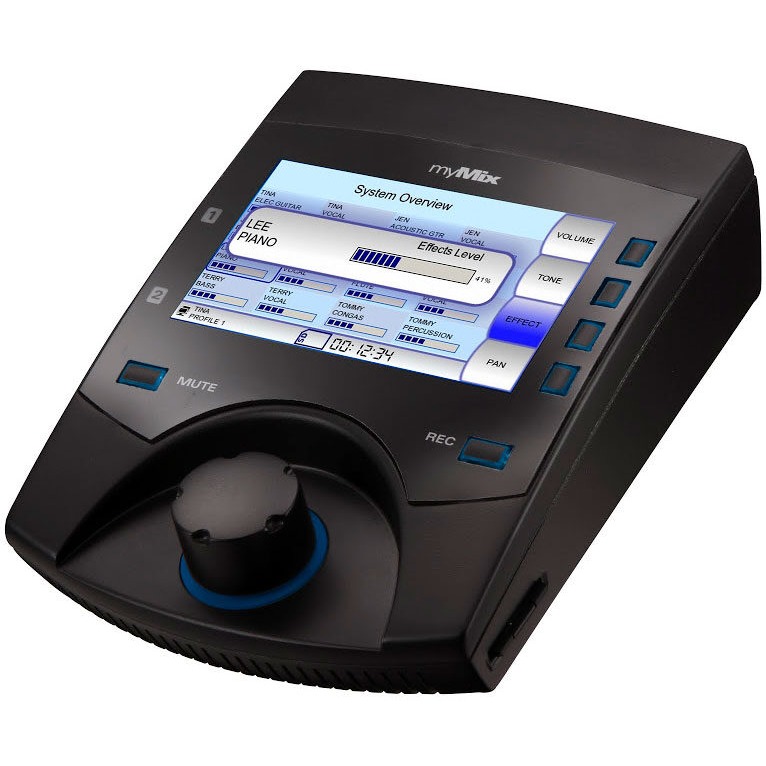

About the myMix – Personal mixer station for myMix systems. Select up to 16 unique channels to mix from all available network channels. Adjust channel volume, tone, effect send (from a choice of reverbs or an adjustable delay), and pan without affecting any other station on the network. Two mic/line inputs with input gain adjustment, input LEDs with signal and overload indicators (overload indicator also flashes red on channel name), switchable phantom power. Two line-level balanced 1/4″ TRS outputs and one 1/8″ (3.5mm) headphone output. Store up to 20 named profiles on each station. 4-band fully parametric stereo output EQ with selectable high and low shelving filters. Record up to 18 tracks (16 individual channels + your stereo mix) of multi-track audio to SD card, 24 bit, 48kHz time-stamped uncompressed .wav files.
myMix Features:
Individual stereo mixes for each musician with up to 16 channels of audio
Individual channel selection from network
Send Mix to Network
Up to 16 +2 tracks of recording and playback (with optional SDHC card)
Intuitive interface with full color LCD display
Networked via standard or PoE Fast Ethernet switches
Dual mic/line inputs with 48v phantom power
Separate headphone and stereo line outputs
Mounts easily to microphone stands with included adapter
Covenient Remote Control with optional myMix CONTROL Software
myMix Specifications:
Inputs
Impedance (Microphone / Line): 2 K Ohms / 20 K Ohms
Input Gain (Microphone): variable from +4 dB to +60 dB
Input Gain (Line): variable from -16dB to +40 dB
Maximum Input Level (Mic/Line): +14dBu / +34 dBu
Frequency Response: 20 Hz to 20 kHz (+0dB, -1dB)
Outputs
Impedance (Line / Headphone Outputs): 75 Ohm balanced / to drive > 16 Ohm
Max Output Level (Line): +21 dBu
Signal to Noise Ratio: > 104 dB
THD +N (Microphone Input to Line Out): < 0.022%
Cross talk (L to R): < -80 dB
Mute: > 100 dB
System Network
Network Type: Fast Ethernet 100 Mbps
Network Cabling: Cat 5
Network Latency: < 1 ms
AD/DA Conversion: 24-bitRecordingRecording Media: SD or SDHC card
Recording Format: wav file, 24-bit, 48kHz sampling rateConnectorsMicrophone Input: Balanced XLR (1 gnd, 2 pos, 3 neg)
Line Input: Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
Line Output: Balanced ¼” jack (tip pos, ring neg, sleeve gnd)
Headphone Output: 3.5mm stereo jack
System Network: RJ45Weight and DimensionsNet Size (excl. mic stand adaptor): 5.3" W x 6.7" H x 2.4" D (134 x 171 x 60 mm)
Net Weight (excl. mic stand adaptor): 1.1 lbs (0.5 kg)
Package Dimensions: 6.8" W x 11" H x 3.2" D (172 x 280 x 80 mm)
Package Weight: 2 lbs (0.9 kg)
Included Accessories:
myMix PSU (24V, 12W)
myMix microphone stand adaptor
