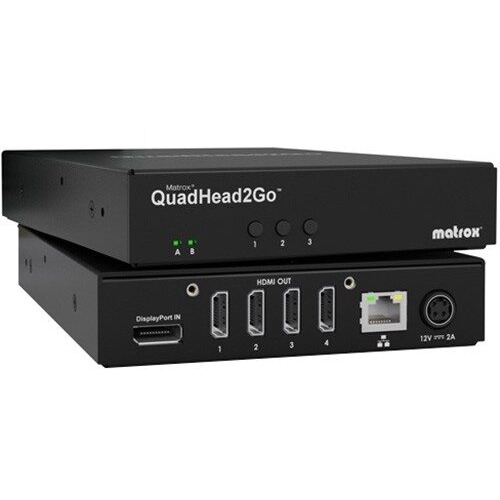

Capable of driving four displays from one signal, the Matrox Q2G-DP4K QuadHead2Go Multi-Monitor Controller Appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any DisplayPort video source — reliably delivering flawless image quality across expansive video wall displays, suited for control rooms.The included Matrox Electronic Systems PowerWall software offers an intuitive and feature-rich interface to configure the latest emerging, artistic, and innovative video walls, making installations as easy as 1-2-3.
Matrox Q2G-DP4K QuadHead2Go Multi-Monitor Controller Appliance Features:
- Complete Flexibility
- Drive up to four pristine quality Full HD displays from a single video signal — of up to 4Kp60 and 8Kx8K — at full RGB 8:8:8 and YUV 4:4:4 color support.
- Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
- Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
- Design modern and artistic video wall layouts with free rein — each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
- Fashion countless forms of setups — arrange displays in 4×1, 1×4, 2×2, 3×1, 1×3, 2×1, or 1×2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations — and combine/scale them to create large-scale, captivating video walls.Ease of Deployment
- Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2×2 in landscape — set up without installing software or even connecting a video source.
- Design any custom configuration/array with the intuitive Matrox PowerWall software.
- Ensure compatibility with professional-grade graphics cards and media players with native DisplayPort™ 1.2 support.
- Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
- Select and set the display layout by cycling through pre-set configurations* using an on-device button — there is no need to install software when using a pre-set configuration.
- Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.
Matrox Q2G-DP4K QuadHead2Go Multi-Monitor Controller Appliance Specifications:
- Product type: 1 input and 4 outputs
- Form factor: Appliance (p/n: Q2G-DP4K)
- Input connector (video & audio support): 1 x DisplayPort 1.2
- Max input resolutions: 3840×2160 @60Hz, 3840×2160 @30Hz, 7680×1080 @60Hz, 7680×1080 @30Hz, 1920×4320 @60Hz, 1920×4320 @30Hz
- Output connector (video & audio support): 4 x HDMI
- Max output resolutions: 1920×1080 @60Hz, 1920×1080 @30Hz,1920×1200 @60Hz, 1920×1200 @30Hz
- Memory: 1 GBConfigurations
- Supported configurations: 2×2 (default), 4×1, 3×1, 2×1, 1×2, 1×3, 1×4 in both landscape and portrait modes and other non-rectangular/artistic configurations
- Non-rectangular/artistic video walls support: Yes
- Rotation: Yes. Support for 90, 180, 270 degrees
- Multi-unit support: Yes
- Bezel management: Yes
- Clone mode: Yes
- HDCP support: YesVideo & Audio Processing
- Video scaling: Matrox’s advanced multi-channel Video Scaling Engine
- Video rotation: Yes. Support for 90, 180, 270 degrees
- Video cropping: Yes
- Audio format: AAC, PCM, Stereo, and Mono
- Audio sampling rate: 44.1 KHz and 48 KHz 16-bit stereoNetworking Interface
- Standard: Ethernet 10/100/1000 Base-T, Auto-Detect, Half/Full-Duplex
- Connector: RJ45, IP version – IPv4/IPv6*
- IP addressing: DHCP (default) and Static IPControl & Update Protocols
- Control interface: 1 x 10/100/1000 Base-T RJ45 Ethernet port
- Command & control protocols: HTTP/HTTPS, UPnP (discovery), mDNS and DNS-SD (discovery)
- Firmware update: Via network interfaceColor Space
- Input color space: RGB: 8:8:8 (24 bits per pixel), YUV: 4:4:4, 4:2:2 (8 bits per component)
- Output color space: RGB: 8:8:8 (24 bits per pixel)Environmental & Power Conditions
- Operating conditions: Temperature: 0 to 45 °C/32 to 113 °F, Humidity: 20% to 80% (non-condensing)
- Storage conditions: Temperature: -40 to 70 °C/-40 to 158 °F, Humidity: 5% to 95% (non-condensing)
- Power supply: 100-240 VAC in, 12 VDC out, 42 W DIN4 locking power connector
- Maximum power consumption: 15 WHardware
- Dimensions (WxHxD)/weight: 5.50 x 1.25 x 7.13 in (13.97 x 3.18 x 18.11 cm)/494 g
- Hardware included: 4 x 6 feet power cables for US, EU, UK, Aus/Nz, 1x 12 V, 3.5 A, 42 W external power supply with DIN 4 connector
- Regulatory/environmental compliance: EMC Class A: FCC, CE, KC, RCM
- Warranty: 3 yearsSoftware
- Matrox PowerWall: Free software available online.
- Matrox QuadHead2Go REST API: Available for application development.
- Matrox PowerDesk: Not supported
Warranty:
- 3 years
