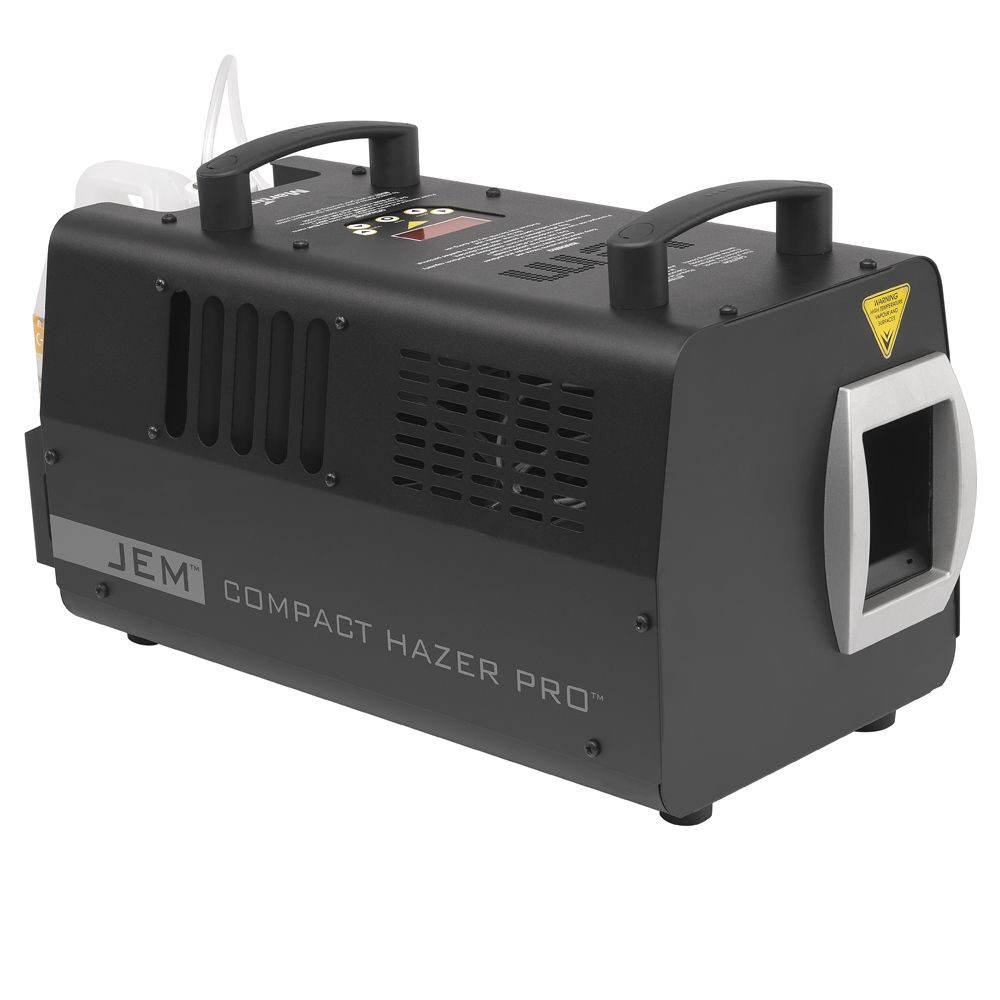

The JEM Professional Compact Hazer Pro Haze Machine (92225960) from DJDeals.com is a 900 Watt Water-Based DMX Haze Machine featuring 1-Minute Warmup time, 134,196 cubic feet per minute coverage, Steel & Aluminum housing, and a 200 to 2500 RPM blower fan, and 5-Pin XLR Locking connections.
The JEM Professional Compact Hazer Pro Haze Machine (92225960) is a US power, water-based haze machine. Small and lightweight, the JEM Professional Compact Hazer Pro Haze Machine (92225960) has a 20-liter reservoir that the hazer can run at full output continuously for 20 hours. The JEM Professional Compact Hazer Pro Haze Machine (92225960) is ready to go in one minute and has independent variable haze and fan control. The shutdown cycle helps prevent the hazer from clogging, this hazer is Actor’s Equity/Broadway League approved.
JEM Professional Compact Hazer Pro Haze Machine Features:
- Continuous effect output.
- Sealed fluid system with quick-connect fittings
- User-friendly on board digital control panel.
- Independent variable haze and fan control.
- Water-based fluid provides dense particles and even haze.
- 2.5 l fluid reservoir-up to 20 hours on full output.
- Optical Density Timer Control system.
- Advanced Pump Technology (APT)
- Optional flying kit, air director and digital remote control.
- Small footprint-lightweight, less than 25 lb. filled.
JEM Professional Compact Hazer Pro Haze Machine Specifications:
Physical
- Length: 532 mm (21 in.)
- Width: 224 mm (8.9 in.)
- Height: 278 mm (11 in.)
- Height with hanging bracket: 296 mm (11.7 in.)
- Weight, dry: 8.5 kg (18.8 lbs.)
- Weight, filled: 11 kg (24.3 lb.)
Performance
- Coverage volume: 3800 m3 (134,196 ft3) per minute
- Operating time with 2.5 l of fluid (min/max): 20/70 Hours
- Continuous effect output
- Ready time: 1-minute
Control and Programming
- Control options: Digital control panel, DMX, optional digital remote control, master/slave link mode
- Control parameters: Continuous or timer-controlled output
- Haze and fan: Independent variable output, 0-100%
- DMX channels: 3 (Haze, Fan, Control)
- Self-cleaning cycle: Manually engaged or DMX trigger
- DMX compliance: ANSI E1.11-USITT DMX512-A
Construction
- Housing: Steel & aluminum
- Color: Black
- Heat exchanger: 900 W, thermally protected
- Blower fan: Integrated, 200-2500 RPM
- Airflow control: Optional Air Director
- Fluid pump: Oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Installation
- Mounting: Standing or optional hanging kit
- Orientation: Up to +/- 30° from horizontal
- Clearance around machine: 100 mm (4 in.)
Connections
- AC Power: Neutrik PowerCON
- DMX, link mode in/out: 5-pin locking XLR
- Remote control: 3-pin locking XLR
- Firmware: AVR socket
Electrical (US model)
- AC Power: 110-120 V, 50/60 Hz
- Main fuse: 10 AT (slow-blow), 125 V
- Typical power and current: 1042 W, 8.68 A*
- *Measurements made at nominal voltage. Allow for a deviation of +/- 10%:
Thermal
- Minimum ambient temperature (Ta min): 5° C (41° F)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Maximum nozzle temperature: 290° C (554° F)
Approvals (US model)
- US Safety (pending): UL 998
- Canada safety (pending): CSA C22.2 No 104-01
- Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Compact Hazer Pro and JEM C-Plus Haze Fluid
Included Items
- Fluid reservoir, 2.5 l: P/N 34300521
- Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft): P/N 11501042
Ordering Information
- JEM Compact Hazer Pro, US: P/N 92225960
