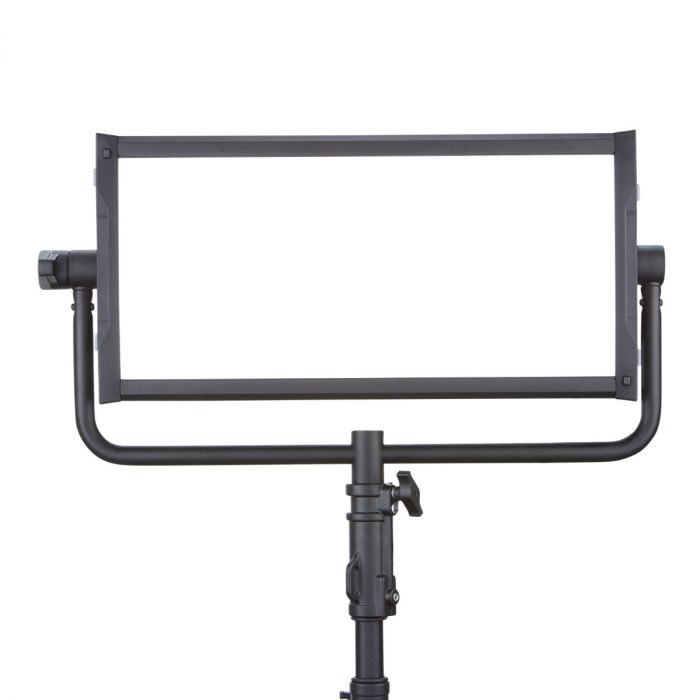

The Litepanels Gemini 2×1 Soft RGBWW LED Panel (Standard Yoke UK Power Cable) from DJDeals.com are key to the creation of the Gemini 2×1 RGBWW LED Soft Panel with Standard Yoke and UK Power Cable from Litepanels. The aluminum-constructed, 25 x 6.5 x 12.5″ fixture has three lighting modes. The CCT color temperature control has six factory presets in increments from 2700 to 6000K. There are also six presets for user-defined color temperature and plus/minus green control. The HSI Color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of often-used filters. A firmware update adds a Lighting Effects mode that includes TV simulation, hue burst, paparazzi, strobe, fire, squares, fireworks, emergency lights, pulse, and party lights. The light has a CRI/TLCI rating of 97 for daylight balance and 99 for tungsten balance, indicating a very accurate rendition of color. The Gemini is dimmable from 100 to 0% without flicker or color shift. Settings and features are displayed on the rear LCD screen.
All of these adjustments can be made locally on the unit or remotely via a console, thanks to the Gemini’s built-in DMX. There’s even the option of wireless DMX or Bluetooth control via a separately-purchased remote module. The Gemini is ready for worldwide use, thanks to its built-in 100 to 240 VAC power supply but it can also run on batteries when power is unavailable.
The Gemini has a number of convenience features, such as the ability to stack and gang several lights together with an optional yoke and hardware. You can also daisy-chain multiple lights together in Master/Slave mode, allowing a single designated “Master” light to control the others. This version of the Gemini ships with a standard yoke and a UK power cable.
Product Features
- Front area dimension: 23.75″ x 11″
- 93° Beam angle, 156° Field angle
- Lux at 10ft/3m: 1079 (Daylight), 906 (Tungsten)
- Color temperature range 2,700-10,000K
- Outstanding color accuracy, CRI: 99, TLCI: 99
- Full RGBWW color gamut mixing
- Hue, Saturation and intensity control
- Full plus/minus green color correction
- 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
- Wired or wireless DMX & Bluetooth remote control options
- Multi-voltage 100-240VAC; DC Input 13-28VDC
- Optional mobile battery power with 100% intensity output
- Weight: 22.27lbs (10.1kg)
Product Specifications
- Voltage Range: 100-240 VAC, DC Input 23V to 34V
- Power Consumption: 325 W nominal
- LED Technology: RGBWW
- Color Temperature: 2,700-10,000K
- Lighting Intensity: 3.2k @ 10 ft / 3m = 557 LUX, 5.6k @ 10 ft / 3m = 614 LUX
- CRI / TLCI: Daylight: 99, Tungsten: 99
- Beam and Field Angle: 110 Degree / 156 Degree
- Control: DMX (5 PIN & RJ45), optional wireless DMX (LumenRadio), Bluetooth, Litepanels SmartLite Director App
- Color Controls: Kelvin temperature, plus/minus green, Hue, Saturation, Intensity, gel presets
- Low End Dimming: From 0.1%, automatic flicker-free capability at any frame rate or shutter speed
- Battery Powered: Optional V-Mount & Gold Mount plates available, runs at 100% on 26V and dual 14.4V batteries
- Cooling: Ultra-quiet fan with optional silent mode
- IP Rating: IP20
- Mount: 1-1/8″ (28 mm) pin, stackable as 2 & 4 units
- Dimensions: Fixture: 25 x 12.5 x 6.5″ (635 x 318 x 165mm): Front Area: 23.75 x 11″ (603.25 x 279.4mm)
- Weight: 22.2 lb (10.1kg)
