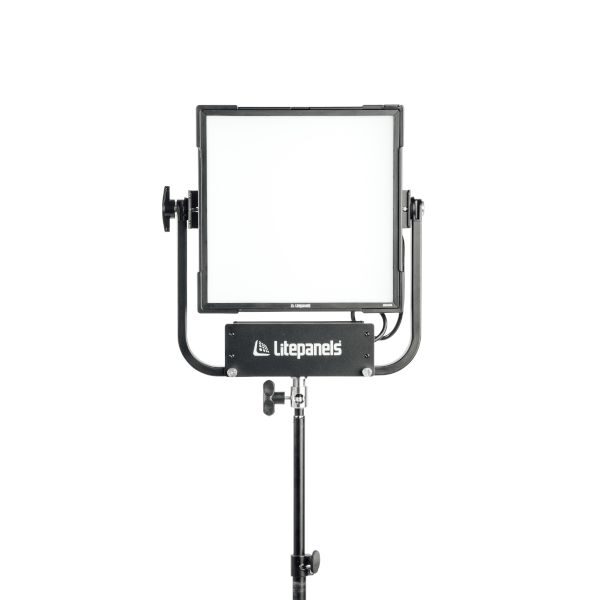

The Litepanels Gemini 1×1 Soft RGBWW LED Panel (Standard Yoke Bare Ends) (945-1401) from DJDeals.com are hallmarks of the Litepanels Gemini 1 x 1 RGBWW LED Soft Panel with Standard yoke and Power Cord with Bare Ends. The aluminum-constructed, 12.6 x 12.6 x 4.6″ fixture has multiple lighting modes including CCT, Hue, Saturation, Gel Presets, as well as an effects mode. The CCT color temperature control has six factory presets in increments from 2700 to 10,000K. There are also six presets for user-defined color temperature and plus/minus green control. The HSI Color mode allows you to adjust the hue, saturation, and intensity, while Gel mode permits your choice from a library of filters favored by filmmakers, and an effects mode provides nine different effects to work with. The light has a CRI/TLCI rating of 97 for daylight balance and 94 for tungsten balance, indicating an accurate rendition of color. The Gemini is dimmable from 100 to 0.1% without flicker or color shift, and settings and features are displayed on the rear LCD screen.
All of these adjustments can be made locally on the unit or remotely via a console, thanks to the Gemini’s built in DMX. There’s even the option of wireless DMX or Bluetooth control via a separately purchased remote module. The Gemini is ready for worldwide use, thanks to its built in 100 to 240 VAC power supply but it can also run on batteries when power is unavailable.
The Gemini has a number of convenience features, such as the ability to stack and gang several lights together with an optional yoke and hardware. You can also daisy-chain multiple lights together in Master/Slave mode, allowing a single designated “Master” light to control the others. This version of the Gemini ships with a standard yoke and a power cable with bare ends.
Litepanels Gemini 1×1 Soft RGBWW LED Panel (Standard Yoke Bare Ends) Features
- Front area dimension: 12.6″x12.6″
- 95° Beam angle, 157° Field angle
- Lux at 10ft/3m: 614 (Daylight), 557 (Tungsten)
- Color temperature range 2,700-10,000K
- Outstanding color accuracy, CRI: 97, TLCI: 94
- Full RGBWW color gamut mixing
- Hue, Saturation and intensity control
- Full plus/minus green color correction
- 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
- Wired or wireless DMX & Bluetooth remote control options
- Multi-voltage 100-240VAC; DC Input 13-28VDC
- Optional mobile battery power with 100% intensity output
- Weight: 12lbs (5.5kg)
Litepanels Gemini 1×1 Soft RGBWW LED Panel (Standard Yoke Bare Ends) Specifications
Litepanels Gemini 1×1 Soft RGBWW LED Panel (Standard Yoke Bare Ends) Features:
- Color temperature: RGBWW
- Beam angle: 95 Degree
- Field Angle: 157 Degree
- CRI daylight: 97
- CRI Tungsten: 94
- Max power draw: 200W
- IP Rating: IP20
- Remote control: Built-in Wired DMX (RJ-45 and XLR5) / Wireless DMX (LumenRadio) Module / Bluetooth Module
- Comparative output: 614 lux Daylight at 3 m, 550 Tungsten at 3 m
- Gel filter: Optional Daylight or Tungsten source
- Optics: Medium diffusion panel
- Dimensions: 12.6 x 12.6 x 4.7″ (320 x 320 x 119mm): Front area dimension: 11.25 x 11.25″ (28.57 x 28.57cm)
- Weight: 11.7 lb (5.31kg)
