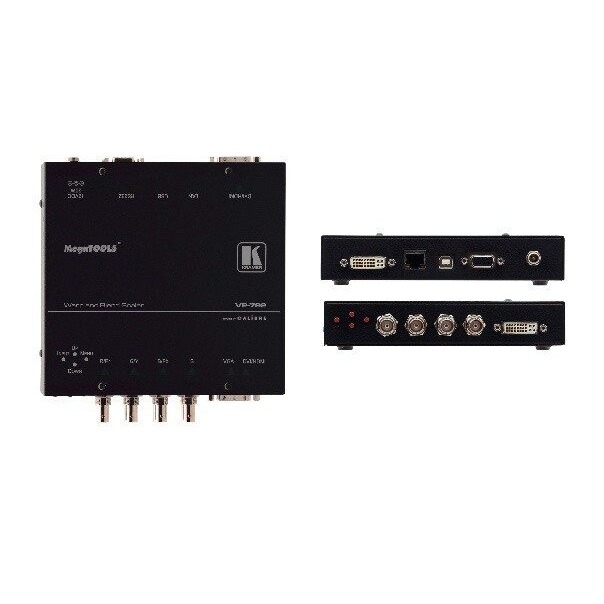

The VP-792 is a high-performance scaler for HDMI, DVI, analog VGA and component signals. It up- or down-scales the incoming signal, processes the image with HQV, flexible warping, geometry correction and edge blending and outputs the signal to a DVI/HDMI connector.
Features
- Powerful Geometry Correction -For off-axis projection, pin/barrel and image rotation, pan, tilt and zoom.
- Full Warp Mapping -Easy warp map creation for stacked projector alignment and curved screen multi-projector tiling via an included PC application.
- Edge Blending -4-sided soft edge blend for seamless blending of multiple projectors; basic edge blending for general purpose applications.
- Multi-Format Operation -HDMI, DVI, computer graphics and component inputs for signals up 1080p & WUXGA.
- HQV Video Processing -HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), 4D motion adaptive SD noise reduction and outstanding scaling performance for both standard-definition and high-definition signals.
- HDTV Compatible.
- HDCP Compliant.
- Supported Resolutions -HD 720p, 1080i, 1080psf (psf digital only), 1080p23.97/24/25/30, 1080p30, 1080p59.94, 1080p60; ED 480p, 576p; SD 625i (576i), 525i (480i); common VESA graphics formats from 640×480 to 1920×1200 (with reduced blanking for 1920×1200 and 1600×1200 modes).
- HDMI Support -Deep color up to 12 bit.
- Superior De-interlacing -Motion adaptive per pixel video de-interlacing with multi-directional diagonal de-interlace filter reduces HD & SD image flicker and artifacts.
- Selectable Processing Versus Latency -Best picture and low latency modes; latency as low as 0.25-frame progressive inputs, 1.25-field interlaced inputs.
- Selectable I/O Lock Mode -Or frame rate conversion mode.
- Selectable Aspect Ratio Conversion -Or incoming aspect ratio preserve mode.
- Flexible Colour Calibration Controls -RGB Gains, RGB Cut-Offs/Black Levels, Saturation, Hue, Brightness, Contrast controls, Gamma selection.
- Built-in Test Pattern Generator.
- Non-Voltatile Memory -Auto-saves and recalls settings.
- USB Port -For upgrading firmware.
- Programmable Customer Logo on Menu.
- Flexible Control Options -RS-232, TCP/IP API and Web Server, keypad for direct input selection, PC-based Warp Map Generator tool and OSD menu access.
- Size-MegaTOOLS
Specifications
- INPUTS: 1 component video YPbPr(S) or RGBS/RGsB on 3 or 4 BNC connectors, 1 DVI/HDMI on a DVI-I connector, 1 VGA (common with the DVI/HDMI input) on a DVI-I connector.
- OUTPUT: 1 DVI/HDMI on a DVI connector.
- OUTPUT RESOLUTIONS: Common VESA formats from 640×480 to 1920×1200, and HD formats at 720p, 1080p.
- LATENCY: As low as 0.25-frame progressive inputs, 1.25-field interlaced inputs.
- SIGNAL PROCESSING: 10-bit signal inputs, 12-bit accurate internal processing; 4-field full resolution SD & HD processing.
- DE-INTERLACING: Motion adaptive per pixel video de-interlacing, multi-directional diagonal de-interlace filter.
- WARP APPS: Full Warp Mapping, 4-Corner, Rotate, Pin/Barrel, Portrait, Keystone.
- EDGE BLENDING: 10-bit alpha blend.
- POWER SOURCE: 12V DC, 1.5A approx.
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non-condensing.
- DIMENSIONS: 16.7cm x15.8cm x3.9cm (6.58″ x6.23″ x1.54″) W, D, H (excluding connectors).
- WEIGHT: 0.5kg (1.1lb).
- ACCESSORIES: 12V DC power supply, DVI-D cable, user manual/CD.
