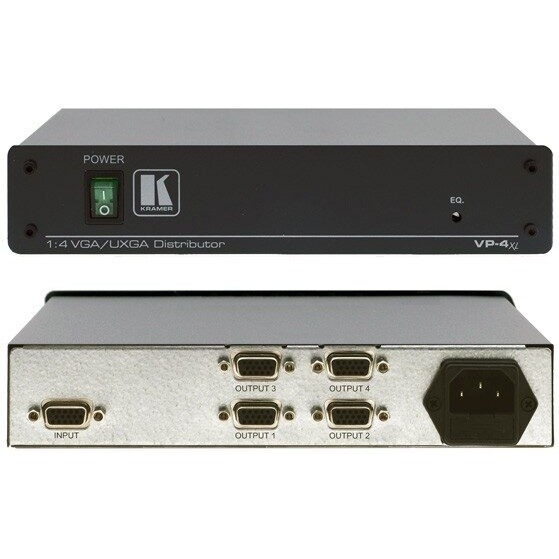

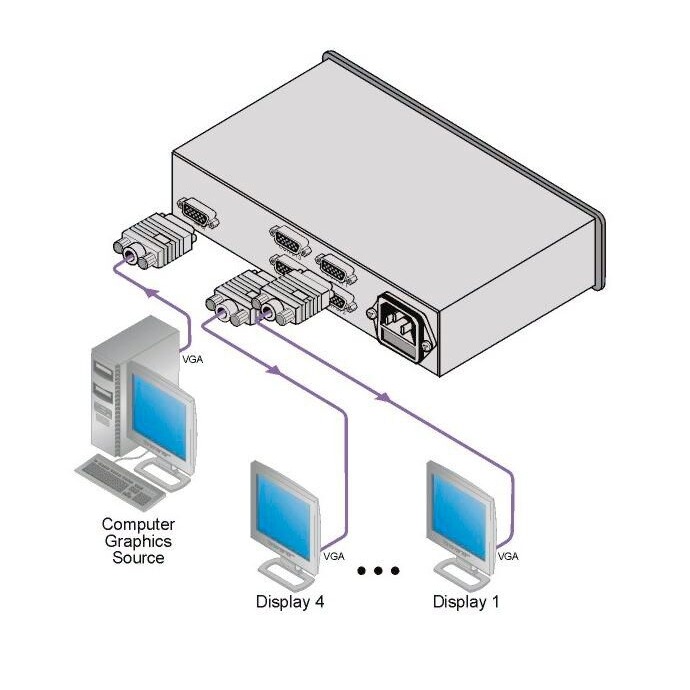

The VP-4xl is a high-performance distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. The unit takes one input, provides correct buffering and isolation, and distributes the signal to four identical outputs.
Features
- High Bandwidth-375MHz (- 3dB).
- HDTV Compatible.
- EQ (Peaking) Control.
- ID Bit Control.
- Desktop Size-Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional KR-RK1 adapter.
Specifications
- INPUT:1 VGA/UXGA input on a 15-pin HD (F) connector.
- OUTPUT:4 VGA/UXGA on 15-pin HD (F) connectors.
- BANDWIDTH (-3DB):375MHz.
- MAX. OUTPUT LEVEL:1.9Vpp.
- DIFF. GAIN:0.12%.
- DIFF. PHASE:0.28Deg.
- K-FACTOR:<0.05%.
- S/N RATIO:73.7dB.
- CONTROLS:EQ: 0 to 6.6dB @50MHz.
- COUPLING:DC.
- POWER SOURCE:100-240V AC, 50/60Hz, 4.3VA.
- DIMENSIONS:22cm x18cm x4.5cm (8.7″ x7″ x1.7″) W, D, H, (half 19″, 1U).
- WEIGHT:1.2kg (2.64lbs).
- ACCESSORIES:Power cable.
- OPTIONS:RK-1 19″ rack adapter.
