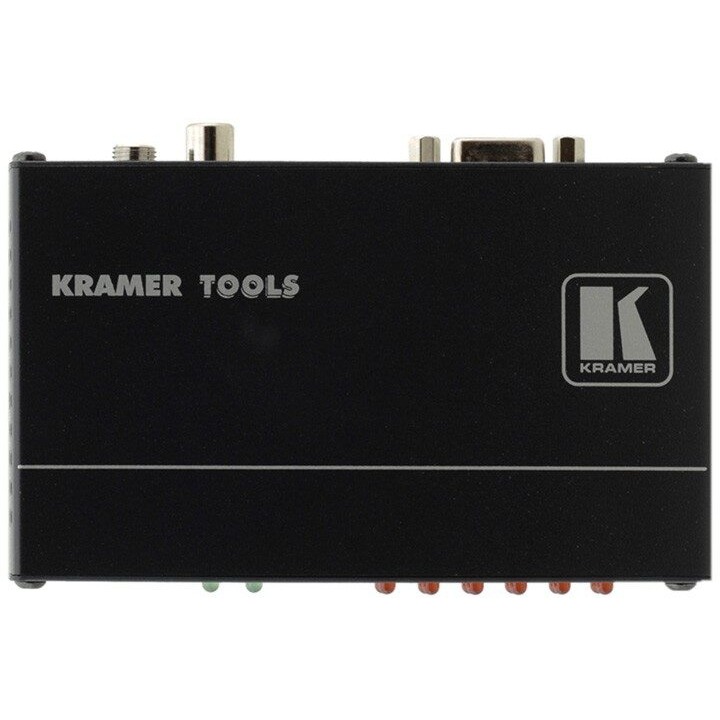

The Kramer VP-409 Video to Computer Graphics Video ProScale Digital Scaler (VP-409) from DJDeals.com is a high-quality video scaler for composite and s-video (Y/C) video signals. The unit scales the video to a selectable computer graphics video output signal on a 15-pin HD connector.
Kramer VP-409 Video to Computer Graphics Video ProScale Digital Scaler Features:
- CV and Y/C Inputs.
- Multi-Standard-PAL (B/D/G/H/I) & NTSC (3.58/4.43).
- Output Resolutions-VGA, SVGA, XGA, 1280×800, 1366×768, WSXGA, SXGA, 1400×1050, 1680×1050, UXGA, 1920×1080, and WUXGA.
- Built-in De-interlacer and Comb Filter.
- Non-Volatile Memory-Retains last settings.
- Controls-Front panel buttons for choosing input signal and output resolution.
- External DC Power Source.
- Compact Kramer TOOLS-3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Kramer VP-409 Video to Computer Graphics Video ProScale Digital Scaler Specifications:
Kramer VP-409 Video to Computer Graphics Video ProScale Digital Scaler Features:
- INPUTS: 1 composite video, 1Vpp/75Ω on an RCA connector; 1 Y/C (s-Video), 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4-pin connector.
- OUTPUT: 1 VGA (VGA through WUXGA) on a 15-pin HD computer graphics video connector.
- OUTPUT RESOLUTIONS: VGA, SVGA, XGA, 1280×800, 1366×768, WSXGA, SXGA, 1400×1050, 1680×1050, UXGA, 1920×1080, and WUXGA.
- OUTPUT REFRESH RATE: 60Hz.
- CONTROLS: Pushbuttons and LEDs for selection of input source and output resolution.
- POWER CONSUMPTION: 5V DC, 450mA.
- DIMENSIONS: 12cm x7.5cm x2.5cm (4.7″ x2.95″ x0.98″) W, D, H.
- WEIGHT: 0.3kg (0.67lbs) approx.
- ACCESSORIES: Power supply.
- OPTIONS: RK-3T 19” rack adapter.
