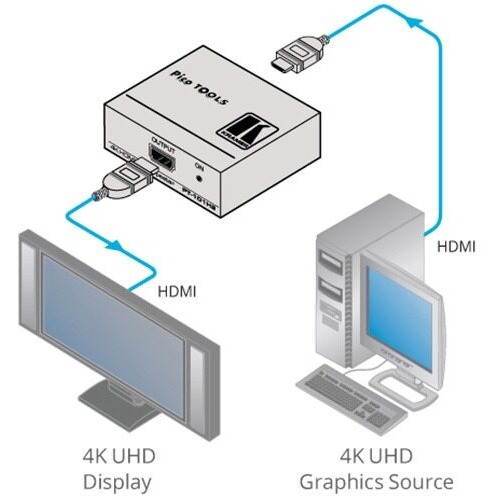

Kramer’s PT-101H2 is a high-performance 4K HDR repeater and extender for HDMI 2.0 and HDCP 2.2 signals. For 4K@30Hz, it extends the range up to 20m (66ft) (15m to the input, 5m from the output).
Features
- Max. Resolution-4K@60Hz (4:4:4)
- Range Extension-4K@60Hz (4:4:4) up to 10m (33ft), (5m on the input to the PT-101H2 and 5m on the output); 4K@30Hz (4:4:4) up to 20m (66ft) (15m on the input to the PT-101H2 and 5m on the output)
- Max. Data Rate-17.82Gbps (5.94Gbps per data channel)
- Kramer Equalization & re-Klocking Technology-Rebuilds the digital signal to travel longer distances
- HDMI Output Power Follows Input
- HDR (High Dynamic Range) Support
- Transparent HDMI 2.x and HDCP 2.2 Support
Specifications
- Input: 1 HDMI on an HDMI connector
- Output: 1 HDMI on an HDMI connector
- Max data rate: Supports up to 17.82Gbps (5.94Gbps per graphic channel
- Max resolution: Up to 4K @60Hz 4:4:4
- Compliance with HDMI standard: HDR10, HDMI 1.4, HDMI 2.0, HDCP 1.4, HDCP 2.2
- Indicator LED: ON
- Power source: 5V DC, 230mA
- Operating temperature: 0° to +40°C (32° to 104°F)
- Storage temperature: -40° to +70°C (-40° to 158°F)
- Humdity: 10% to 90%, RHL non-condensing
- Cooling: Convection
- Enclosure type: Aluminium
- Rack mount: With optional adapter
- Furniture mount: With included rubber feet
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Regulator comliance: CE
- Environmental regulator compliance: Complies with appropriate requirements of RoHs and WEEE
- Dimensions(W xD xH): 2.45 inch x2.04 inch x0.96 inch (6.22cm x5.18cm x2.44cm)
- Weight: 0.2lbs (0.1kg)
- Shipping dimenions: 6.18 inch x4.72 inch x3.43 inch (15.70cm x12.00cm x8.70cm)
- Shipping weight: 1.1lbs (0.5kg)
Item Includes
- Power supply 5.2V DC 2A
Warranty
- 7 years
