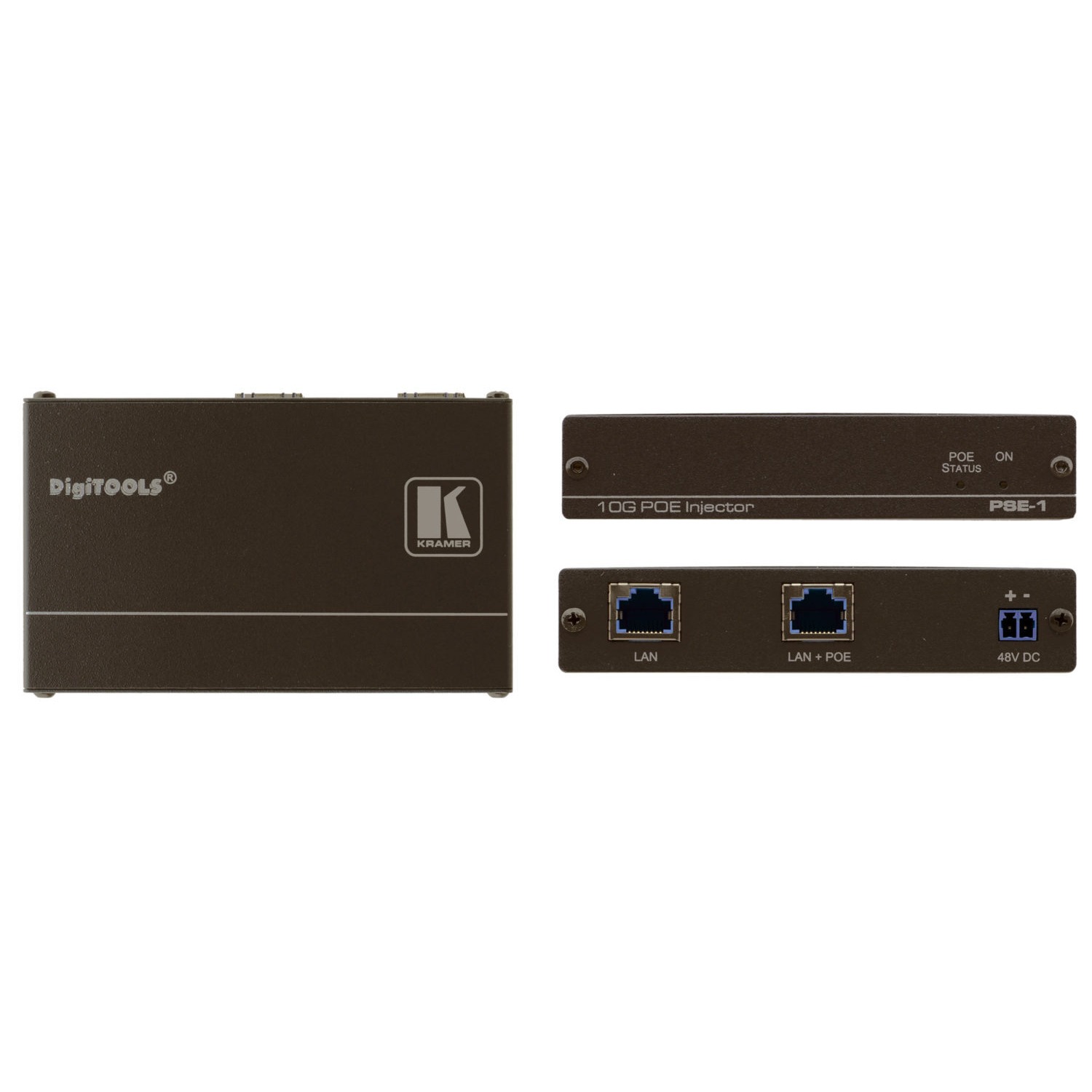

The PSE-1 provides power remotely over Ethernet to any device capable of acting as a PoE acceptor (for example, a wallplate, where it may be difficult to connect an external power supply). This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.
Total Range -Up to 100m (328ft) @4K on shielded BC-DGKat623 or BC-HDKat6a cable (or equivalent).
48V DC Power.
Size-Compact DigiTOOLS-3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Applications:
Home theater, presentation and multimedia applications
Boardrooms and classrooms
Specifications
- INPUT/OUTPUT: 1 HDBaseT/LAN + POE on an RJ-45 connector, 1 HDBaseT/LAN on an RJ-45 connector.
- OPERATION BANDWIDTH: Up to 10.2Gbps (3.4Gbps per data channel).
- COMPLIANCE WITH HDMI STANDARD: Supports HDMI, HDCP.
- INDICATOR LEDS: ON, POE STATUS.
- POWER SOURCE: 48V DC, 630mA (device plus remote power sink).
- POWER PROVISION: Up to 13W.
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non-condensing.
- COOLING: Convection, vents.
- ENCLOSURE TYPE: Aluminium.
- DIMENSIONS: 12.1cm x6.99cm x2.47cm (4.76″ x2.75″ x0.97″) W, D, H.
- RACK MOUNT: With optional adapter.
- FURNITURE MOUNT: With included rubber feet.
- PRODUCT WEIGHT: 0.23 kg (0.51lbs) approx.
- SHIPPING WEIGHT: 0.72kg (1.59lbs) approx.
- VIBRATION: ISTA 1A in carton (International Safe Transit Association).
- SAFETY REGULATORY COMPLIANCE: CE, c-UL, UL.
- EMI/EMC REGULATORY COMPLIANCE: CE, C-tick, FCC Class A, ICES, KCC, VCCI.
- ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE.
- INCLUDED ACCESSORIES: Power supply.
- OPTIONS: RK-3T 19″ rack adapter.
Warranty
- 7 years parts and labor.
