The Kramer PIP-4 4 Composite Video Picture-in-Picture Inserter (PIP-4) from DJDeals.com is a high-performance picture-in-picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.
Kramer PIP-4 4 Composite Video Picture-in-Picture Inserter Features:

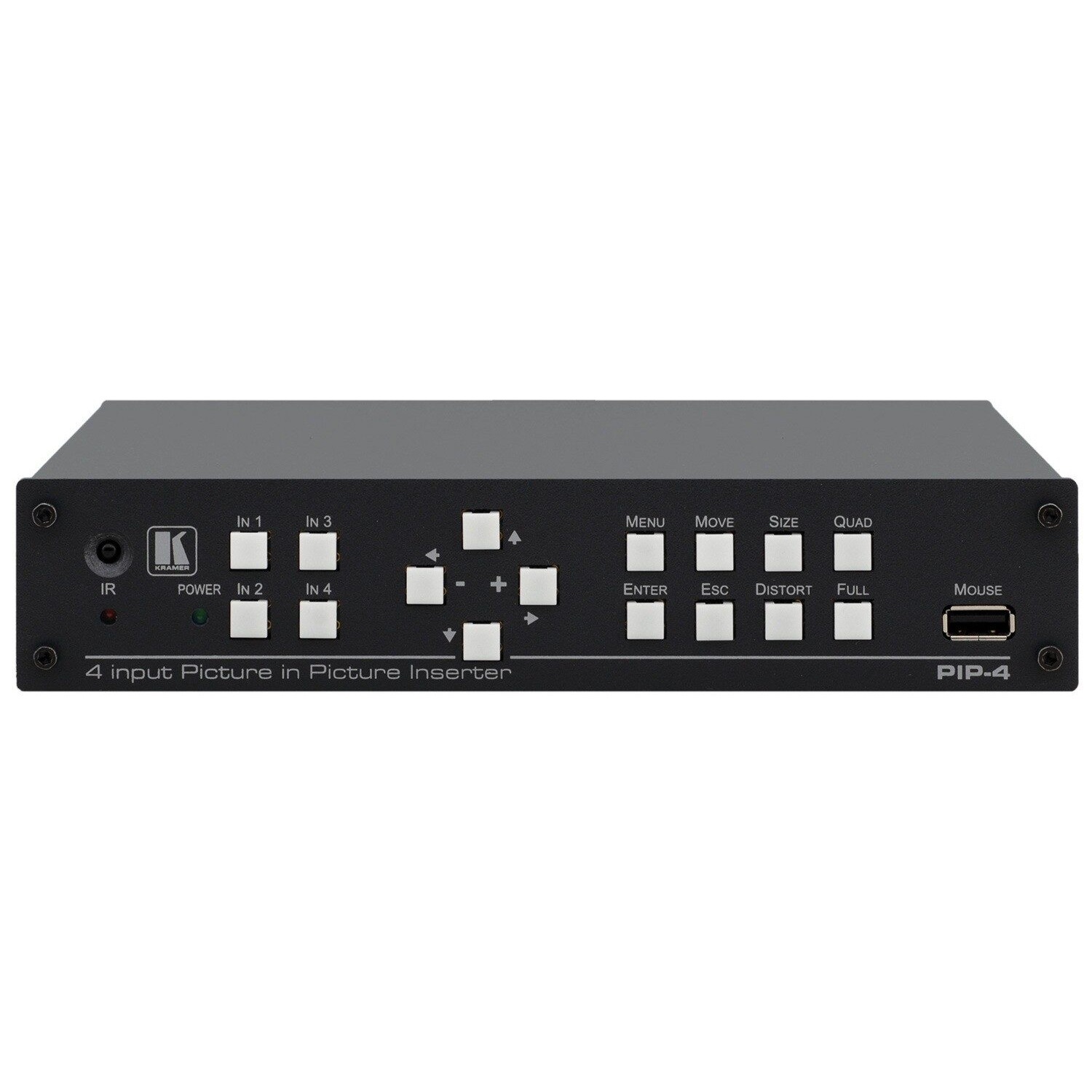

- Picture-In-Picture Options-All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal-sized images.
- Multi-Format Operation-s-Video and composite video outputs.
- Multi-Standard Operation-PAL & NTSC compatible inputs & outputs (no format conversion).
- USB Mouse Connector-For convenient navigation and control, including the OSD.
- Built-In ProcAmp-Brightness, contrast, and saturation for each input.
- Flexible Control Options-Front panel, IR remote, mouse (with OSD), RS-232 & Ethernet.
- Desktop Size-Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.
Kramer PIP-4 4 Composite Video Picture-in-Picture Inserter Specifications:
Kramer PIP-4 4 Composite Video Picture-in-Picture Inserter Features:

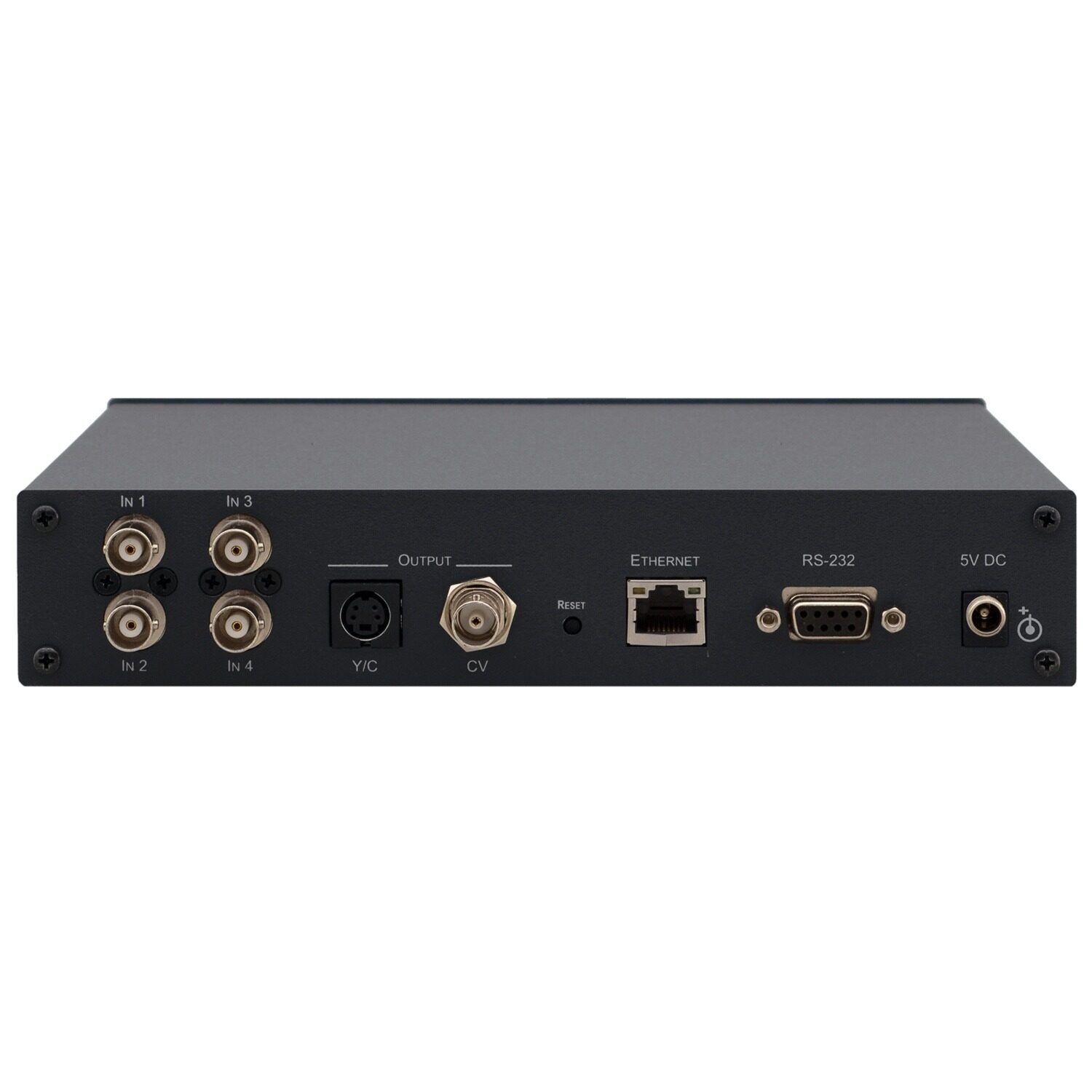

- INPUTS: 4 composite video 1Vpp @75 Ohm on BNC connectors.
- OUTPUTS: 1 s-Video 1Vpp, 0.3Vpp/75 Ohm on a 4-pin s-Video connector; 1 composite video 1Vpp/75 Ohm on a BNC connector.
- DIGITAL RESOLUTION: 10 bit.
- VIDEO BANDWIDTH: 5.4MHz.
- K-FACTOR: 0.9%.
- S/N RATIO: 64dB.
- DIFFERENTIAL PHASE: 0.8Deg.
- DIFFERENTIAL GAIN: 1.1%.
- LUMA NON-LINEARITY: 0.9%.
- CHROMA/LUMA DELAY: <15ns.
- Y/C SEPARATION: Adaptive 4-line digital comb filters.
- MEMORY: Non-volatile memory for storage of 2 setups.
- CONTROL: Front-panel, OSD, RS-232 and Ethernet; video pane size and position; video ProcAmp functions: video zoom, freeze.
- POWER SOURCE: 5V DC, 560mA.
- DIMENSIONS: 21.5cm x17.7cm x4.4cm (8.5″ x7″ x1.7″) W, D, H.
- WEIGHT: 0.8kg (1.76lbs) approx.
- ACCESSORIES: Power supply, RC-IR3 Infrared Remote Control, rack “ears”.
- OPTIONS: RK-1 19″ rack adapter.
