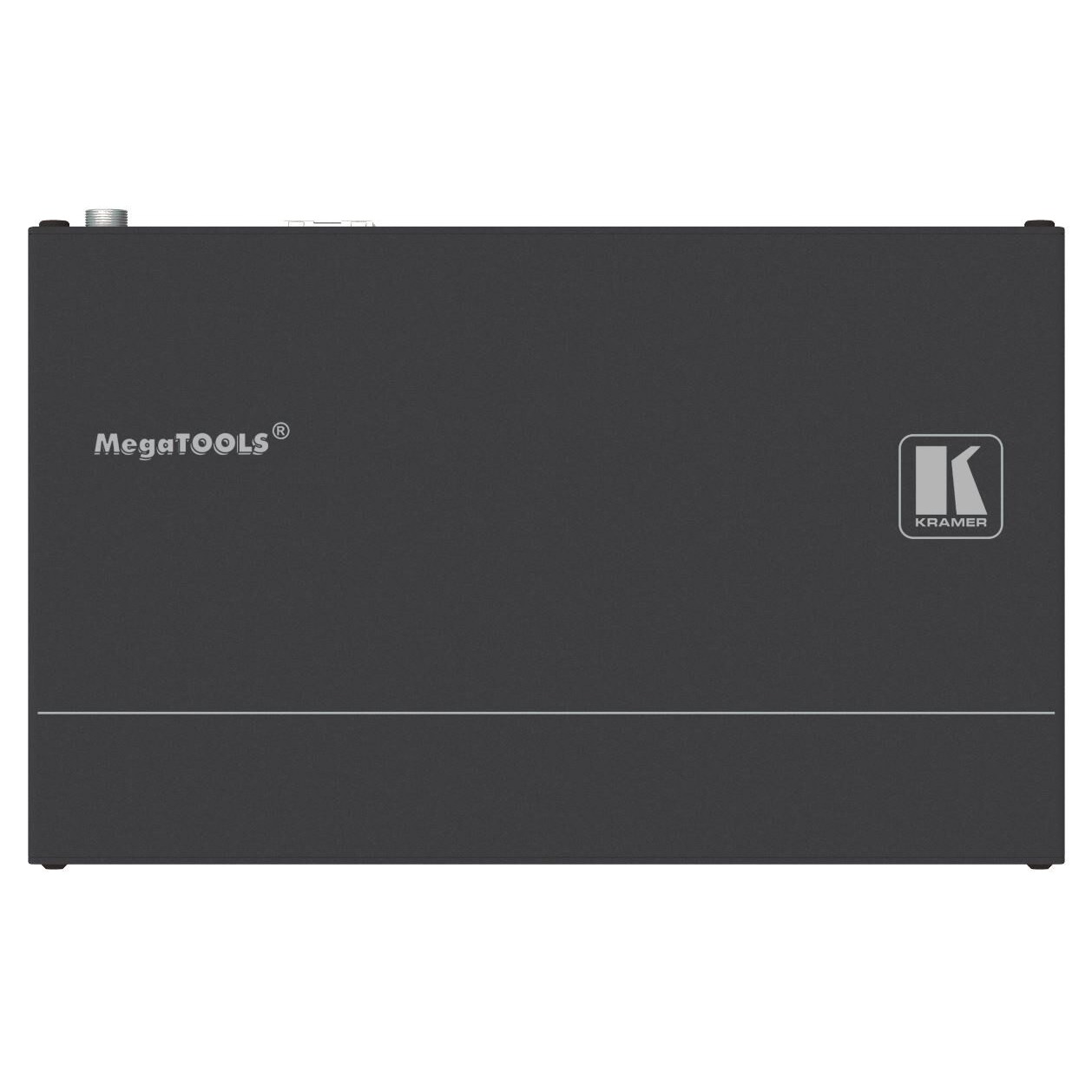

Kramer Control Ready the FC-28 is a bidirectional RS-232, IR control, GPI/O and relay control signal converter to Ethernet. Two RS-232, four IR, two GPI/O and two relay controllable devices can be controlled via an Ethernet or LAN connection.
Applications:

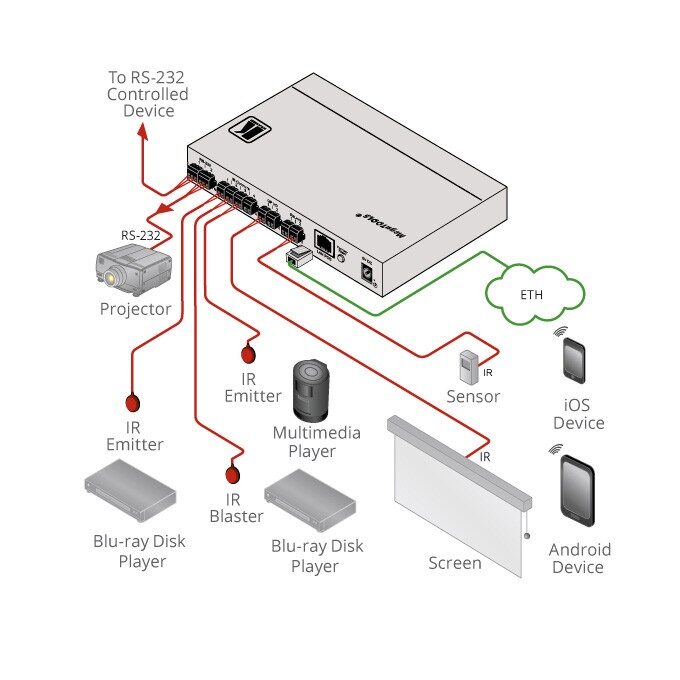

For use with Ethernet to RS-232, IR, GPI/O or relay control connectivity
Ideal for use with Kramer Control
Features
- 2 Bidirectional RS-232 ports
- 4 IR emitter ports
- 2 GPI/O ports
- 2 Relay ports
- 1 IR sensor for learning
- 1 Ethernet port
- Built-in control and support Web pages
- PoE powering
- Built-in control and support Web pages
- Size-MegaTOOLST
- Supported by: Kramer Control, K-Touch and K-Config.
Specifications
- OUTPUTS: 4 IR on 2-pin terminal blocks.

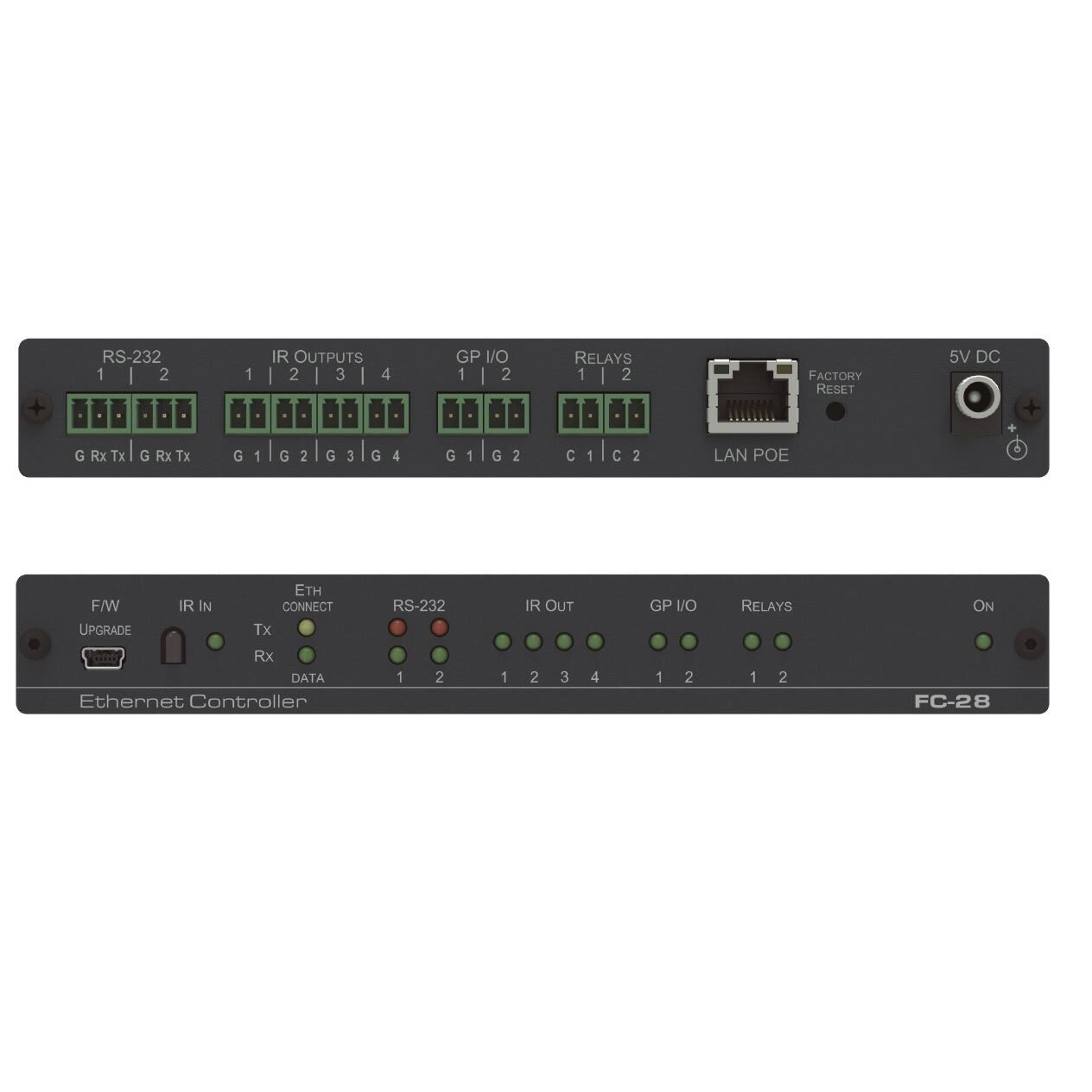

- PORTS: 2 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 USB on a mini USB connector for programming, 1 built-in IR sensor (for learning).
- SUPPORTED SERIAL PORT BAUD RATES: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps.
- RS-232 COMMUNICATION: Transparent up to 115200bps.
- IR EMITTER CABLE RANGE: 80m (260ft).
- SUPPORTED IR INPUT FREQUENCIES: 20kHz to 60kHz.
- SUPPORTED IR OUTPUT FREQUENCIES: 20kHz to 1.2MHz.
- MAXIMUM DATA HANDLING OF DEVICE: Up to 150kbps summed on all ports.
- SUPPORTED WEB BROWSERS: Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35. MAC: Chrome version 35, Firefox version 27, Safari version 7. Android OS: Chrome version 35. iOS: Chrome version 35, Safari version 7.
- POWER CONSUMPTION: 5V DC, 230mA.
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
- STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
- HUMIDITY: 10% to 90%, RHL non-condensing.
- COOLING: Convection.
- ENCLOSURE TYPE: Aluminium.
- RACK MOUNT: With optional rack adapter.
- DIMENSIONS: 12cm x7.5cm x2.44cm (4.72″ x2.95″ x0.96″) W, D, H.
- PRODUCT WEIGHT: 0.182kg (0.4lbs) approx.
- VIBRATION: ISTA 1A in carton (International Safe Transit Association).
- SAFETY REGULATORY COMPLIANCE: CE.
- ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE.
- INCLUDED ACCESSORIES: Power adapter, IR Cable C-A35M/IRE-10.
- OPTIONS: 19″ Rack adapter RK-3T, IR cables: C-A35M/2IRE-10, C-A35M/IRR-3, C-AS35M/AS35F-50, C-A35M/IRE-10; bulk cable for serial control BC-1T-300M.
