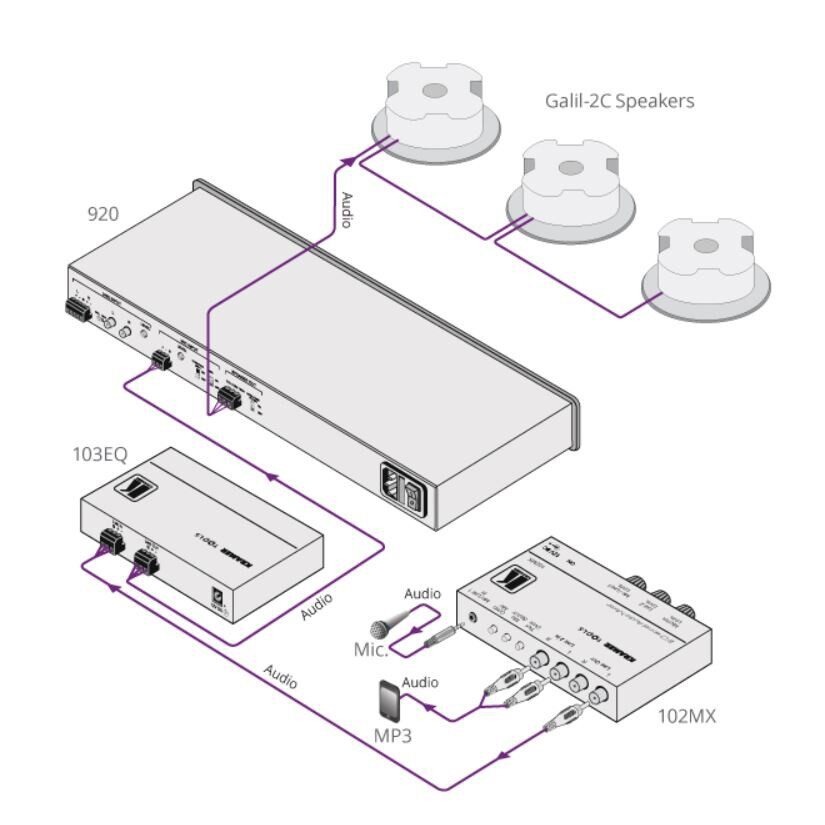

The Kramer 103EQ 3-Band Parametric EQ (103EQ) from DJDeals.com is a 3-band parametric equalizer that optimizes speaker sound quality, fixes microphone feedback and adjusts low, mid and high frequencies separately for precision sound customization. This compact-size equalizer was designed to make the Galil 2-C speaker fit the EN54-24 standard. For each frequency range, you can adjust the center frequency (Hz), bandwidth (Q factor) and gain (amplitude).
Kramer 103EQ 3-Band Parametric EQ Features:
- Equalization-Three adjustable frequency bands (low, mid and high)
- Settings-For each band you can set the frequency, Q and gain
- Frequency Range-Band 1: 40Hz-1200Hz, band 2: 800Hz-6.5kHz, band 3: 2.2kHz-16kHz
- Gain-Between +15dB and -20dB
- Q-Factor-Between 0.4 and 4.5
- One Balanced Mono Input & One Balanced Mono Output
Kramer 103EQ 3-Band Parametric EQ Specifications:
- Input: 1 balanced mono audio on 3-pin terminal blocks
- Output: 1 balanced mono audio on 3-pin terminal blocks
- Indicator LED: ON, Controls-9 trimmers
- Frequency Response: 20Hz to 20KHz @ ±1dB
- THD+N: <0.07% @ 1kHz at maximum level
- S/N Ratio: >83dB
- Band GAIN Adjustment: Between +15dB and -20dB
- Band Q Factor: Between 0.4-4.5
- Band Frequency Adjustment: Band 1: 40Hz-1200Hz; Band 2: 800Hz-6.5kHz; Band 3: 2.2kHz-16kHz
- Input Impedance: 50k
- Output Impedance: 150
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Power Consumption: 12V DC, 75mA max.
- Dimensions (W xD xH): 4.7″ x2.8″ x0.96″ (12 x7.25 x2.44cm)
- Weight: 0.42 lbs
Kramer 103EQ 3-Band Parametric EQ Includes:
- Power Supply (12V/2A)
