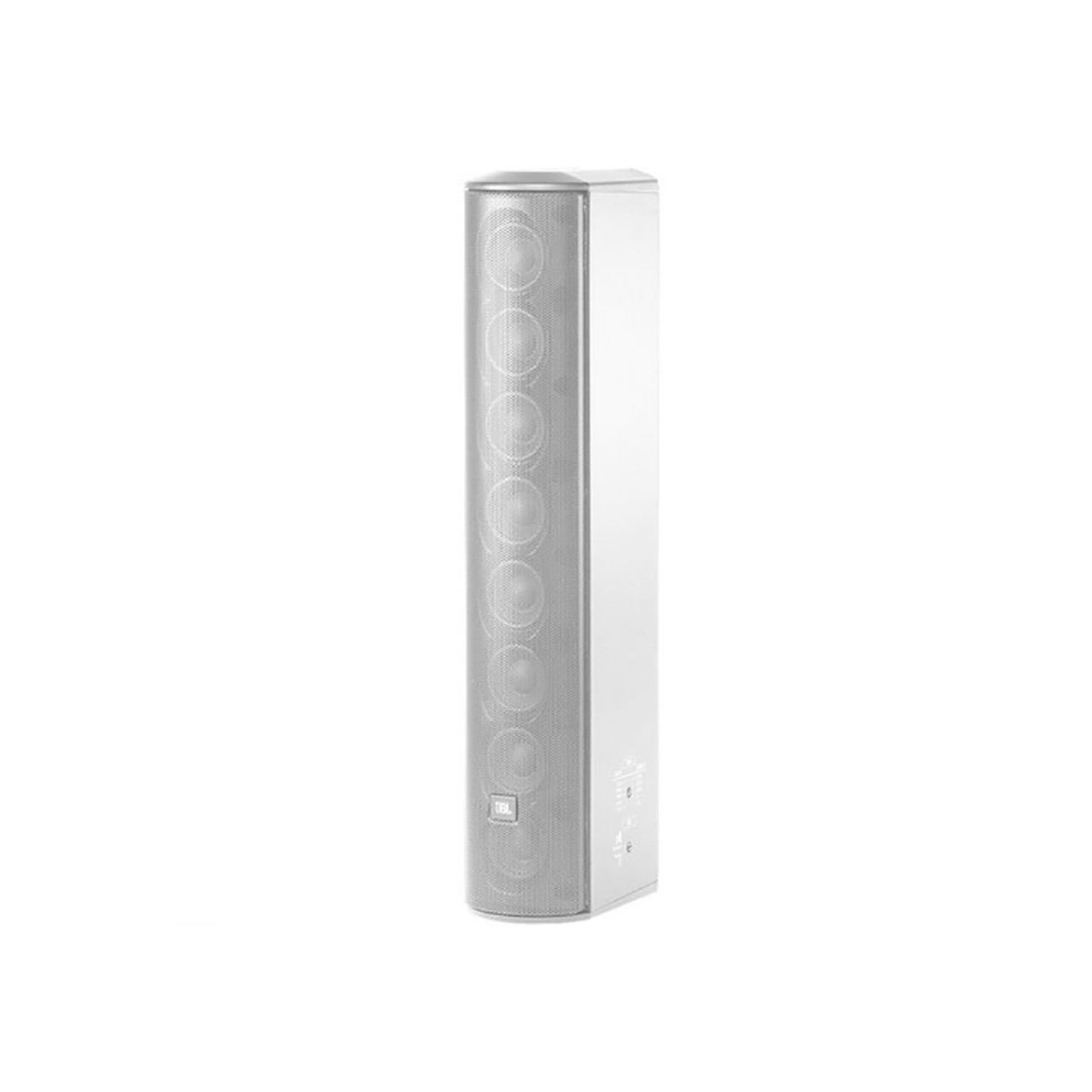

The JBL CBT 50LA Line Array Loudspeaker (White), with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
JBL CBT 50LA Line Array Loudspeaker (White) Features:
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear low subs and soaring vocals with a frequency range of sound from 80 Hz-20 kHz
- Uproar the bass as loud as you want with 150 W RMS power without any blaring
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 2″ full range driver size for optimal and reliable sound output and playback efficiency
- Delivers exceptional sound with 20 kHz maximum frequency response
- 93 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- Flush Mount form factor allows hassle-free and easy usage with increased efficiency
- UV Resistant durability for maximum efficiency and longevity
- 20.8″ height for maximum coverage efficiency and feasible operation
JBL CBT 50LA Line Array Loudspeaker (White) Specifications:
- Components Eight 50 mm
- (2 in) Full-Range
- Frequency Range (-10 dB) 80 Hz-20 kHz
- Coverage Pattern Vertical 20° (1.5 kHz-16 kHz, ±10°)
- Horizontal 150° (ave, 1 kHz-4 kHz, ±20°)
- Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz-14 kHz)
- 89 dB (music mode, 300 Hz-18 kHz)
- Nominal Impedance 8 ohms
- Power Capacity
- (8 ohm setting) 150W (600W peak), 2 hrs
- 100 W (400W peak), 100 hrs
- Max SPL Speech mode: 115 dB cont ave (121 peak)
- Music mode: 111 dB cont ave (117 peak)
- 70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 😯 thru, via switch
- Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
- Outdoor Capability IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
- Colors Black or White (-WH)
- Insert Points Ten M6 insert points on back panel.
- Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x51 mm (4.25 x2.0 in) pattern for OmniMountr 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Dimensions (H xW xD) 528 x99 x153 mm
- (20.8 x3.9 x6.0 in)
- Net Weight 4.1 kg (9.0 lb)
JBL CBT 50LA Line Array Loudspeaker (White) Includes:
- Constant Beamwidth Technology Line Array Loudspeaker (White) -Each
- Swivel (pan)/tilt wall bracket
