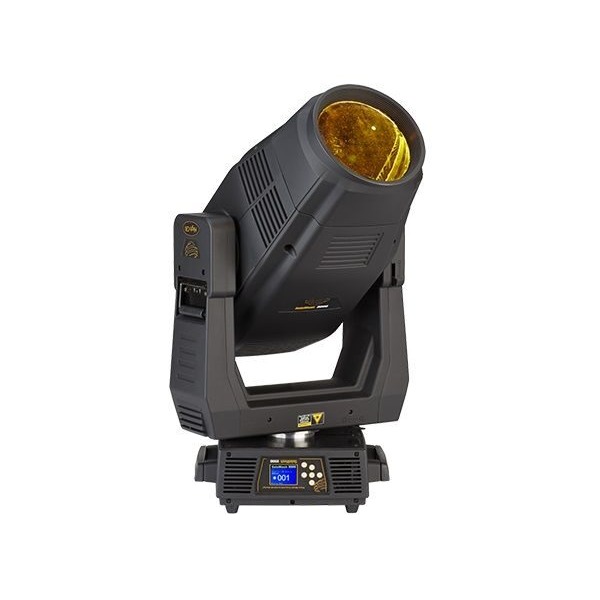

The High End Systems SolaWash 2000 600 Watt LED Moving Head Wash from DJDeals.com.
Built for the largest lighting applications, the SolaWash 2000 luminaire is truly a wash light with no compromises. The fixture uses a 600W Bright White LED source, multiple color and effects systems, along with an incredibly versatile zoom range, resulting in revolutionary new lighting looks.
Product Features
- White LED Engine
- 600W Ultra-Bright engine producing 20,000 field lumens or High CRI Engines featuring incredibly accurate color rendering in 6500k or 3200k
- Full framing shutter system
- CMY / CTO – Linear color mixing system
- Dual color wheels one with tweleve total dichroic color chips
- Dual Linear Frost systems for light and heavy frost
- Iris
- Sharp edge focus throughout 5° – 50° zoom range
- Patented Lens Defogge
Product Specifications
Source
- Engine Options: Ultra-Bright white engine
- LED Details: 600 W
- Max Lumens on the Wall: 26,000 Lumens
- LPW: 43 Lumens per Watt
- LED Life: 50,000 hours
- Native CCT: 7400 K
Color
- Color Mixing: Cyan, Magenta, Yellow, CTO-Linear
- Color Temperature: Variable down to 2800 K
- Color Wheel: Six (6) Fixed dichroic chips plus open, Six (6) Replaceable dichroic chips plus open
Optical
- Beam angle range: 5°-50°
- Gate size: 30 mm
- Aperture size: 120 mm
- Frost: Dual flag system with light and heavy frost medium
- Flicker Control/Hz Range: 2.4 kHz or 16 kHz
- Iris: 16 blade Iris
Control
- Input method: DMX (5-pin) or Ethernet
- Protocols: DMX via RS-485
- Modes (Footprint): One (36)
- RDM functions: Yes
- UI type: Full color graphical UI with 6 button navigational control
- Local control: Yes
- Dimming performance: 16-Bit, DMX Controlled
Electrical
- Voltage range: 100-240V 50-60Hz
- Input method: powerCON 20A
- Max Wattage: 800 W
- Max Current: 8.6 A
Thermal
- Ambient operating temp: -0-45° C (32-113° F)
- Fan: Four Modes: Three Modes: Normal, Continuous, and Studio
- Stationary dBA/Full intensity: Standard Fan Mode – 38 dBA
Physical
- Pan and Tilt Range: 540 Pan, 265 Tilt
- Max Pan/Tilt Speed: Pan – 3.66 sec for 360°, Tilt – 2.6 sec for 252°
- Materials: Steel and aluminum frame with molded plastic covers
- Color options: Black, White by request
- Mounting options: Any Orientation
- IP rating: IP20
- Weight: 92lb / 42kg
- Included accessories: powerCON 20 A to bare end fixture tail, Two (2) clamp Brackets, Safety Cable
Warranty
- Fixture Warranty: Five (5) years for light engine, Two (2) years for complete fixture
Safety
- Minimum distance to illuminated surface: 1.5 m
- Minimum distance from fixture head to combustible materials: 0.5 m
