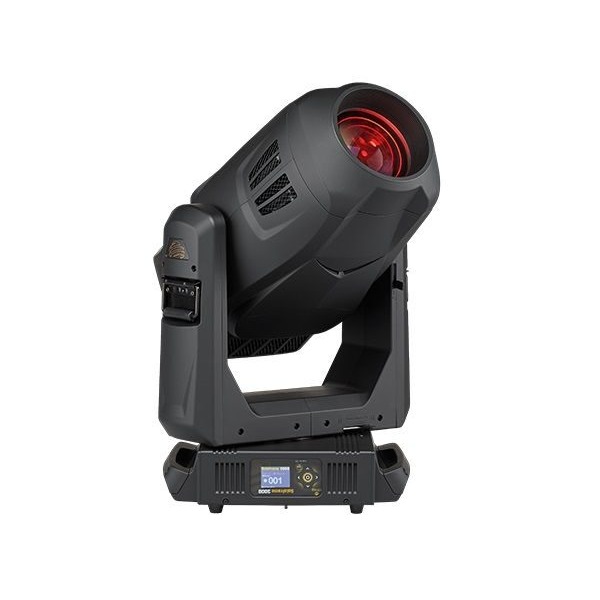

Meet SolaFrame 3000, the new flagship luminaire in High End Systems’ Sola Series range. The SolaFrame 3000 combines unprecedented light output from its 1000 watt Ultra-Bright White LED engine with a limitless palette of effects and color possibilities. Boasting more than 37,000 lumen output, the SolaFrame 3000 is the first automated LED luminaire to rival and even exceed the output of the most powerful arc lamp fixtures. The fixture is also available in a Hi-Fidelity version with incredibly accurate color rendering.
Product Features
- White LED Engine
- 1000 W Ultra-Brite engine producing 37,000 field lumens or High Fidelity Engine with incredibly accurate color rendering
- CMY / CTO – Linear color mixing system
- Six + open position replaceable Color Wheel
- Framing system for total control of beam shaping
- Iris, Light Frost, Prism and 7°-55° Zoom
- Seven position plus open interchangeable Gobo Wheel
- Seven position plus open Rotating Gobo Wheel
- Continuously Variable Animation Wheel
- TM30 Filter Boosts Ultra-Brite Engine to 85+ CRI
- Patented Lens Defogge
Product Specifications
Source
- Engine Options: Ultra-Bright white engine
- LED Details: 1000 W
- Max Lumens on the Wall: 37,000 Lumens
- LPW: 37 Lumens per Watt
- LED Life: 50,000 hours
- Native CCT: 7000 K
Color
- Color Mixing: Cyan, Magenta, Yellow, CTO-Linear
- Color Temperature: Variable down to 2800 K
- Color Wheel: Six (6) interchangeable dichroic chips plus open, includes TM-30 Filter standard
Optical
- Beam angle range: 7°-55°
- Gate size: 30 mm
- Aperture size: 120 mm
- Pattern Projection: Rotating and indexable wheel with seven (7) patterns plus open, Fixed wheel with seven (7) patterns plus open
- Prism: Three-facet rotating and indexable prism, Additional accessories available
- Frost: Light frost, Additional accessories availalble
- Flicker control/Hz range: 2.4 khz or 16 khz
- Animation: Rotating animation wheel
- Iris: 16 Blade Iris
Control
- Input method: DMX (5-pin) or Ethernet
- Protocols: DMX via RS-485, ArtNet or sACN via Ethernet
- Modes (Footprint): One (49)
- RDM functions: Yes
- UI type: Full color graphical UI with 6 button navigational control
- Local control: Yes
- Dimming performance: 16-Bit, DMX Controlled
Electrical
- Voltage range: 100-240V 50-60Hz
- Input method: powerCON TRUE1
- Wattage (Standard/+Defogger): 1,341 W / 1504 W
- Current (Max/Standard): 14.7 A at 100 V / 5.5 A at 240 V
Thermal
- Ambient operating temp: -10-45° C (14-113° F)
- Fan: Four Modes: Standard, Studio, Continuous, and Studio Continuous
- Stationary dBA/Full intensity: Standard – 42 dBA, Studio – 38 dBA, Continuous – 44 dBA, Studio Continuous – 41 dBA
Physical
- Pan and Tilt Range: 540 Pan, 265 Tilt
- Max Pan/Tilt Speed: 360° in 2.65 s / 180° in 1.58 s
- Materials: Steel and aluminum frame with molded plastic covers
- Color options: Black, White by request
- Mounting options: Any Orientation
- IP rating: IP-20
- Weight: 48 kg (106 lb)
- Included accessories: powerCON TRUE1 to bare end fixture tail, Two (2) clamp Brackets, Safety Cable
Warranty
- Fixture Warranty: Five (5) years for light engine, Two (2) years for complete fixture
Regulatory & Compliance
- Approved Regulatory Standards: Conforms to UL STD.1573, Certified to CSA STD. C22.2 No: 155, CE, EAC
Safety
- Minimum distance to illuminated surface: 2.0 m
- Minimum distance from fixture head to combustible materials: 0.1 m
