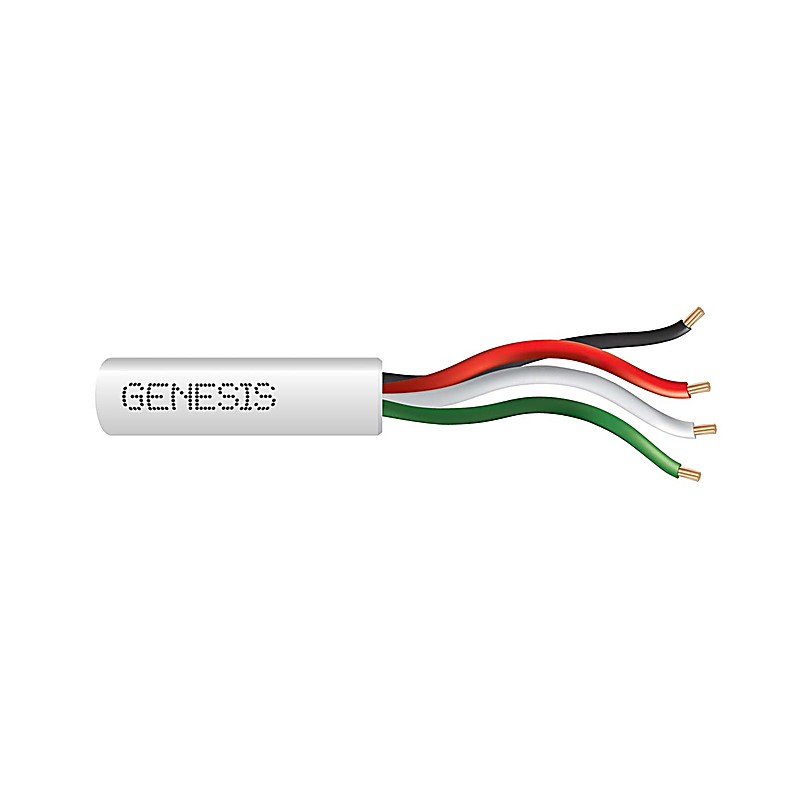

The Genesis 22/4 Stranded Riser Unshielded 1000′ Pull Box White (21041101) from DJDeals.com is a 22 AWG 4-conductor stranded bare copper CMR-rated security and control cable for in-wall riser installations.
Genesis 22/4 Stranded Riser Unshielded 1000′ Pull Box White (21041101) Features:
- CMR Riser Rating. UL-listed CMR and CL2 rated for vertical in-wall runs between floors, per NEC Article 725 for power-limited circuits.
- 22 AWG Stranded Bare Copper. Four stranded conductors for flexibility during routing through walls, conduit, and junction boxes.
- Unshielded Construction. Economical unshielded design for standard security, alarm, access control, and intercom wiring where EMI shielding is not required.
- Color-Coded Conductors. Multi-color conductors ease identification and termination at panels, keypads, and control boards.
- PVC Jacket. Flexible PVC jacket resists abrasion and is compatible with standard low-voltage staples and cable clips.
- Sequential Footage Markings. Footage marks on jacket allow accurate measurement and cutting in the field.
- 1000-Foot Pull Box. White jacket; large-capacity pull box for commercial security and AV installations requiring long cable runs.
Genesis 22/4 Stranded Riser Unshielded 1000′ Pull Box White (21041101) Specifications:
- Part Number: 21041101
- Conductor: 22 AWG stranded bare copper, 4 conductors
- Shield: None (unshielded)
- Jacket: PVC, white
- Operating Voltage: 300V maximum
- Temperature Rating: -4 to 140°F (-20 to 60°C)
- Listing: CMR, CL2, C(UL), RoHS
- Flame Rating: UL 1666 riser
- Length: 1000 ft (304.8 m), pull box
Genesis 22/4 Stranded Riser Unshielded 1000′ Pull Box White (21041101) Documents:
No manufacturer documentation is available for this product.
